Plastic Enclosure for CoreStation CS40 with 110VAC Power Supply

• Compatible with CS40 panel
• Compatible with OM-120 module (2 per cabinet)
• Compatible with IM-120 module (2 per cabinet)
• Compatible with PL712 and PL912 batteries

• Input voltage: 110 - 240 Vac
• Frequency: 50/60 Hz
• Voltage output: 13.8 Vdc
• Nominal current: 11 A
• Nominal power: 160 W
• Material: ABS plastic
• Operating temperature: 0°C ~ 50°C
• LED Indicator: Battery and AC Power
• Dimension: 340mm x 500mm x 80mm
• Weight: 2.6 Kg
• Battery space: 65 mm x 151 mm x 97.5 mm

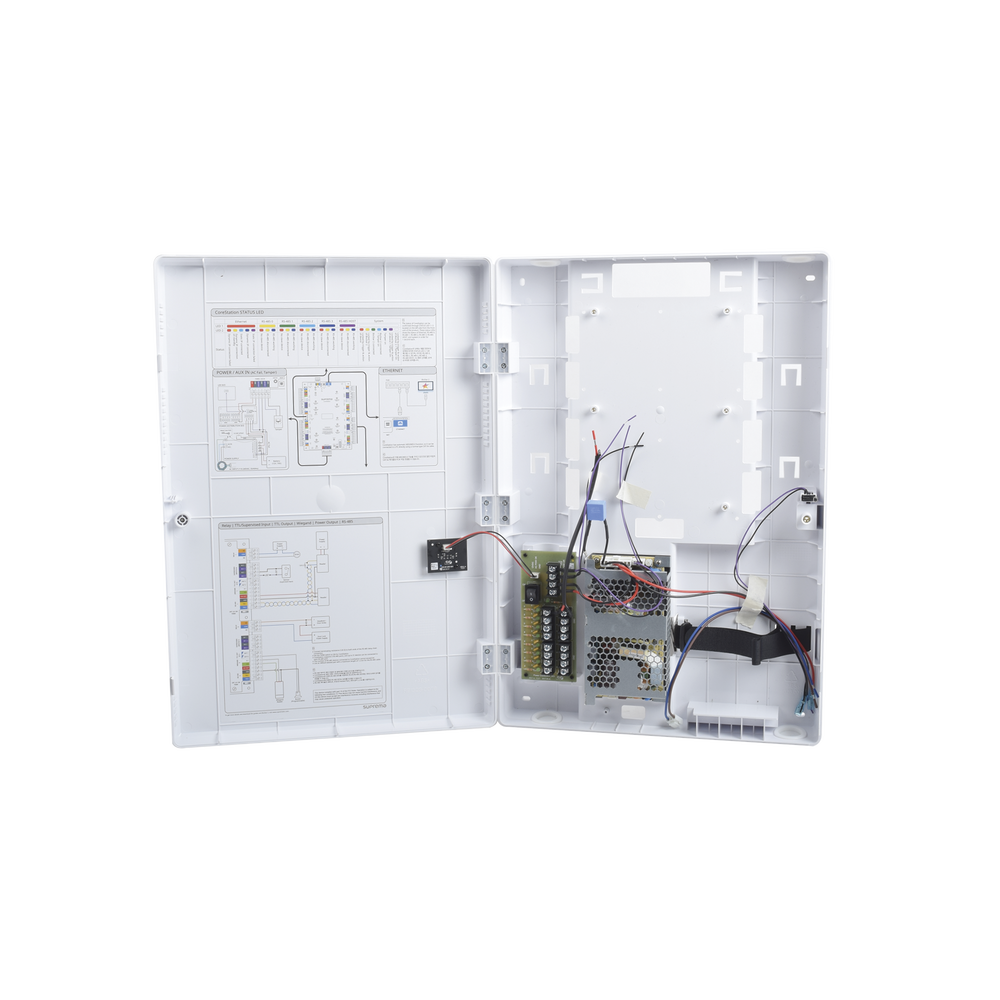

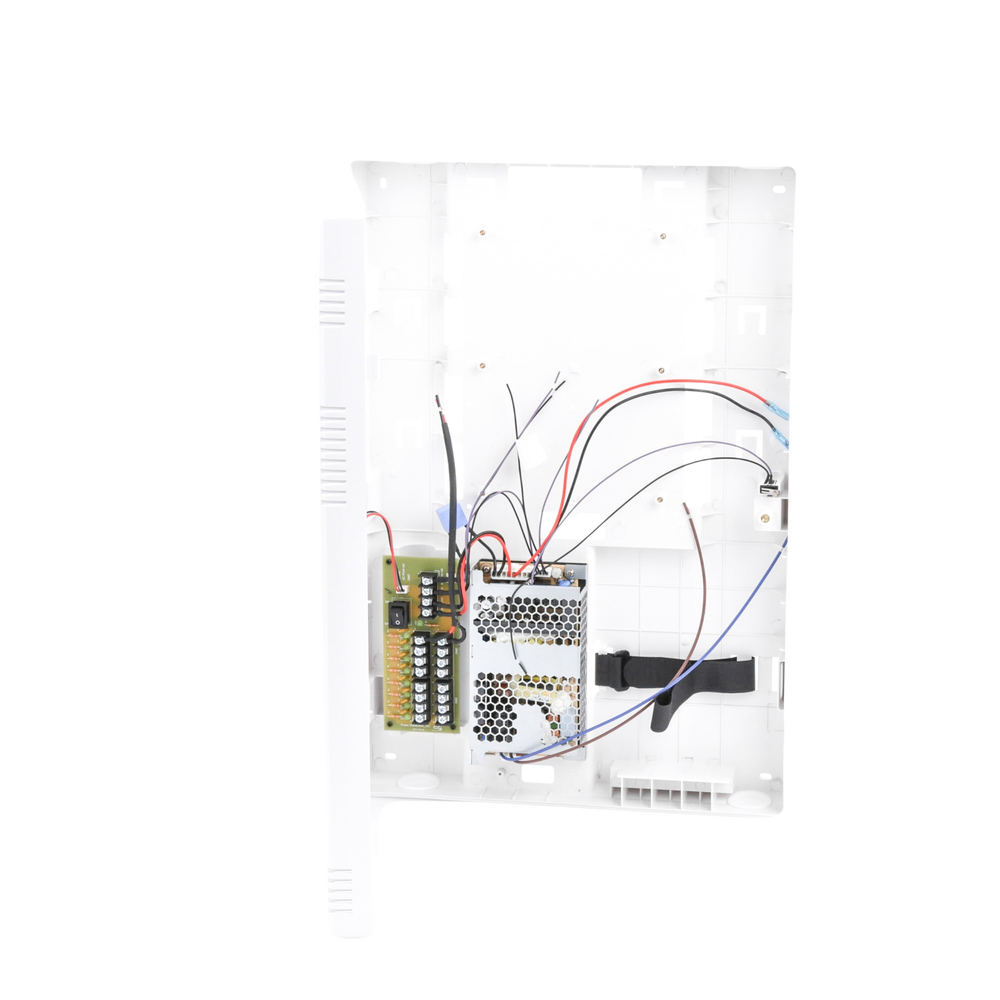

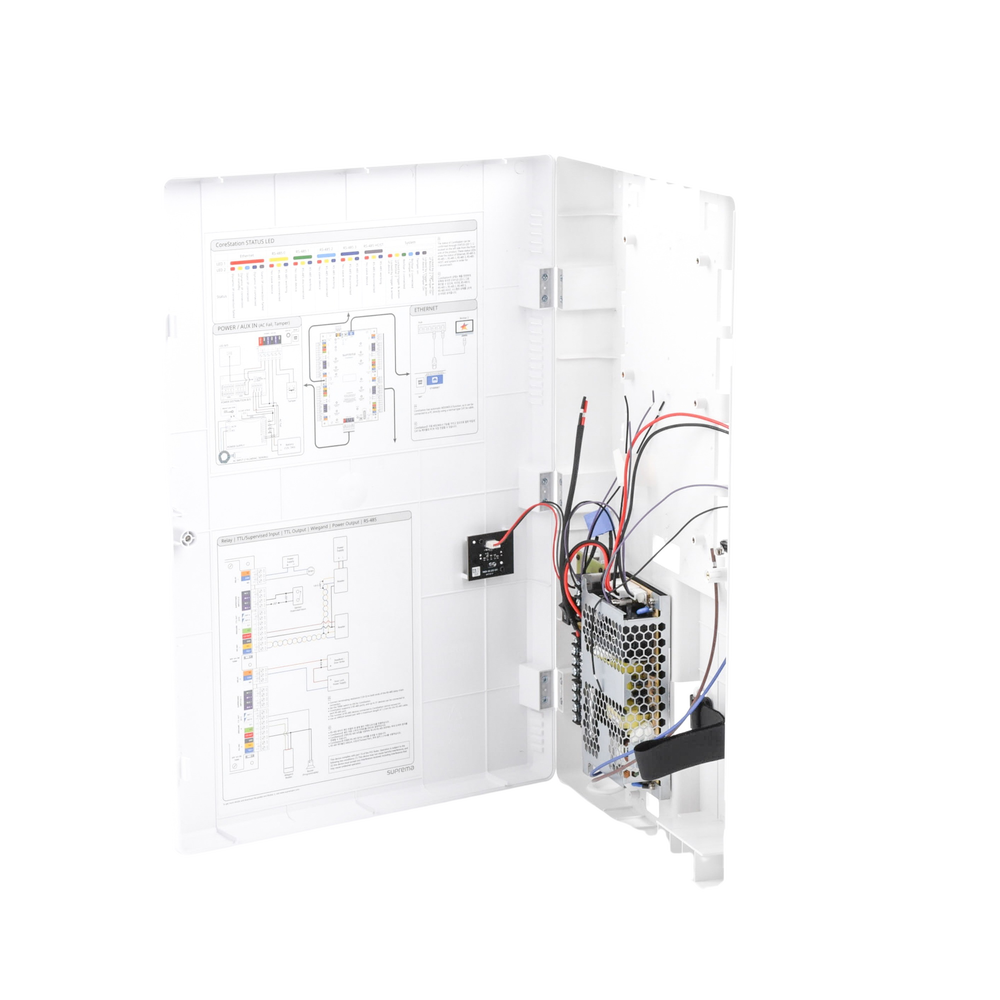

The Enclosure is a case specifically designed for the CoreStation. Featuring a backup battery, safety switch, 8-channel power distribution board, and power status LED, the Enclosure offers highly reliable performance.
