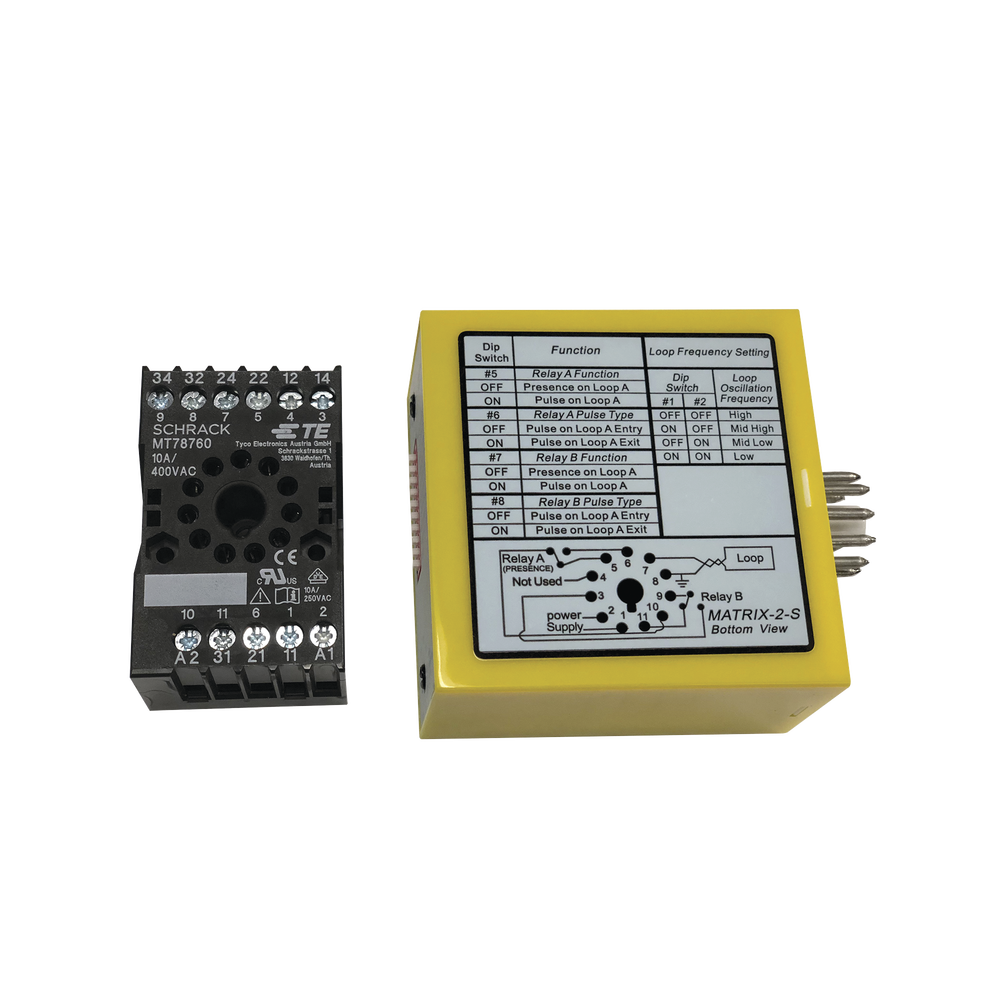

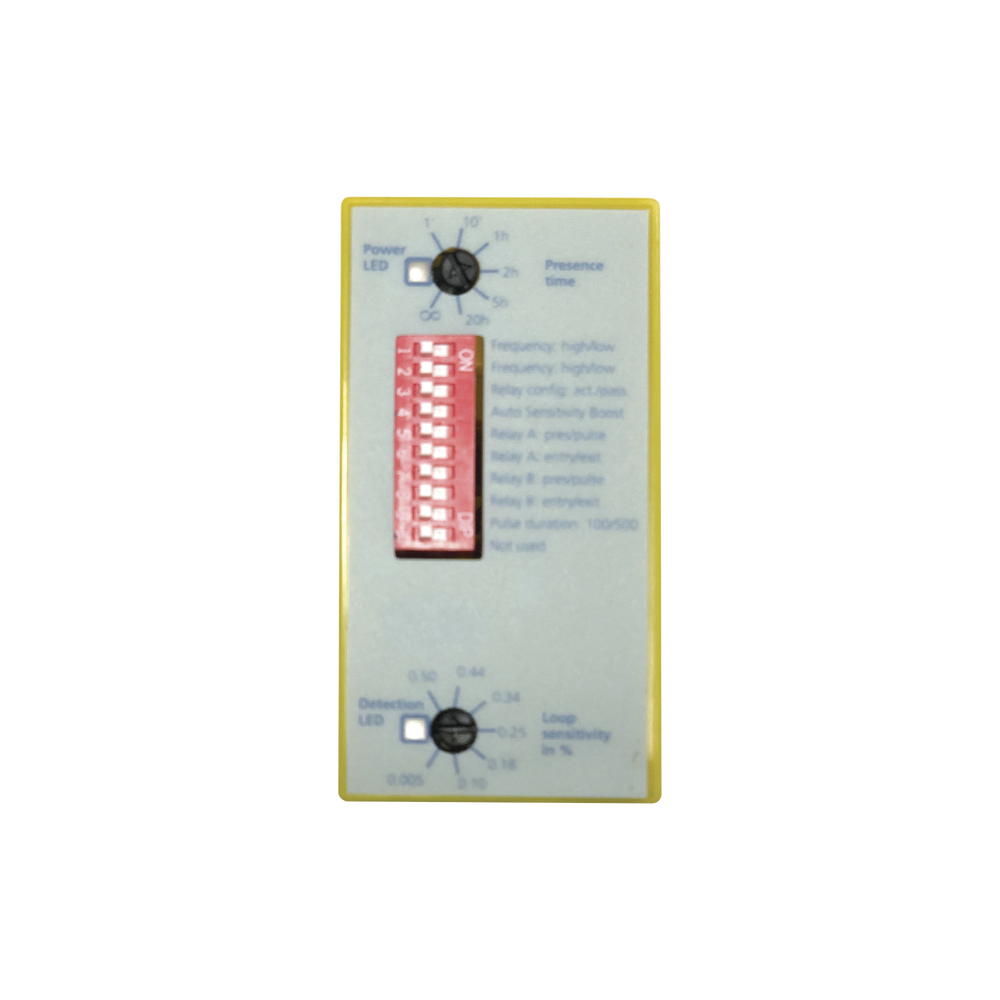

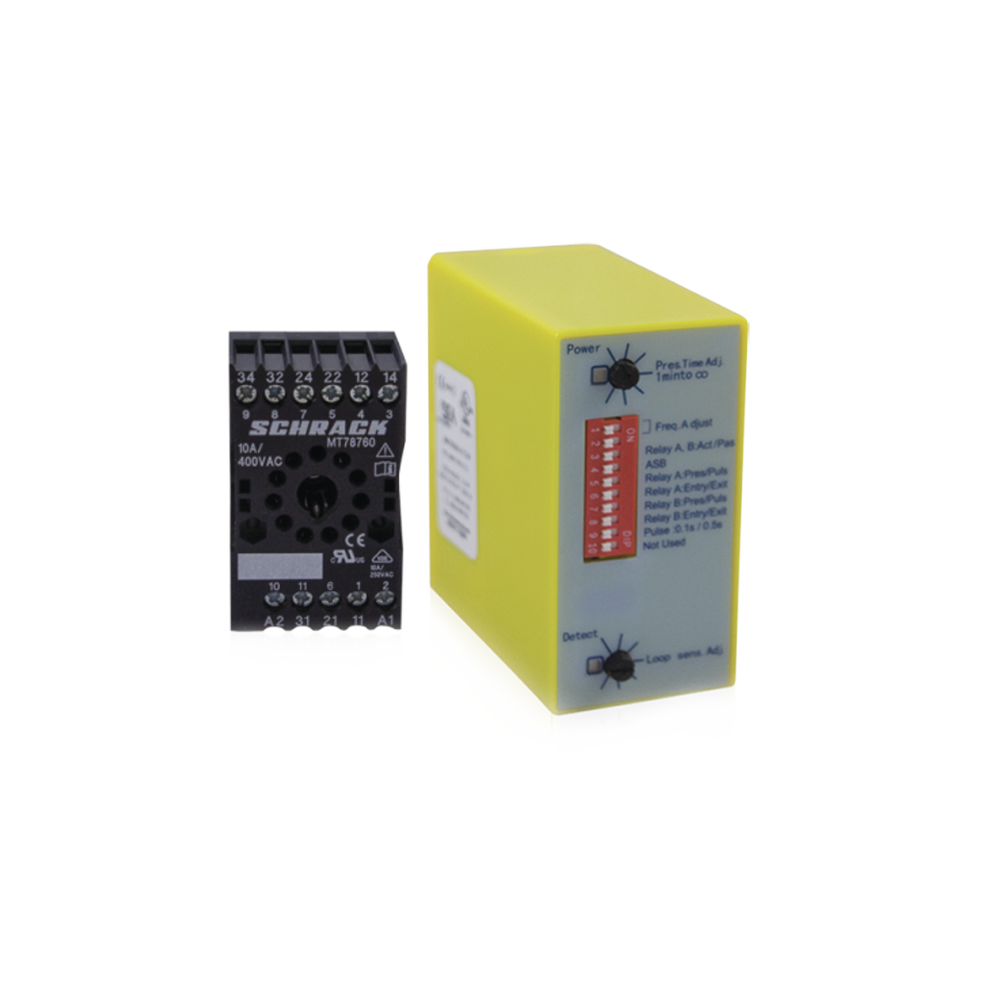

Single-Channel Mass Sensor / Ideal for Vehicle Barrier Automation
Main features:
- Single-channel sensor
- Status indicator LEDs
- Ideal for automating vehicle barriers.
Physical and Electrical Characteristics:
- 12-24 VAC/VDC power supply
- Maximum consumption of 2.5W
- Dimensions 76 x 38 x 76 mm
Highlighted Features:
- Presence detection time from 1 to infinity.
- IP40 protection rating
- Operating temperature -30 to 70°C.
Single-channel mass sensor
IF USED AS A CLOSING PULSE, ALSO USE PHOTOCELLS FOR PROTECTION
Characteristics:
- Inductive circuit technology
- Presence detection mode
- NO/NC relay output
- Green LED indicator for power status
- Red LED indicator for detection status
- See the connection diagram HERE
Compatible with magnetic ties (Not included):
- SYSLM4 4-meter magnetic loop
- SYSLM6 6-meter magnetic loop
- SYSLM8 8-meter magnetic loop
Compatibility with barriers
- CAME GARD and G3750 barrier series
- XB AccessPRO barrier series
The Matrix mass sensor is the ideal solution for parking control with barriers, sliding gates, vehicle access control, and industrial control systems.
Matrix is a high-performance, single-channel vehicle detector housed in a compact housing.
Ideal for automating exits in sliding gates and closing vehicle barriers.
36 in stock
MODELO: 10-MATRIX-IIS-1224
