Mass sensor for two-channel barriers / Ideal for vehicle access

Name: Mass sensor for two-channel barriers / Ideal for vehicle access
Brand: BEA
SKU: 10-MATRIX-D-1224
Price: 408772.00 COP
Availability: InStock

$408.772 COP

~~$447.095 COP~~ $408.772 COP

Sale Sold out

Shipping calculated at checkout.

Quantity

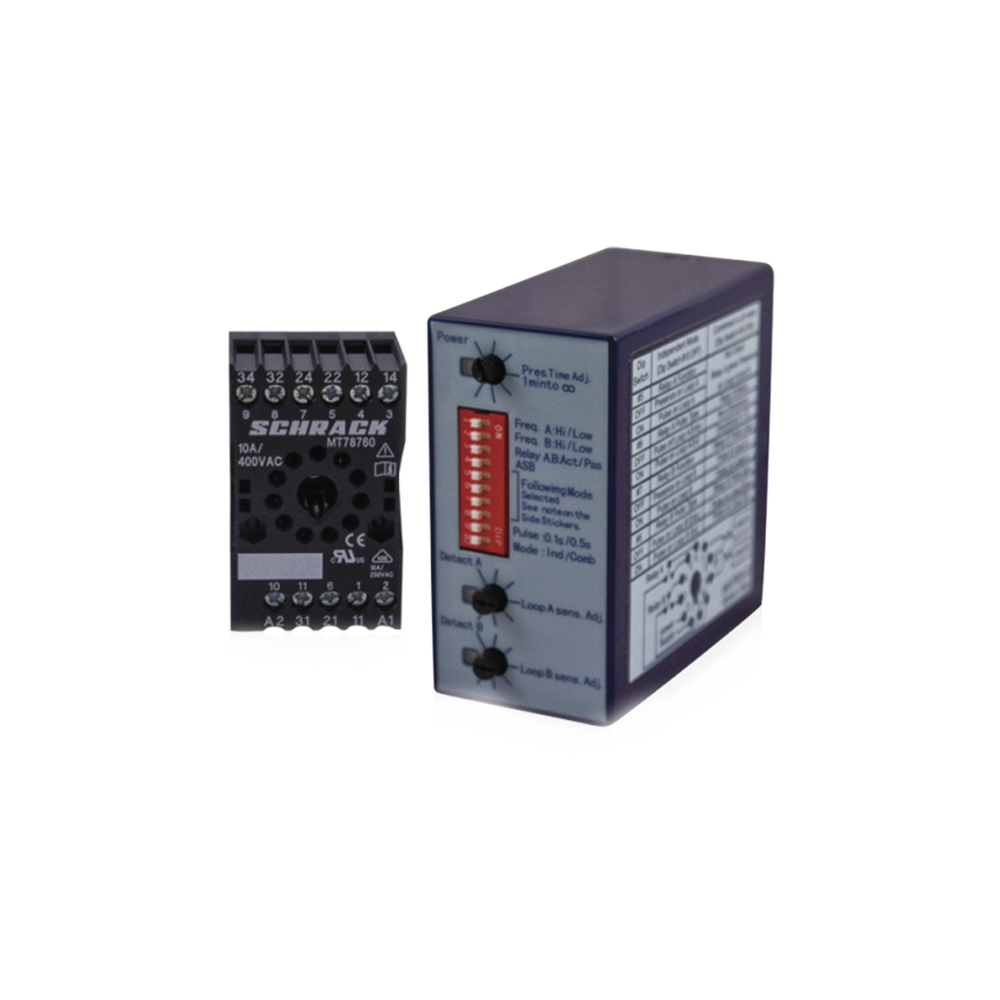

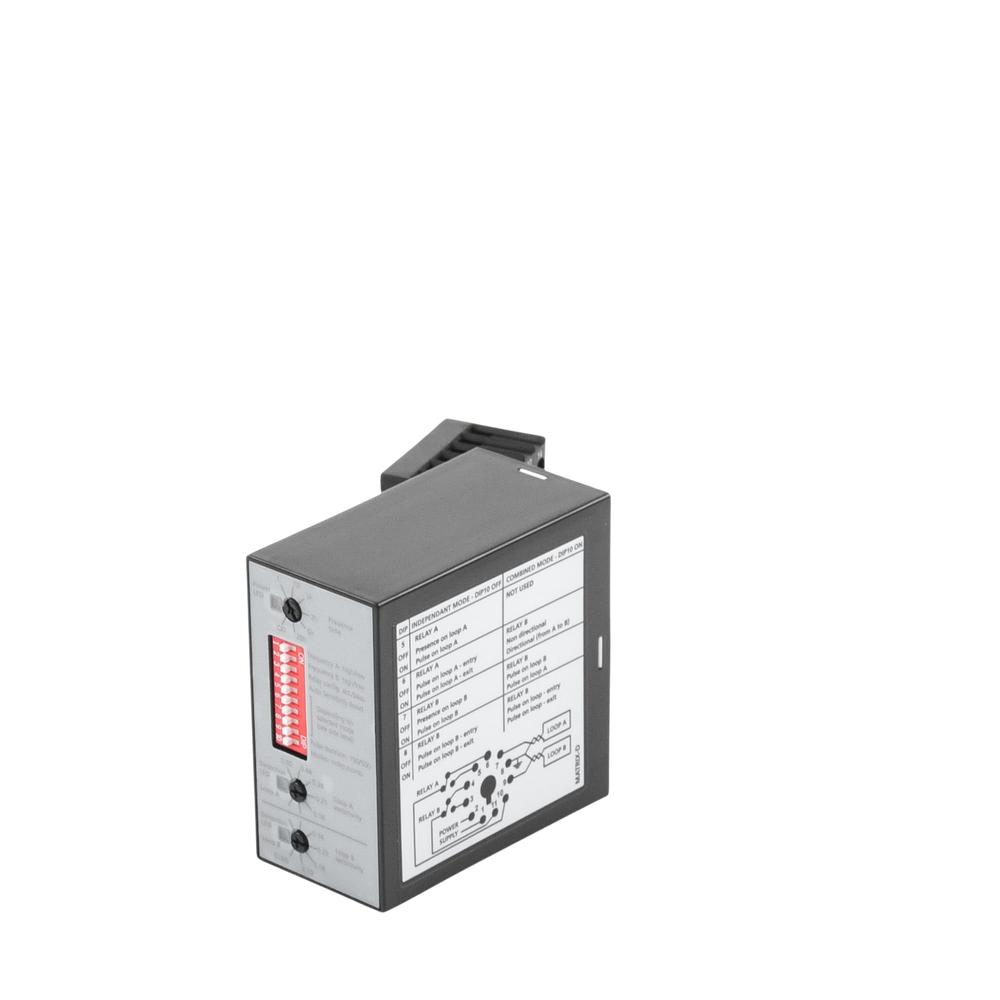

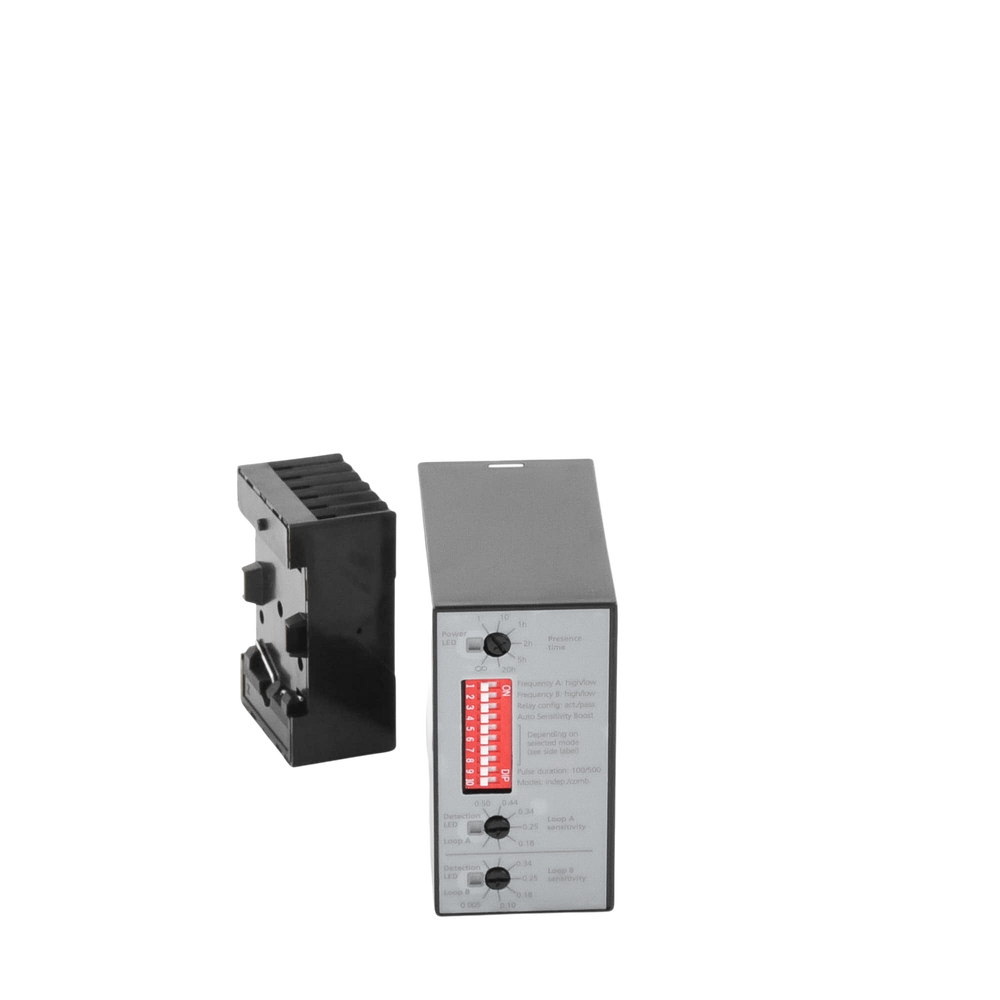

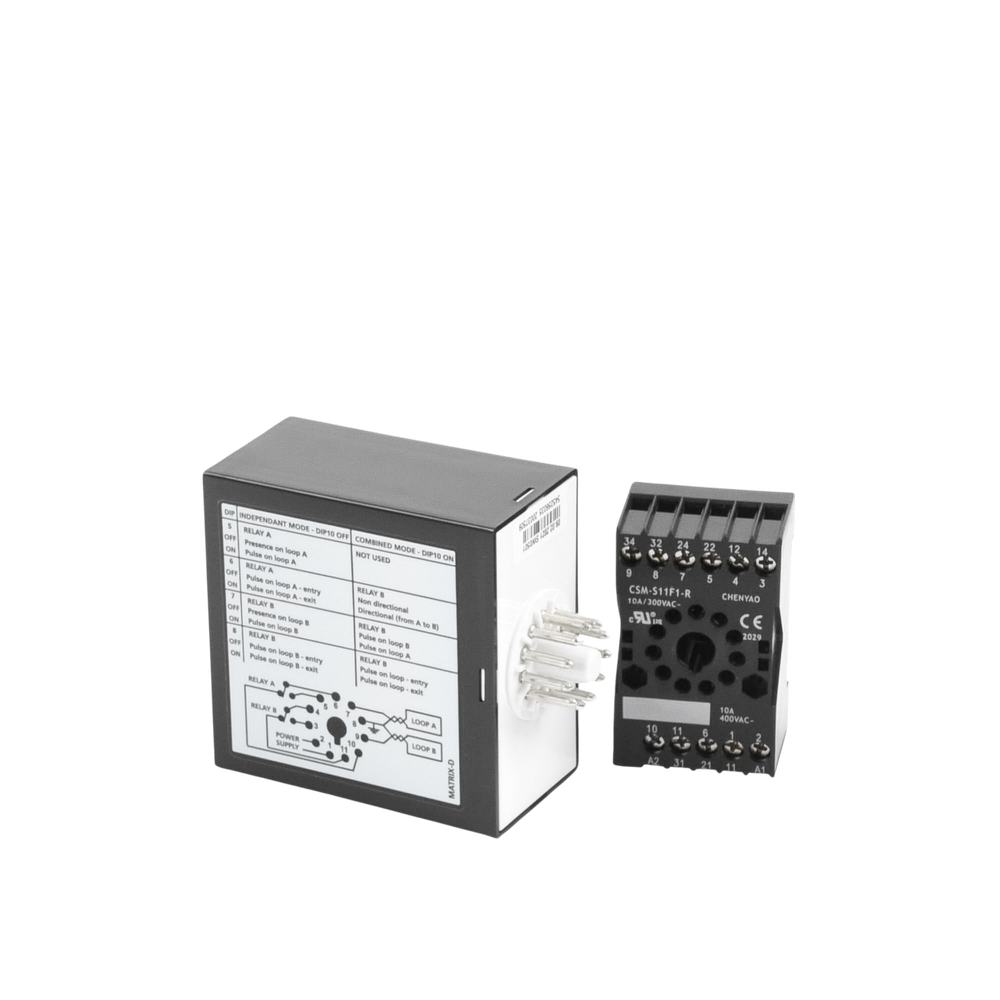

Mass sensor for two-channel barriers / Ideal for vehicle access

Main features:

Dual-channel mass sensor
Status indicator LEDs
Ideal for automating vehicle barriers.

Physical and Electrical Characteristics:

12-24 VAC/VDC power supply
Maximum consumption of 2.5W
Dimensions 76 x 38 x 76 mm

Highlighted Features:

Presence detection time from 1 to infinity.
IP40 protection rating
Operating temperature -30 to 70°C.

Single-channel mass sensor

Characteristics:

Inductive circuit technology
Presence detection mode
NO/NC relay output
Green LED indicator for power status
Red LED indicator for detection status
Check the connection diagram HERE

Compatible with magnetic ties (Not included):

SYSLM4 4-meter magnetic loop
SYSLM6 6-meter magnetic loop
SYSLM8 8-meter magnetic loop

If it is to be used as a closing device, safety photocells must be placed in a suitable position in its automation.

Compatibility with barriers

CAME GARD and G3750 barrier series
XB AccessPRO barrier series

The Matrix mass sensor is the ideal solution for parking control with barriers, sliding gates, vehicle access control, and industrial control systems.

Matrix is a high-performance, single-channel vehicle detector housed in a compact housing.

Ideal for exit automation in sliding gates and closing vehicle barriers.
