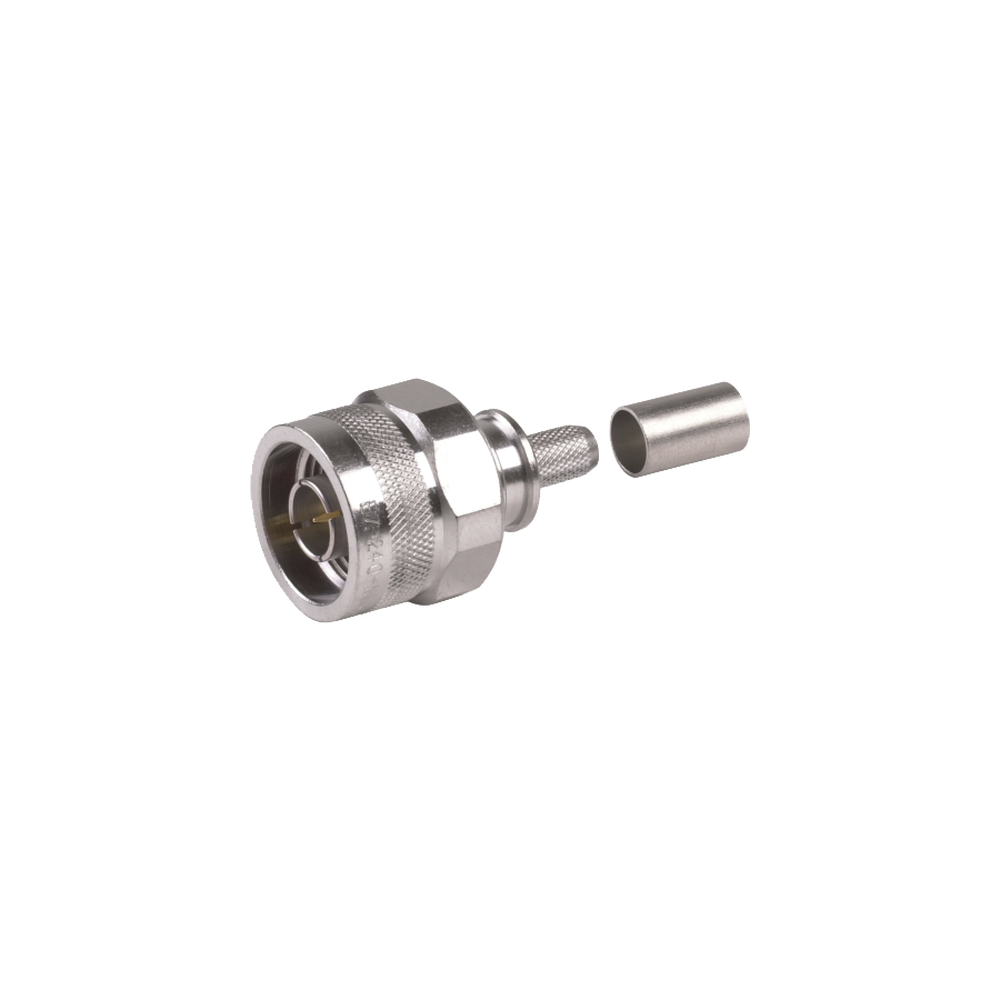

N Male Foldable Connector with Captive Pin for RG8X, LMR240, 9258 cables.

N Male Foldable Connector with Captive Pin for RG8X, LMR240, 9258 cables.

Times Microwave's EZ Series N-Type Female connector is recognized for its ease of installation and excellent performance thanks to its non-solderable captive pin.

Characteristics

• Connector Type: N Male
• Special for Cable: RG-8/X, Belden 9258 and Times LMR240.
• Assembly Mode: Foldable.
• Body: Corrosion resistant C3604 brass.
• Central Contact: Bronze.
• Dielectric Insulator: Teflon MIL-P-19468
• Impedance: 50 Ohms
• Maximum VSWR: 1.3 (0-6 GHz)

Easy Installation
