EMR Multicoupler and Preselector, 300-512 MHz, 8 Channels, 3-10 MHz, N/BNC Females.

EMR Multicoupler and Preselector, 300-512 MHz, 8 Channels, 3-10 MHz, N/BNC Females.

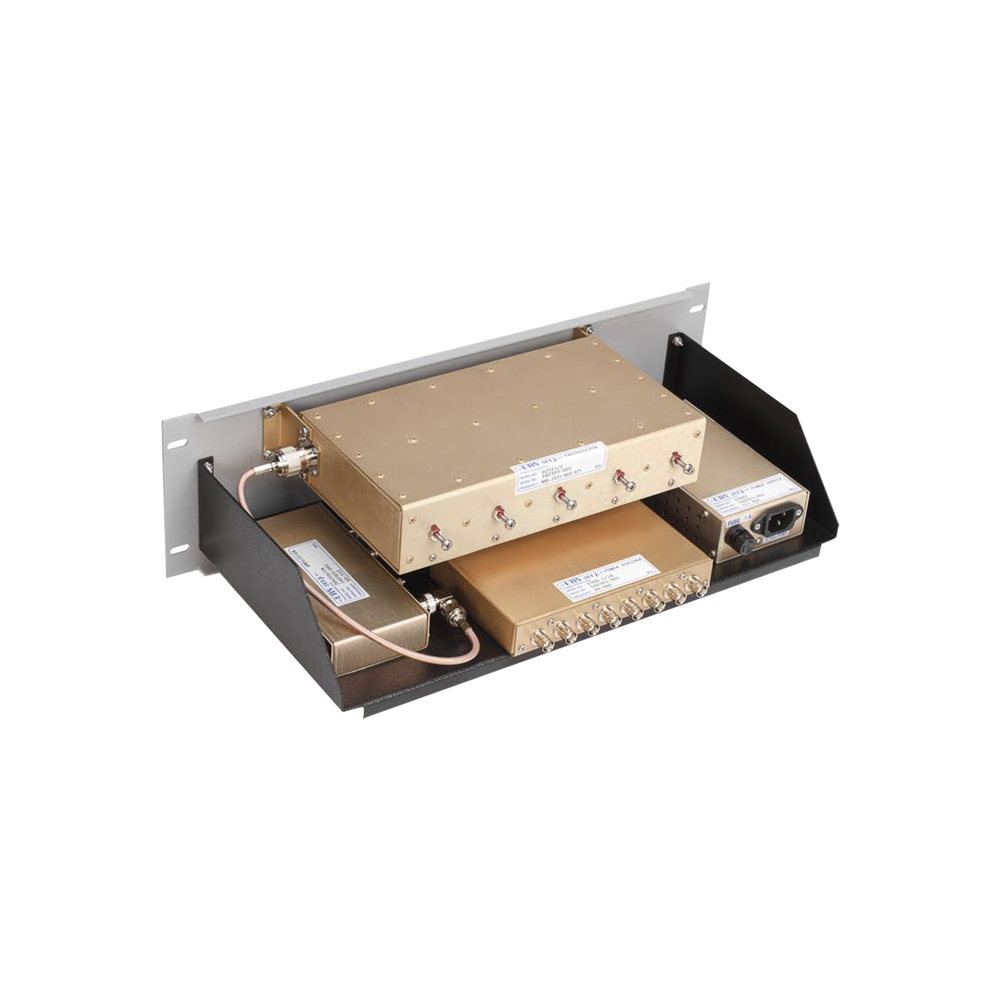

Multicoupler with Preselector 300-512 MHz, for 19 in. Rack.

• Frequency Range: 300-512 MHz.
• Number of Channels: 5-8.
• Bandwidth: 3-10 MHz.
• Number of Resonators: 5.
• Rx-Rx isolation: +23 dB.
• System Voltage: 115 Vac.
• Amplifier Gain: +30 dB.
• Amplifier Type: Bipolar.
• Amplifier Noise Figure: 3.0 dB.
• 3rd Order Amplifier IP: +42 dBm.
• Compression at 1 dB Amplifier: +21 dBm.
• Amplifier Bias Voltage: 13.6 Vdc.
• Amplifier Consumption Current: 200 mA.
• System NF (Typical): 5 dB.
• Nominal Impedance: 50 Ohm.
• Max VSWR @ Resonance: 1.25:1
• Temperature Range: -30ºC to +60ºC.
• Dimensions (Height x Width x Depth): 134 x 483 x 254 mm.
• Connectors (Input/Output): N/BNC Females.
• Weight for Packaging: 5.4 kg.

* Ask for Delivery Time.
