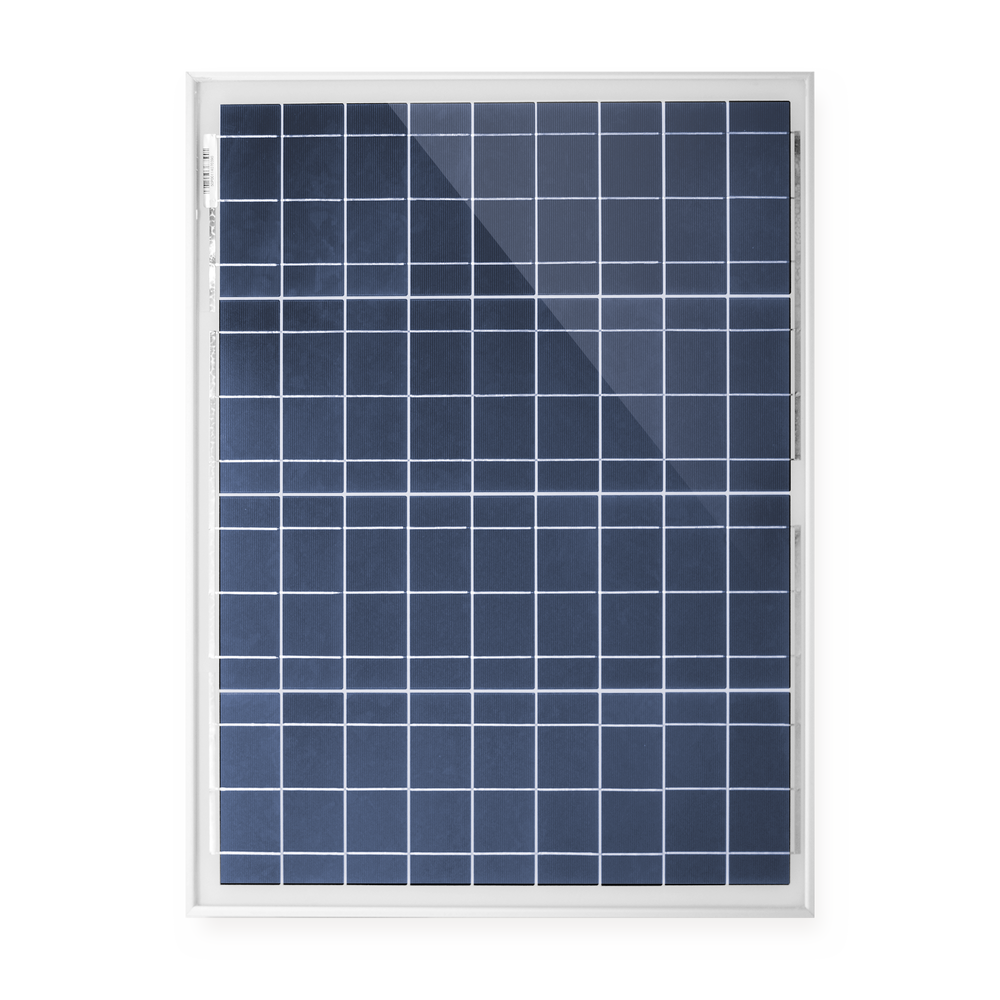

Polycrystalline Photovoltaic Module 50 W 12 Vcd

Polycrystalline Photovoltaic Module 50 W 12 Vcd

High Quality Cells

Encapsulated in transparent EVA and 3.2 mm tempered glass. The back of the module is protected with a UV-resistant TEDLAR sheet. The laminates are mounted on an anodized aluminum frame, ensuring maximum protection.

Applications:
• Radio communication repeater stations.
• Electrification in rural areas.
• Emergency communication systems.
• Supplying medical equipment in rural areas.
• Water pumping systems.
• Air traffic obstruction lights.
• Cathodic protection systems.
• Railway track signaling.

Warranty
4-year warranty against manufacturing defects and 40-year useful life.

Technical Specifications
Maximum power 50 Watts
Voltage 18.59 V
Amperage 2.69 A
Open circuit voltage (Voc) 22.60 V
Short circuit current (Isc) 2.95 A
Dimensions 540 x 670 x 30 mm
Weight 4.5 kg
Ambient temperature -45 to 85 ºC
Maximum system voltage 1000 V
Note: Electrical specifications are listed under a
irradiance of 800 W/ m2 and temperature of 25 ºC.
