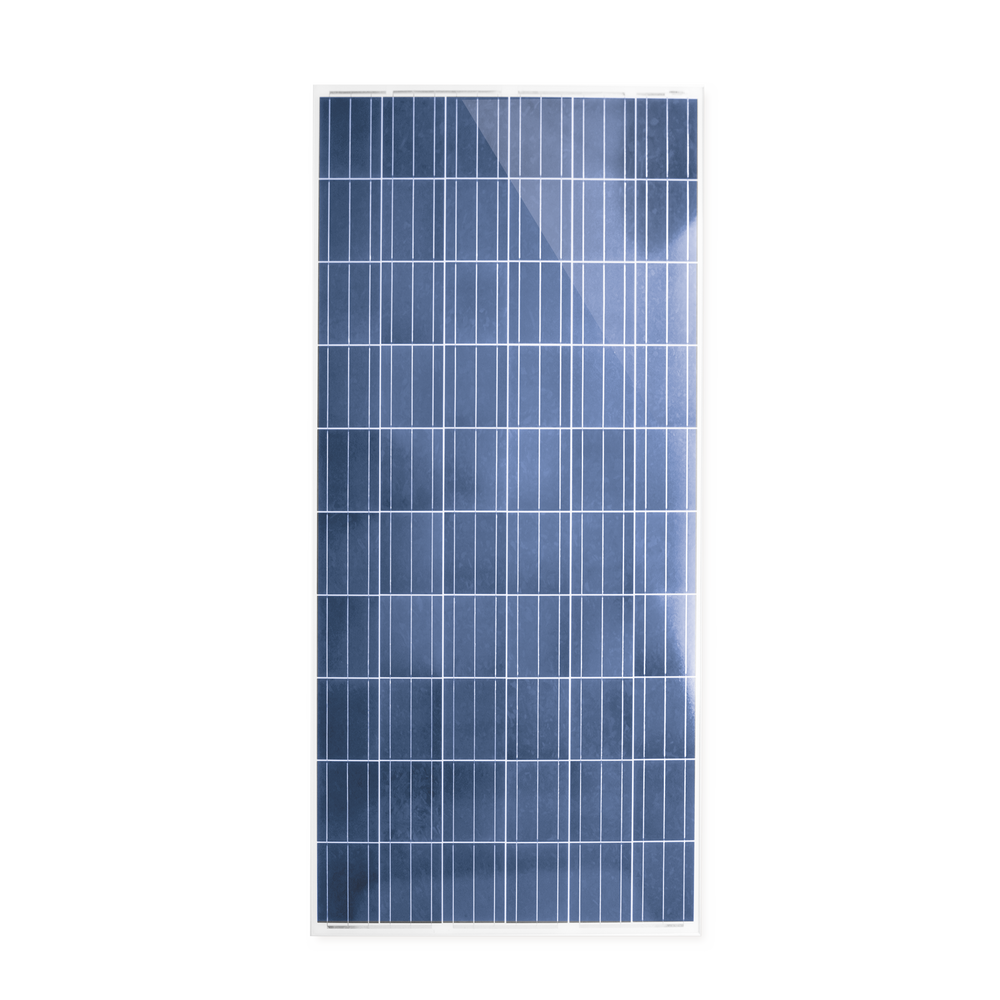

Polycrystalline Photovoltaic Module 125 W 12 Vcd

Polycrystalline Photovoltaic Module 125 W 12 Vcd

High Quality Cells
Encapsulated in transparent EVA and 3.2 mm tempered glass. The back of the module is protected with a UV-resistant TEDLAR sheet. The laminates are mounted on an anodized aluminum frame, ensuring maximum protection.

Applications:
• Radio communication repeater stations.
• Electrification in rural areas.
• For interconnection to the network.
• Emergency communication systems.
• Supply of medical equipment in rural areas.
• Water pumping systems.
• Obstruction lights for air traffic.
• Cathodic protection systems.
• Railway track signaling.

Warranty
4-year warranty against manufacturing defects and 40-year useful life.

Technical Specifications
Maximum power 125 Watts
Voltage 18.27 V
Amperage 6.48 A
Open circuit voltage (Voc) 22.16 V
Short circuit current (Isc) 7.22 A
Dimensions 1240 x 670 x 33 mm
Weight 9 kg
Ambient temperature -45 to 85 oC
Maximum system voltage 1000 V

Note: Electrical specifications are given under an irradiance of 800 W/m2 and a temperature of 25 oC.
