Connectors for Photovoltaic Modules

Connectors for Photovoltaic Modules

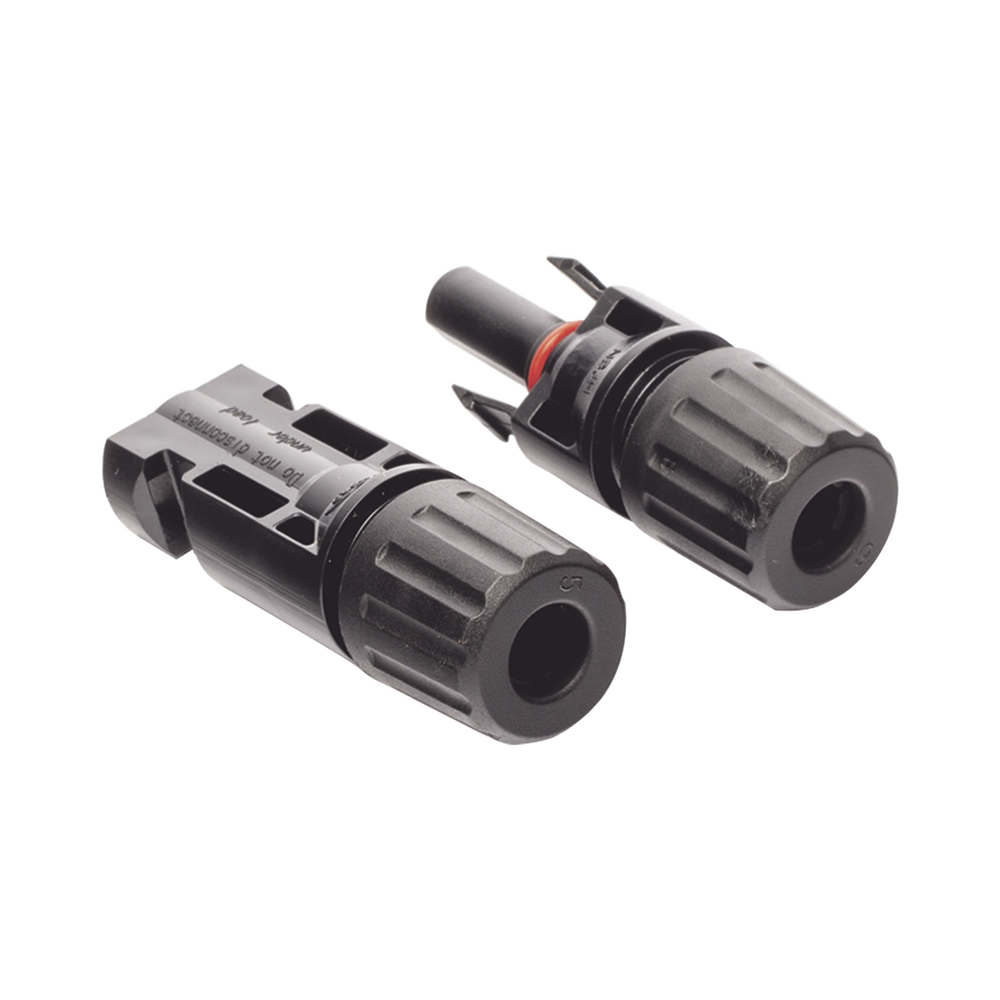

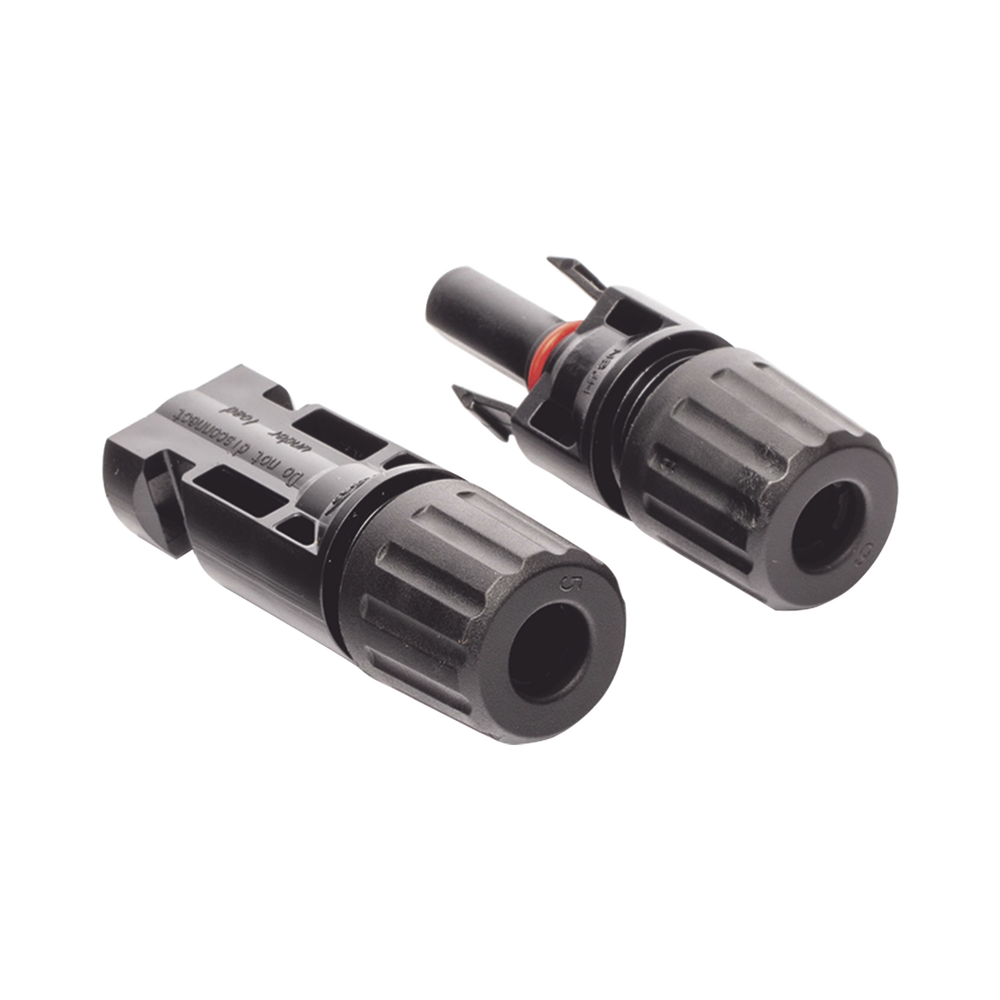

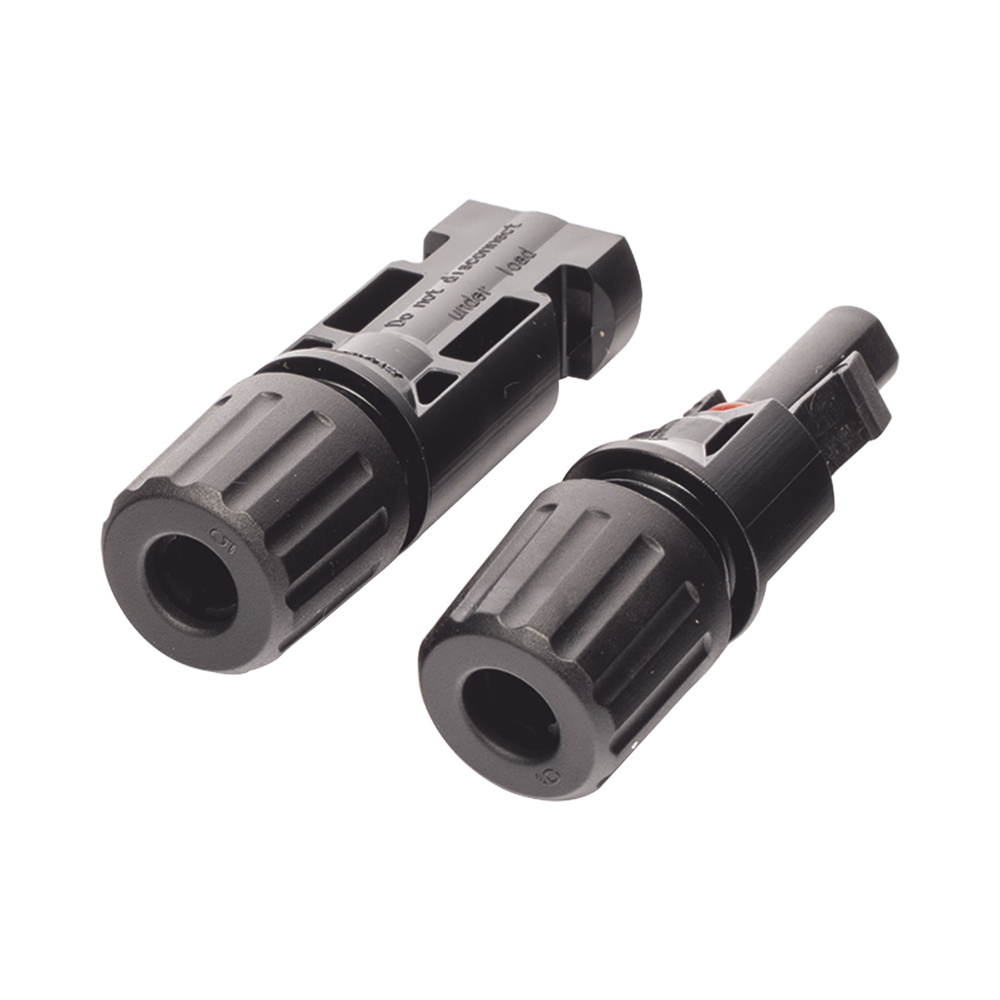

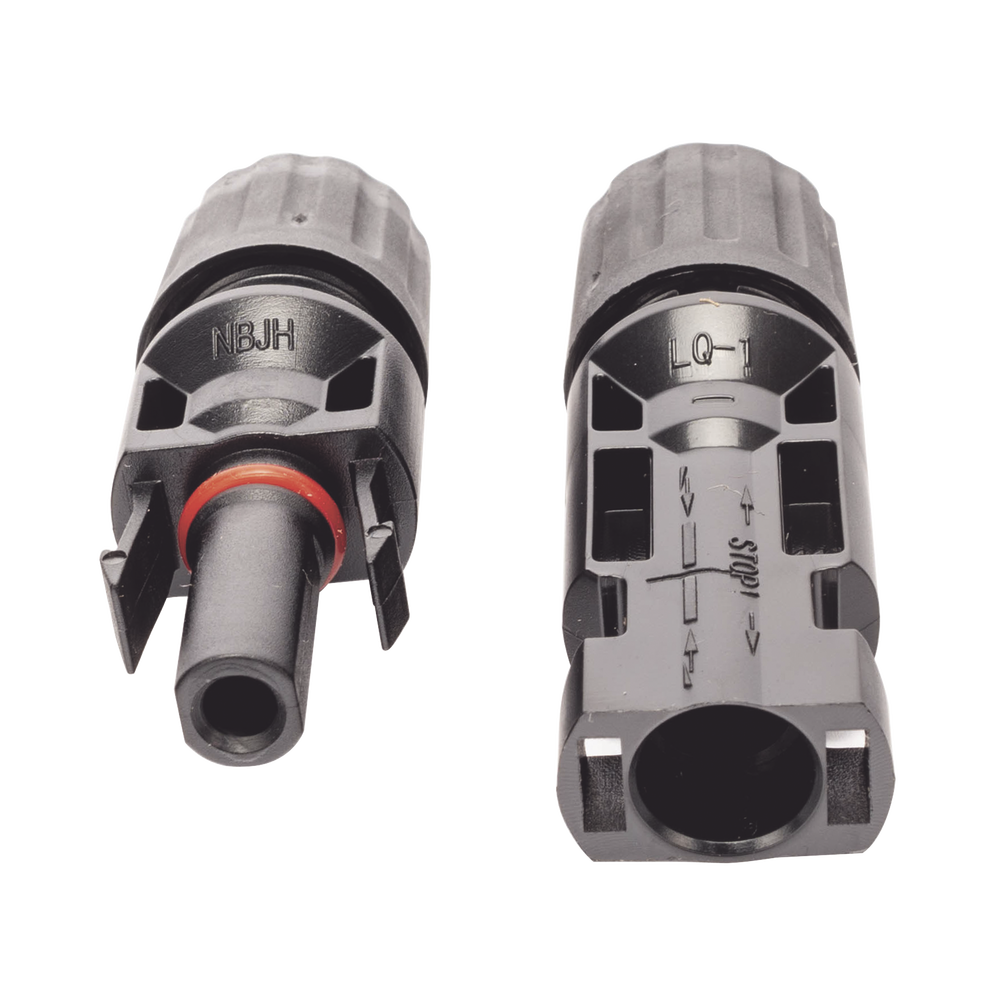

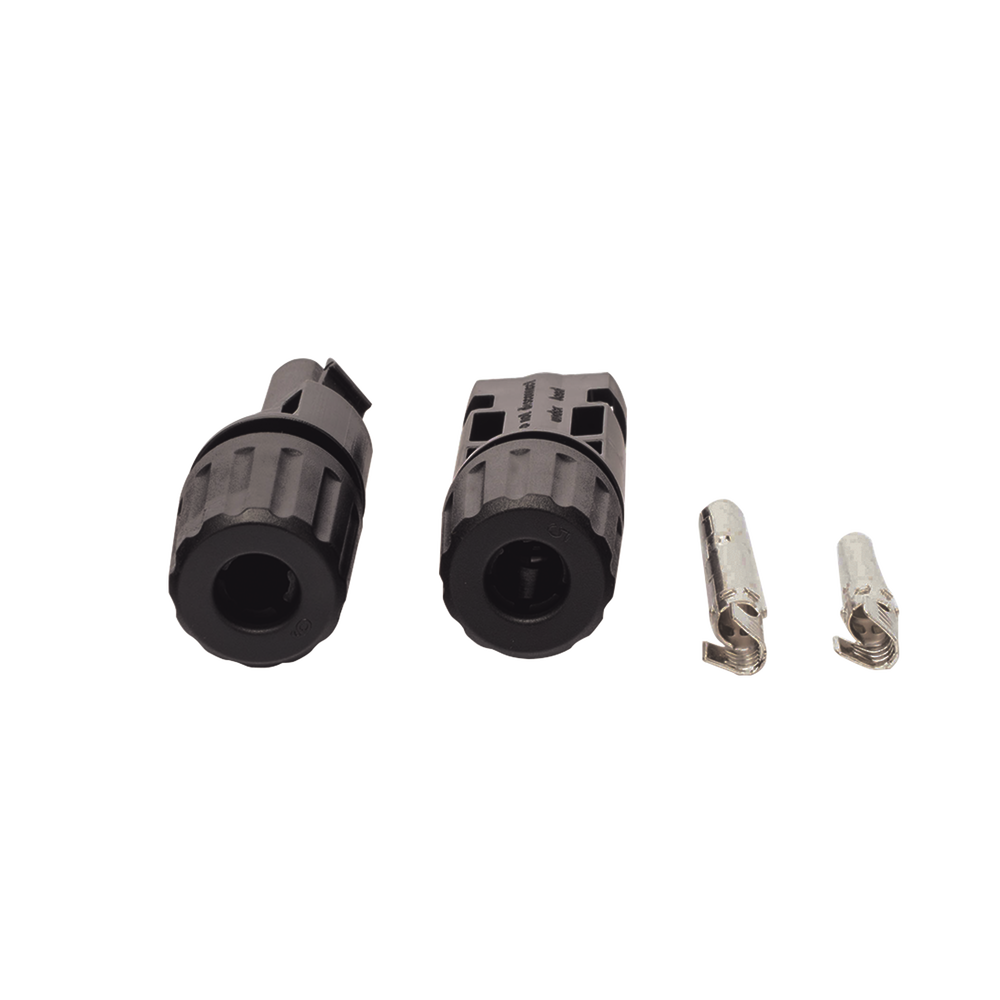

MC4 type connectors for photovoltaic modules

With excellent UV resistance, which allows it to be

used in severe environments. The cable connection is

easy to install and works as a lock to prevent counterfeiting

contacts.

EPL01

Technical specification:

• Maximum working voltage: 1000 Vdc.

• Nominal current: 30 A.

• Flame class: UL94-V0.

• Pollution level: 2.

• Contact resistance: ≤5 mmΩ.

• Protection level: IP67.

• Connection line specification: 4 mm2.

• Ambient temperature range: -40 to 90 ºC.

• Security level: class II.

• Insertion force: ≤50 N.

• Extraction force: ≥50 N.
