CONNECTORS FOR PHOTOVOLTAIC MODULES

CONNECTORS FOR PHOTOVOLTAIC MODULES

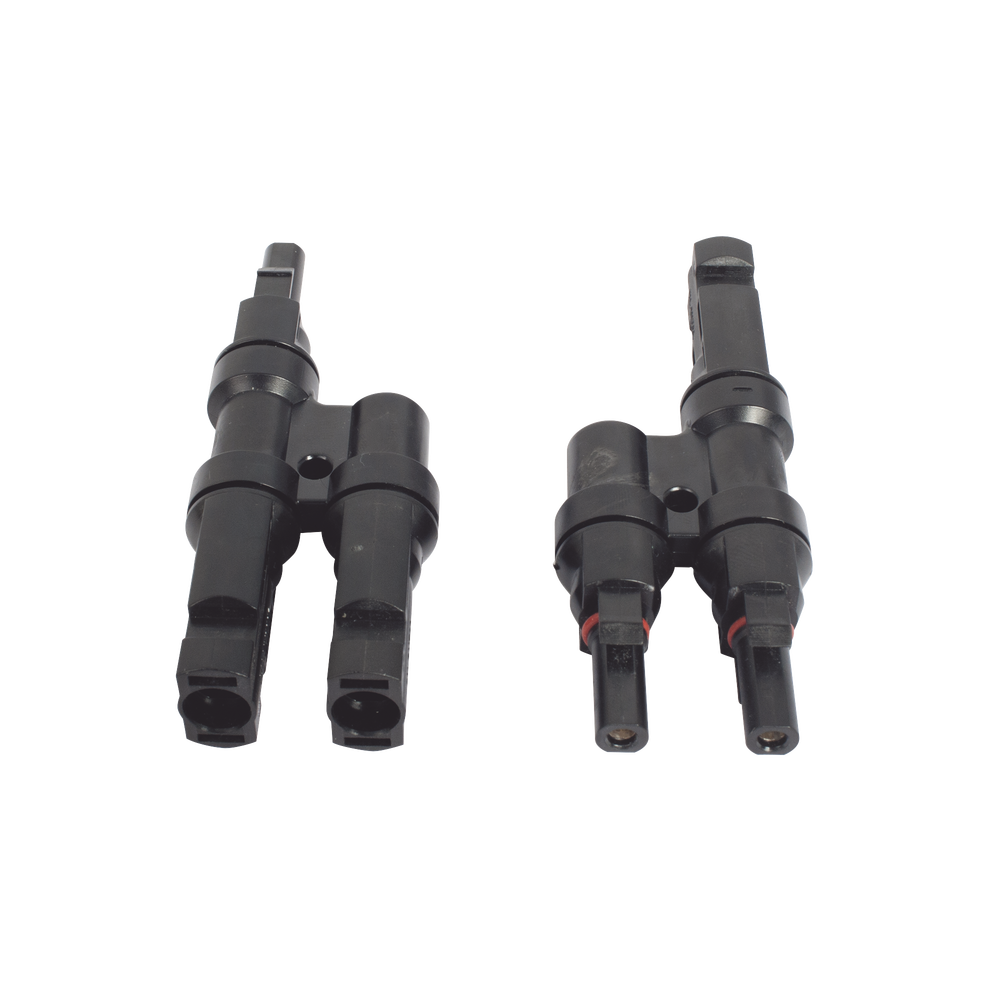

MC4 type connectors for photovoltaic modules

With excellent UV resistance, which allows it to be
used in severe environments. The cable connection is
easy to install and works as a lock to prevent counterfeiting
contacts.

EPL02

Technical specification:
• Maximum working voltage: 1000 Vdc.
• Nominal current: 30 A.
• Flame class: UL94-V0.
• Pollution level: 2.
• Contact resistance: ≤5 mmΩ.
• Protection level: IP67.
• Connection line specification: 4 mm2.
• Ambient temperature range: -40 to 85 ºC.
• Security level: class II.
• Insertion force: ≤50 N.
• Extraction force: ≥50 N.
