MIKROTIK

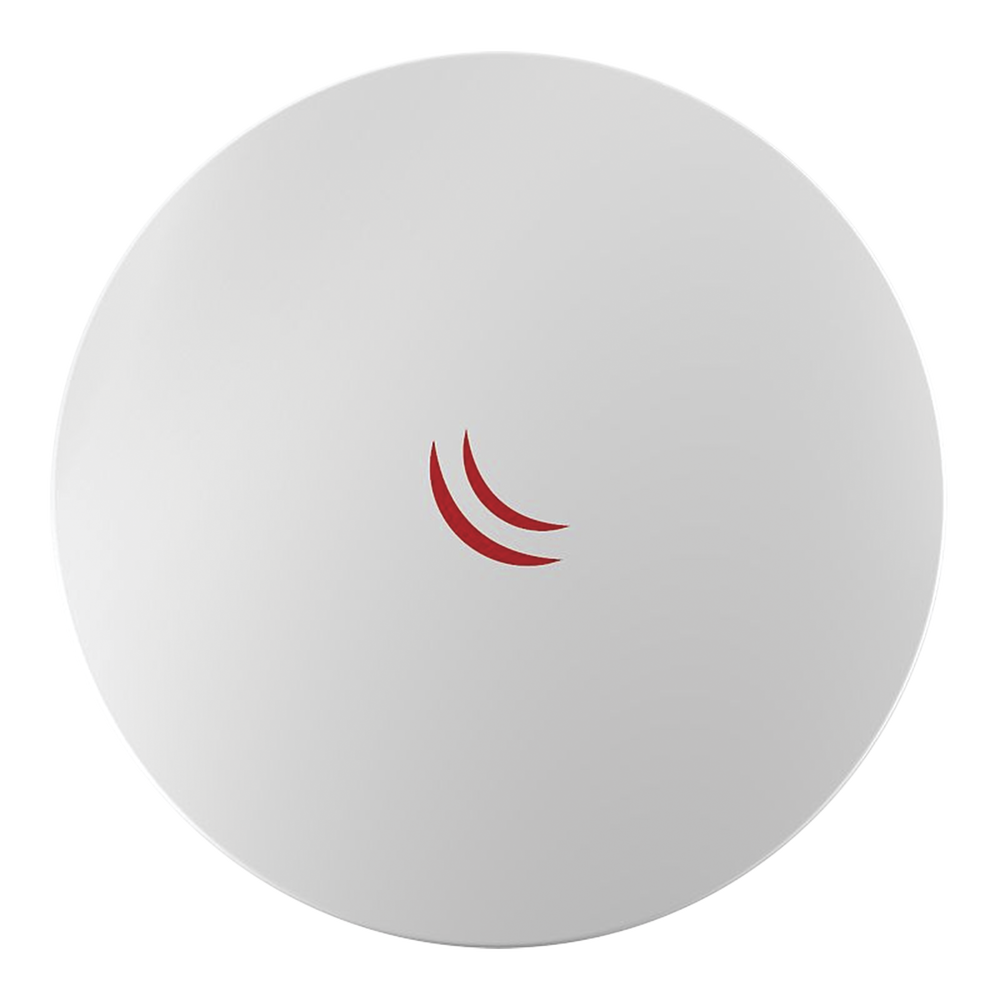

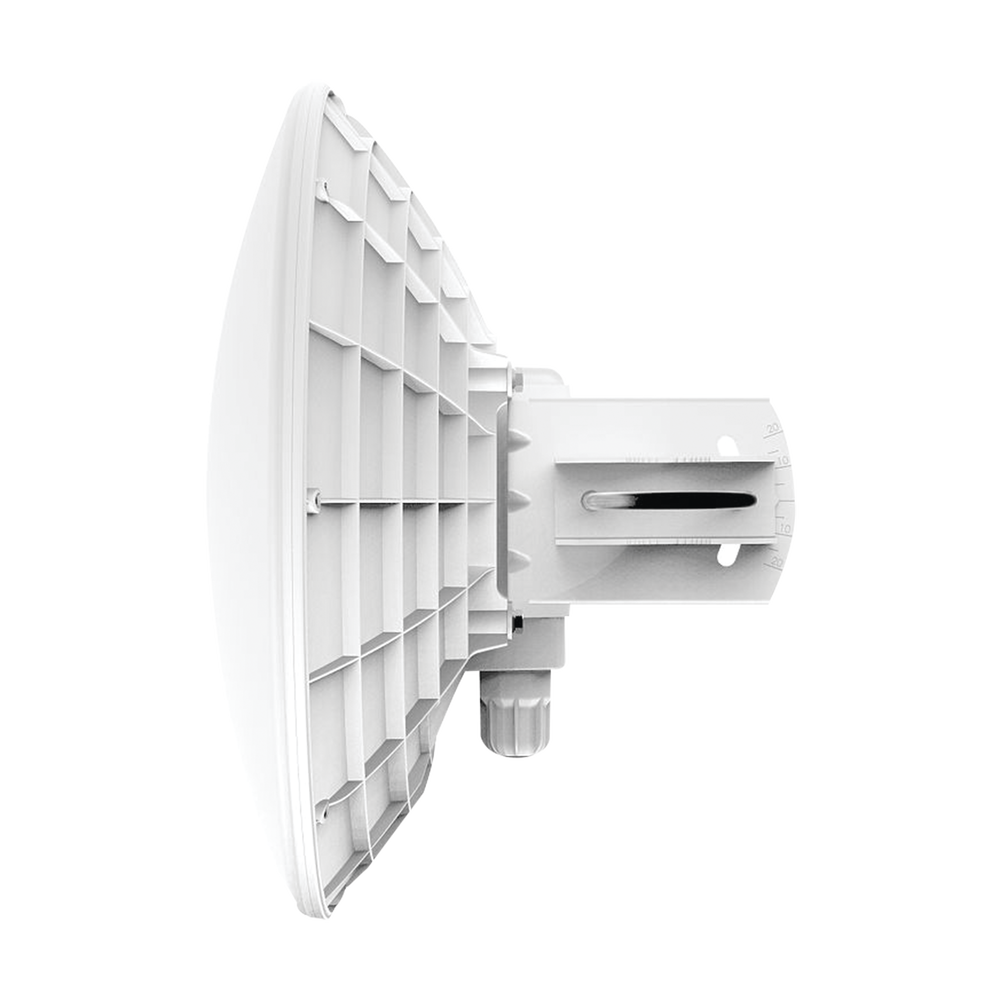

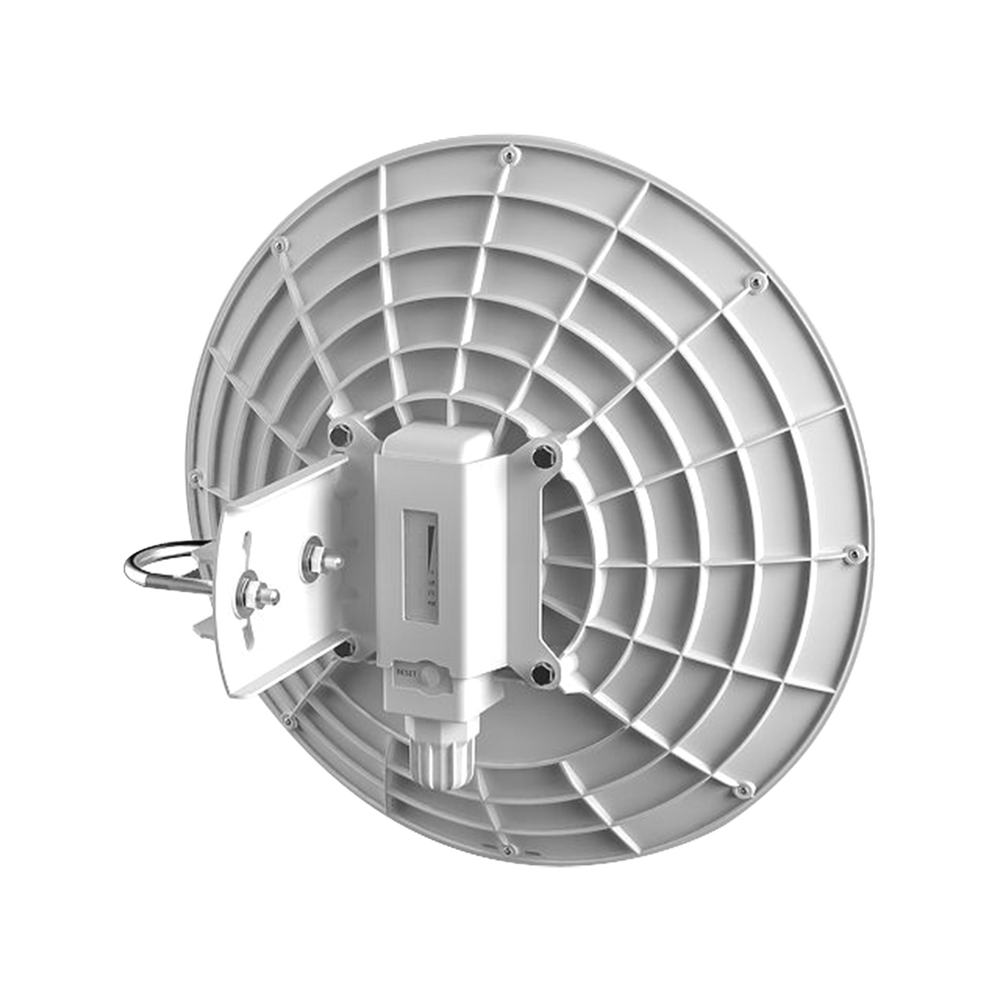

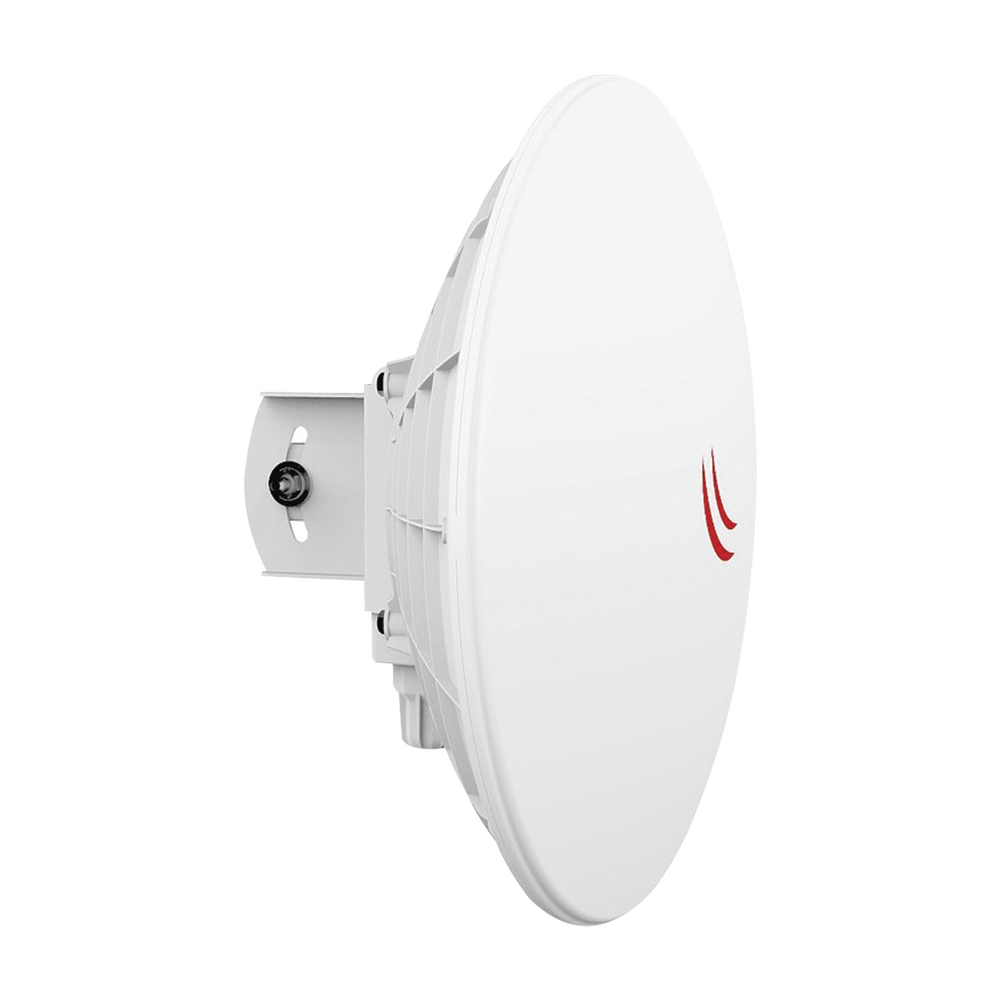

(DynaDish 6) 5.9 - 6.4GHz 802.11 a/n Access Point with Integrated 25dBi Antenna.
(DynaDish 6) 5.9 - 6.4GHz 802.11 a/n Access Point with Integrated 25dBi Antenna.
Couldn't load pickup availability
(DynaDish 6) 5.9 - 6.4GHz 802.11 a/n Access Point with Integrated 25dBi Antenna.
The Dynadish 6 uses the same efficient antenna and housing design as our successful 5 GHz model, but this new device operates on the licensed 6 GHz frequency. This means less interference than the often-crowded 5 GHz frequencies for faster speeds and greater range. By operating above the most popular Wi-Fi frequencies, you can now build your wireless links from busy towers without suffering from noise issues.
It is a simple, fully integrated product with everything you need to quickly install a reliable point-to-point link.
This product is not suitable for unlicensed ISM bands. Use of the device is subject to country regulations. Availability may be limited depending on distributor inventory and country regulations.
Specs
| Details | |
|---|---|
| Product code | RBDynaDishG-6HnD |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| Nominal CPU frequency | 600 MHz |
| Dimensions | Ø 404 mm |
| RouterOS License | 4 |
| Operating system | RouterOS |
| RAM size | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Room temperature tested | -40°C to 70°C |
| MTBF | Approximately 200,000 hours at 25°C |
Feeding
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input voltage | 12-30 V |
| Number of DC inputs | 1 (PoE input) |
| Maximum energy consumption | 10 W |
| Fan count | Passive |
Wireless specifications
| Details | |
|---|---|
| Maximum wireless data rate of 6 GHz | 300 Mbit/s |
| Number of 6 GHz wireless chains | 2 |
| 6 GHz Wireless Standards | 802.11a/n |
| Antenna gain dBi for 6 GHz | 25 |
| 6GHz Wireless Chip Model | AR9344 |
| 6 GHz wireless generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| PCB Temperature Monitor | Yeah |
| Voltage monitor | Yeah |
Certifications and approvals
| Details | |
|---|---|
| Certification | EAC |
Wireless specifications
| 6 GHz | Transmit (dBm) | Receive sensitivity |
|---|---|---|
| 6 MBit/s | 30 | -93 |
| 54 MBit/s | 27 | -80 |
| MCS0 |
