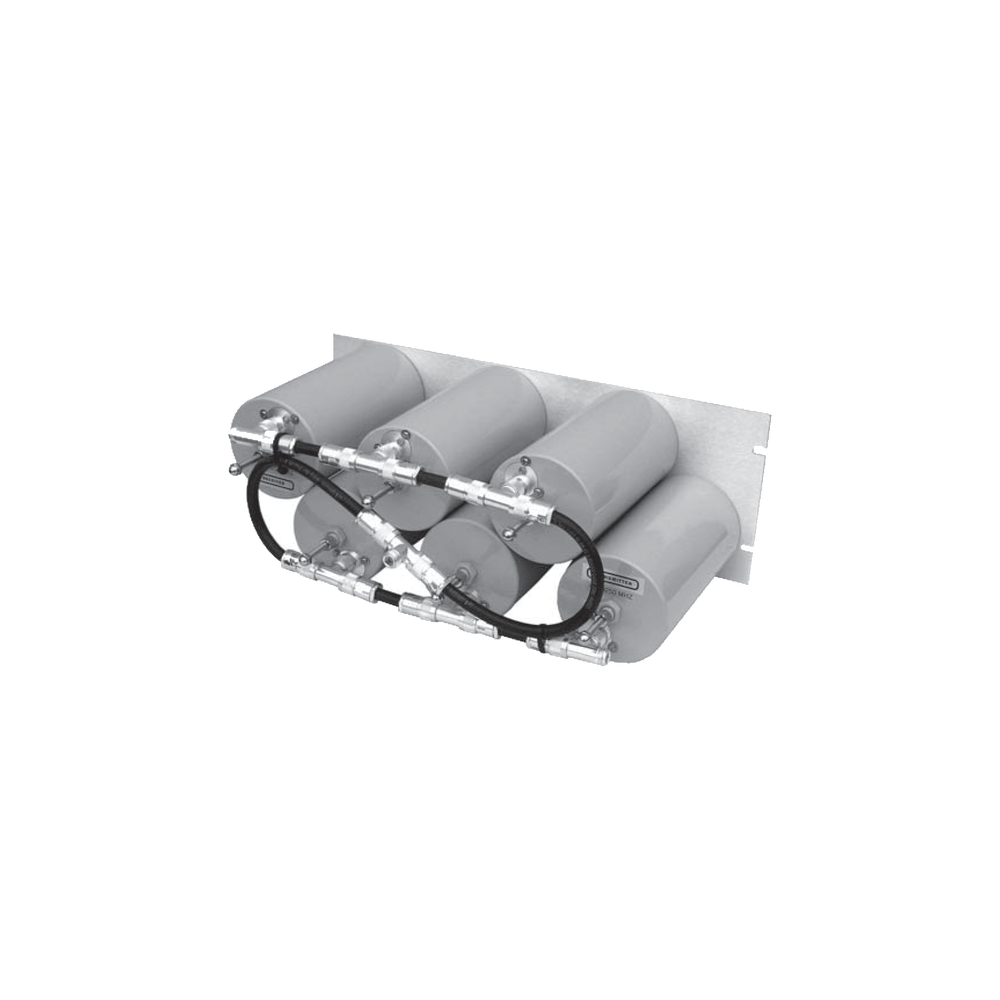

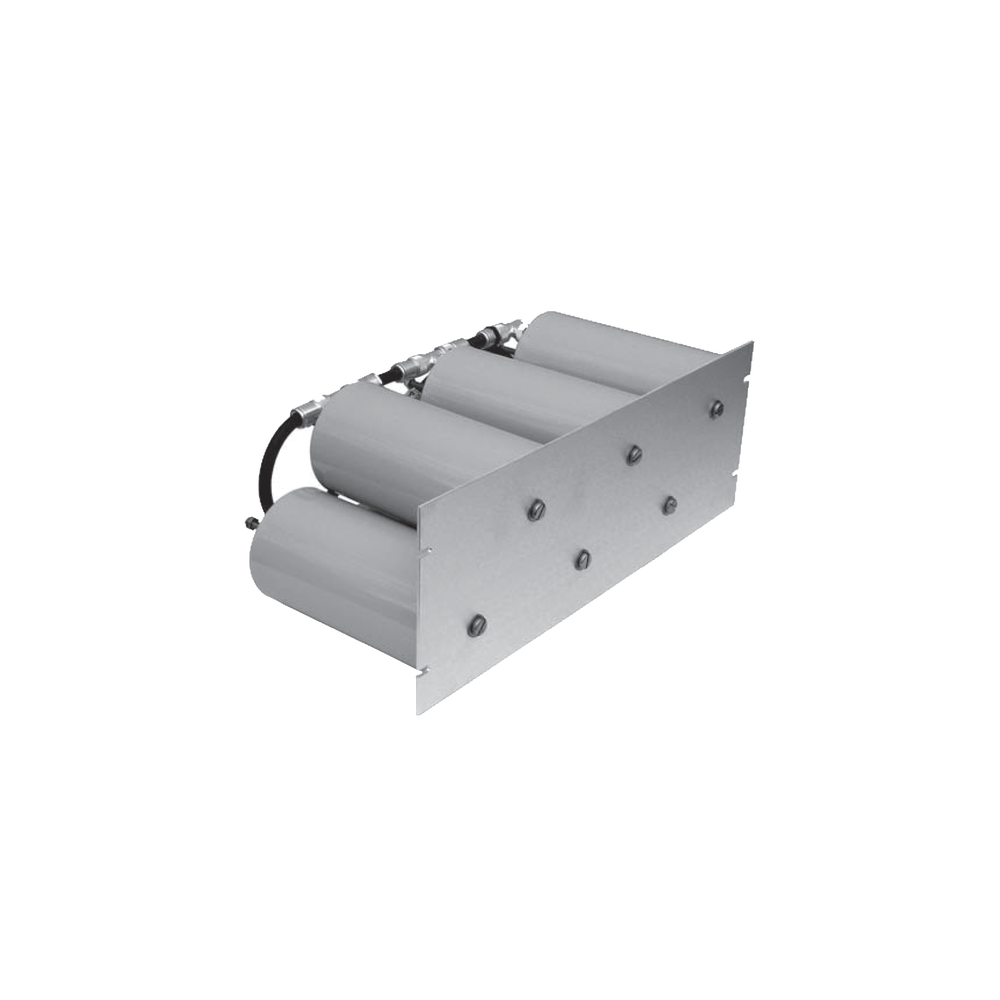

Bandpass-Band Reject Duplexer, 400-512 MHz, 6Cav.(4"Dia.) 3 MHz, 250 Watt, N Females.

Bandpass-Band Reject Duplexer, 400-512 MHz, 6Cav.(4"Dia.) 3 MHz, 250 Watt, N Females.

Bandpass-Bandreject Duplexer, 400-512 MHz, 6 cavities, 3 MHz.

• Frequency Range: 400-512 MHz.
• Cavities: 6 (4 in, diameter).
• TX-RX Separation (Min.): 3 MHz.
• Insertion loss: 1.2 dB.
• TX-Rx Isolation: 90 dB (@ 5 MHz.
• VSWR (max.): 1.5:1
• Power 250 W.
• Dimensions: 483 x 178 x 280 mm.
• Weight: 8.9 Kg.
