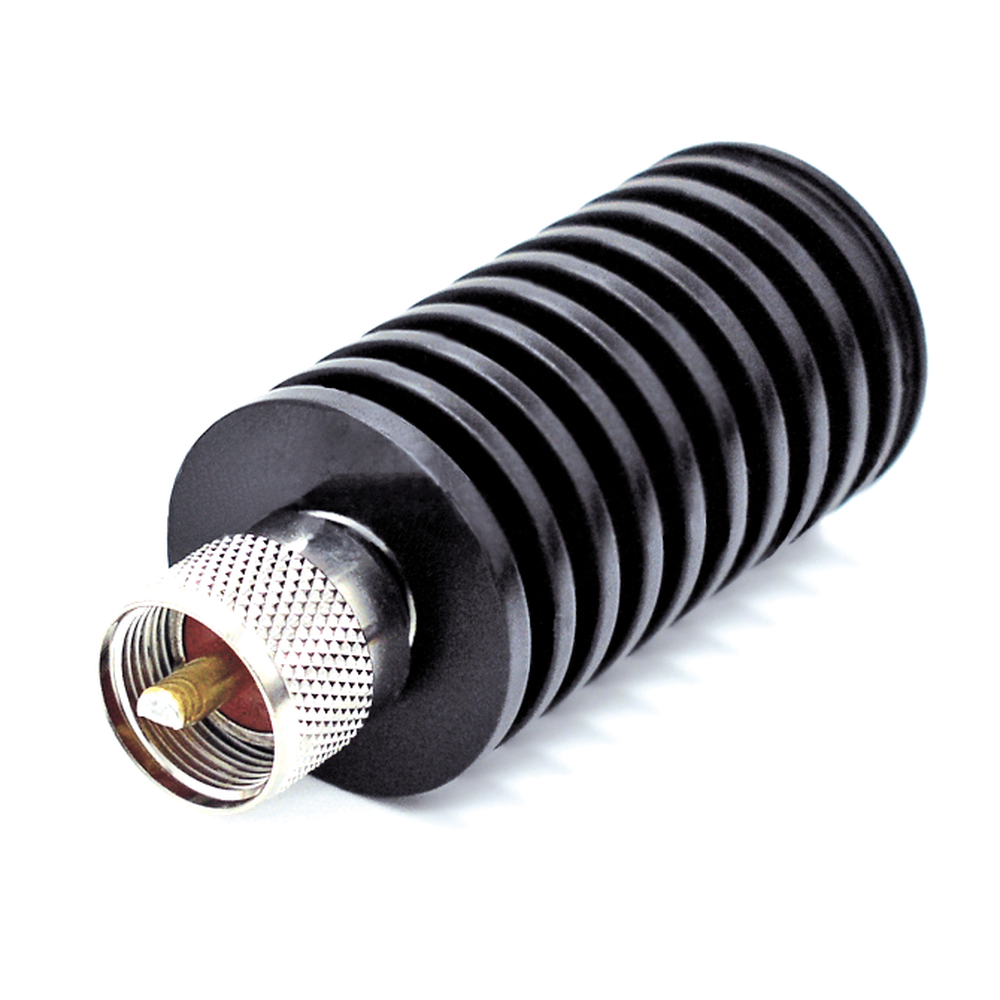

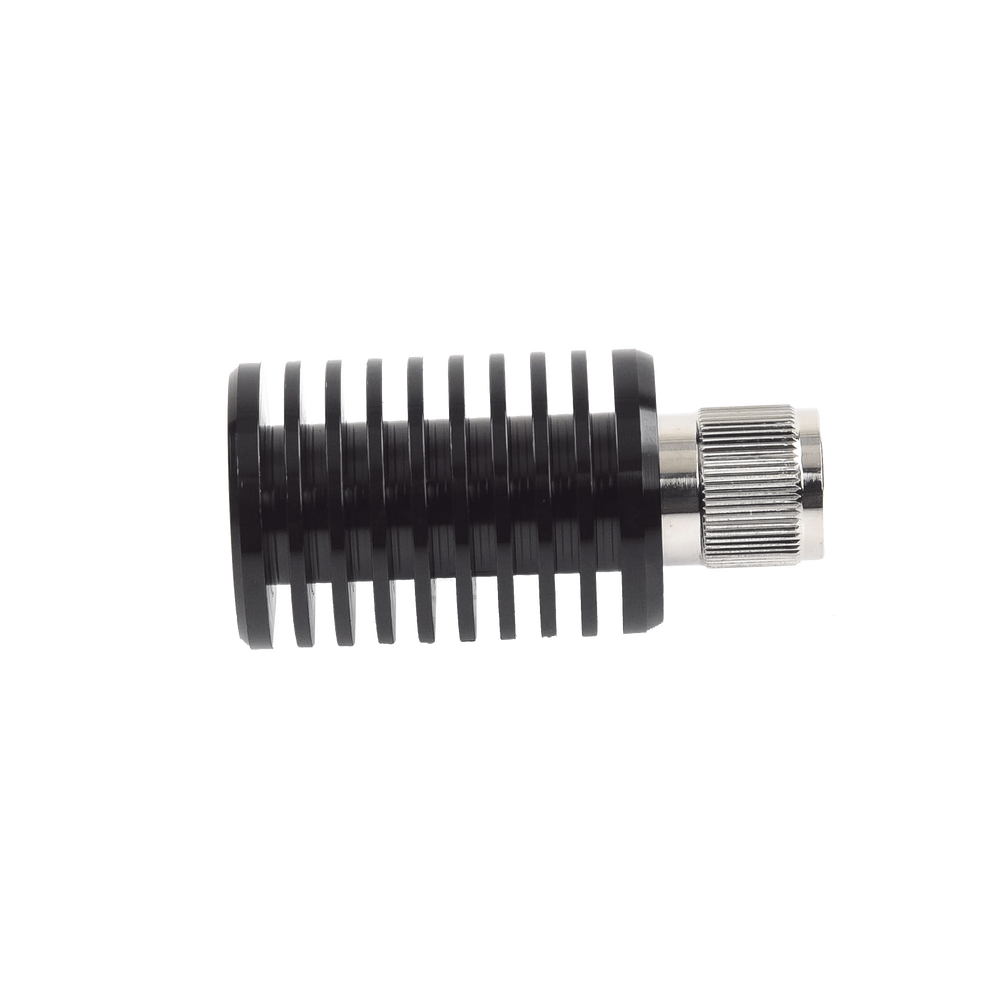

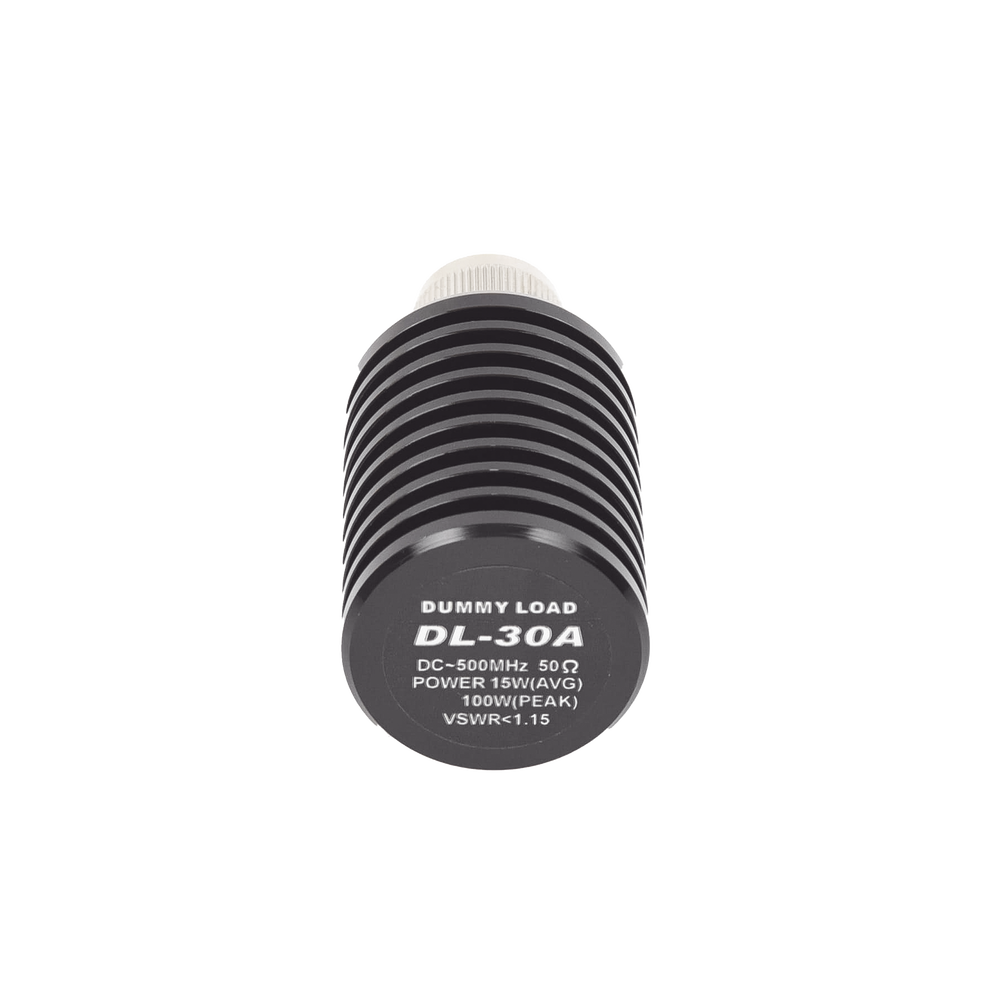

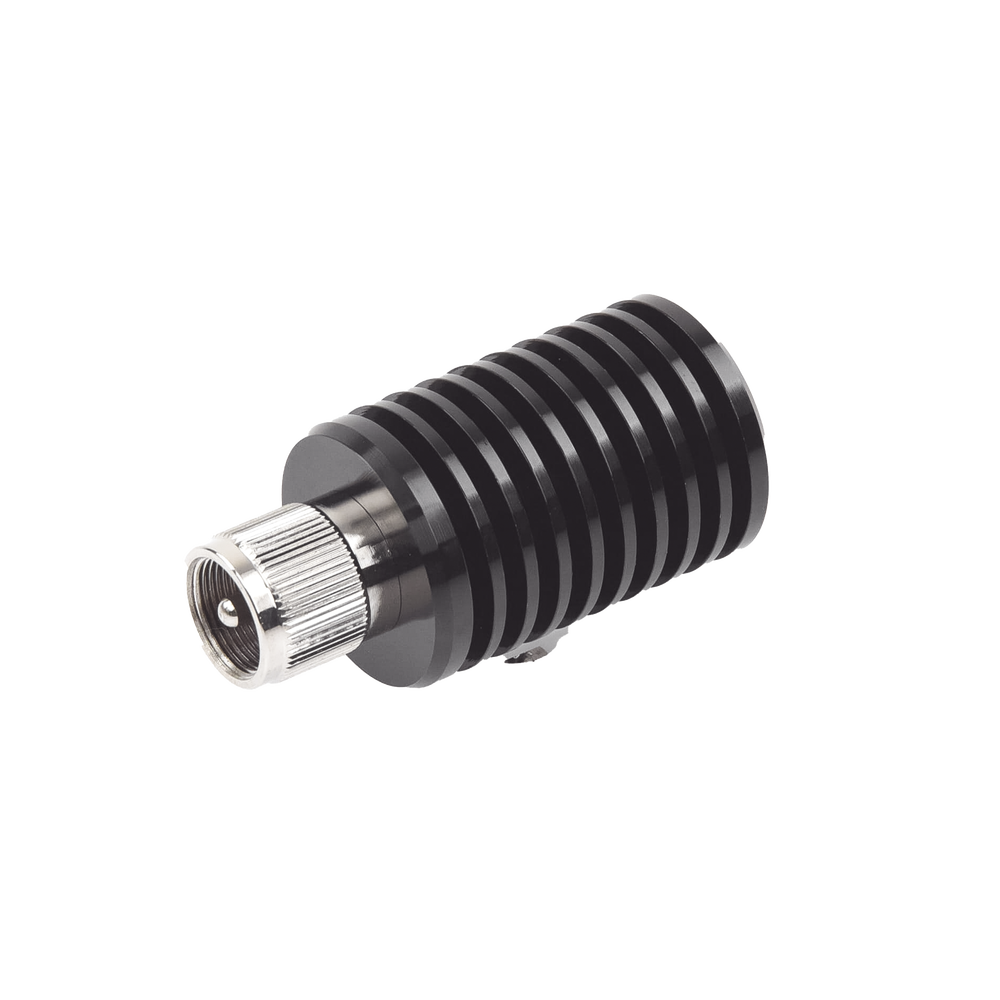

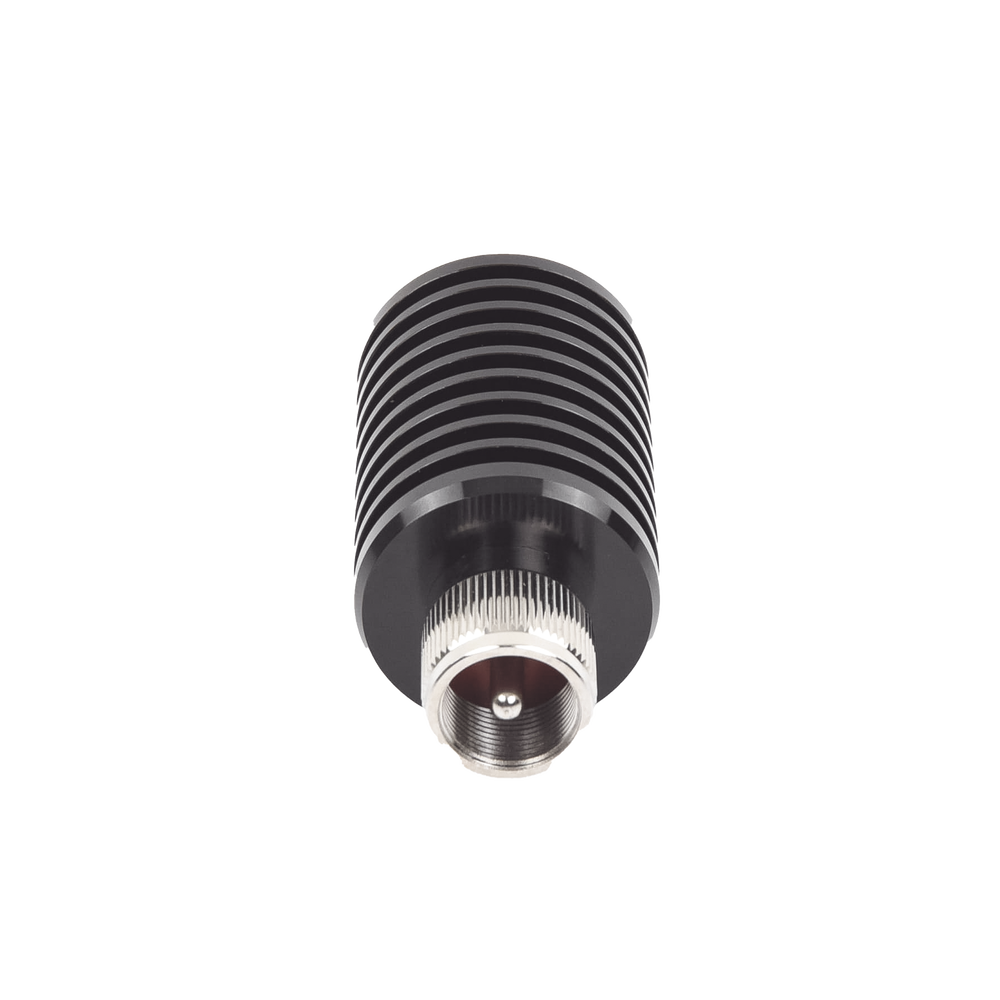

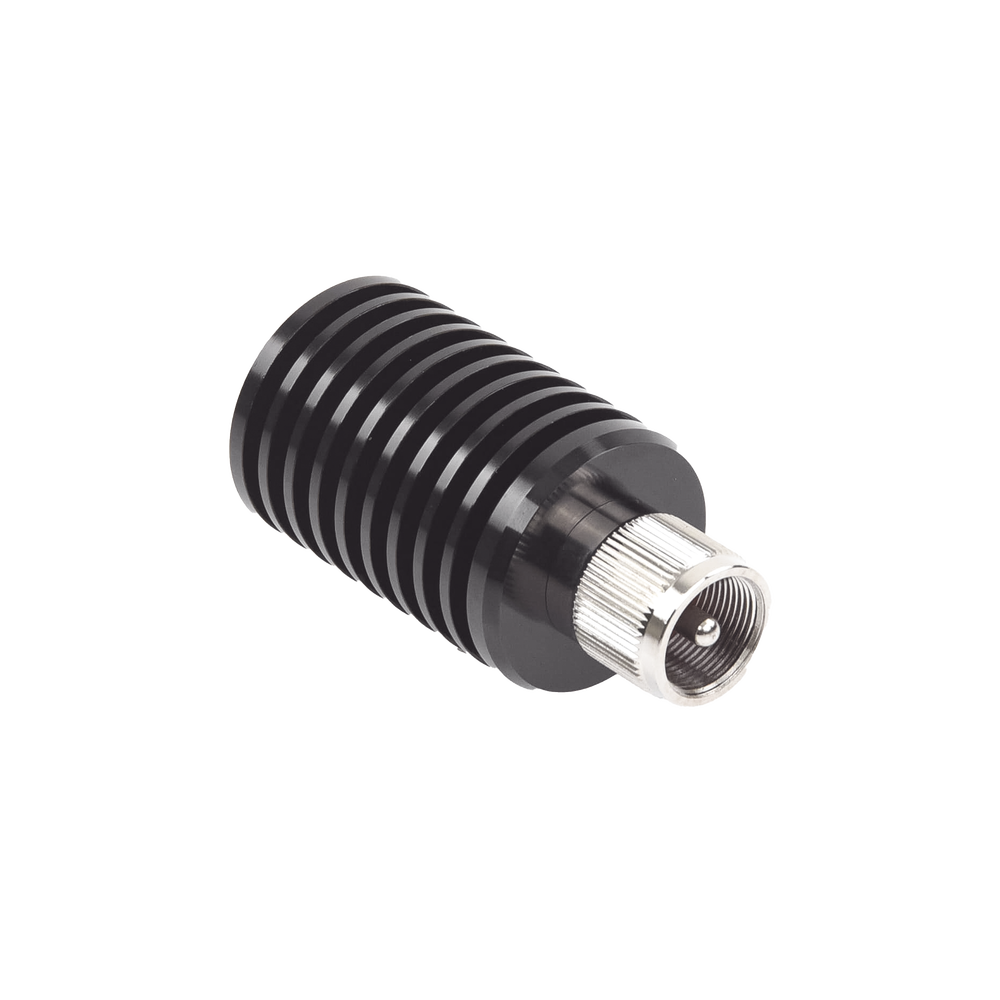

50 Ohm, 15 Watt, DC-500 MHz, UHF male connector (PL-259), Dry Phantom Terminal Load.

50 Ohm, 15 Watt, DC-500 MHz, UHF male connector (PL-259), Dry Phantom Terminal Load.

Compact Load Series DL30

• Consider this "Diamond Antenna" load from the DL30 series compact type.
• With capacity from 0 to 500 MHz, these RF loads allow you to test your equipment without tying up the radio waves with a test carrier.
• Capable of 15 watts of continuous power or up to 100 watts for short periods, these DL30 Series loads are available with UHF Male (PL-259) or Type N Male connectors.
• These units feature their transmitter with a 50 ohm load and a maximum of 1.15:1 VSWR across its entire frequency range!

Characteristics:

• Frequency: DC-500 MHz
• Power: 15 Watt continuous, 20 W/5 min, 50 W/1 min, 100 W/30 sec.
• Connector: UHF Male (PL-259).
• Impedance: 50 Ohm.
• VSWR: 1:1.15
• Dimensions: 30 x 75 mm.

Use them to verify power output, compare your antenna's efficiency to a known standard, or with your Wattmeter to fine-tune it.
One thing is certain - you will be no dummy when you use one of these compact composite loads from the DX Engineering Diamond Antenna DL30 Series!
