Phantom load, 15 W, DC-500 MHz, N Male connector.

Phantom load, 15 W, DC-500 MHz, N Male connector.

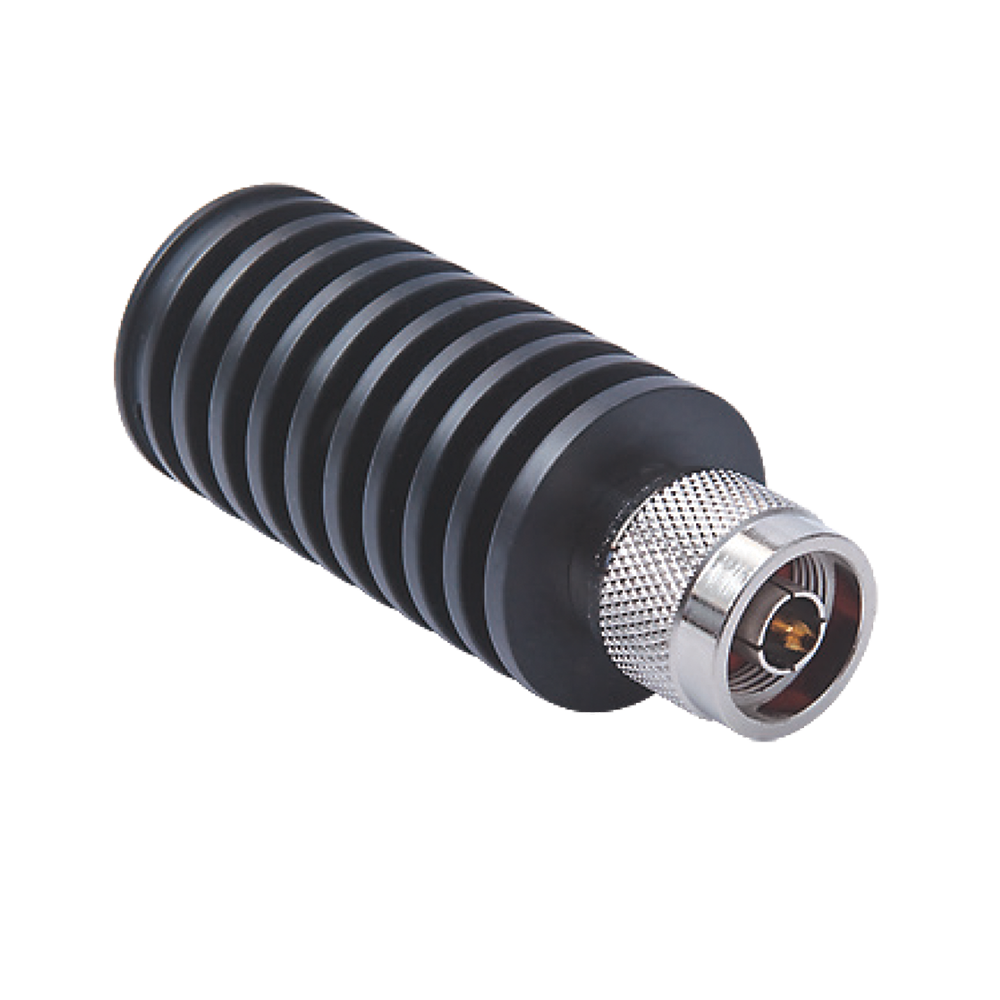

Compact Phantom Terminal Load DL30 Series

• This phantom load exposes your transmitter to a 50 ohm load and a maximum of 1:1.15 SWR across its entire frequency range, used to verify output power, compare antenna efficiency to a known standard, or tune your wattmeter.
• One thing is certain, you won't be fooled when using one of these compact Diamond DL30 Series antenna phantom loads.

• Type: Air-cooled terminal load.
• Frequency: DC-500 MHz
• Power: 15 Watt continuous, 20 W/5 min, 50 W/1 min, 100 W/30 sec.
• Connector: N Male.
• Impedance: 50 Ohm
• VSWR: 1:1.15
• Dimensions: 79.4 mm (Length) x 31.75 mm (Diameter ).
