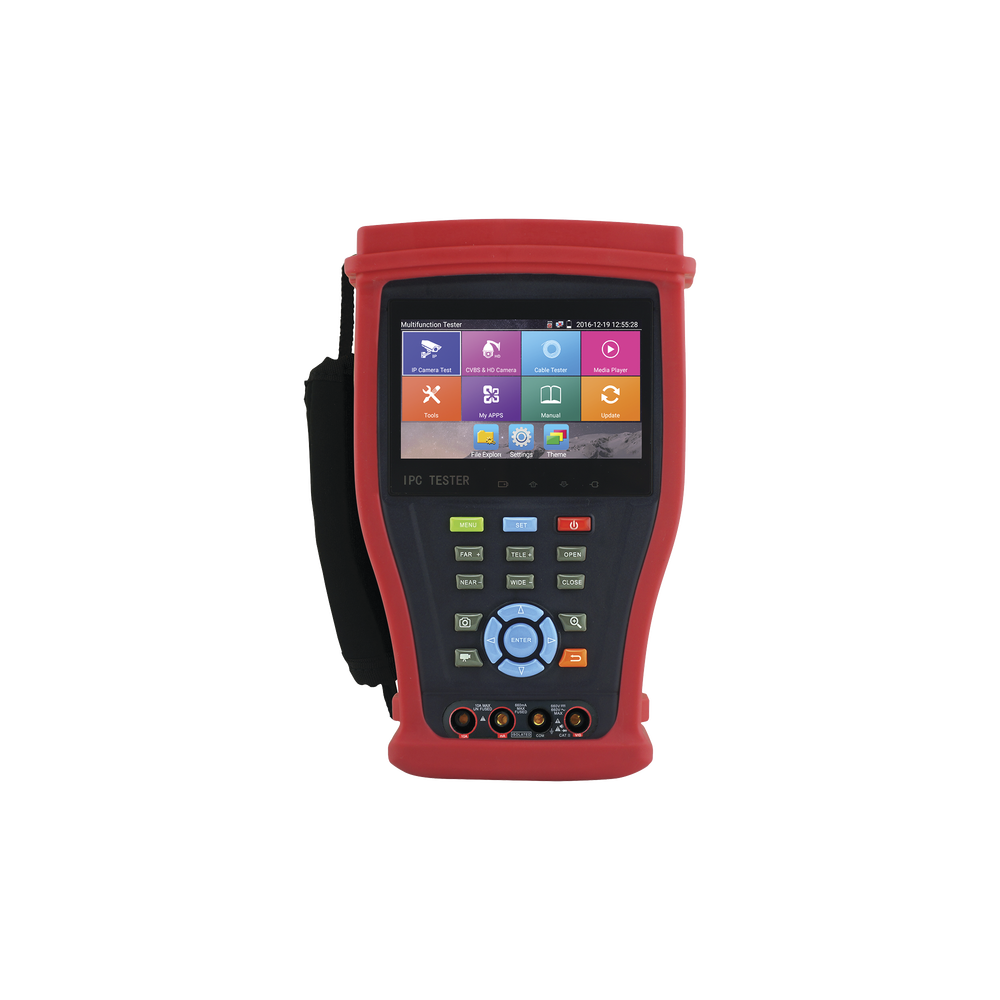

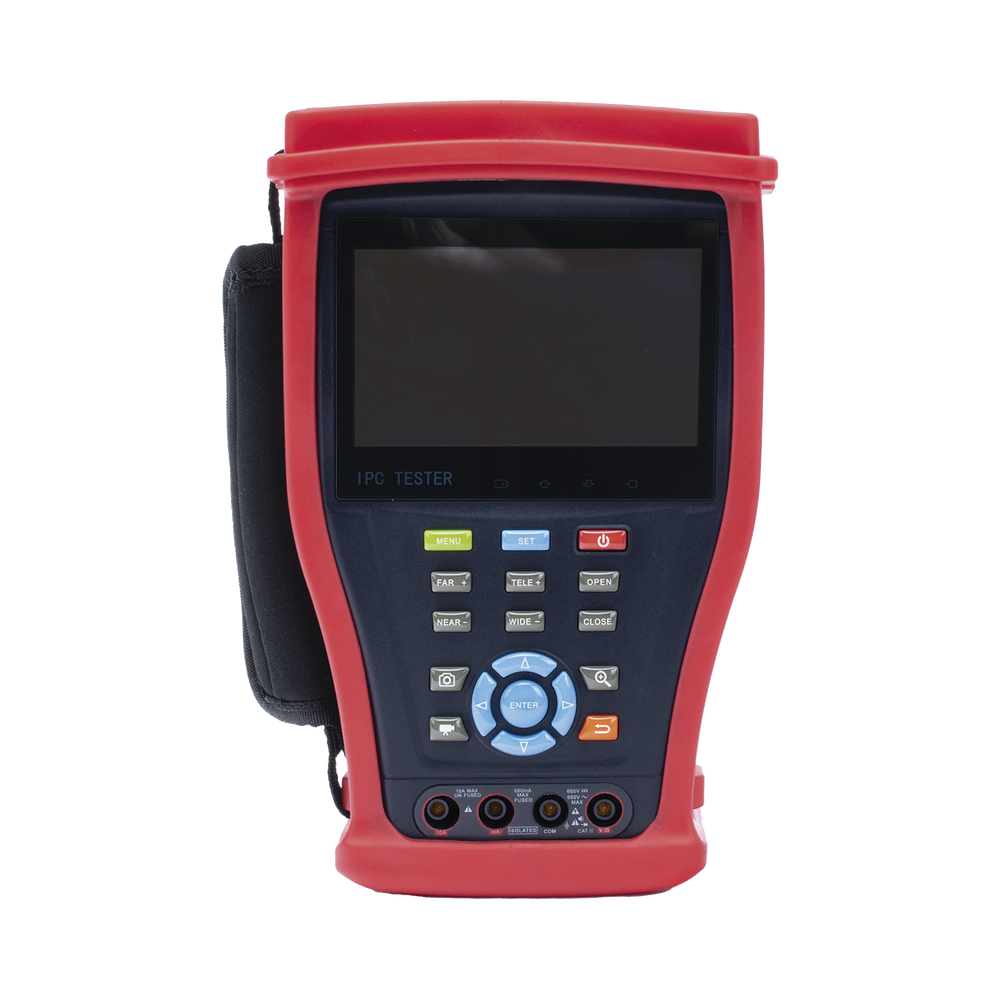

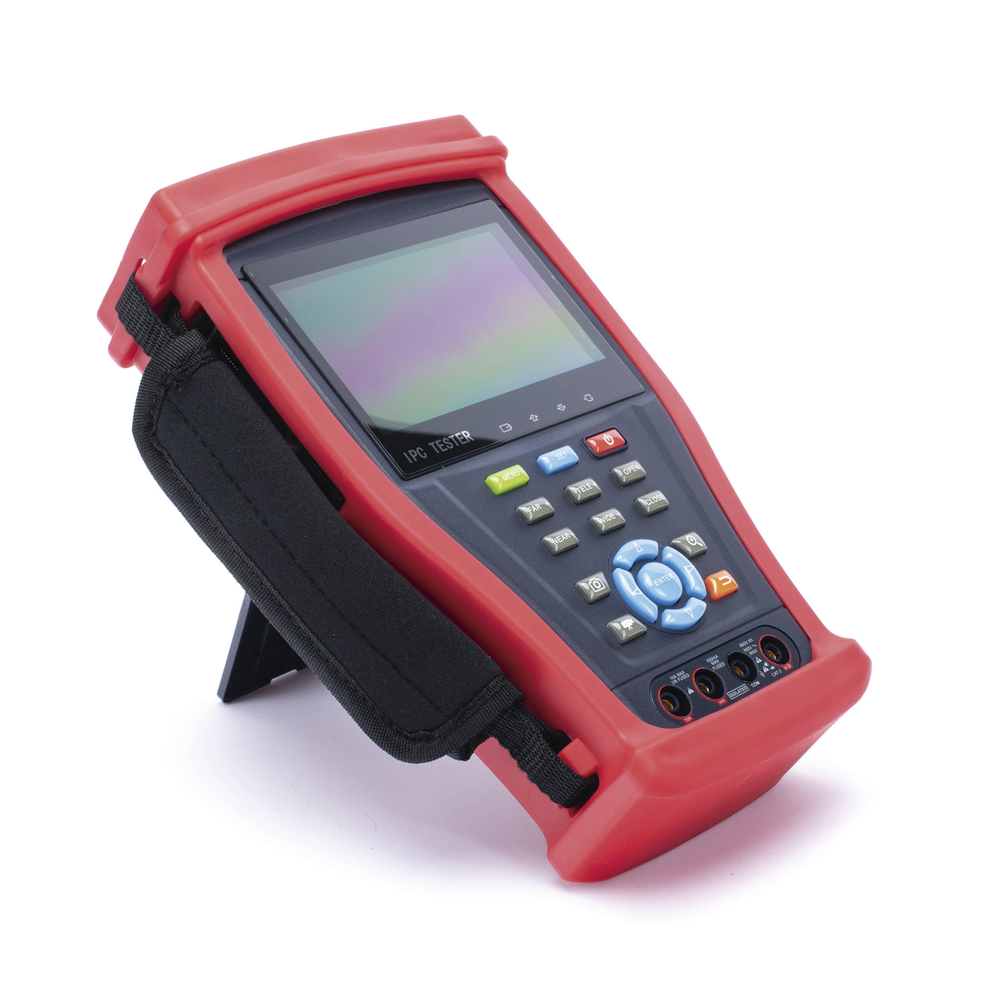

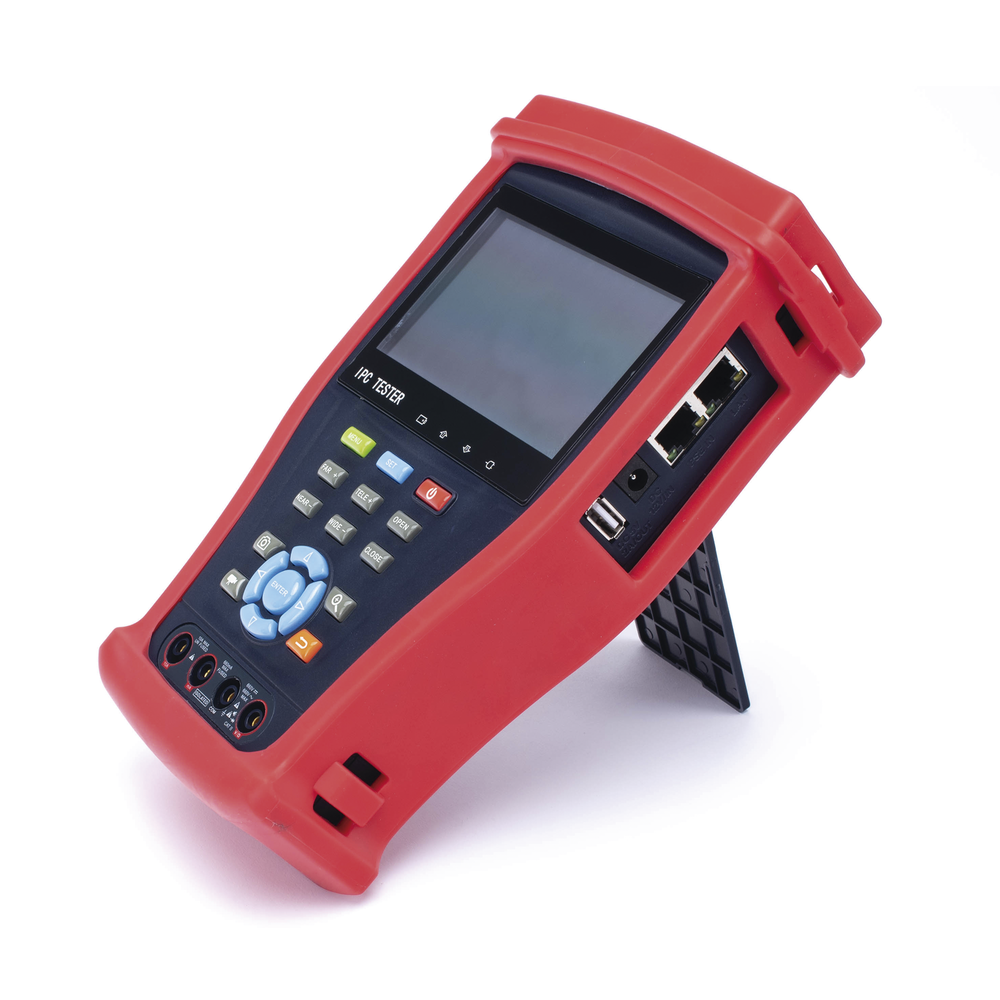

Android Video Tester with 4.3" LCD Screen for IP 4K / HD-TVI (8MP), HD-CVI (8MP), AHD (5MP) / Digital Multimeter, HDMI In/Out, WiFi

Android Video Tester with 4.3" LCD Screen for IP 4K / HD-TVI (8MP), HD-CVI (8MP), AHD (5MP) / Digital Multimeter, HDMI In/Out, WiFi

Applications

• Testing of HD-TVI (8MP), HD-CVI (8MP), AHD (5MP) and CVBS cameras.
• IP camera testing, support 4K, H264 and H265.
• HDMI input/output.
• Android system, APK application installation.
• Multimeter.

Characteristics

• 4.3” touch display, 960*540p resolution
• HD-TVI 720p(1280 x 720P 30IPS), 1080p(1920 x 1080P 30IPS), 3MP(2048 x 1536P 18IPS), 5MP(2560 x 1944P 12.5IPS), 8MP(3840 x 2160 15 FPS) camera test.
• Support 4K, H264 and H265, main stream video.
• Quick access to video, with a single touch detect everything on the network.
• Built-in WiFi to connect to a network, create a WiFi hotspot, supports WEB browser.
• Rapid ONVIF function, auto login, Hikvision camera activation.
• PTZ control via coaxitron and RS485, OSD menu call.
• HDMI input, 720×480p / 720×576p / 1280×720p / 1920×1080p / 1024×768p / 1280×1024p / 1280×900p / 1440×900p.
• HDMI 1080p output.
• BNC output for testing video input on recorders.
• LAN port traffic monitor, displays upload and download speeds of a network, whether via LAN or WiFi.
• Screen lock.
• Supports over 80 custom IP camera protocols.
• Supports IP cameras via RTSP.
• Supports 24W PoE camera power.
• DC voltage output 12v 2A max.
• 5V 2A USB output.
• Voltage measurement by PoE.
• It has FCC certification
• Audio test with input and output.
• Bandwidth test.
• Lithium-ion polymer battery, a highly efficient device, can work for 10 hours in normal use and charges in less than 6 hours.
