180º Omni Quad Sector Smart Antenna, 4.9 - 6.4 GHz, With Beamforming technology designed for the Mimosa Networks A5c for greater range.

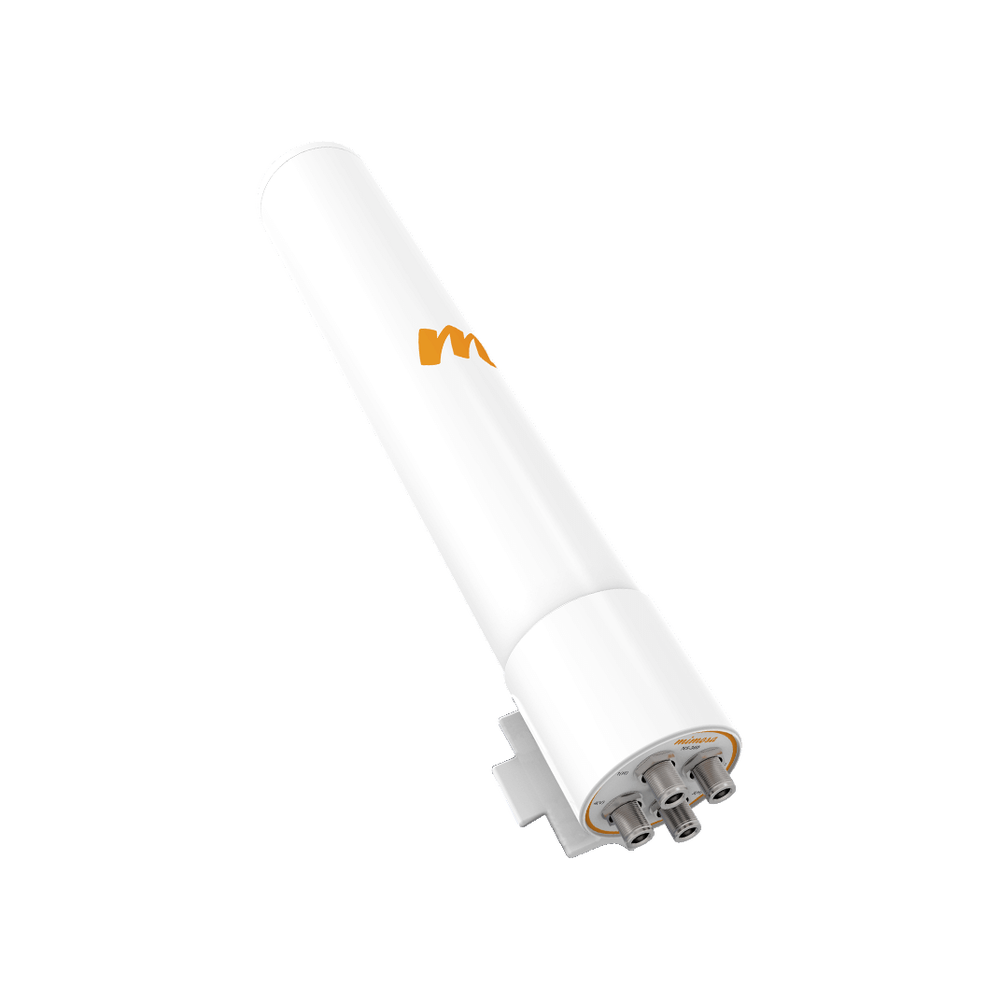

Introducing the industry’s first 360° Beamforming antenna with 4 N connectors, designed specifically for the Mimosa A5c access point. The N5-360’s unique antenna design incorporates 180° overlapping antenna polarizations, doubling the coverage of Mimosa MicroPoP deployments with 3 dB of beamforming gain. The N5-360 increases performance by providing balanced, dual-stream coverage in 360° azimuth without sacrificing throughput. The N5-360 operates across a wide frequency range of 4.9 to 6.4 GHz, supporting authorized public safety bands and other expanded frequencies where regionally permitted.

Designed for long-range omnidirectional coverage with the Mimosa Networks A5c multipoint radio

N5-360 Smart Antenna 4 streams at 360° with Beamforming technology

The N5-360 smart antenna with Beamforming is designed for the A5c multipoint radio for omnidirectional coverage up to 1 km in diameter. It is ideal for high-speed internet access and high-definition video surveillance systems with megapixel cameras.

• Frequency: 4.9 – 6.4 GHz.
• Gain: 15 dBi.
• Dual polarization in Vertical and Horizontal.
• Azimuth beamwidth: 360° via four 180° overlapping sectors.
• Elevation beamwidth: 8° via four 180° overlapping sectors.
• Downward tilt adjustment: 2°.
• Front-to-rear gain ratio: > 30 dB.
• Cross-polarization isolation: > 40 dB.
• Polarization isolation between port to port: > 25 dB.
• Dimensions: Height 492 mm x Width 80 mm.
• Weight: 1.11 kg.
• Connectors: 4 x N-Female.
• UV protection.
• Supports IP67.
• Temperature range: -40 to 55°C.
• Wind resistance: 200 km/h.

*1 year warranty
