MIMOSA NETWORKS

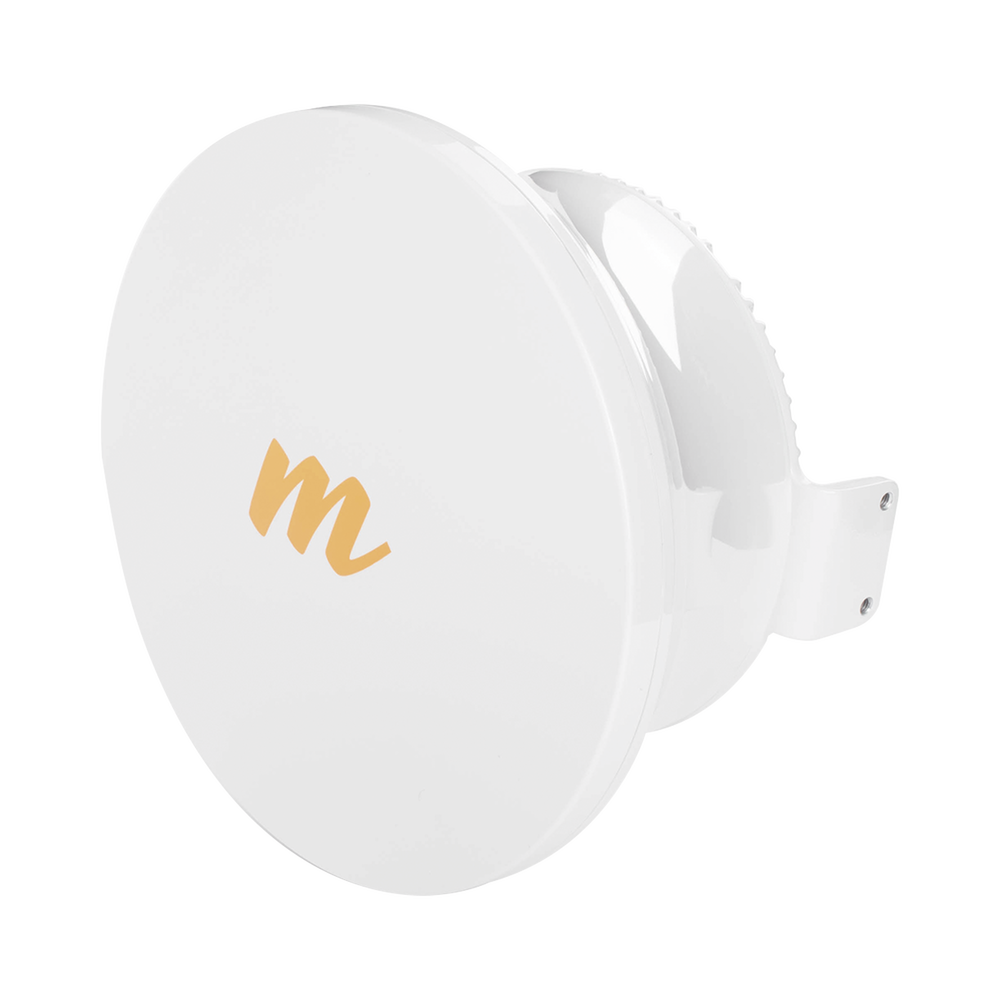

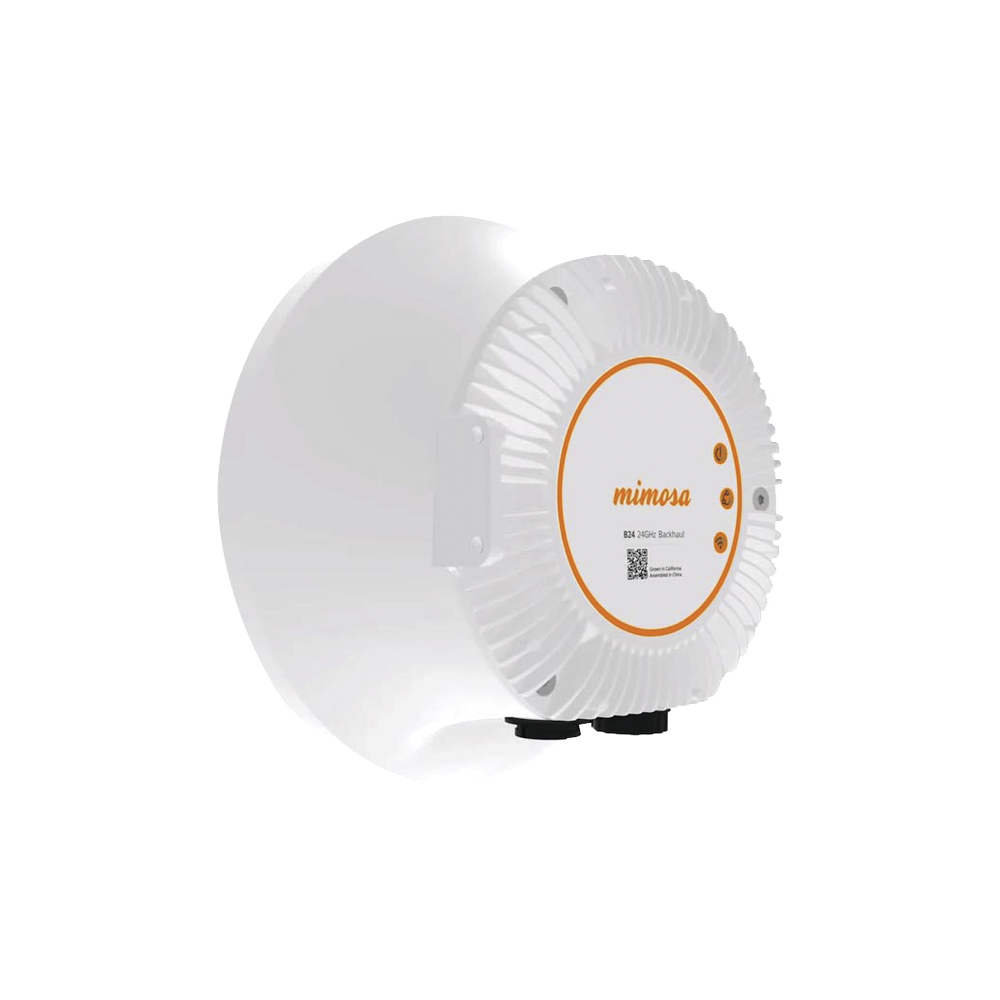

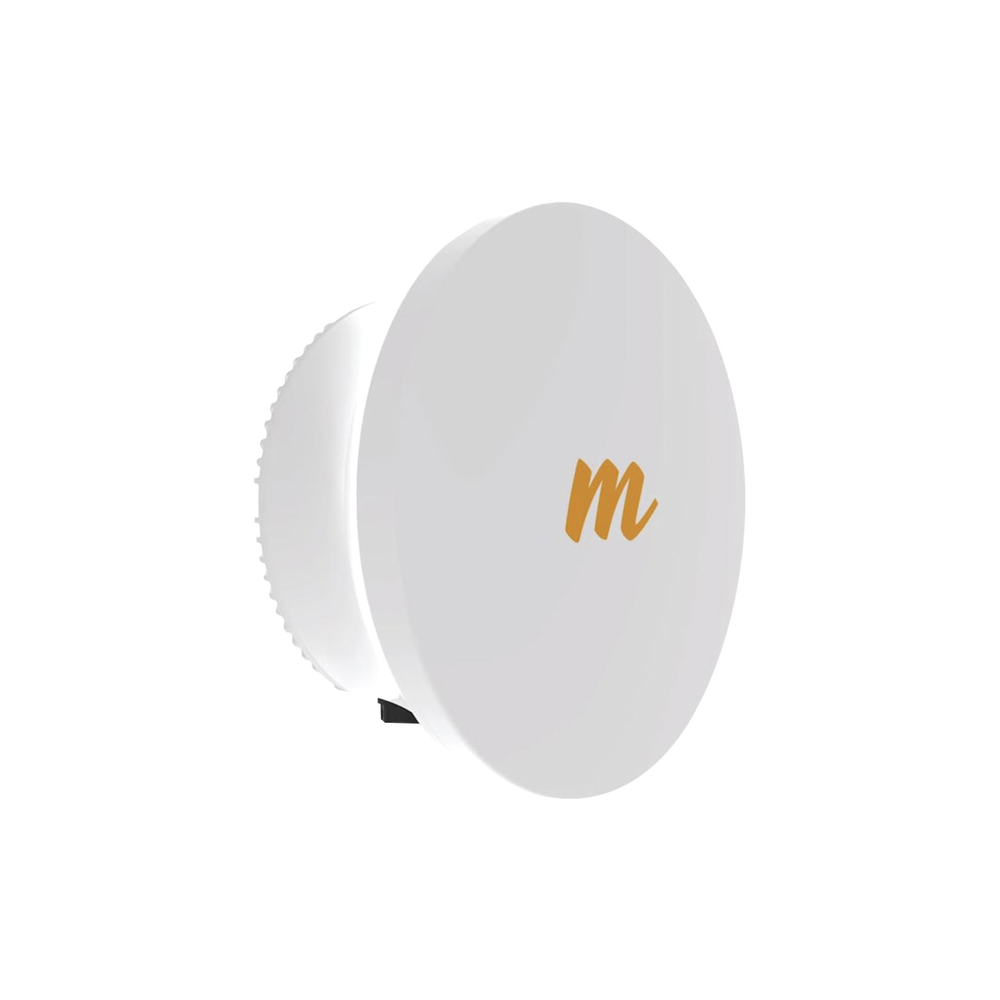

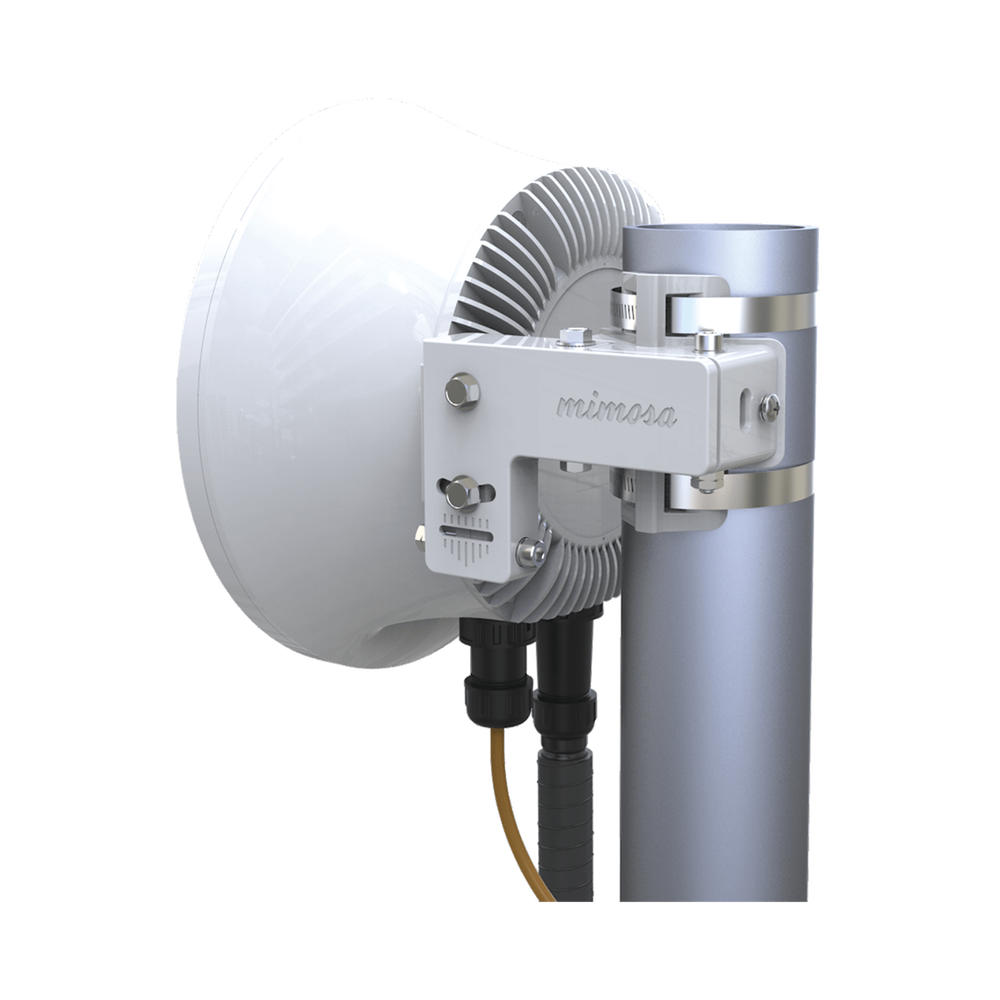

PTP Backhaul Radio at 24 GHz frequency, 4X4:4 MIMO, 1.5 Gbps, Integrated 33 dBi Antenna, IP67, SFP Port, Automatic Environment Adaptation
PTP Backhaul Radio at 24 GHz frequency, 4X4:4 MIMO, 1.5 Gbps, Integrated 33 dBi Antenna, IP67, SFP Port, Automatic Environment Adaptation
Couldn't load pickup availability
PTP Backhaul Radio at 24 GHz frequency, 4X4:4 MIMO, 1.5 Gbps, Integrated 33 dBi Antenna, IP67, SFP Port, Automatic Environment Adaptation
(Estimated distance up to 3.2 km in PTP). The B24 is designed for urban areas where a 5 GHz link cannot be established due to saturated spectrum.
Main features of the B24.
- Integrated GPS + GLONASS system for efficient synchronization of data packets in Tx and Rx.
- Dual channel with simultaneous and independent Tx and Rx for redundancy and interference reduction.

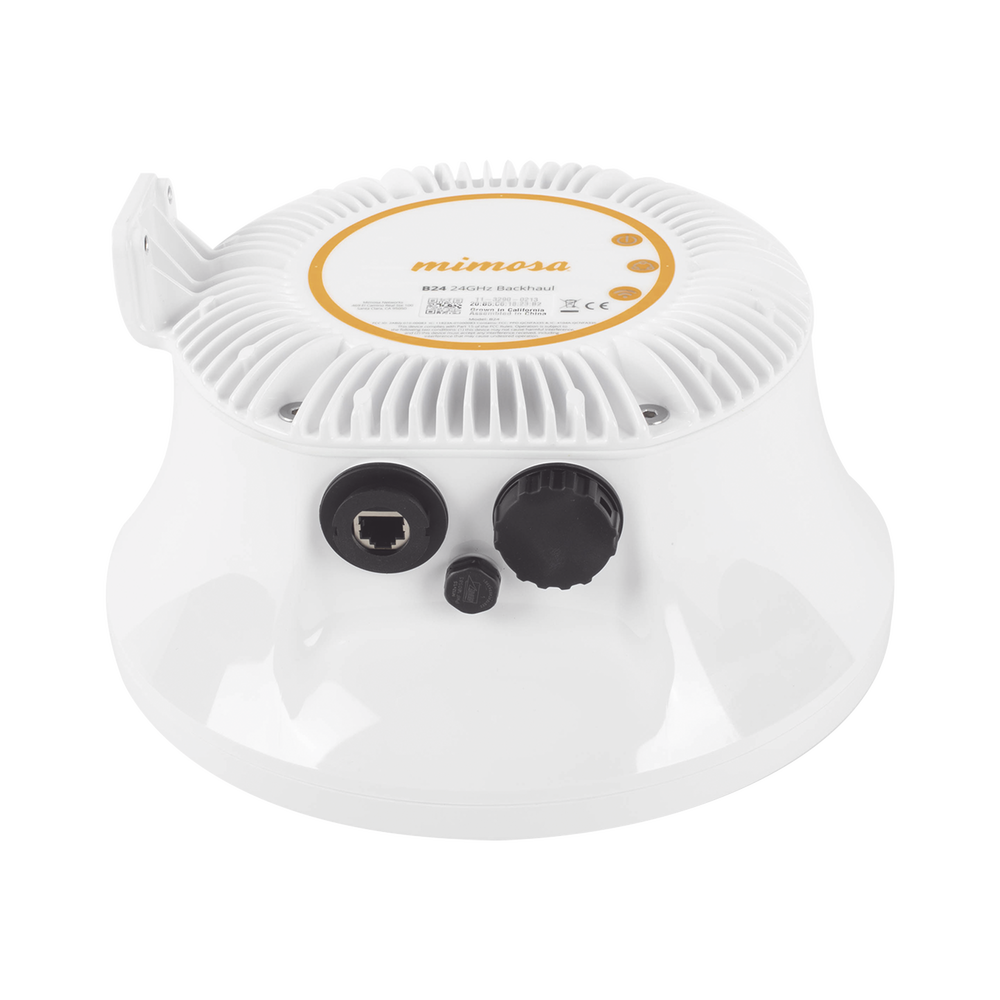

- Giabit Ethernet 10/100/1000 port
- SFP Fiber Port for fiber optic operations
- Advanced security: 128 bit AES-PSK.
- Up to one million packets per second .
- Maximum performance up to 1.5 Gbps aggregate speed in DL/UL.
- Circular waveguide connector.
Radio
- MIMO and modulation: 4x4:4 MIMO OFDM up to 256 QAM.
- Dual channel width 20/40/80 MHz
- Maximum transmission power: 27 dBm.
- Low latency < 1 ms.
- For outdoor use: IP67.
- Temperature range: -40 to 55°C (-40 to 131°F)
- Frequency of 24.00- 24.25 GHz MHz
Physical and electrical characteristics
- Maximum power consumption: 19.5 W
- Passive POE power: 48-56 Vdc

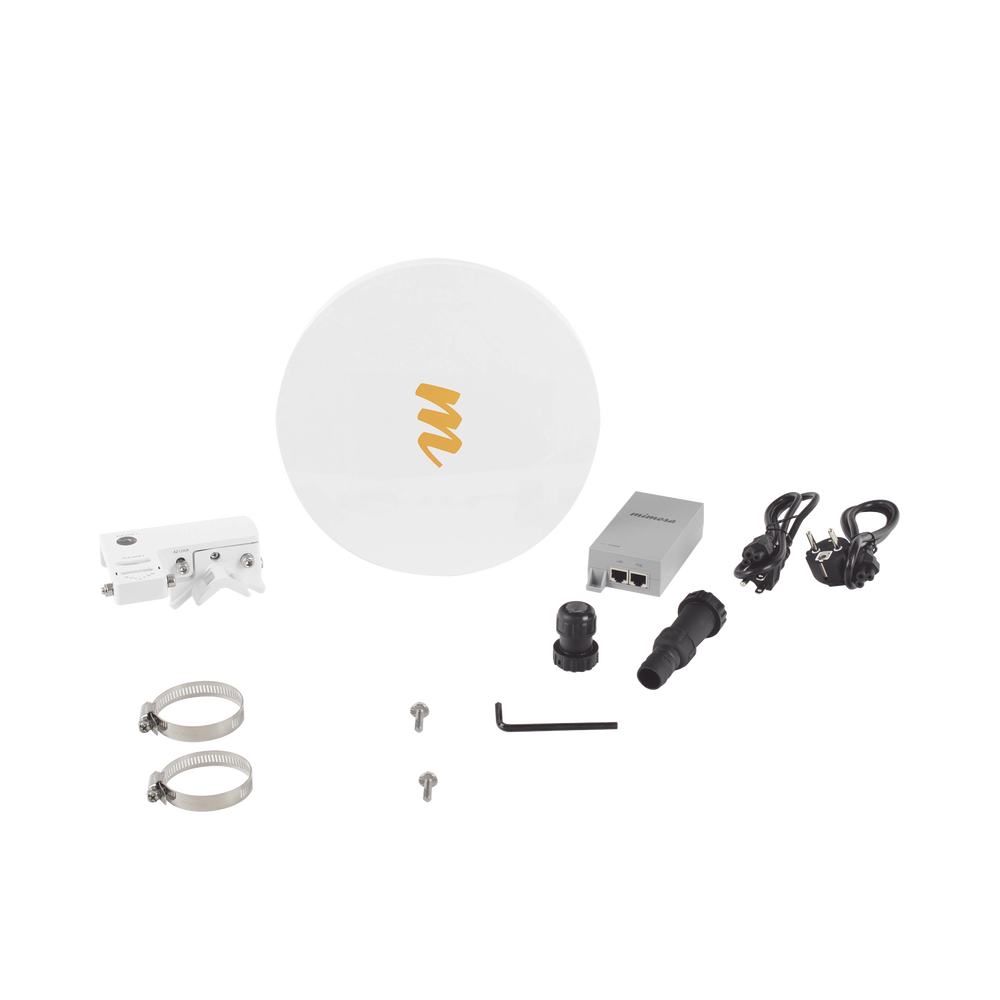

- POE56V passive PoE injector (included).
Dimensions :
- Depth: 134 mm
- Width: 260 mm
- Height: 260 mm
- Weight : 2.5 kg (4.5 lbs)
Note : the equipment already includes an internal surge protector, it is recommended to land on a physical ground.
.
B24
CLIENT/BACKHAUL
Reliable 24 GHz Gigabit performance
The Mimosa B24 breaks existing barriers of price, size, performance, and power efficiency in the less crowded 24 GHz band.
APPLICATIONS
Fixed Wireless Broadband Backhaul Business and Rooftop MDU Connections Video Surveillance and Distribution DC Connectivity Smart
WORTH
Price performance leader
Delivering up to 1 Gigabit of low-latency IP traffic in a single direction, the Mimosa B24 is the industry's price-performance leader in unlicensed 24 GHz backhaul. Engineered from the ground up with the highest-quality, high-volume components, the B24 delivers incredible performance at a price point that's economical for broadband providers and enterprises in suburban and urban markets.
ABILITY
Gigabit on demand
To meet modern Internet traffic needs, where nearly 90% of peak nighttime traffic can be in the downlink direction, the B24 dynamically adapts to changing demands using Auto-TDMA technology. Low-latency Gigabit throughput can be directed up or downlink as needed to maximize spectrum utilization throughout the day. Legacy FDD radios are limited to symmetrical traffic usage, leaving vast amounts of spectrum consistently underutilized.
RELIABILITY
Unparalleled reliability
Don't limit yourself to distance with higher-frequency microwave technology. Use the B24 to avoid 5 GHz spectrum congestion and deliver superior reliability, even in rain, at distances up to 3 km (2 mi).
EASY TO INSTALL
Light
Weighing just 2.7 kg (6 lbs), the Mimosa B24 is incredibly easy to transport and set up.
FORM FACTOR
Small and beautiful
At a fraction of the weight, size, and power of alternative solutions, the B24 is incredibly easy to install, and its compact design fits discreetly into any visually sensitive area.
EFFICIENT POWER
Solar friendly
At only 19.5W, the B24 is ideal for applications requiring low-cost battery backup.
TDMA GPS SYNC
Sync that works
Like other Mimosa products, GPS synchronization allows co-located B24 radios to share the same channel, allowing up to eight links to operate at the same site, each with a speed of 1.5 Gbps.
ETHERNET REDUNDANCY
Fiber list
For added flexibility, redundant fiber and Ethernet connections are supported, a feature previously only available on sky-high priced outdoor products.
Mimosa Networks Direct Support Link (Help Center)
http://backhaul.help.mimosa.co/home
Mimosa Networks Warranty Process Link (Help Center)
http://mimosa.co/warranty.html
- Solar-friendly, Low latency in one direction, Supports monitoring in Mimosa Cloud, Works in licensed band
Out of stock
MODELO: B24
