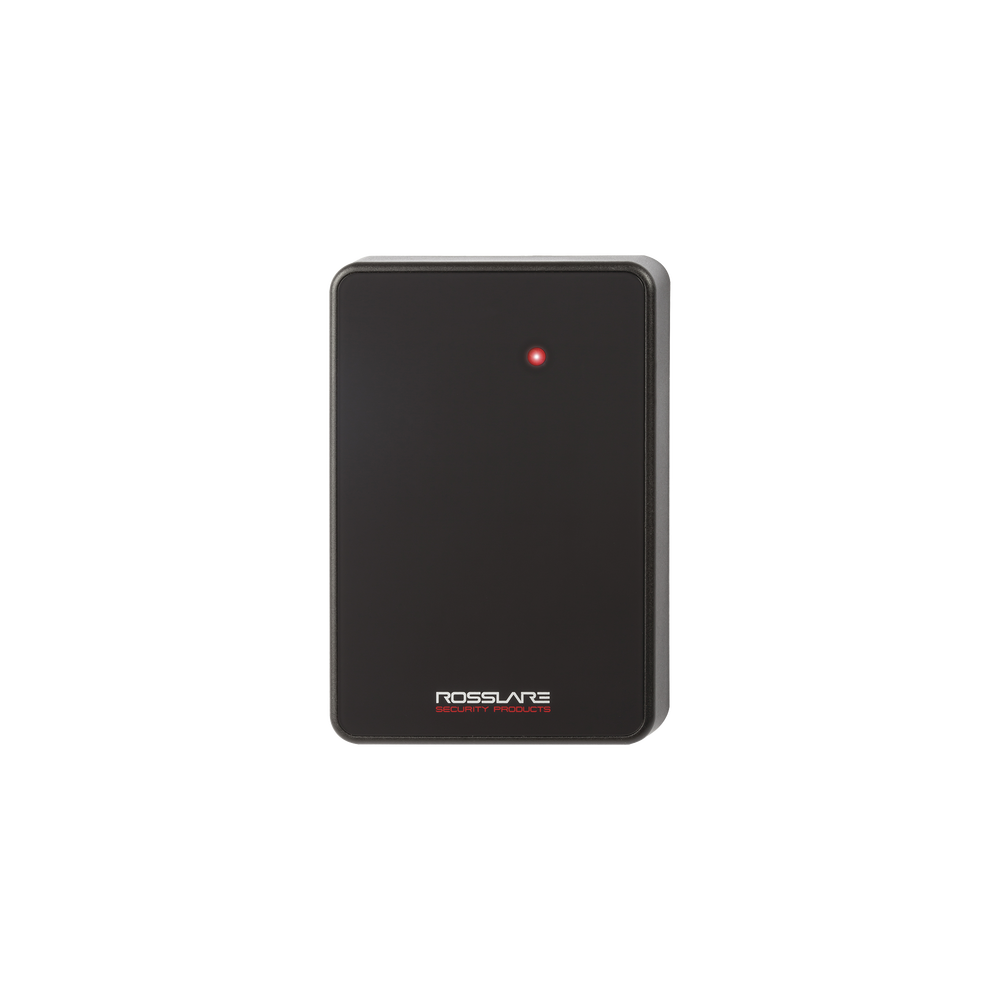

Multi-format CSN Reader (MIFARE, classic, Felica ICLASS) OSDP or Wiegand output

Multi-format CSN Reader (MIFARE, classic, Felica ICLASS) OSDP or Wiegand output

New CSN ​​SELECT smart readers

The most powerful Smart Readers are the AY-K/M/H/L/R 6255 series from ROSSLARE, Multi-format for 13.56 MHz credentials, feature multi-format output and excellent read range and use in any environment.
Main features of CSN readers

CSN reads the following formats:

• MIFARE Ultralight / Ultralight C
• MIFARE Classic
• MIFARE Plus S / Plus X
• MIFARE DESFire EV1
• ISO 14443A/ ISO 18092 (NFCIP-1)
• ISO 14443B
• ISO 15693/Felica/Topaz/iClass
• NFC (ask for device compatibility)

Compatible with AC-015, AC-115, AC215, AC-215IPL, AC-225IPL, AC425IPL and AC825

• Reading range 3 cm.
• OSDP or Wiegand output (selectable)
• 26-bit Wiegand output.
• Requires 5 22 gauge wires (120m max).
• Power supply 12 Vdc, 120 mA.
• Dimensions 144.9 × 42.9 × 22.1 mm
• Weight 126 grms.
