Coaxial Lightning Protector from 125 to 1000 MHz with N Female Connector to the Antenna

Coaxial Lightning Protector from 125 to 1000 MHz with N Female Connector to the Antenna

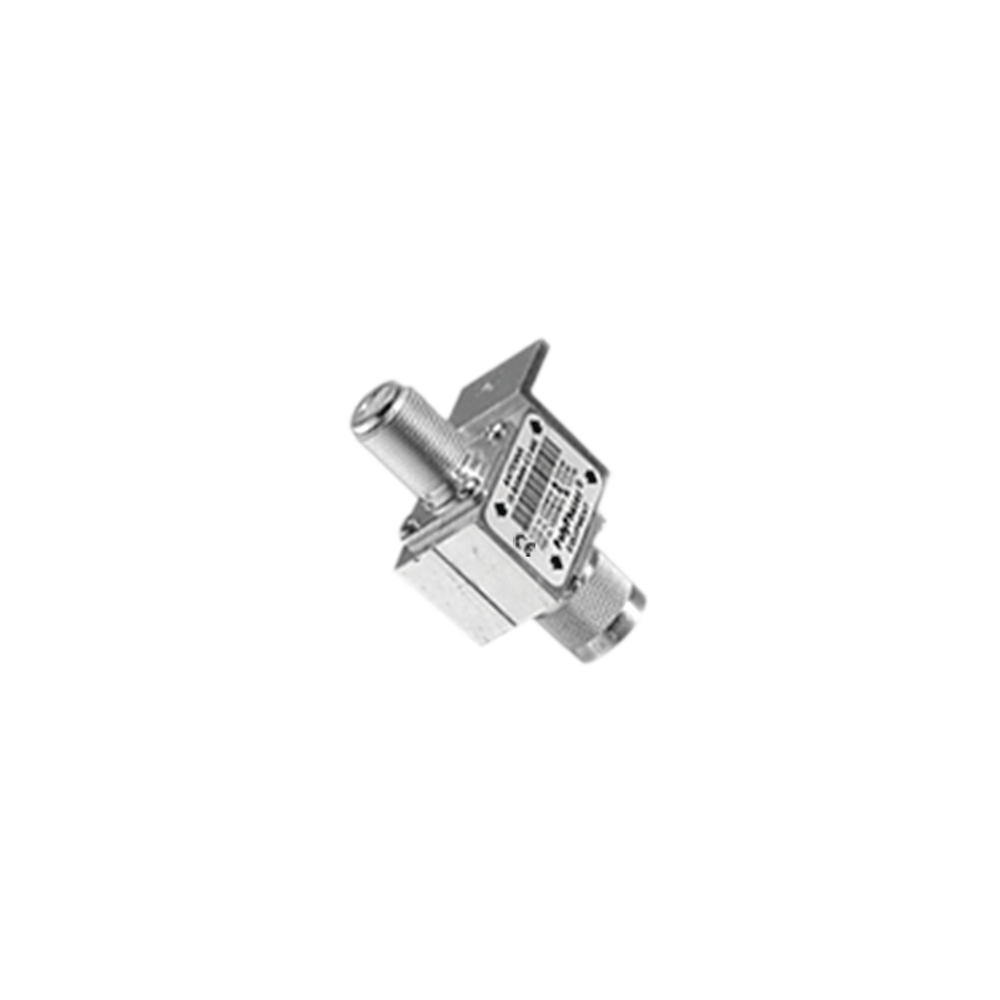

Coaxial surge protector with CD blocking, N female connector to the antenna and N male connector to the equipment.

Specifications for PolyPhaser IS-B50HN-C2-MA

- Type: DC Blocking
- Mounting type: Screen
- PIM Rate: N
- Standards: CE Compliant, ROHS Compliant
- Connectors: N
- Unprotected connector: N female
- Protected connector: N male
- Frequency range: 125 MHz to 1.0 GHz
- Activation voltage: 1200Vdc ± 20%
- RF power: VHF 500 W, UHF 250 W
- VSWR: ≤1.1 to 1 over the frequency range
- Insertion loss: ≤0.1dB over the frequency range
- Protocol/Application: For 2-way radios and SCADA applications
