Vantage PRO Ultra Bright Light Bar with 64 Powerful, Next-Generation Red/Blue LEDs

Vantage PRO Ultra Bright Light Bar with 64 Powerful, Next-Generation Red/Blue LEDs

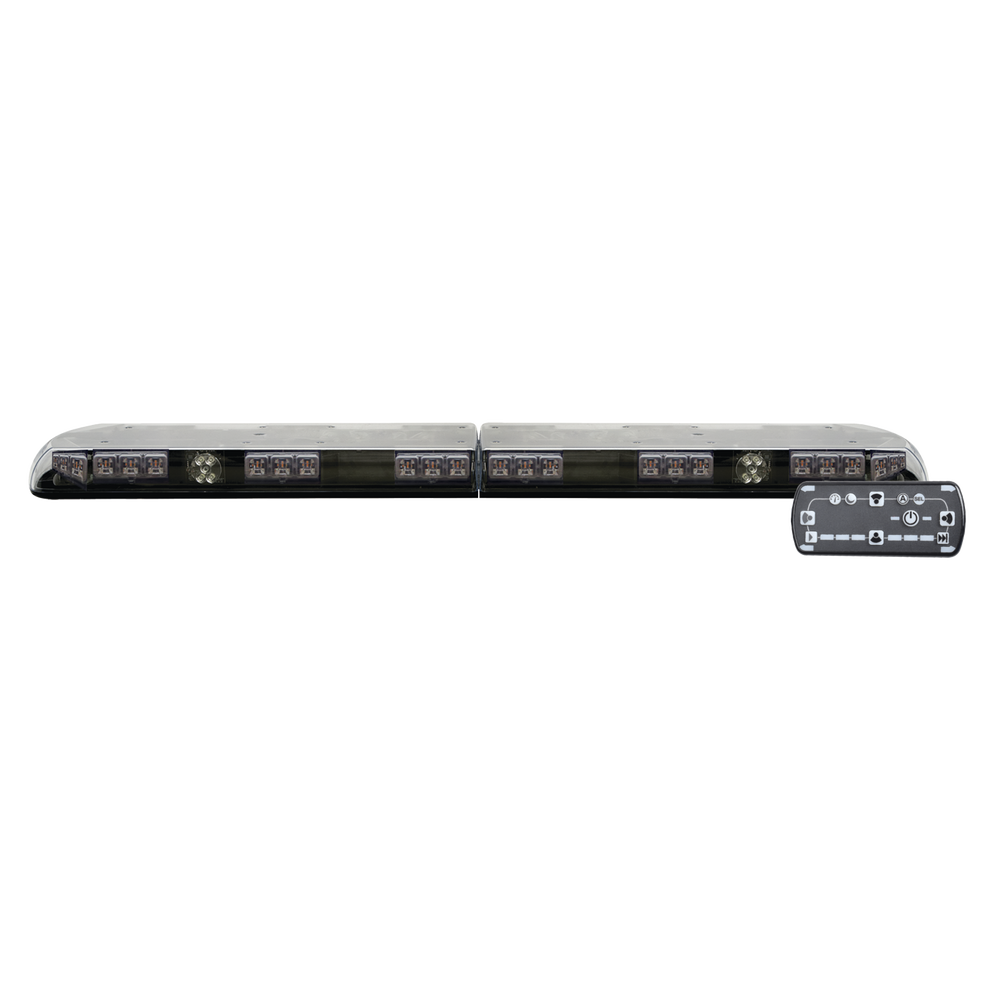

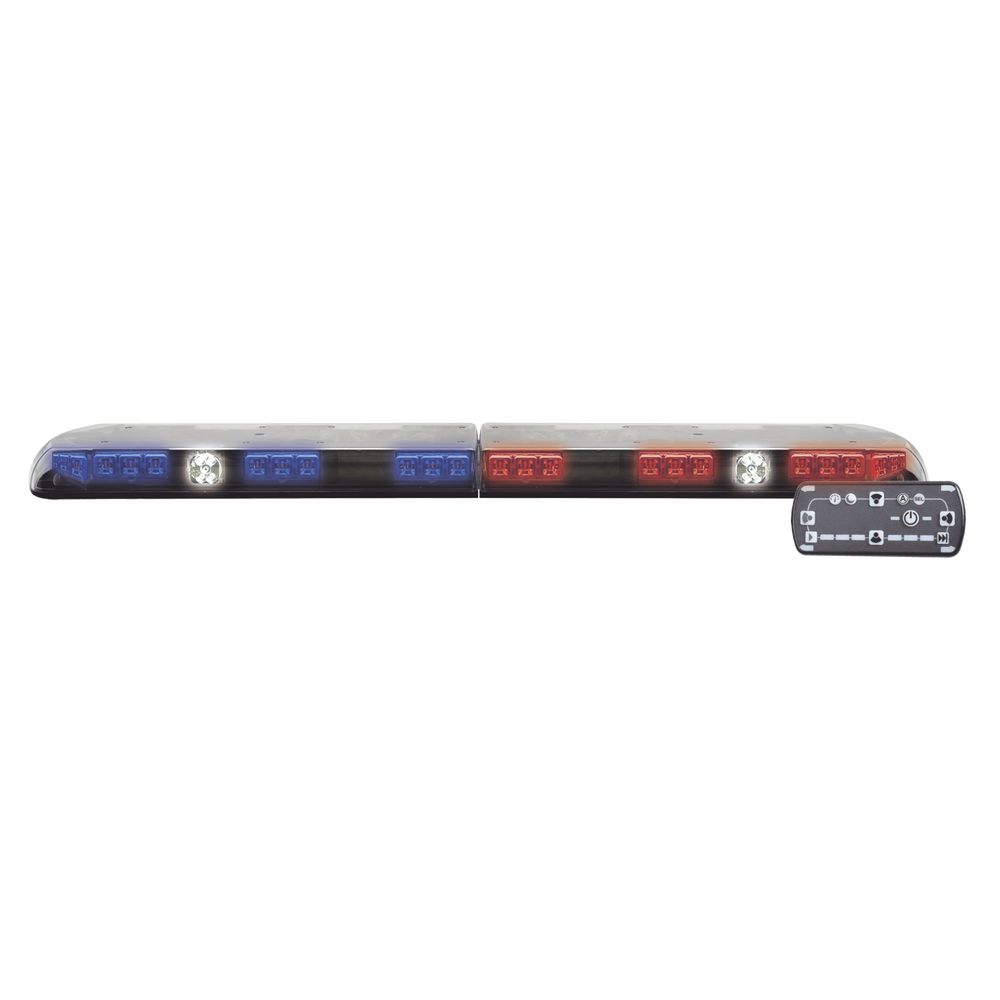

Vantage Ultra Bright Light Bar

The Vantage Turret is a versatile, powerful, and low-profile lightbar suitable for a wide range of vehicles, including Public Safety, etc.

Configuration: 6 modules with 3 LEDs each in red, 6 modules with 3 LEDs each in blue, 2 corner modules with 3 LEDs each in red, 2 corner modules with 3 LEDs each in blue, 2 front modules with 4 LEDs each in white as penetration light and 2 side modules with 4 LEDs each in white as alley light.

Characteristics:

• 48 flash patterns
• Traffic Director (Red/Blue Interconstructed)
• Modules with ICE technology for greater light visibility
• Fully configurable
• Penetration Lights
• Street Lights
• Aluminum chassis
• Polycarbonate domes and bases
• 64 latest generation LEDs
• Length 48', Height 2.5” and Width 11”
• Temperature range: -30 to 50 °C
• Hook mounting
• Includes controller

Technical Specifications:
Voltage: 12-24 Vdc
Consumption: 11 Amp
Dimensions: 48' x 4.2' x 11' (Width x Height x Depth)

VTG48 Series Vantage®

SAE Class I LED Light Bar

The VTG48 series lightbars are versatile and powerful warning devices, suitable for a variety of vehicle types and functions. With black or white bases, the VTG48 offers a stylish and aesthetically pleasing option for a variety of commercial and government vehicles.

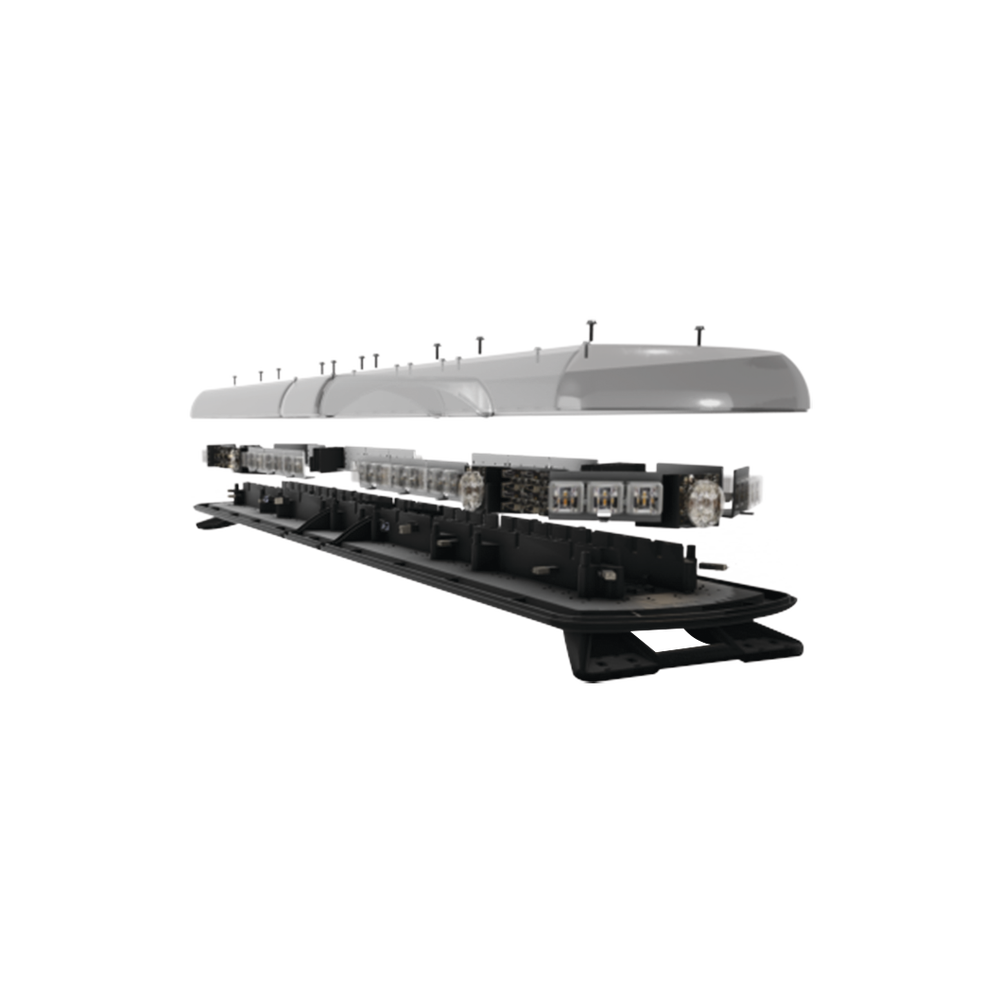

The light bars can be permanently mounted on the vehicle or mounted with an optional roof-mount kit. The VTG48 series features a durable aluminum chassis, a polycarbonate base and lens, and has a sleek, low-profile design suitable for many vehicle applications.

The VTG48 series supports three different types of LED modules (optional): Warning modules, Braking modules, Stop-Tail-Turn modules, and White Alley / Takedown / Worklight modules.

Characteristics:

• SAE Class I LED lights

• Integrated Security Traffic Director

• LED diffuser (ICE OPTICS ®) offers a brighter appearance for better visibility

• 48 standard bar flash patterns and 11 safety director flash patterns •Red, red/blue, red/blue/amber color options.

• Customizable configurations with a 2-3 day turnaround (FoB: Boise ID)

• Four length options: 48', 54', 60' and 72'

• Seven standard chassis configurations.

• White base (optional)

• Aluminum chassis, polycarbonate base and lens.

• Height: 2.5', Width: 11'

• Temperature range: -22°F to +122°F (-30°C to +50°C)

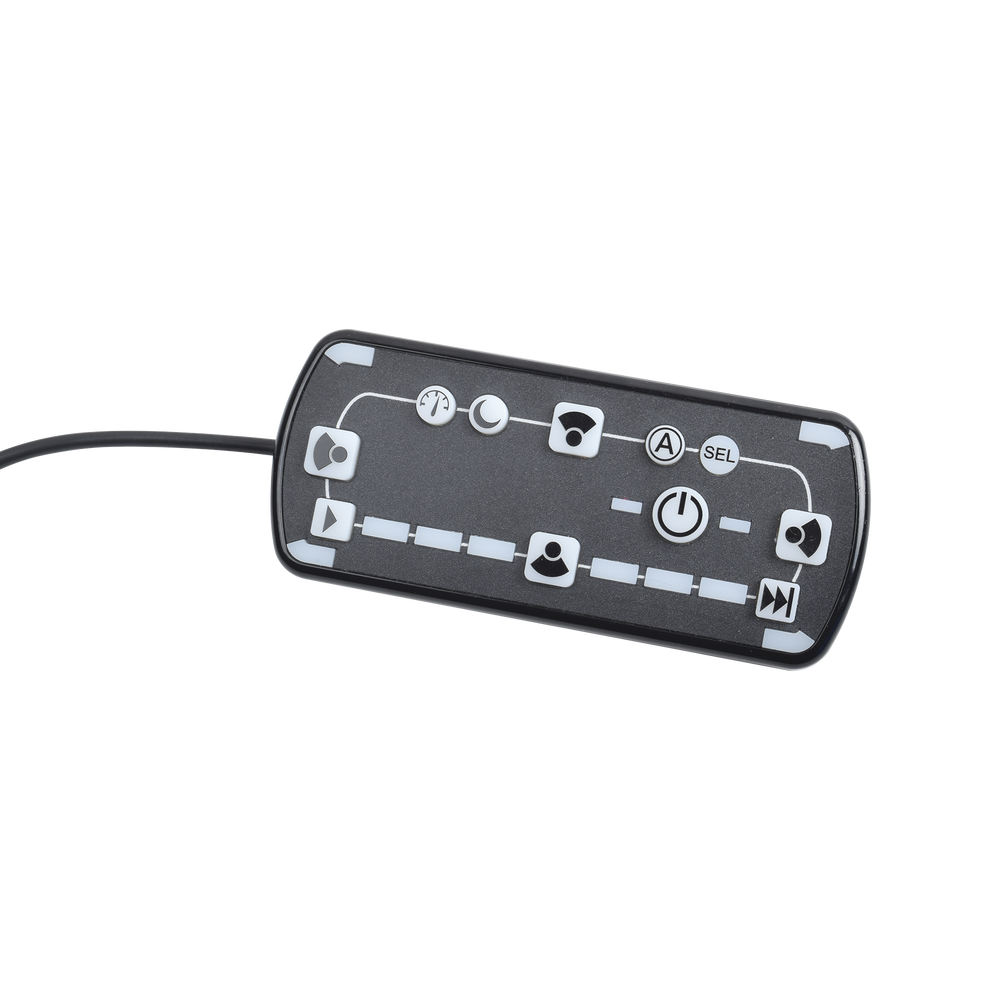

In-cab controller (plug & play) with visual safety director functions (included)

Symbols / Features Guide

LED warning modules (optional)

Stop-Tail-Turn - Pair of rear-facing high-level auxiliary LED signal lights.

Work Lights - Pair of Rear-Facing LED Work Lights (White).

Alley Lights - Pair of LED alley lights facing both ways (in white)

SAE Compliance, California Title 13 Compliance, 5-Year Warranty, Made in the USA
