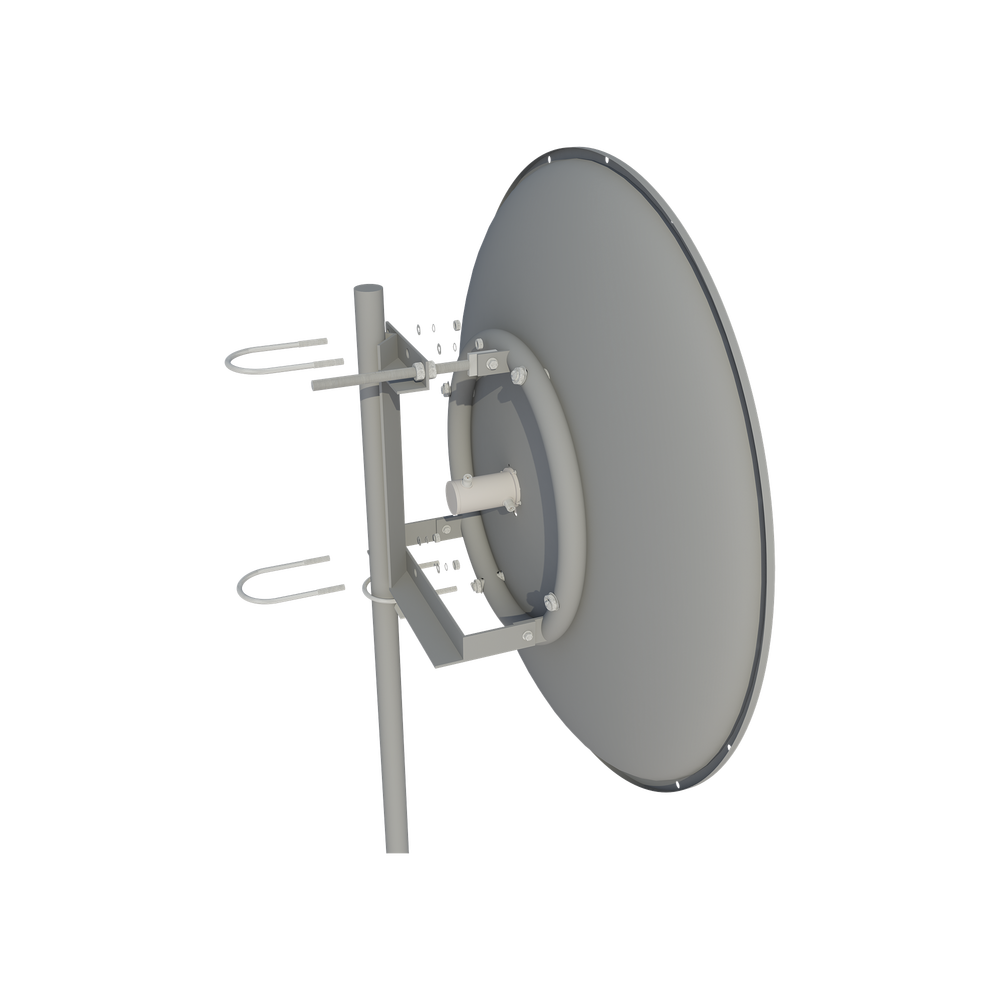

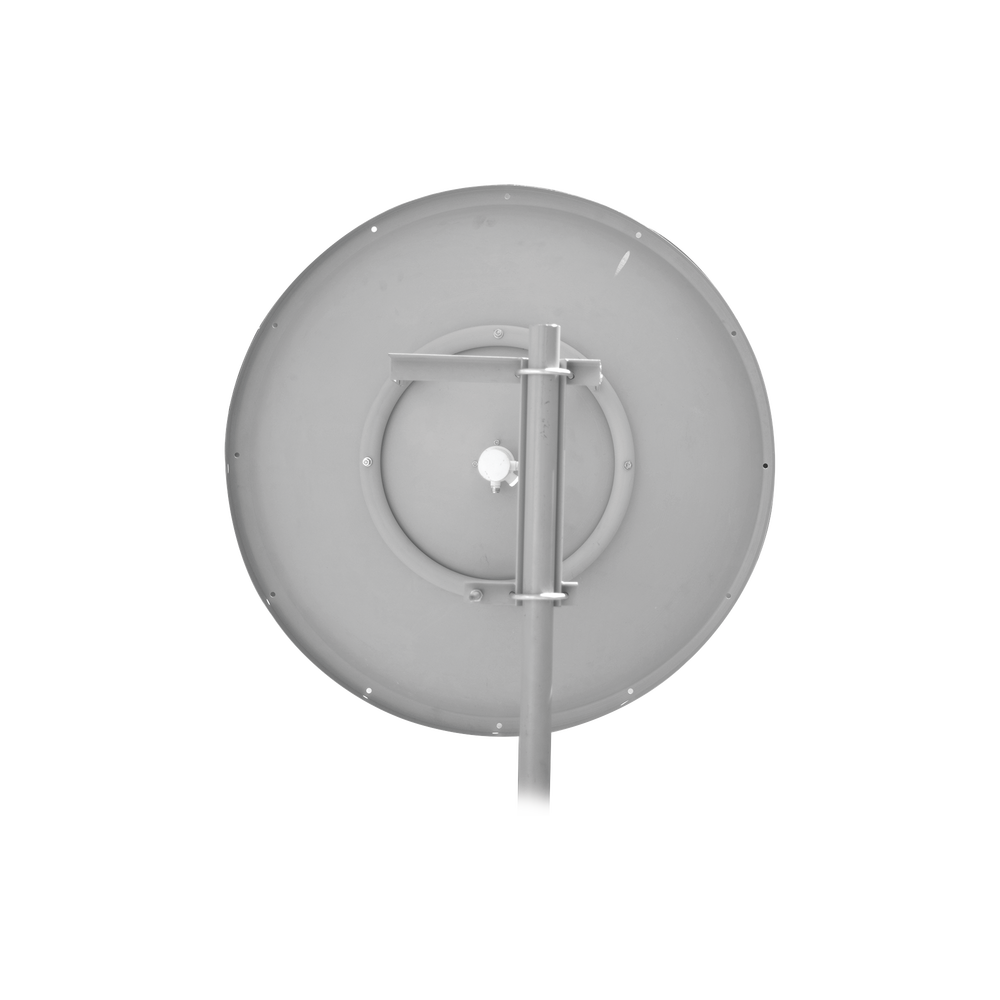

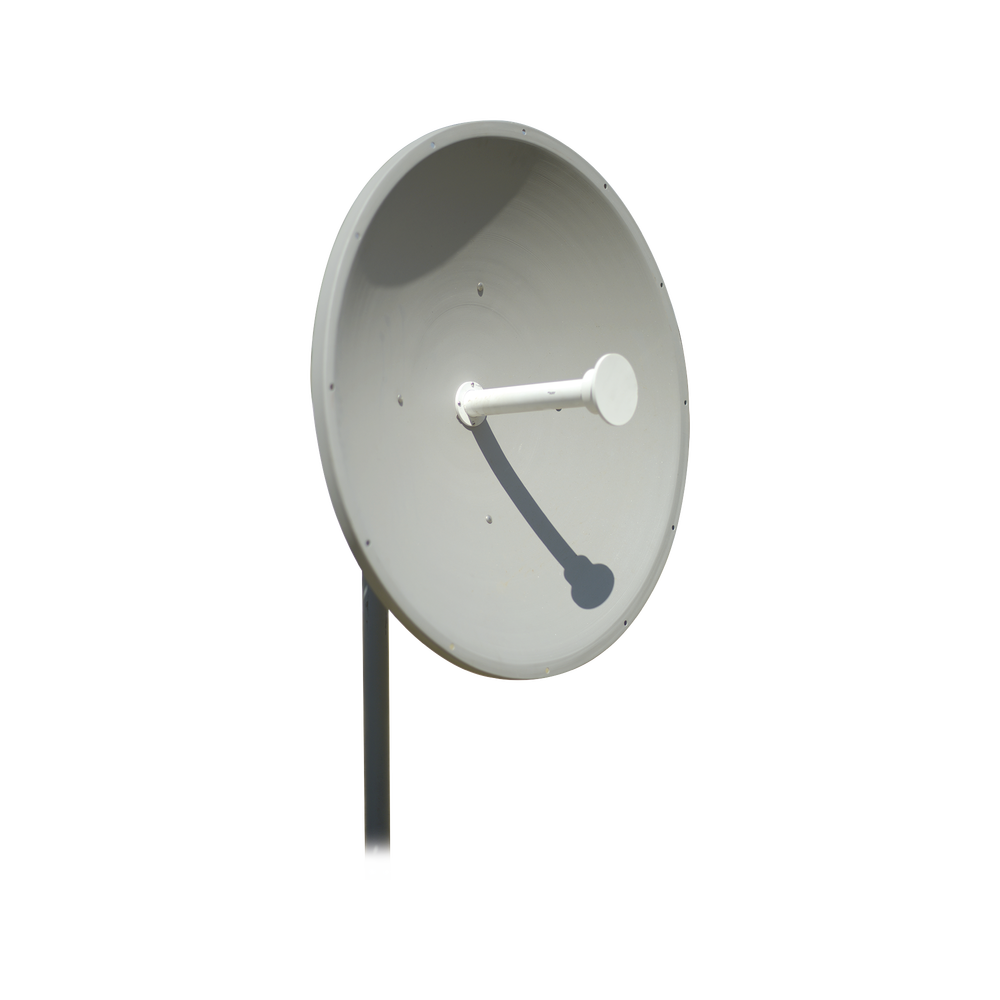

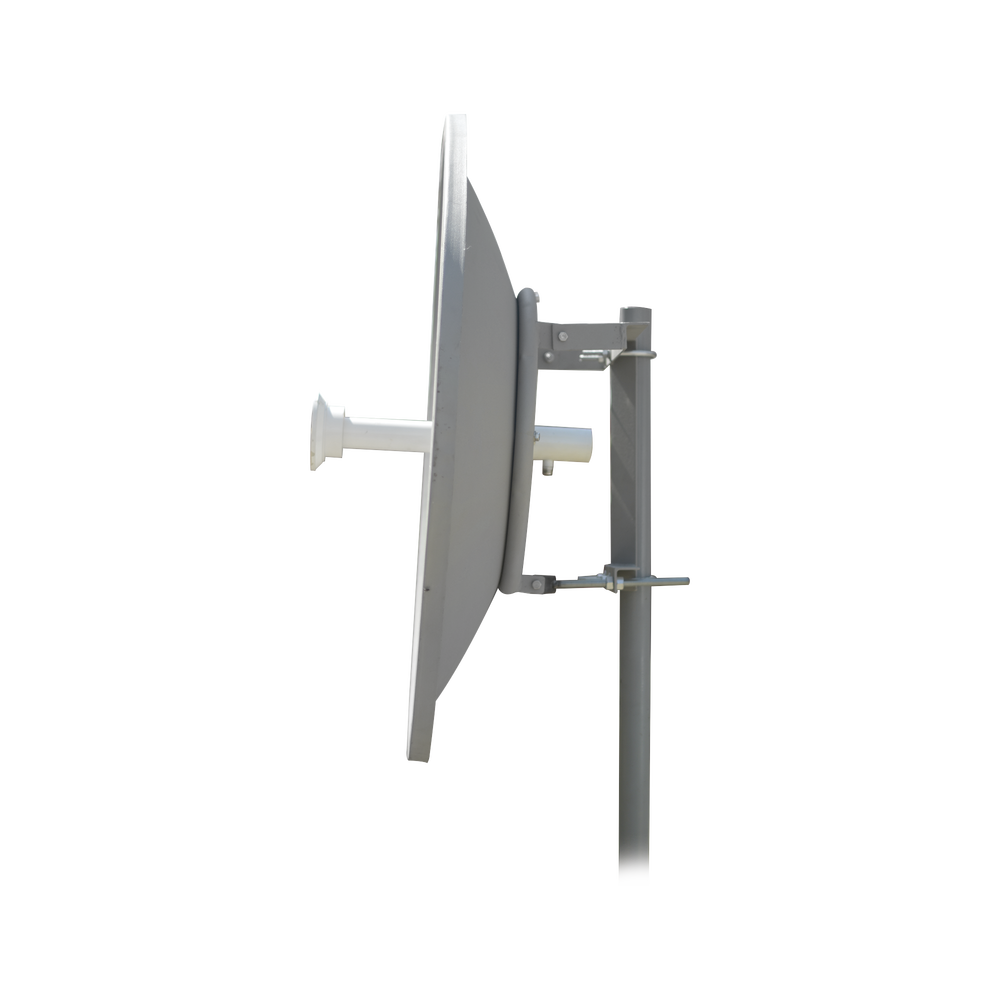

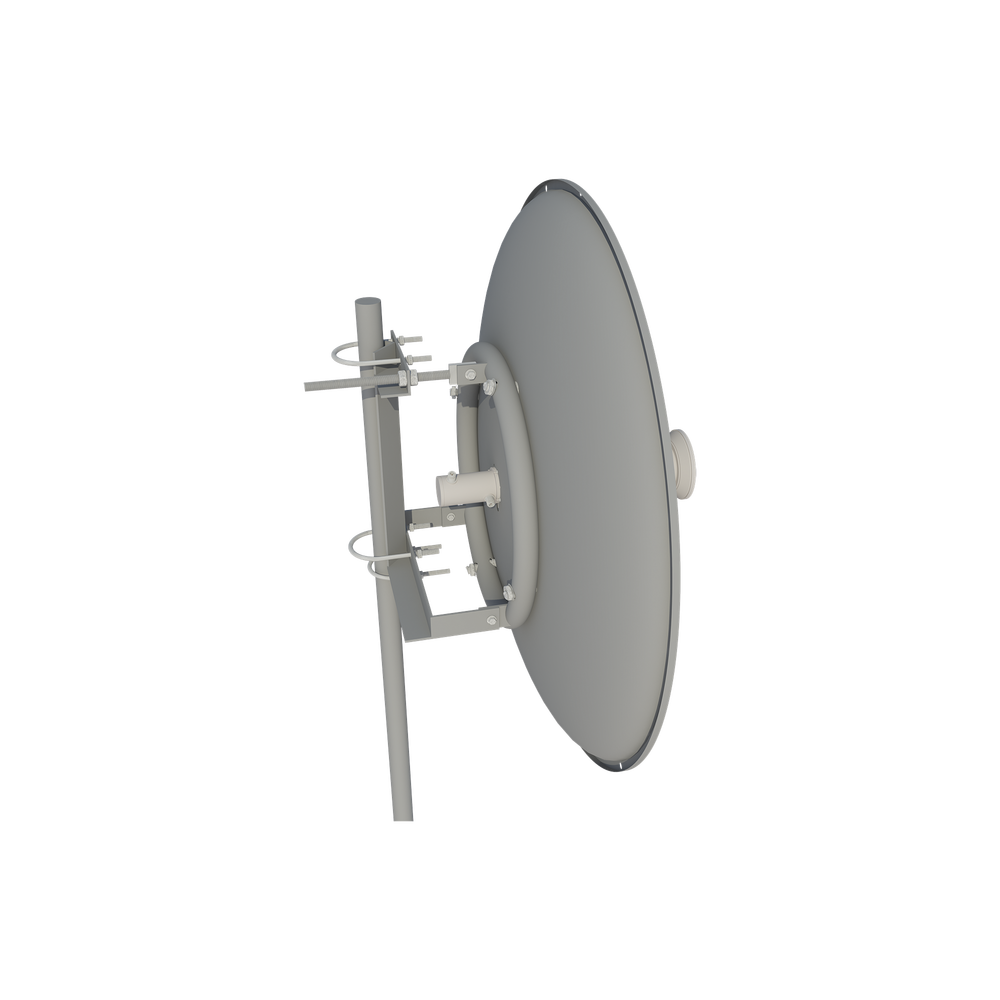

1 m diameter 34 dBi Directional Antenna for 4.9 to 6.2 GHZ frequency (Slant: 45°).

1 m diameter 34 dBi Directional Antenna for 4.9 to 6.2 GHZ frequency (Slant: 45°).

Characteristics:

Frequency: 4.9-6.2 GHz.
Antenna Type: Directional.
Connector Type: N-Female (2 inputs)
Revenue:
Low: 33.3 dBi
Average: 34.4 dBi
High: 35.3 dBi.
3dB BW: 4.5|
VSWR: 1.8
Return Loss: 14 dB
ISO: 25 dB.
Front-back ratio: 36 dB
XPD: 30 dB
Polarization: Dual Polarization.

Mechanical Specifications:
Wind resistance speed: 120 km/hr
Azimuth Adjustment: 360°
Elevation Adjustment: ±15°
Suggested mast diameter: 50 - 70, 100 - 114 mm
Operating Temperature: -45 to +60 °C
Gross Weight: 6.5 Kg
Net Weight: 5.5 Kg

Includes the following components:
