Main features.

Works at 2.4 and 5 GHz simultaneously.

Ceiling Mount.

Indoor Access Point

Beamforming Technology

Supports 16 SSIDs (8 SSIDs per band)

MAC address filtering, up to 32 MAC addresses per SSID

Modes of operation

Access Point

WDS Access: WDS AP, WDS Bridge

Standards

IEEE 802.11b/g/n at 2.4 GHz

IEEE 802.11a/n/ac at 5 GHz

Integrated Omnidirectional Antennas

2 on 2.4 GHz: 5 dBi

2 on 5 GHz: 5 dBi

Transmission power

Up to 23 dBm at 2.4 GHz

Up to 23 dBm at 5 GHz

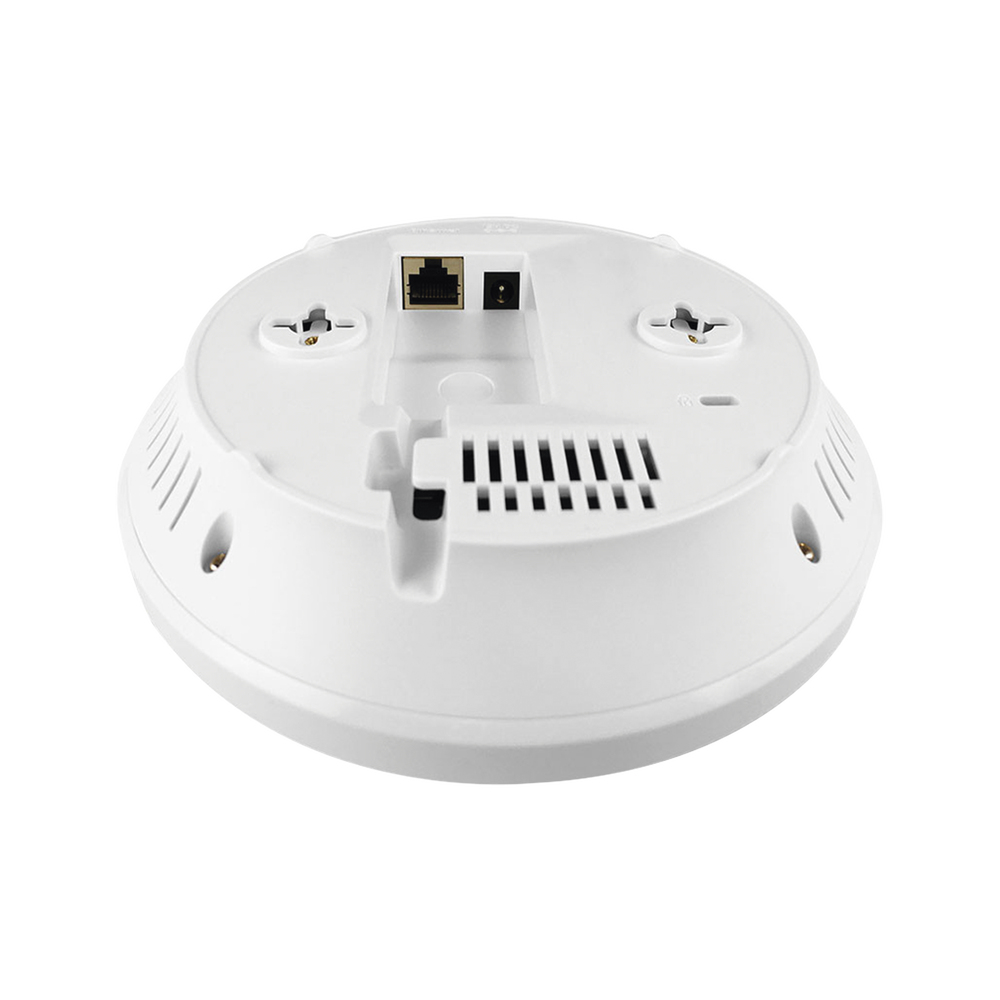

Physical interface

One Gigabit Ethernet RJ-45 10/100/1000 BASE-T port

One Jack input for 12V/1A voltage adapter

A reset button

Power supply

Power over Ethernet port: 802.3af input

IEEE 802.11e compliant source

Supports and includes 12V/1A power supply

Maximum energy consumption

9W

Administration

Stand-Alone

Neutron Series Switch (Local Management)

ezMaster Platform (Remote Management)

SkyKey (Remote Management)

EnGenius Cloud (Ask the engineering department for the procedure to add this device to EnCloud).

Package contents

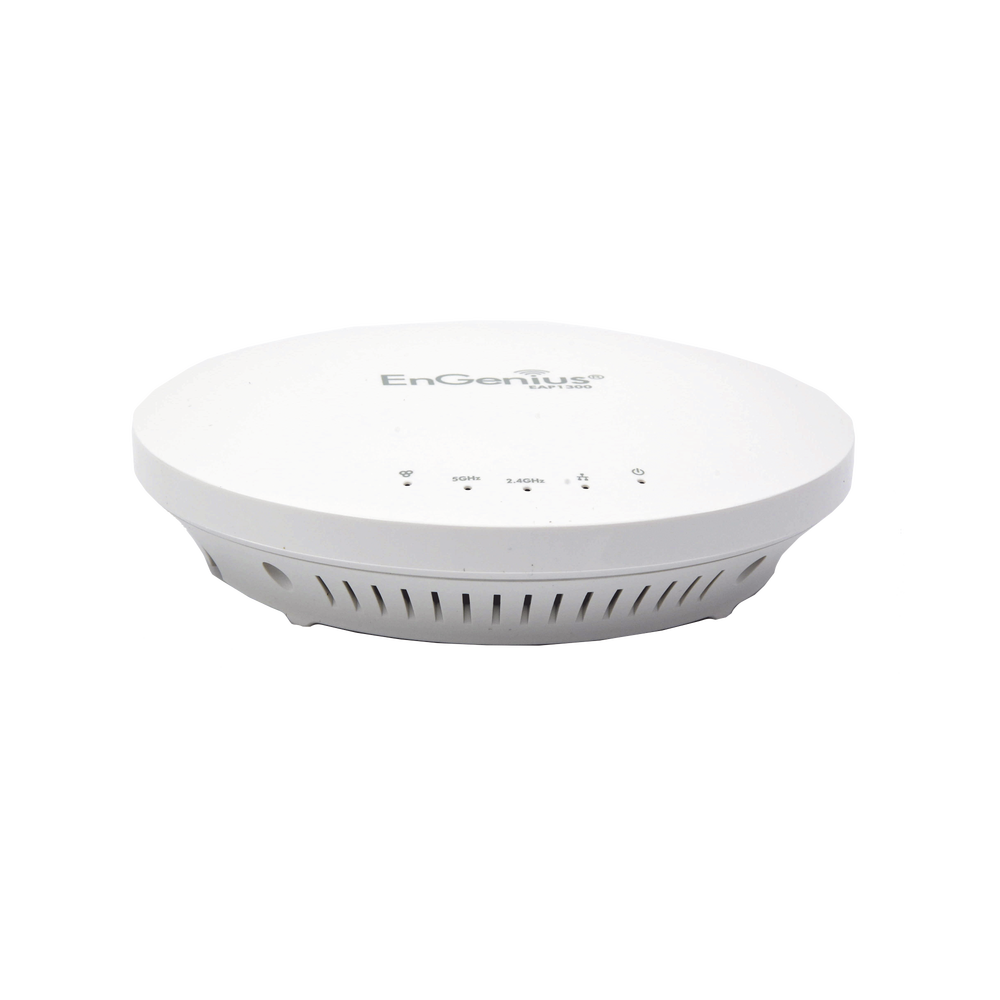

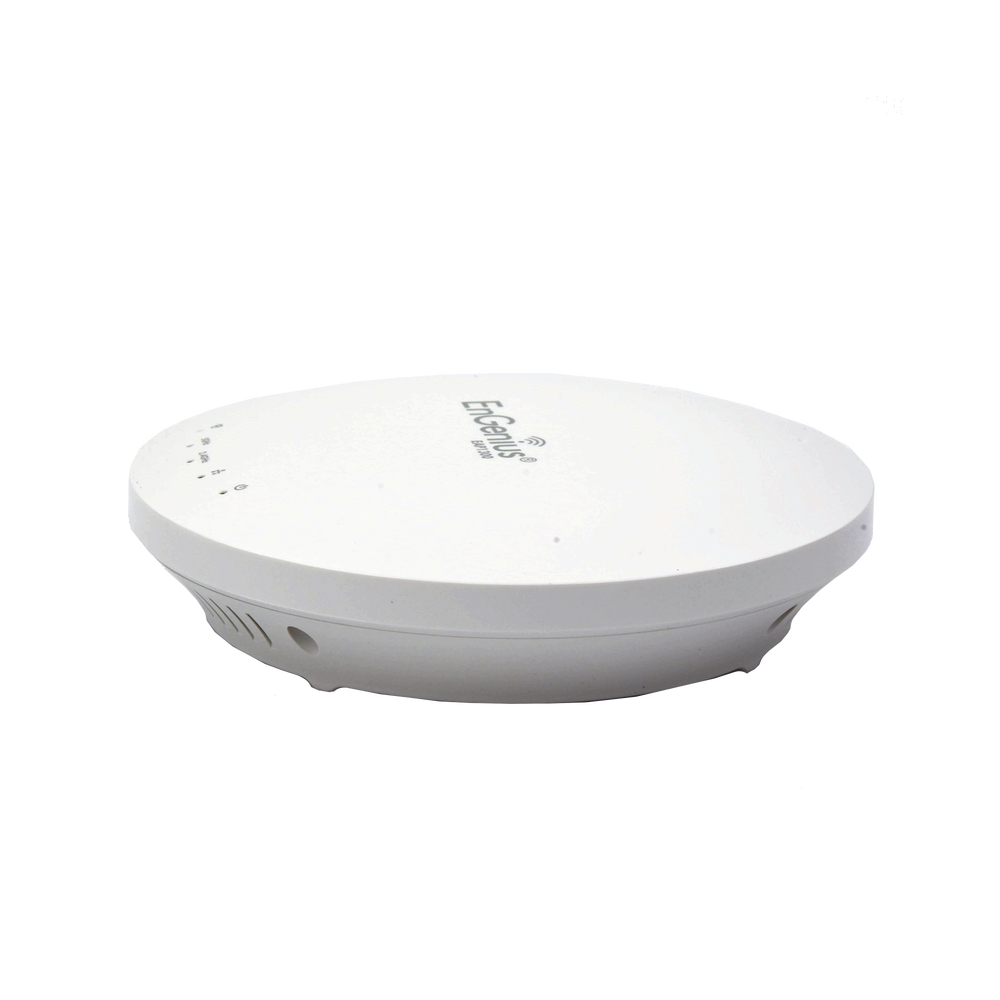

EAP1300 Indoor Access Point

12V / 1A power adapter

T-rail mounting kit

Screw kit for ceiling and wall mounting

Mounting brackets

RJ-45 Ethernet cable

Quick Installation Guide
