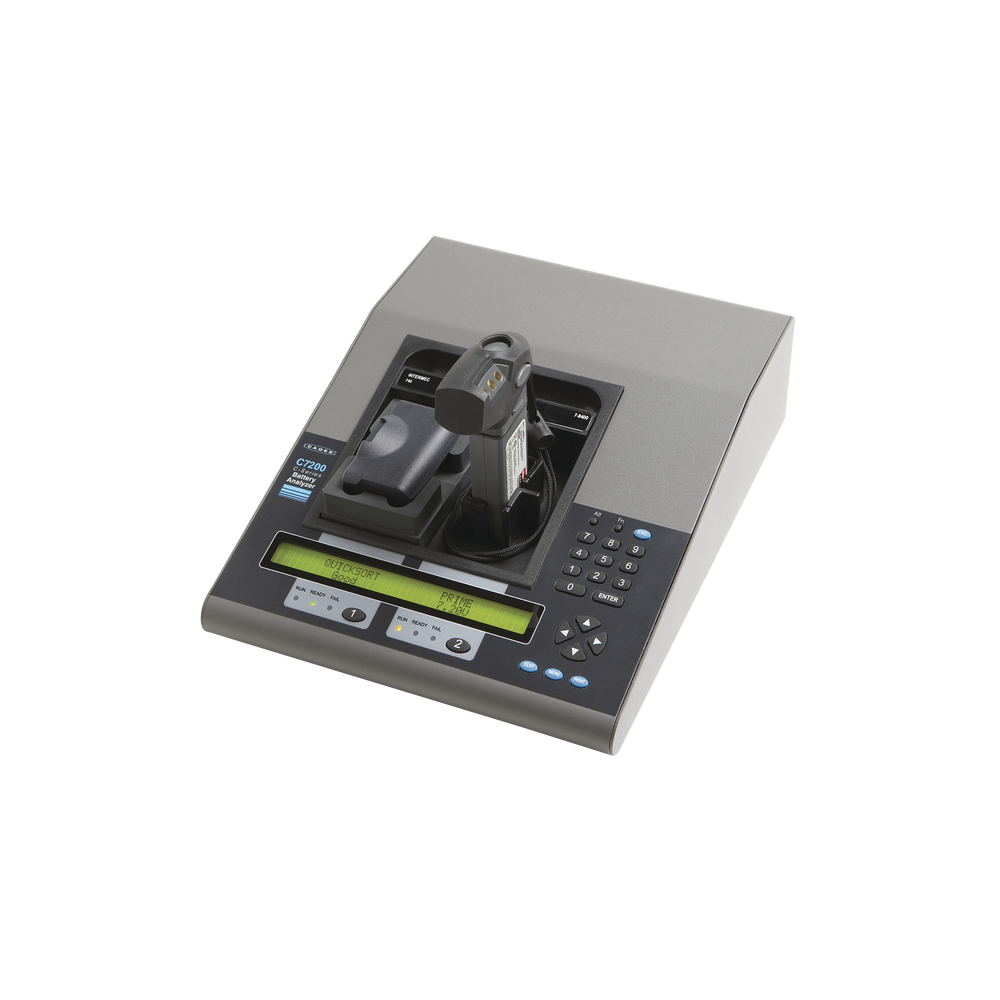

CADEX 7200-C 2-Cavity Battery Analyzer (40W). Adapters not included.

CADEX 7200-C 2-Cavity Battery Analyzer (40W). Adapters not included.

Maximize critical equipment uptime while minimizing fleet battery costs

The two-station Cadex C7200 is suitable for smaller organizations and storefront operations; 40W of charging power at 4A per station ensures rapid service of larger batteries. This cost-effective analyzer offers similar features to the larger C7400.

• Battery voltage range 1.2-16 V nominal.
• Charging and discharging current up to 4 A per station.
• Maximum charging power 40 Watts per station.
• Maximum discharge power 35 Watts.

The Cadex C7000 series battery analyzers service lithium, nickel, and lead-acid batteries in the same device with a simple adapter change. Simply slide the battery into one of 3,200 custom battery adapters or choose one of four universal adapters and discover why the C7000 series battery analyzers have become the world's leading battery analyzers.

With features like Boost to wake up sleeping lithium-ion batteries and custom programs to prepare lithium-ion batteries for shipping, the C7000 series analyzers take full control of battery testing. Use the analyzer to measure capacity, check reserve capacity after a long day, and apply calibration to improve energy meter readings.

• Over 3,200 custom SnapLock™ battery adapters.
• 18 programs provide automatic battery testing.
• QuickSort™ tests lithium-ion batteries in 30 seconds.
• Boost™ restores dormant lithium-ion batteries to full life.
• Works independently or with BatteryShop software.

At the heart of a battery maintenance system are analyzers and operating software that allow users to perform all the basic tasks required to test and maintain battery fleets.

Serves 2 battery adapters at the same time;
programmable up to 15 V, 25 Ah.
Includes serial port to connect to printing devices (laser or labels) or PC.
Includes USB port to connect to PC.
Includes 110 Vac power supply https://youtu.be/1zdWfmggCaw

* Exclusive product for radio communication customers.

Programmable, Charge and discharge modes, Boost™ Mode Restores Li-Ion storage discharge batteries to full life., Over 3,200 SnapLock™ custom battery adapters, Ideal for servicing, testing, and conditioning battery fleets as needed
