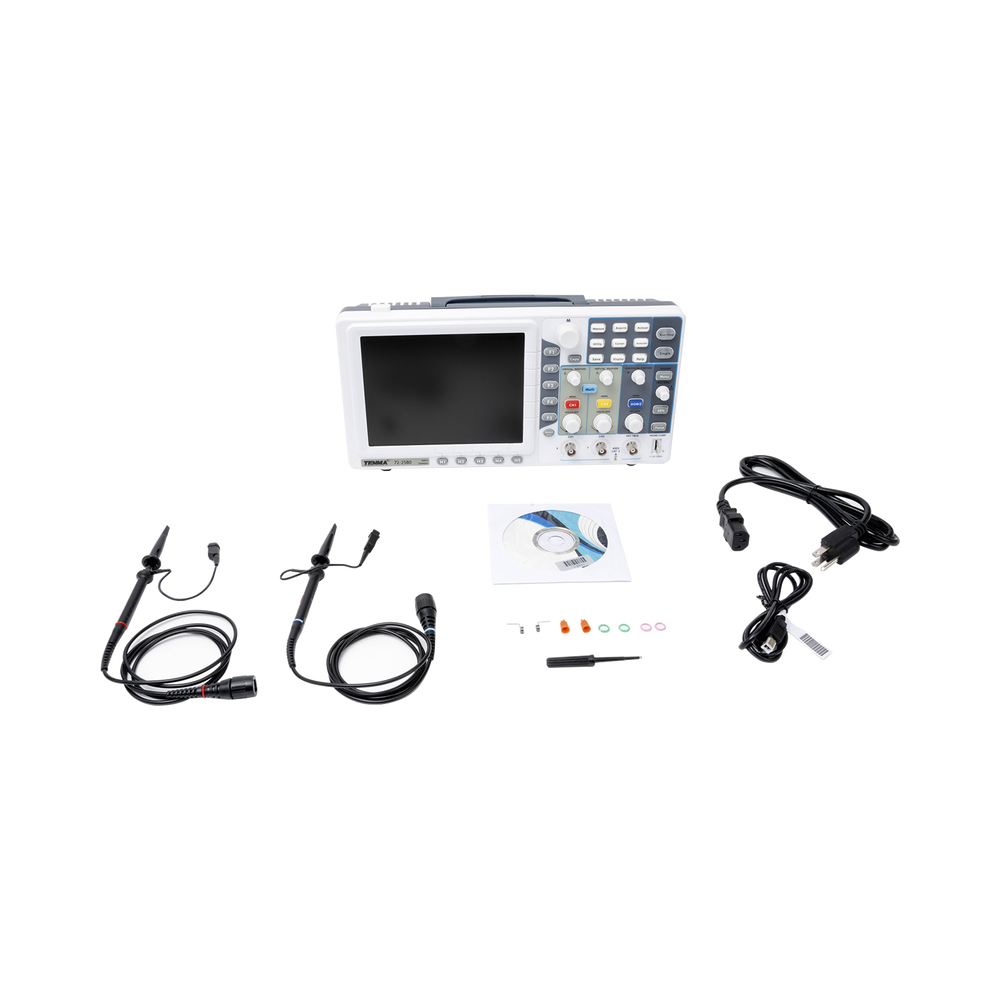

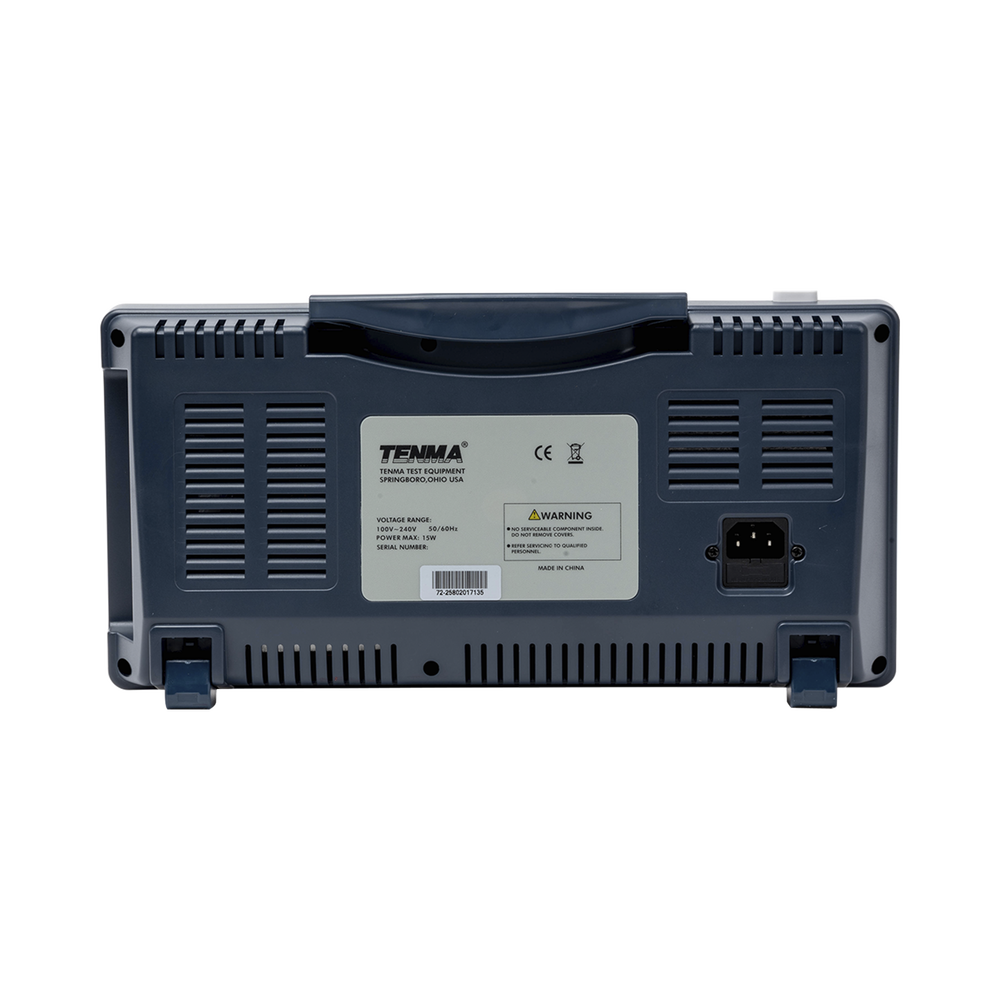

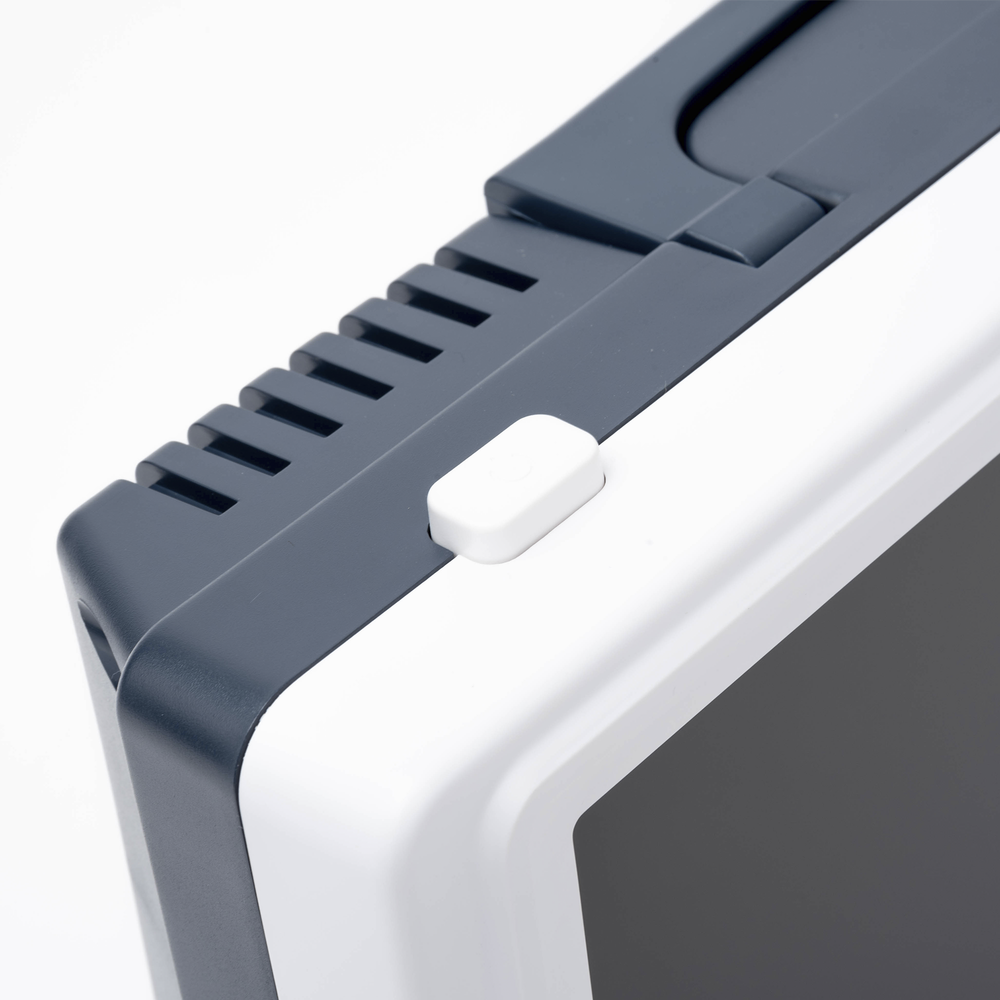

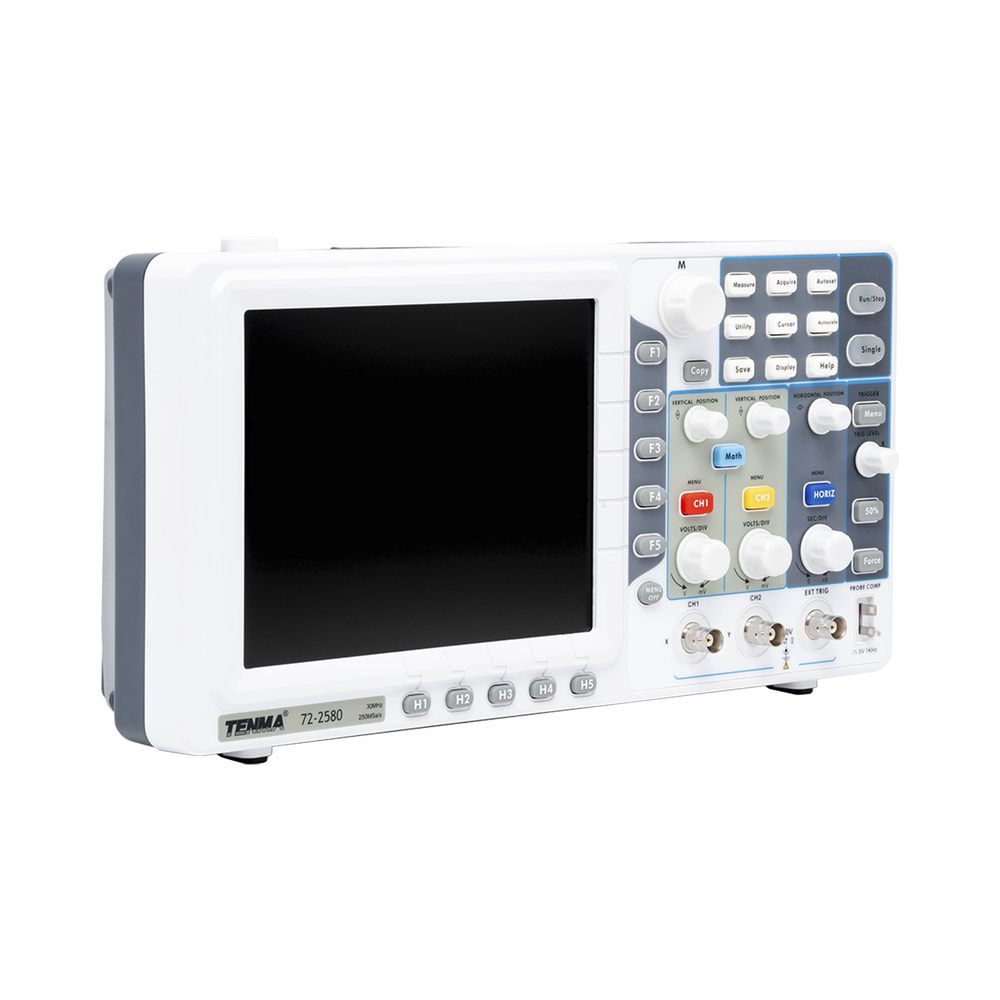

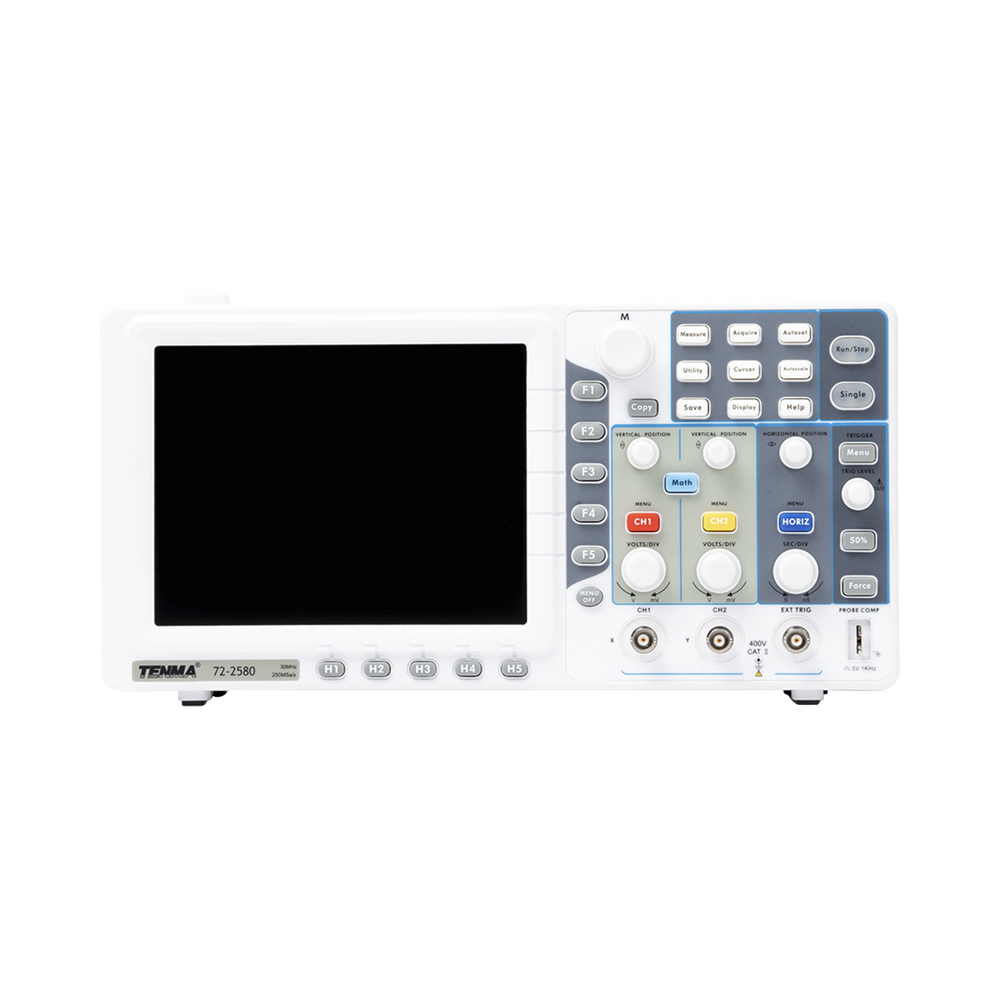

TENMA Compact Analog Oscilloscope, 2 Channels, 30 MHz.

TENMA Compact Analog Oscilloscope, 2 Channels, 30 MHz.

TENMA Compact Analog Oscilloscope, 2 Channels, 30 MHz.

• Bandwidth: 30 MHz
• Sampling rate: 250 MS/s (500 MS/s optional)
• Rise time: ≤ 11 ns
• Horizontal scale (S/div): 5ns/div - 100s/div, step by1- 2-5
• Display: 8' color LCD, 800 x 600 pixels, 65536 colors.
• Channel: 2 + 1 (external).
• Record length: Max 10K.
• Input coupling: DC, AC, ground.
• Input impedance: 1 MΩ ± 2%, in parallel with 10 pF ± 5 pF
• Max. input voltage: 400V (PK-PK) (DC + AC PK-PK).
• DC gain accuracy: ± 3%
• Vertical sensitivity: 5 mV/div - 5 V/div
• Trigger Type: Edge, Video, Slope, Pulse, Alternate
• Activation Mode: Automatic, Normal, Individual
• Line/Field Frequency (Video): Supports standard NTSC, PAL and SECAM broadcast systems
• Automatic measurement: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preset, Frequency, Period, Rise time, Fall time, A→B Delay, A→B Delay, + Width, - Width, + Cycle, - Cycle.
• Waveform matrix: +, -, ×, ÷, FFT
• Waveform storage: 15 waveforms
• Communication interface: USB 2.0, USB/file storage;LAN port;
• Power supply: 100 - 240 VAC, 50/60 Hz, CAT â…¡

*Ask for delivery time.
