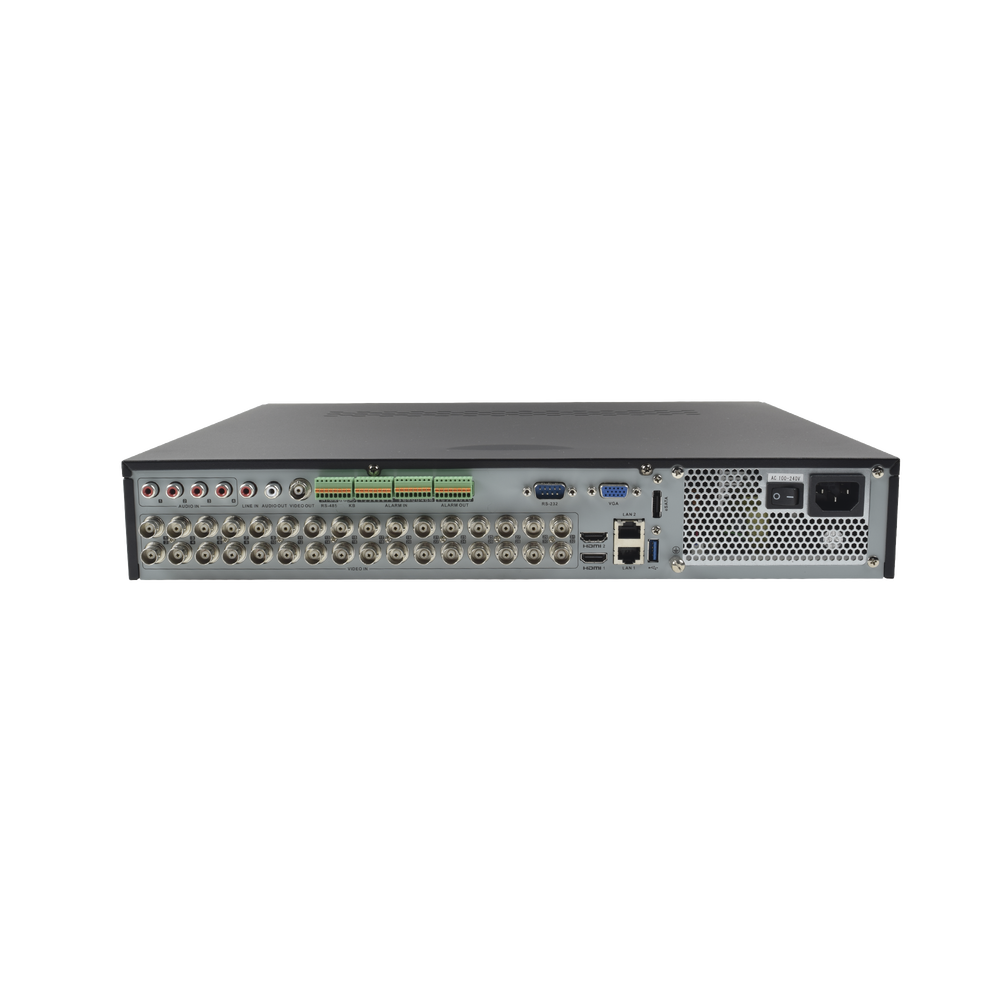

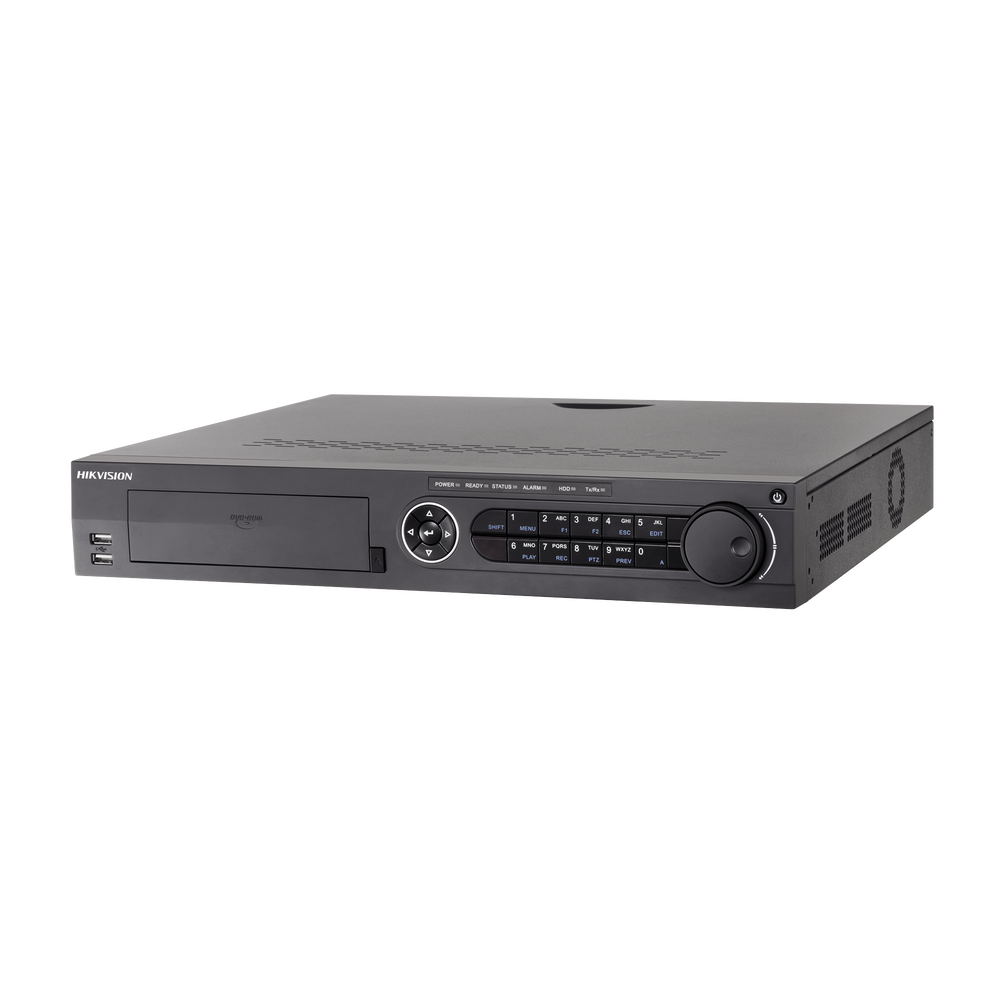

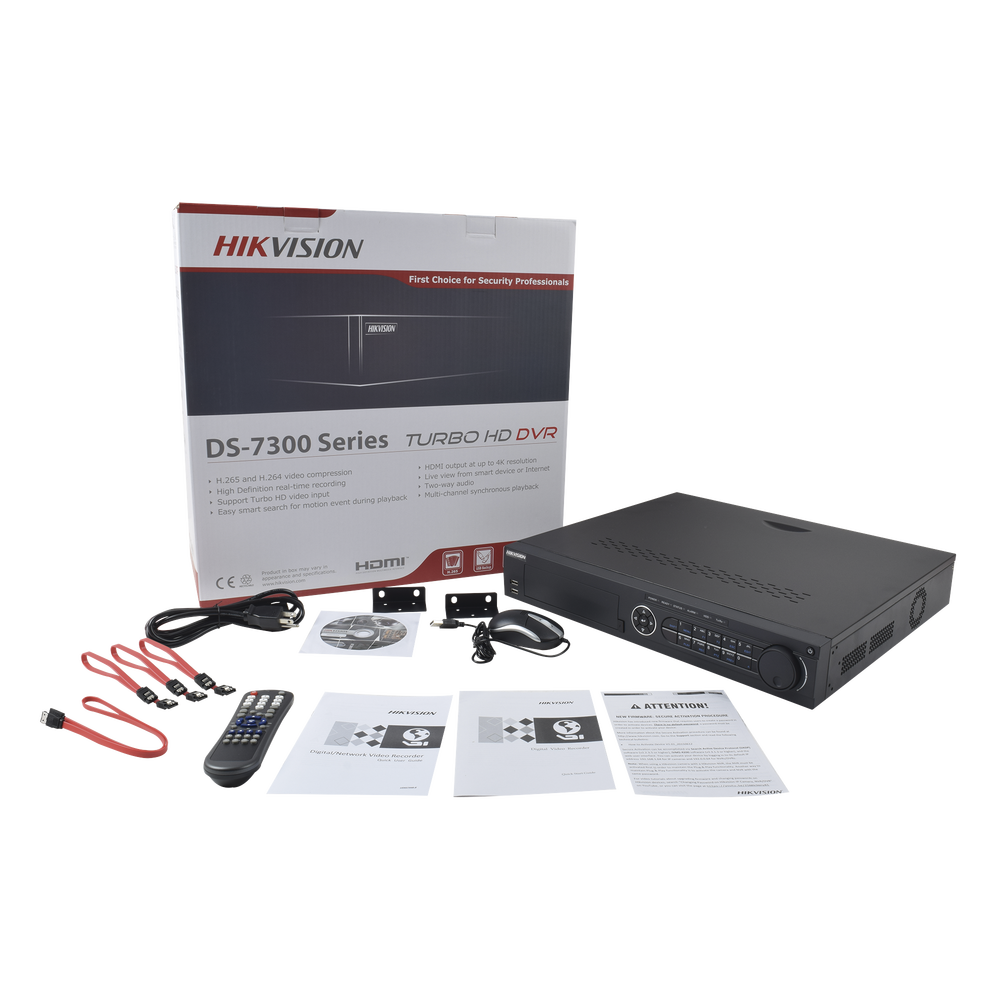

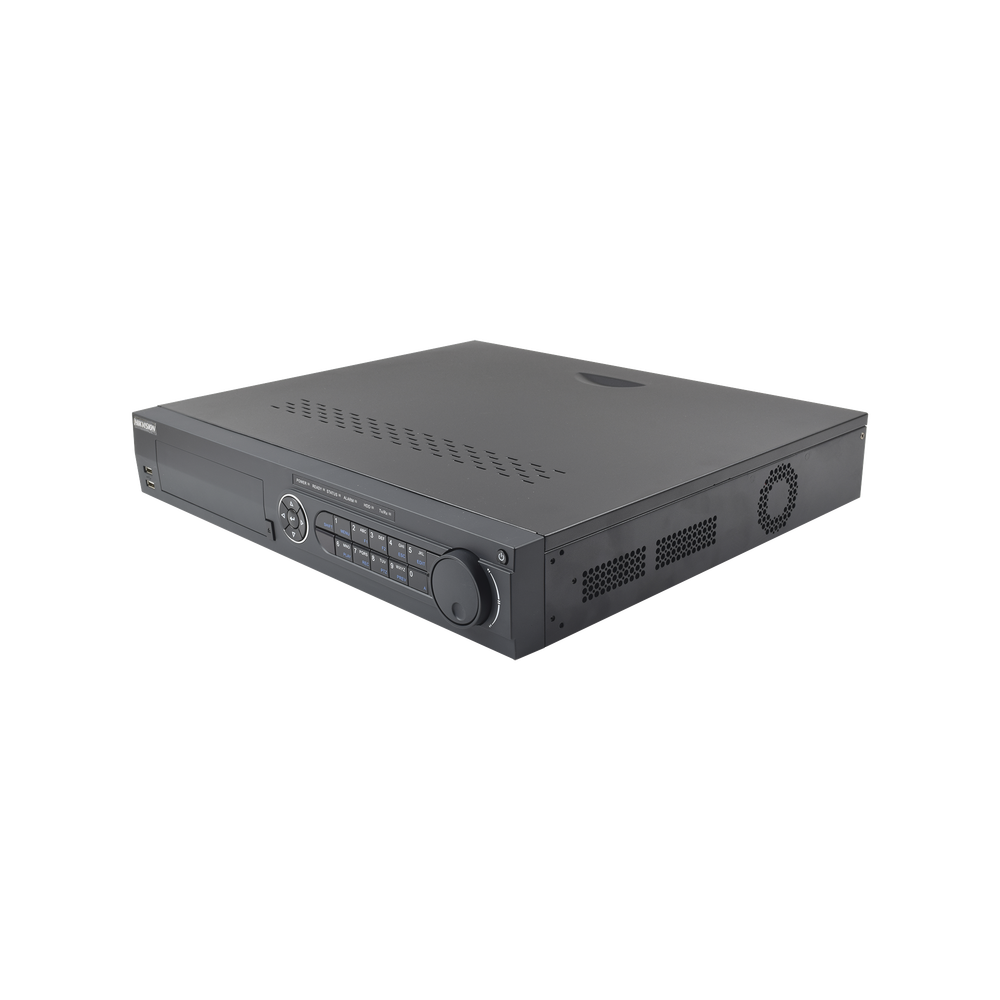

8 Megapixel DVR / 32 TURBOHD Channels + 16 IP Channels / 4 Hard Drive Bays / 4 Audio Channels / Video Analysis / 16 Alarm Inputs / RAID Array

Main features:

• Pentabride System (AHD / TVI / CVI / Analog / IP).

• Compression: H.265+ / H.265 / H.264+ / H.264.

• 32 TURBOHD video channels + 16 IP channels = 48 channels in total.

• 4 Audio inputs / 2 audio outputs.

• 16 Alarm inputs / 4 alarm outputs.

• 2 Gigabit network ports (load balancing/multi-directional)

• Capacity for 4 SATA hard drives up to 10 TB (40 TB total).

• Simultaneous HDMI1 / VGA FullHD 1080p video outputs.

• Independent HDMI2 4K video output.

• Independent BNC video output in 4 CIF resolution.

• Supports Hik-Connect (P2P).

• Supports Hik-connect Domain / NO-IP / DynDNS (does not support DDNS SYSCOM).

• Compatible with iVMS-4200 client software (Windows/Mac) / Hik-Connect (Android, iPhone, iPad)

• Supports COAXITRON for PTZ (no RS-485 data wiring required).

• Supports RAID array (1,5,6,10).

• Compatible with GAB-VID2-R2 metal cabinet.

Video channels:

The DVR allows you to turn off analog or TURBOHD video channels and enable IP video channels, we can turn off all analog or TURBOHD video channels and be able to add 48 IP video channels.
For each analog or TURBOHD video channel, you can enable one IP video channel.

• CVI Technology: 1080p/720p.

• AHD Technology: 5 Megapixel / 4 Megapixel / 1080p / 720p.

• TURBOHD (TVI) Technology: 8 Megapixel / 5 Megapixel / 4 Megapixel / 3 Megapixel / 1080p / 720p.

• Analog technology (CVBS): 600 TVL and above.

• IP Technology: 8 Megapixel / 5 Megapixel / 4 Megapixel / 3 Megapixel / 2 Megapixel / 1 Megapixel


Physical and electrical characteristics:

• Power / consumption: 100 to 240 Vac / 74 Watts (without hard drives).

• Operating temperature: -10° to 55° C.

• Dimensions: 440 x 390 x 70 mm.

• Weight: 7 Kgs.

• Warranty: 2 years.

Resources

Allows you to turn off TURBOHD channels and enable IP channels, Supports H.265+ / H.265 / H.264+ / H.264 compression, Compatible with Hik-Connect P2P platform, Supports 5 technologies (HDTVI / AHD / CVI / CVBS / IP)., 2-year warranty.
