Fire or Alarm Panel Dialer Surge Protector

Main features :

• RJ31X Single Pair Dialer Circuit Protection
• RJ45 modular connector with external grounding screw
• Leakage Current Protection: 'SCP', 150mA self-resetting fuse protects against repeated overvoltages
• Patch cord included
• Compatible with DTK-DRK DIN rail mounting
• Applications: Telephone Communicators for Alarm Panels or Fire Panels

• Connection Method: RJ31X (female) input/output
• Surge current rating: 9,000 A
• Housing: ABS
• Operating temperature: -40°C to 70°C (-40°F to 158°F)
• Dimensions: 76 x 43 x 30 mm
• Weight: 113 g
• Check the full sheet

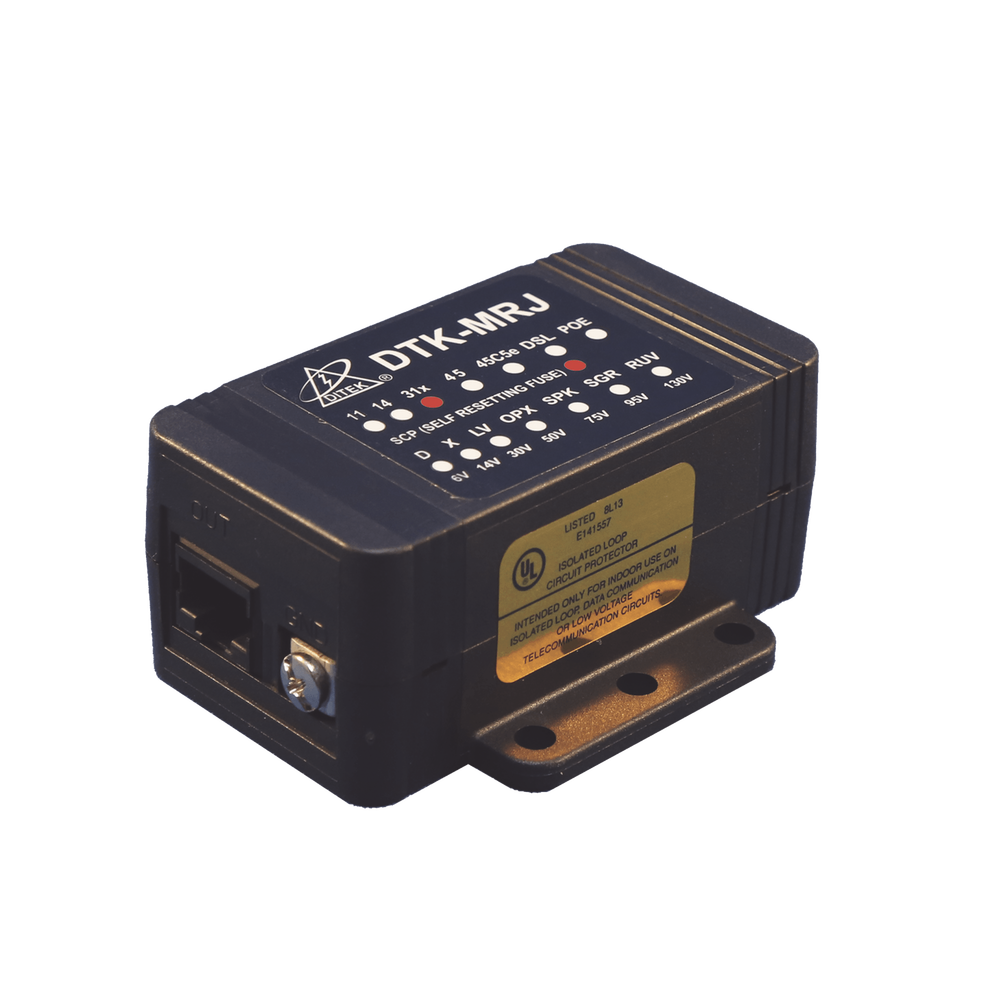

DITEK's DTK-MRJ31XSCPWP is a modular plug & play device designed to protect dialing circuits in security and fire systems.

This point-of-use surge protector can be easily installed in series with the circuit.
