Unmanaged 8-port 10/100 switch with PoE, 1 uplink 10/100/1000 port and 1 SFP 100/1000 for desktop

Unmanaged 8-port 10/100 switch with PoE, 1 uplink 10/100/1000 port and 1 SFP 100/1000 for desktop

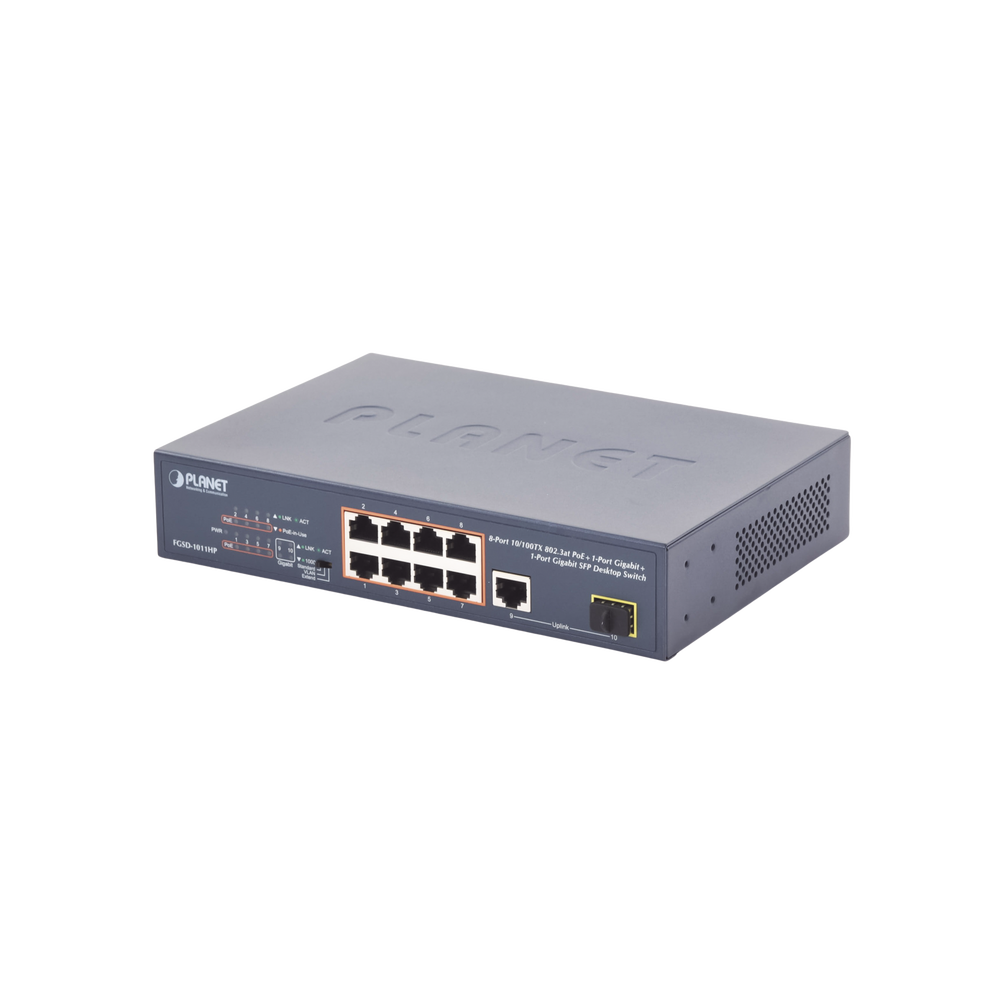

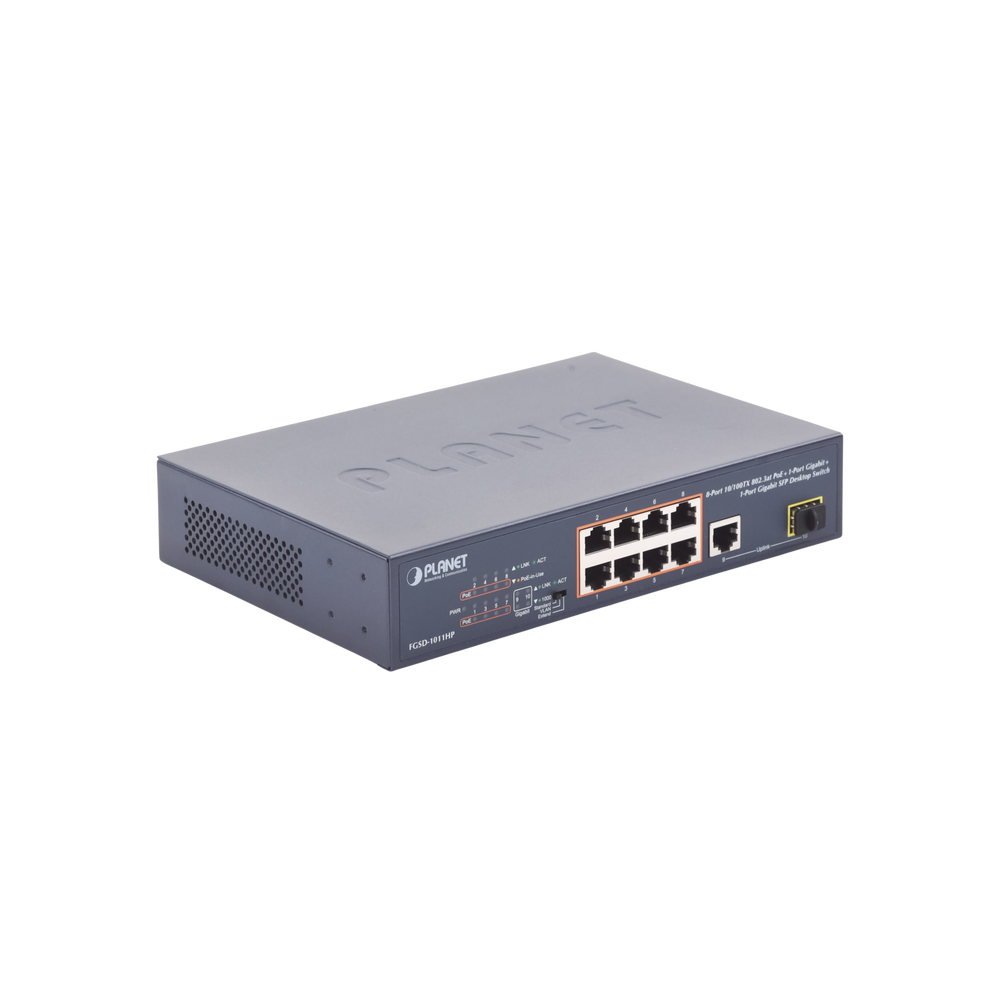

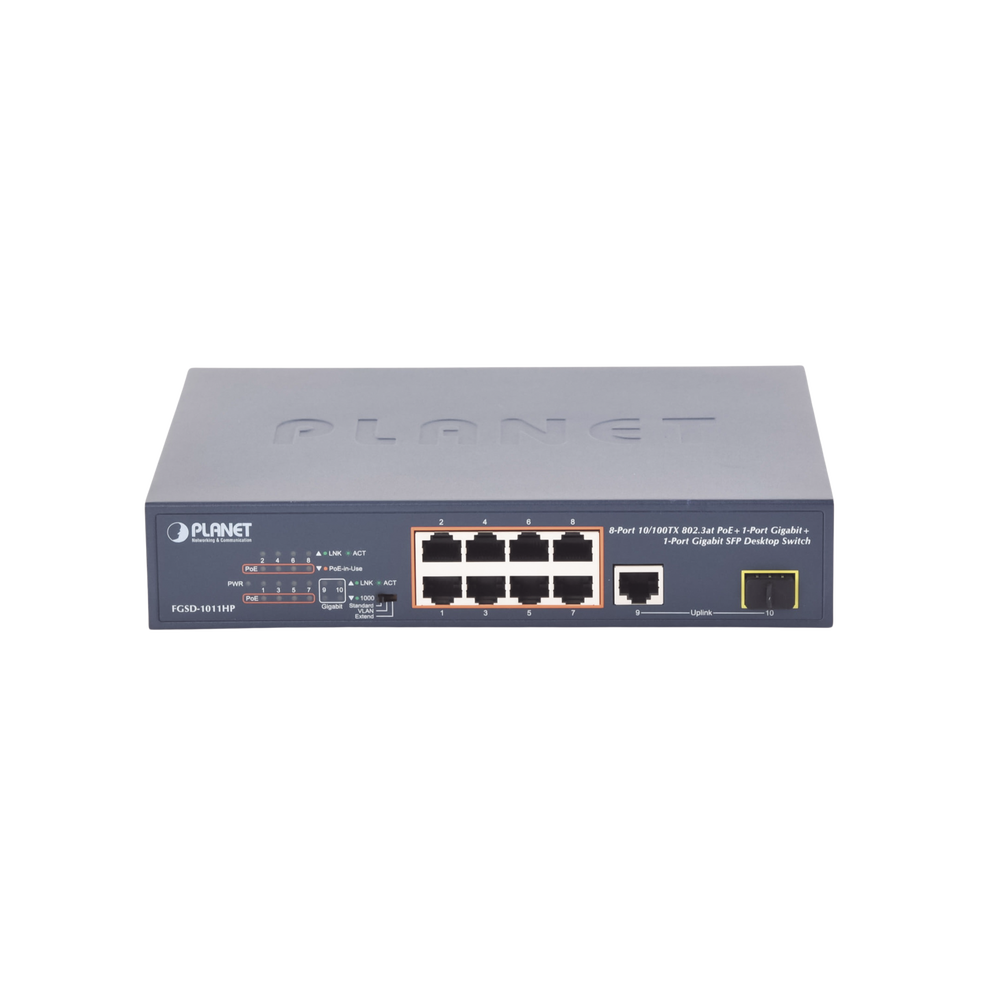

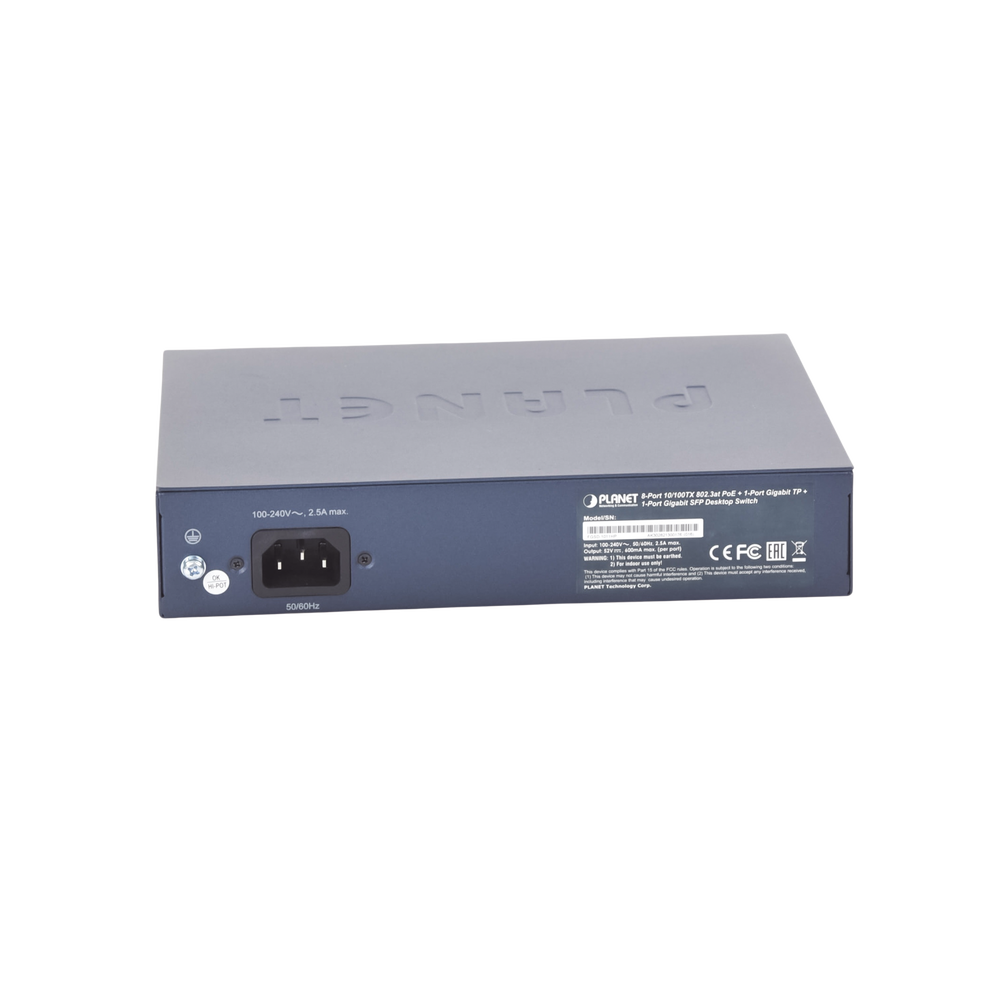

The FGSD-1011HP, a new member of the PLANET 802.3at PoE Fast Ethernet switch family, provides 8 10/100Mbps 802.3af/at Power over Ethernet ports, 1 Gigabit port, and 1 Gigabit SFP with a total of 120 watts of PoE budget. Its power budget is more than enough for any network application with Fast Ethernet speed transmission. The eight 802.3af/at PoE ports feature a PoE power injector function that is capable of controlling 8 IEEE 802.3at powered devices. The FGSD-1011HP also delivers simple, cost-effective, and non-blocking wire-speed performance. It comes with a compact 9-inch metal enclosure, suitable for desktop deployment in SOHO offices or departmental network applications.





Physical Ports

• 8 10/100Mbps Fast Ethernet ports
• 1 10/100/1000BASE-T Gigabit Ethernet port
• 1 1000BASE-X mini-GBIC SFP interface

PoE (Power over Ethernet)

• Compliant with IEEE 802.3af/at PoE (Power over Ethernet) end-span
• Up to 8 IEEE 802.3af/IEEE 802.3at powered devices
• Supports PoE powering up to 30 watts per PoE port
• PoE budget up to 120-watt
