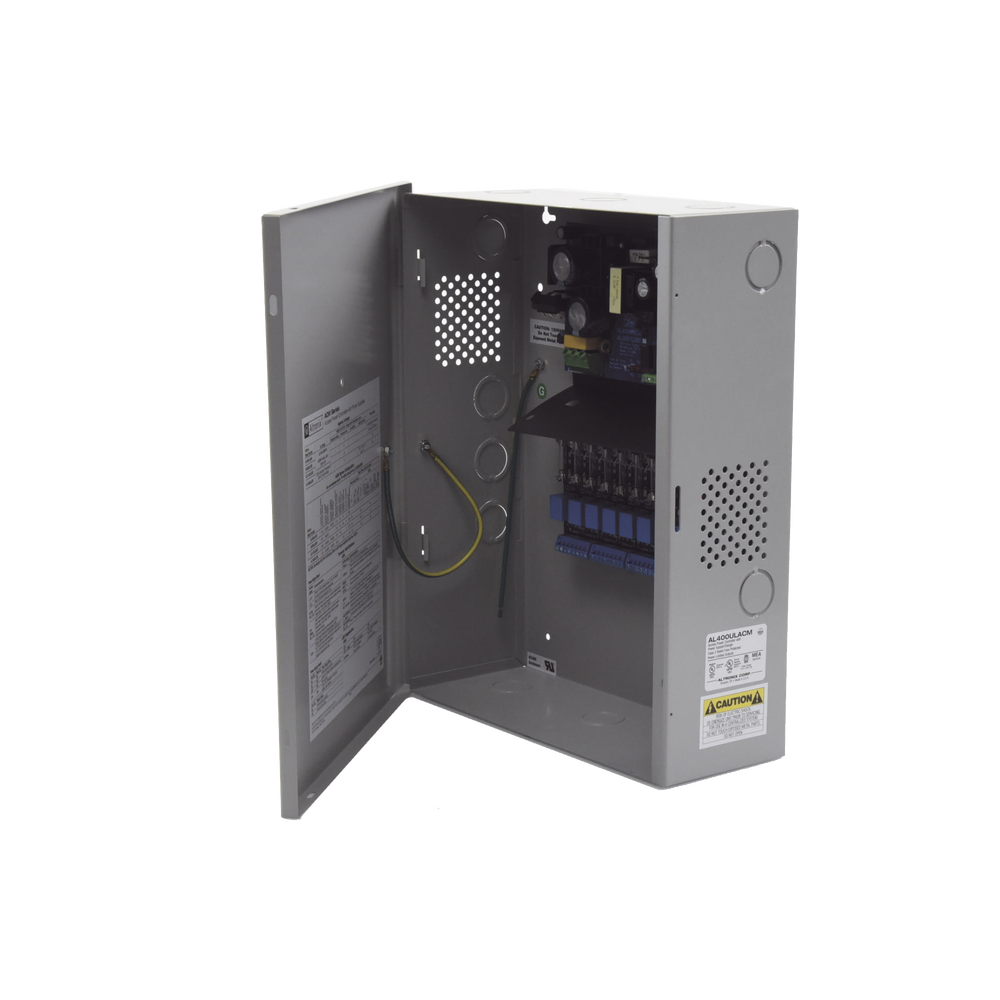

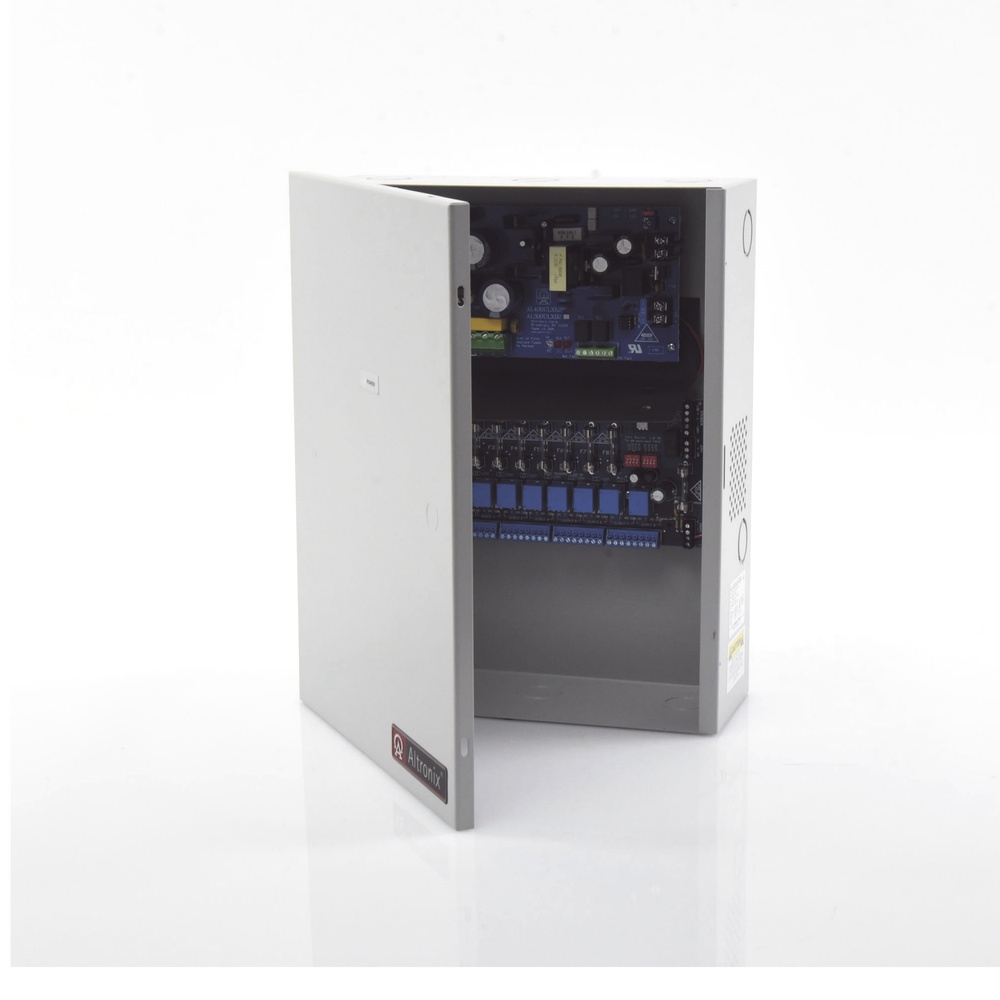

Power supply for access control and fire detection applications, with backup capacity for 12 and 24 Vdc @ 4 A, with 8 control circuits (NO) and 8 trigger control circuits, input voltage: 115 Vac, requires battery.

Power supply for access control and fire detection applications, with backup capacity for 12 and 24 Vdc @ 4 A, with 8 control circuits (NO) and 8 trigger control circuits, input voltage: 115 Vac, requires battery.

Power supply for access control applications, with backup capacity for 12 and 24 Vdc @ 4 A, with 8 control circuits (NO) and 8 trigger control circuits, input voltage: 115 Vac.

Entrance

• 115VAC 60Hz input rated @ 3.5A.
• Power supply input options:

a) One (1) common power input for ACM8/ACM8CB and locking power (factory installed).

b) Two (2) isolated power inputs: one (1) for powering the ACM8/ACM8CB and one (1) for powering the lock’s accessories (an external power supply is required). (Current is determined by the connected power supply, which must not exceed a maximum of 10A total.)

Eight (8) access control system activation inputs.

Input options:

a) Eight (8) normally open (NO) inputs.

b) Eight (8) open collector inputs.

c) Any combination of the above.

Exit

• 12 VDC or 24VDC outputs.
• Supply current of 12VDC @ 4A or supply current of 24VDC @ 3A.
• Class 2 Limited power capacities.
• Eight (8) independently controlled outputs.

Exit options:

a) Eight (8) fail-safe and/or fail-safe power outlets.

b) Eight (8) form 'C' rated 5A relay outputs

c) Any combination of the above.

• Eight (8) auxiliary power outlets (unswitched)

Exit control:

• Eight (8) independently controlled outputs.
• The fuses are rated at @ 3.5A.
• Filtered and electronically regulated outputs (built-in power supply).
• The main fuse on the ACM8 board has a rating of 10 A.

Supervision

• AC fault supervision ('C' contacts). The notification trigger can be selected for 30 seconds (factory set) or 6 hours.
• Low battery and battery presence monitoring (contact form 'C').

Characteristics

• Fire alarm disconnection (latching or non-latching) can be individually selected for one or all eight (8) outputs.
• With backup battery capacity.
• Battery not included.
• Suggested batteries: PL4.512 / PL712 / PL912.
• Fire Alarm Disconnect Input Options:

a) Normally open (NO) or normally closed (NC) dry contact input.

b) Polarity reversal input of the FACP signaling circuit.

• The alarm output relay indicates that the FACP input is activated (contact class 'C' rated at 1 A 28 V DC not evaluated by UL).
• Short circuit and thermal overload protection.

Visual indicators

• Short circuit and thermal overload protection.
• Red LEDs indicate that the outputs are triggered (relays are energized).
• The green LED indicates that the FACP disconnection is triggered.
• AC input and DC output LED indicators.
• Backup battery
• AC input and DC output LED indicators.
• Built-in charger for sealed lead acid or gel batteries.
• Automatic switch to standby battery when AC fails.
• Zero voltage drop when the unit switches to battery backup (AC fail condition).
• Battery fails and battery presence monitoring (contact form 'C').

Temperature

• Battery fails and battery presence monitoring (contact form 'C').
• Operating: 0ºC to 49ºC (32ºF to 120ºF).
• Storage: - 20ºC to 70ºC (- 4ºF to 158ºF).
• Relative humidity 85% +/- 5%.

BTU/Hr. (approx.):

• Relative humidity 85% +/- 5%.
• 12VDC: 25 BTU/Hr.
• 24V DC: 37 BTU/Hr.

Cabinet :

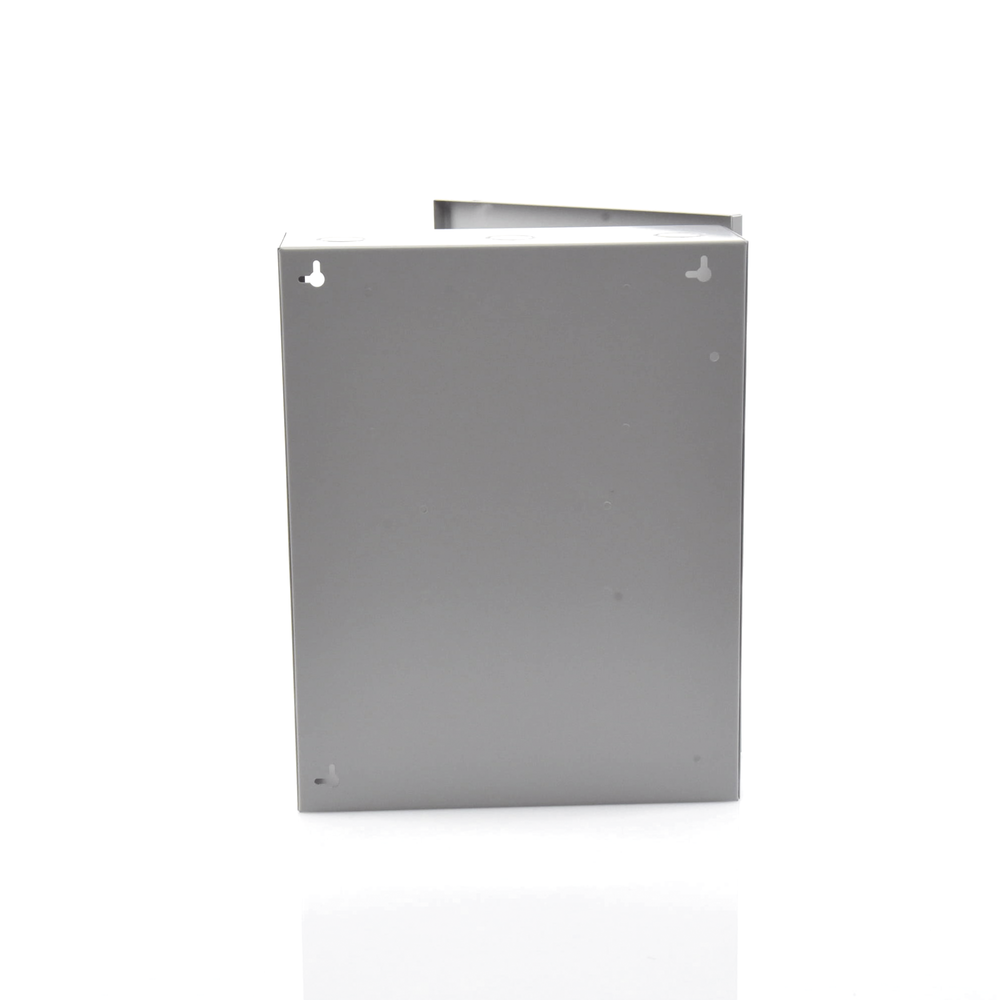

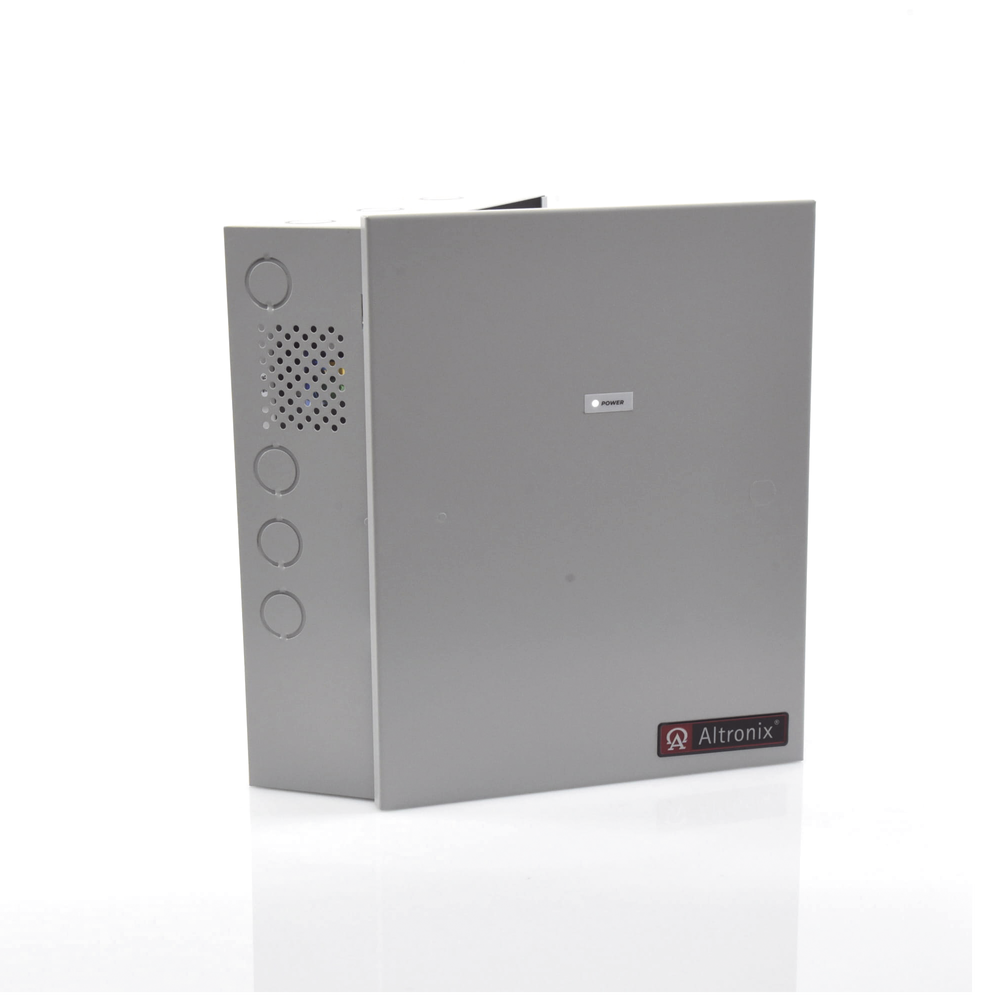

• Wall mount box for indoor use.
• Supports up to two (2) 12VDC / 12AH batteries.
• Dimensions 12.25'W x 15.5'H x 4.5'D (311mm W x 394mm H x 114mm D).

Weight:

• Product Weight: 10.7 Lbs. (4.85 kg).
• Shipping Weight: 12 Lbs. (5.44 kg).
