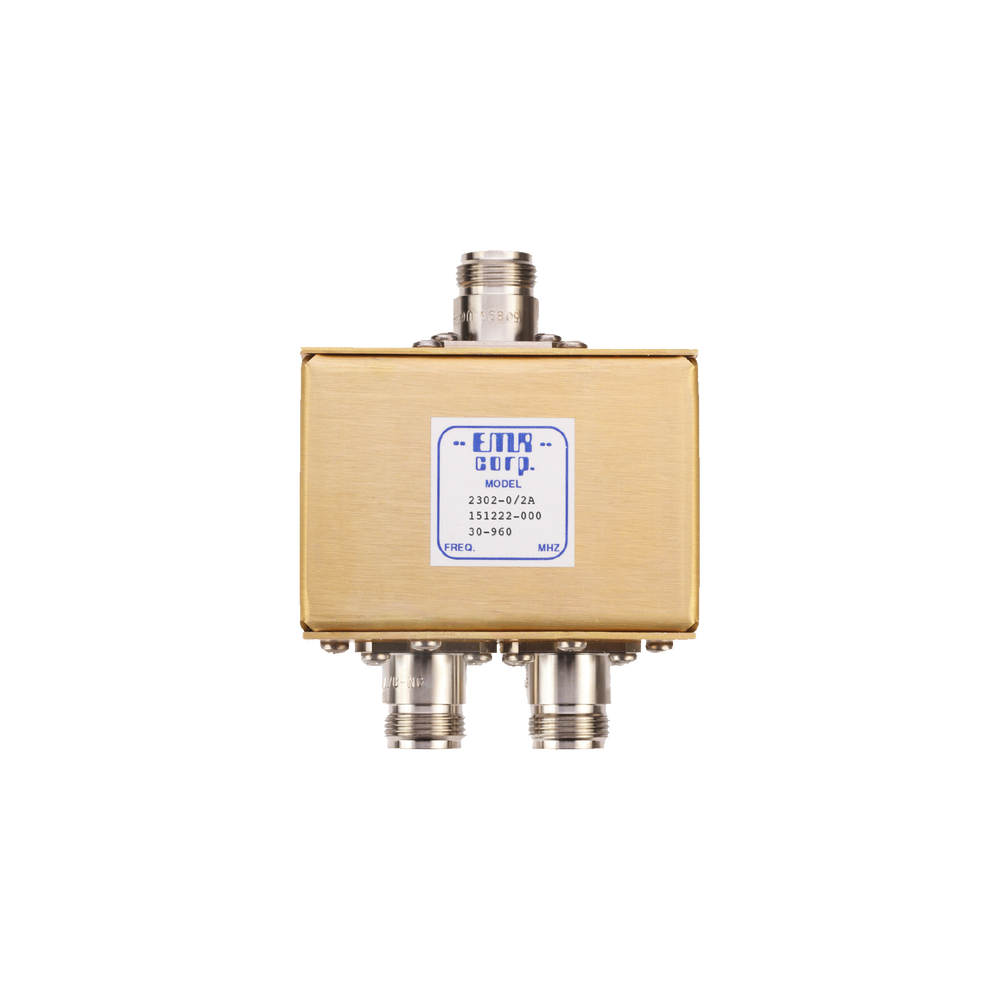

2-Way EMR Power Splitter, 30-960 MHz, 0.5 Watt, N Female Connectors.

2-Way EMR Power Splitter, 30-960 MHz, 0.5 Watt, N Female Connectors.

2-Way Power Splitter, 30-960 MHz, 0.5 Watt, N Female.

• All EMR power dividers are backed by a 5-Year Warranty.
• Made in the USA.

Electrical Specifications

• Frequency Band: 30-960 MHz.
• Input Power (Max.): 0.5 W (as divider).
• Insertion Loss (Max. / Typical): 3.5 / 3.15 dB.
• Port to Port Isolation (Min.): 23 dB.
• VSWR (Max.): 1.5:1
• Impedance (Nom.): 50 Ω RF.
• Connectors: N Female.

Mechanical Specifications

• Finish: Yellow Chemical Film.
• Full Size (W x H x D): 38 x 70 x 89 mm.
• Net Weight: 0.2 kg
• Shipping Weight: 0.9 kg

Environmental Specifications

• Operating Temperature Range: -30°C to +60°C.

*Ask for Delivery Time.
