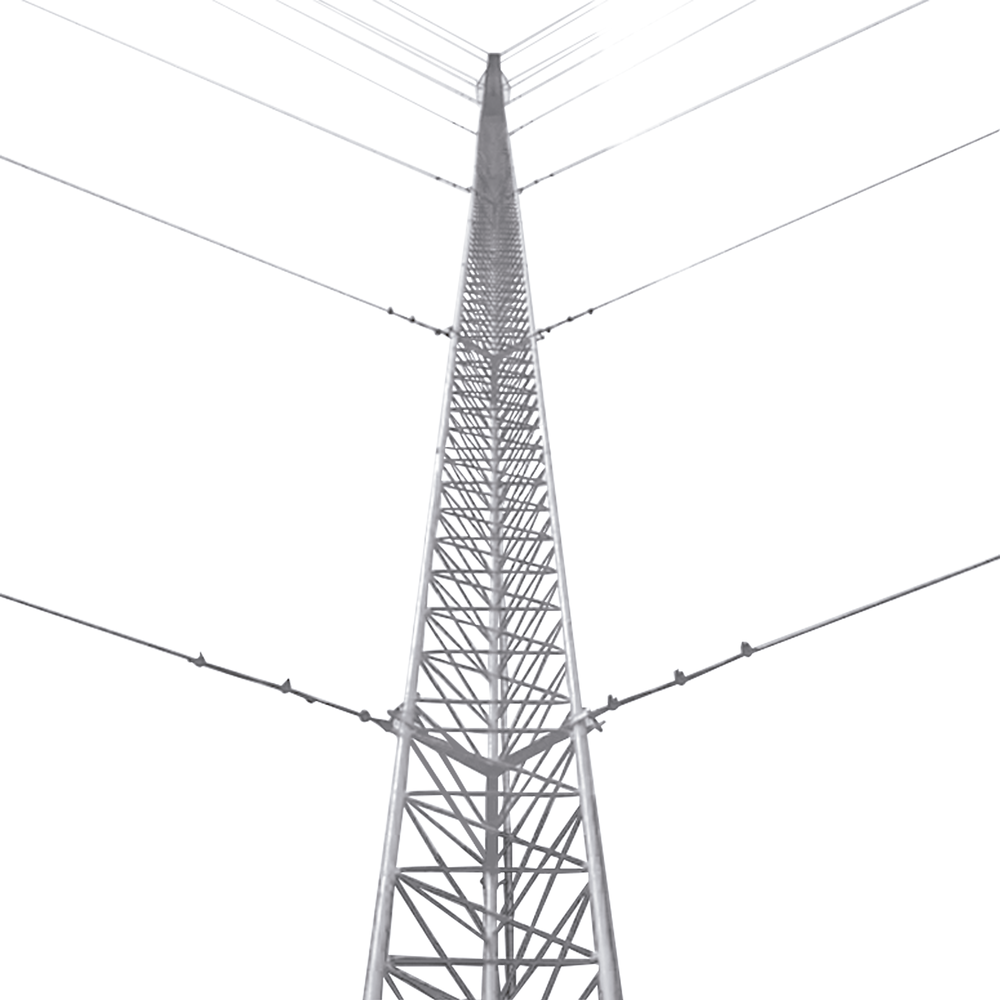

3m Roof Guyed Tower Kit with STZ30G Hot-Dip Galvanized Section (Does not include retainer).
3m Roof Guyed Tower Kit with STZ30G Hot-Dip Galvanized Section (Does not include retainer).
Couldn't load pickup availability
3m Roof Guyed Tower Kit with STZ30G Hot-Dip Galvanized Section (Does not include retainer).
Highlighted Features:
- Product manufactured under ISO 9001:2015 regulations.
- High Lift / Low Cost.
- 100% Inspection of Section-Section Assembly.
- Hot Dip Galvanized according to NMX-H-004-SCFI-2008 .
- Ideal for high humidity coastal areas or industrial areas.
Physical Characteristics:
- Maximum Axial Load: 200 Kg.
- Height: 3 meters (1 section).
- Wind resistance: 200 km/hr.
- Anti-corrosion protection: Hot-dip galvanized (NMX-H-004-SCFI-2008).
- Application: Outdoors (Wet Areas).
Includes the following components:
| Amount | Model |
Description |
| 1 | STZ-30G | Tower section with a 30 cm wide face. Each section includes hardware for assembly. |
| 1 | SCZ-30PG | 30cm tower cap with lightning rod clamp. |
| 1 | SJB-30G | Flange for holding the retainer. |
| 1 | SBA-30G | Base for 30 cm tower. |
| 1 | SAB-30G | Anchor for tower base. |
| 3 | SAP-01G | Slab or wall anchor for braced tower |
| 6 | NECK-14LS | Collar for retaining cable. |
| 18 | KNOT-316MS | 3/16' Dog Clamp |
3 x 1/2' x 6' turnbuckles recommended. ( TEN-1/2X6OGS ). Not included.
** FAILURE to use installation accessories such as Flanges, Tower Base, Tower Anchor or Retaining Anchors is considered a loss of equipment warranty and any additional adaptation is the responsibility of the installer.**
Additional accessories (Not included):
New! Lightning Rod + Grounding Cable Kit. LINKEDPRO Brand (Not included)
KLP-TZ03-PRO - All-inclusive! Ideal for 3m towers with corona dipoles, cabling, and electrodes with a 10-year warranty.
Or you can also quote the following Earthing or Lightning Rod components individually:
Recommended Physical Grounding System for Tower and Equipment Mounted on It (Not Included):
| Amount | Model | Description |
| 1 | TG45AB | 45A Grounding Electrode with Electrode, Filter and H2Ohm Compound |
| 1 | S610 | Plastic registration. |
| 3 | TGCR11 | Eye Connector |
| 2 | TGAB18 | Rod Connector |
| 1 | TGBUSG10 | Tie Bar with 1000A Capacity Insulators (No Cabinet) |
Recommended Basic Lightning Rod System for Tower (Not included):
| Amount | Model | Description |
| 1 | TGTDPC | Lightning Rod Tip with Aluminum Mast (MASTIL1.2) |
| 1 | TG45AB | 45 Amp electrode. With a bag of impedance enhancing compound (H2OHM), compass and level. |
| 1 | S610 | Small plastic registration. |
| 1 | ANTIOX | Terminal protection spray. |
| 3 | TGCR11 | Eye Connector. |
| 2 | TGAB18 | Rod Connector. |
| 2 | TGAC | Tower insulator. |
*2/0 gauge copper wire is recommended for integration ( SLY-346-BLK ). It is necessary to check the cable length on-site.
See the Physical Ground + Lightning Rod connection diagram in the following DIAGRAM .
| Amount | Model | Description |
| 2 | EIGSLSE | Self-contained LED strobe with photocell, solar panel, and battery. Type L-810. |
| 2 | HLU3 | Mounting for EIGSLSE obstruction lamp |
*The signage regulations dictate that the tower must be painted in seven equal-sized stripes: four in a reddish-orange hue and three in white.
12 in stock
MODELO: KTZ-30G-003P
