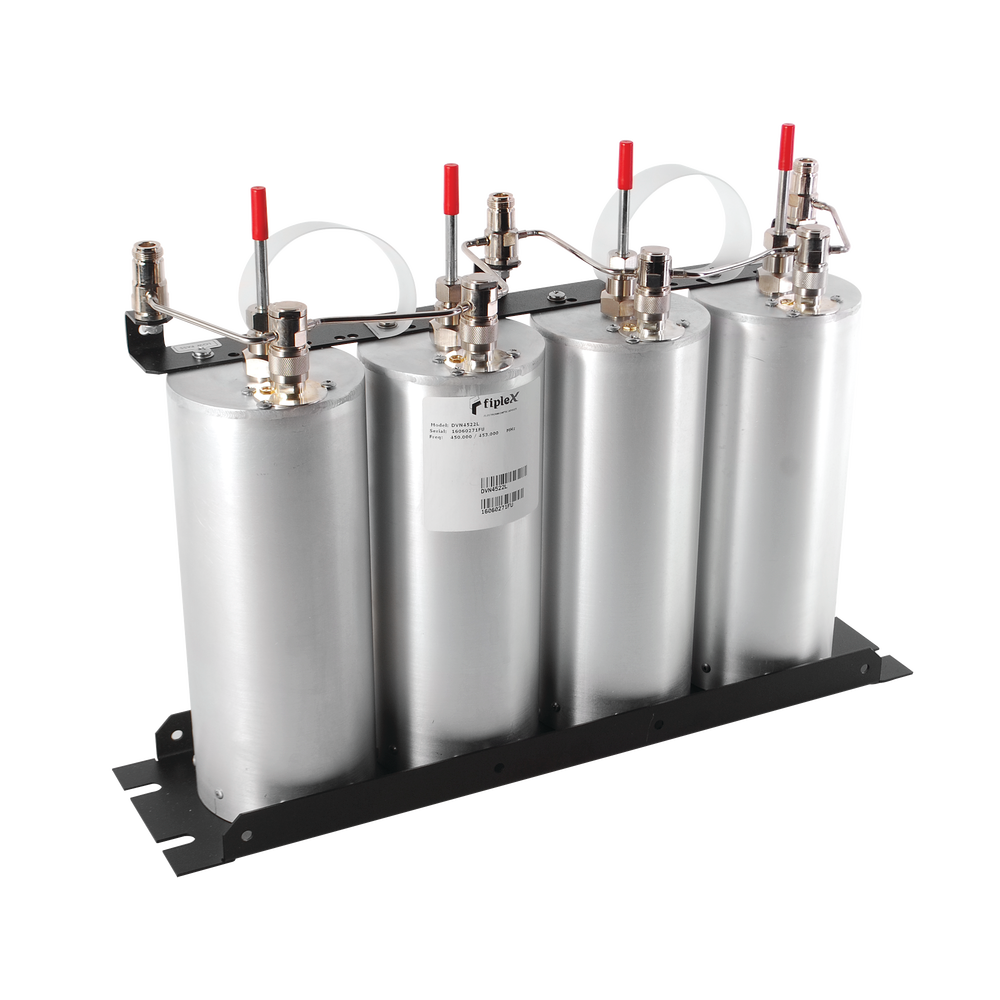

--Discontinued-Band Pass-Band Rejection Duplexer, 400-520 MHz, 4 Cavities (4" Diam.), 3 MHz, 150 Watt, N Hem.

--Discontinued-Band Pass-Band Rejection Duplexer, 400-520 MHz, 4 Cavities (4" Diam.), 3 MHz, 150 Watt, N Hem.

--Discontinued-Band Pass-Band Rejection Duplexer, 400-520 MHz, 150 Watt.

• Frequency range: 400-520 MHz.
• Isolation: 75 dB @ 3 MHz and 90 dB @ 5 MHz.
• Impedance: 50 Ω.
• Maximum power: 150 Watt.
• Frequency separation: 3 MHz.
• Insertion loss: 0.8 dB @ 3 MHz and 0.7 @ 5 MHz.
• Maximum VSWR: 1.5:1.
• Cavities: 4 (4' Diameter).
• Connectors: N Female.
• Operating temperature: -30 to 60ºC.
• Dimensions: 483 x 127 x 406 mm.
