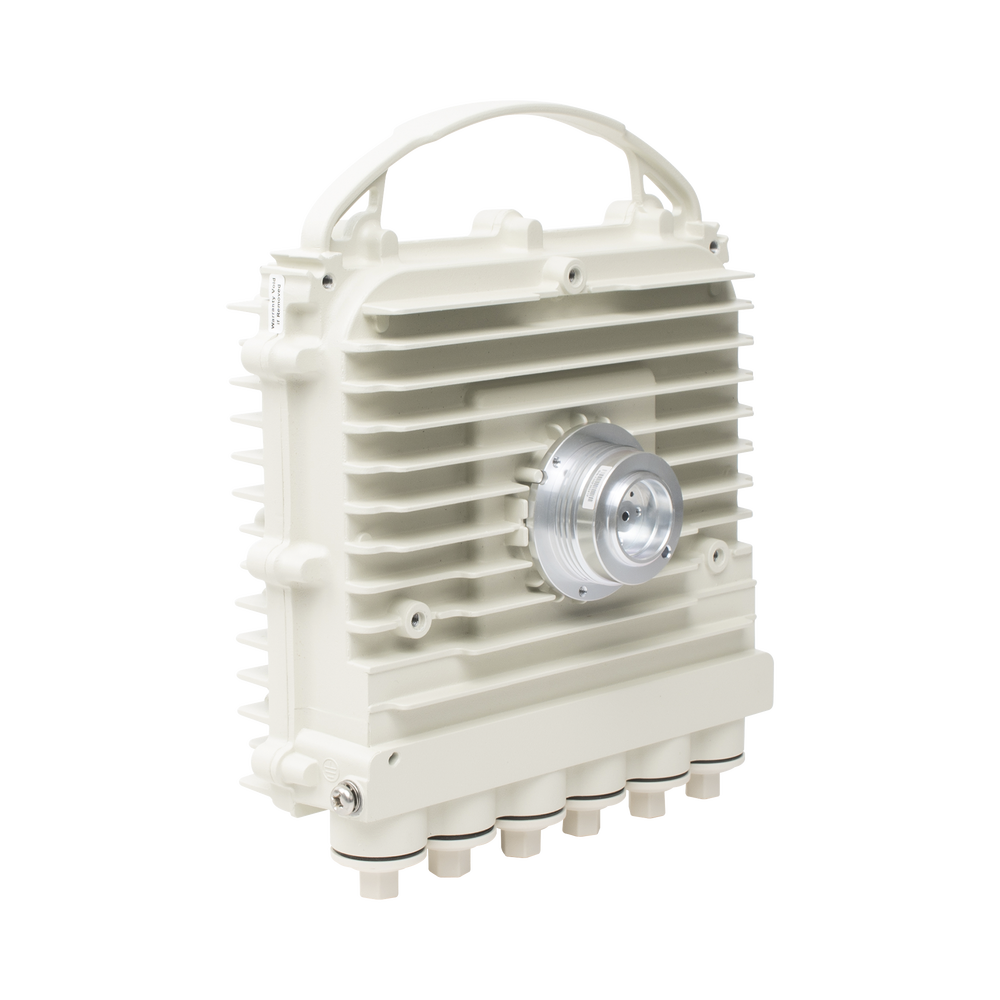

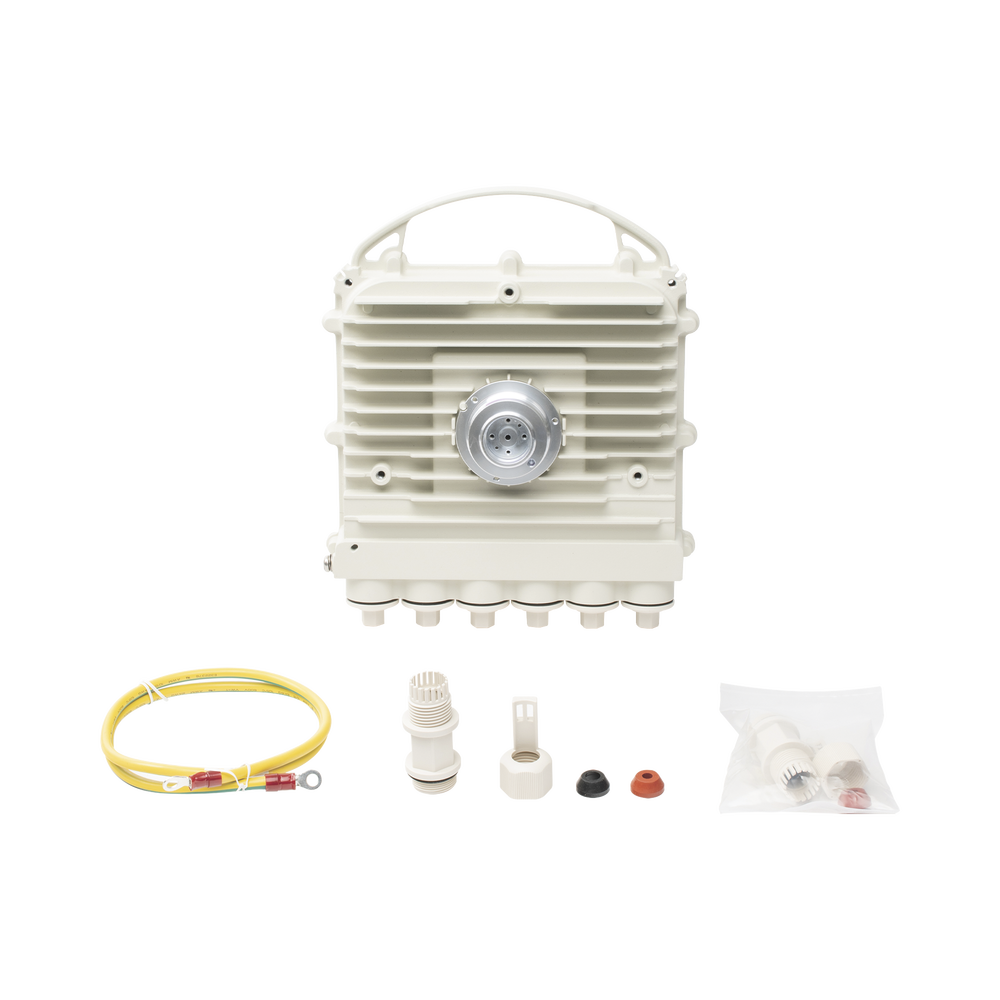

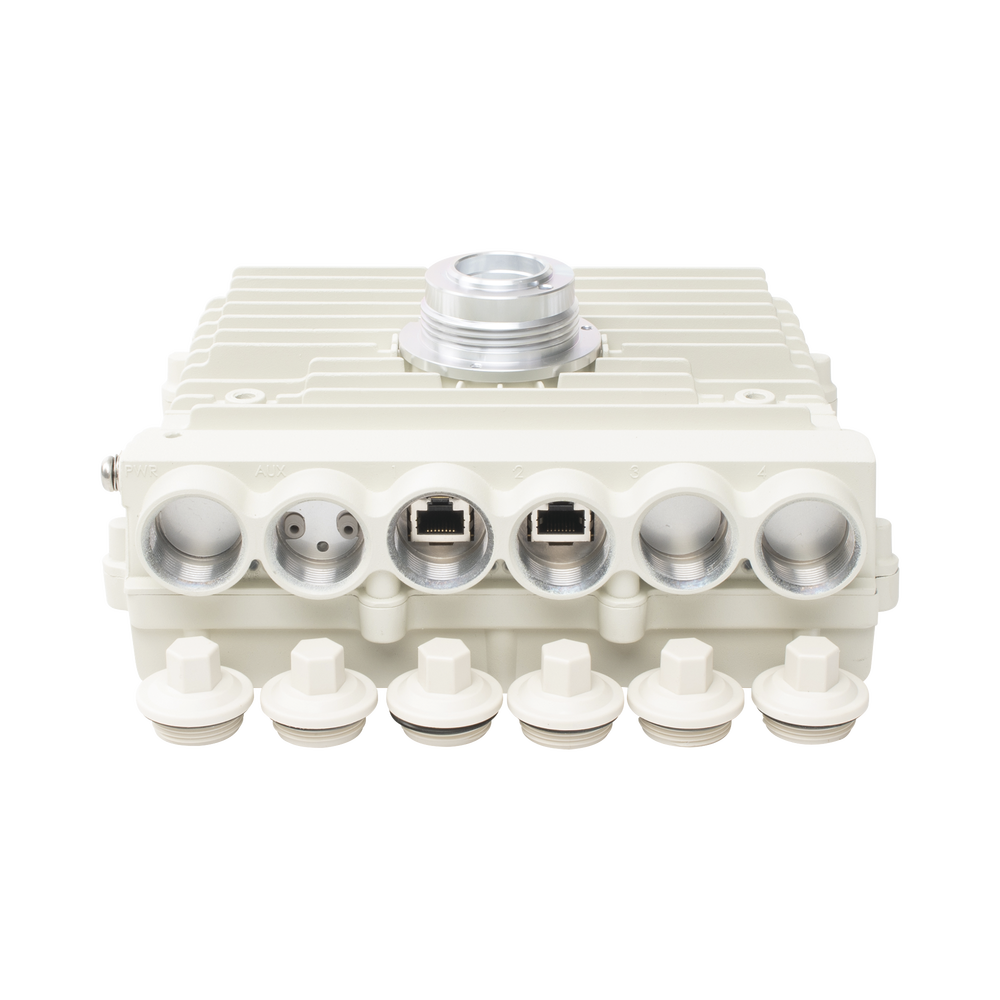

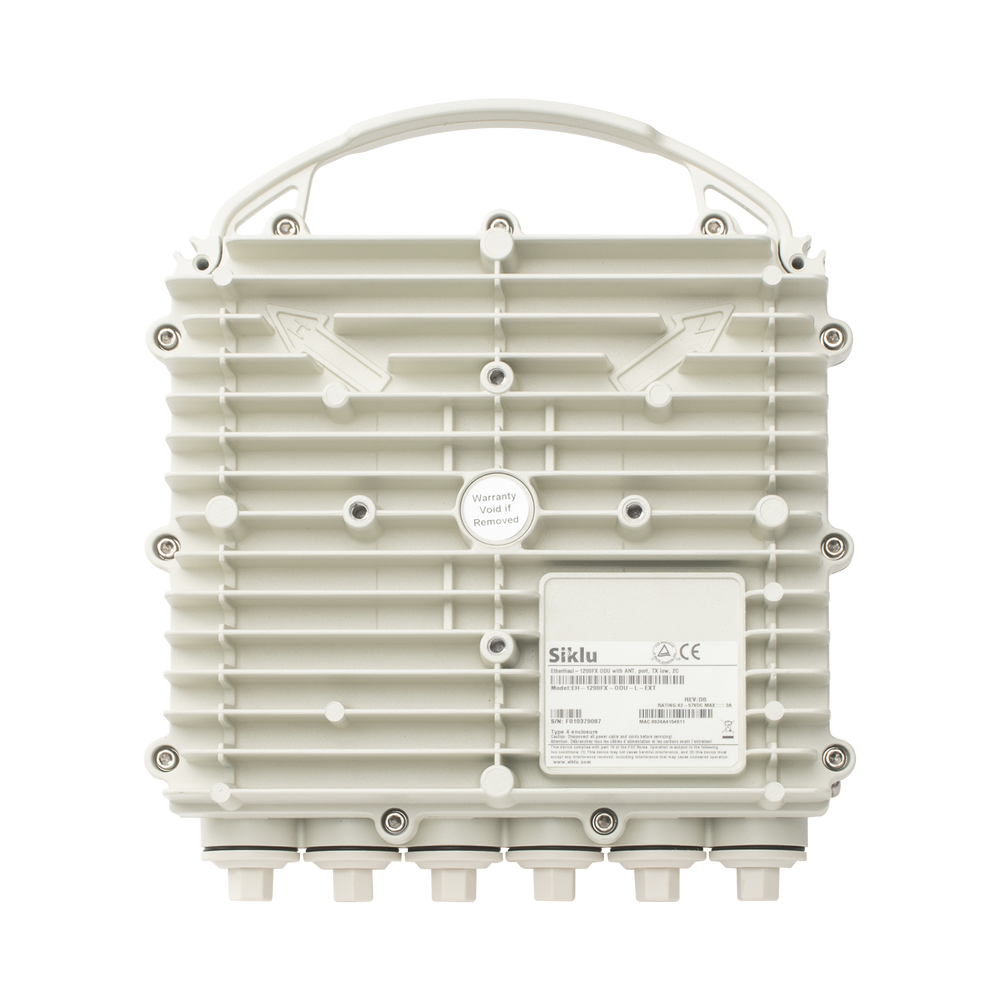

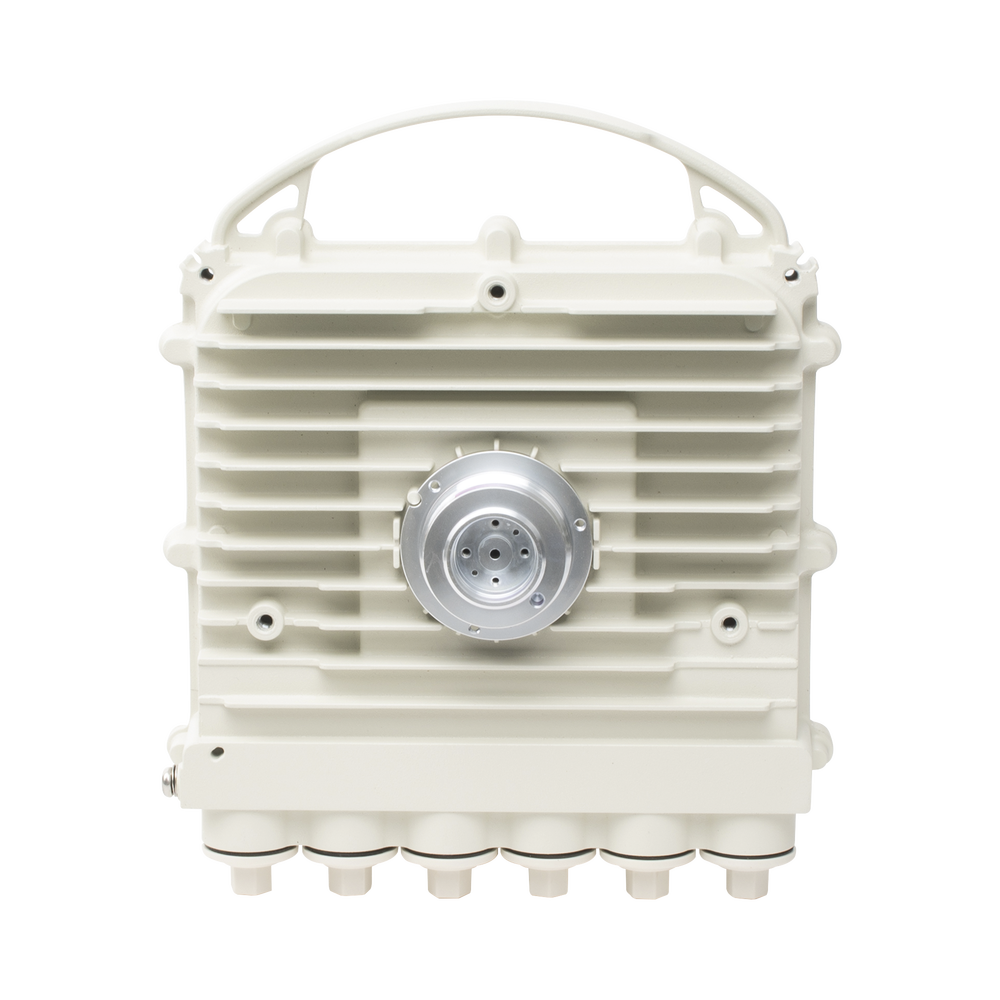

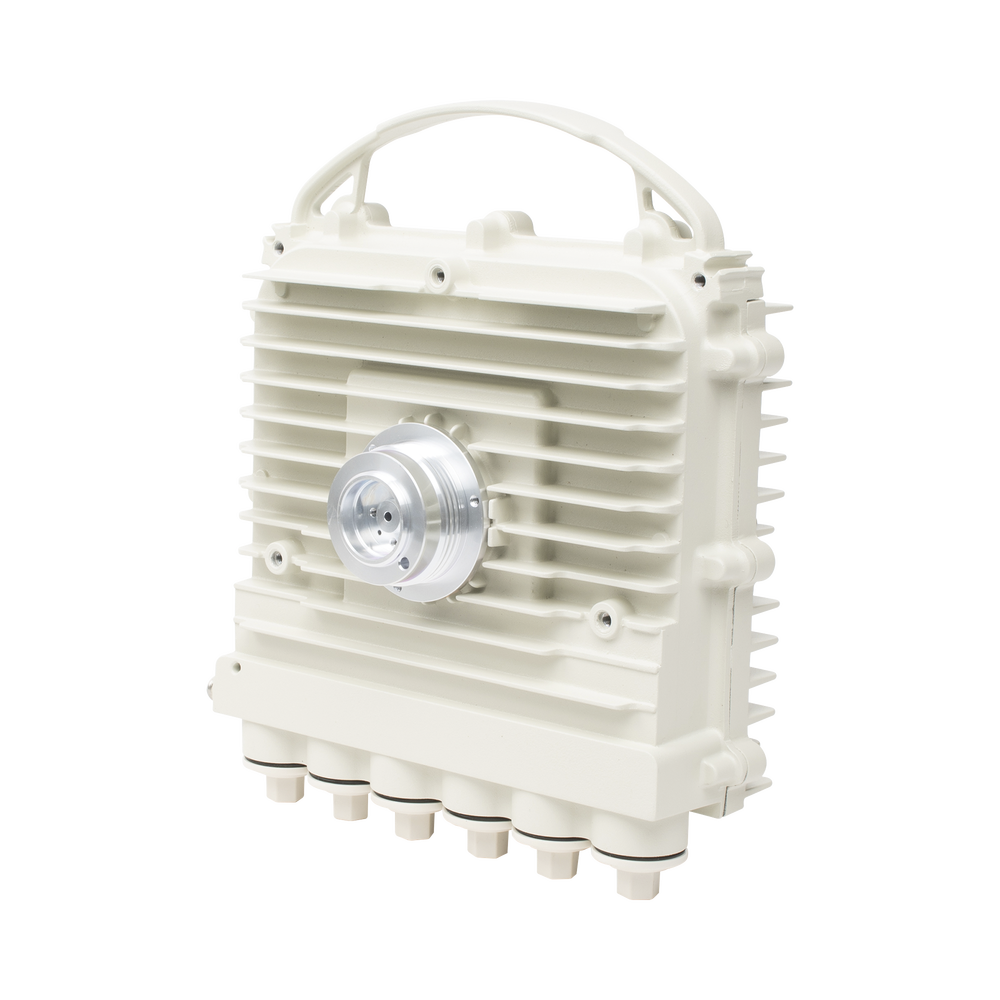

Siklu EtherHaul-1200FX 1 Gigabit Full Duplex 70/80GHz E-Band

Siklu's Kilo series products are the most widely deployed in the 70/80 GHz radio waves in the world. This is due to the fact that Siklu was the first company to bring these advanced products to market, and is also a leader in the multi-Gbps connection segment over miles of distance. These products are typically installed on rooftops or towers, and with support for external antennas, the customer can deploy 0.5' to 2' antennas depending on the required range.

Capacities range from 700Mbps TDD with the EH-1200TX to 10Gbps Full Duplex with the EH-8010. With Siklu’s patented RFIC implementations, these capabilities are supported at a range of 4.3 miles (6.9 km) and at a cost that has dramatically expanded the market for Gigabit connectivity in the E-band spectrum.

Analogous to V-band or 60GHz products, the Kilo EtherHaul™ series supports wide frequency agility in the 70/80GHz bands and extremely short beams across virtually all unlimited spectrum for dense EtherHaul™ airwave deployments.

- Small form factor, IP67 compliant systems for outdoor use

- Up to 10Gbps FDD output for maximum ranges of 4.3 miles (6.9km)

- Advanced silicon integration proven to 90-yr MTBF

- Real-time connectivity with <10µ sec latency to support delay-sensitive applications

- Optional integrated timing that works with all 1588v2 and SyncE packet types with SSM schemes to facilitate careful and accurate mobile backhaul synchronization

- Prioritized payloads using zero-impact synchronized adaptive modulation with 8 QoS levels.

- Interference-free operation in the 70/80GHz band with TDD or FDD support

- Up to 10GHz of available spectrum in the 70/80GHz bands, pencil-width beams, with a minuscule Fresnel zone of up to 32 non-overlapping, user-selectable channels confirm the industry's highest spectrum reuse factor.

- One SKU supports the entire range in the 70/80GHz band

- Advanced interconnection tools to create flexible topologies in chains, drop & insert, and resilient sub-50msec rings

- Designed for easy installation and commissioning using embedded tools to optimize channel selection, load testing, and zero-touch commissioning.

- With Layer 2 support via a built-in Gigabit switch with extra copper and fiber ports to enable seamless cascading

- PoE out for external power supply of camcorders and other devices

- Compliant with MEF Ethernet OAM and CFM (IEEE 802.1ag / ITU-T Y.1731 / IEEE 802.3ah) for advanced monitoring and fault localization
