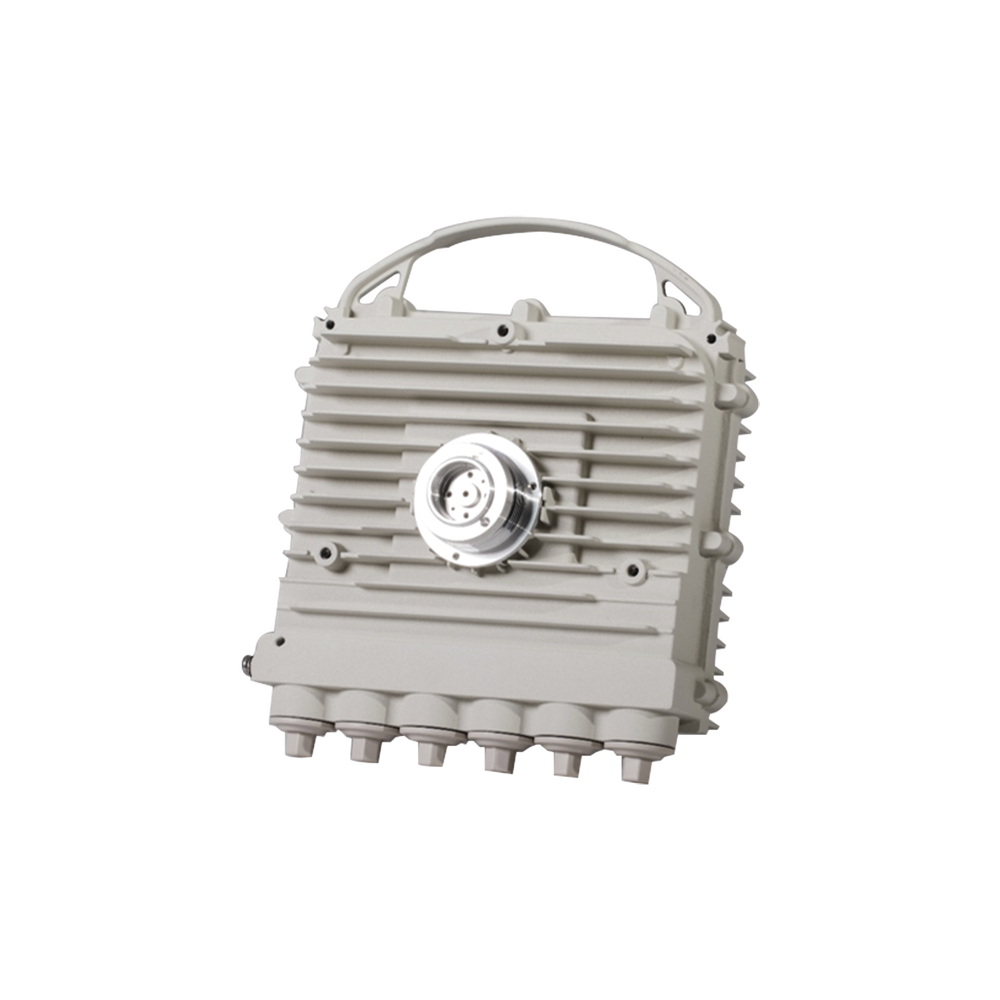

Siklu EtherHaul-5500FD 2 to 5 Gigabit Full Duplex 70/80GHz E-Band

Siklu EtherHaul-5500FD 2 to 5 Gigabit Full Duplex 70/80GHz E-Band

$26.784.839 COP
$29.295.917 COP $26.784.839 COP
Sale Sold out
Shipping calculated at checkout.

Siklu EtherHaul-5500FD 2 to 5 Gigabit Full Duplex 70/80GHz E-Band


 5 Gbps 70/80 GHz Radio: High Bandwidth for Demanding Networks The EH-5500FD delivers 5 Gbps full duplex Layer 1 performance for demanding networks in metro, aggregation, and trunking applications. 10 Gbps full duplex is available with the Siklu OMT 2+0 Kit.
Frequency & Duplexing 71-76GHz / 81-86GHz, FDD
Channels STABLE
Modulation & adaptive rate BPSK-1/BPSK-2/QPSK-1/QAM16/QAM32
Adaptive coding and modulation generate a gain of up to 21.5 dB
Ability 2 Gbps , up to 5 Gbps with License Upgrade, and up to 10 Gbps with OMT 2+0 configuration
Ports 1 x 10 GE SFP + payload, 1 x copper RJ45, for administration
System gain At maximum capacity: 71.5 dB, At minimum modulation: 93 dB
Distance 1.5 miles at maximum availability, 2.4 miles at minimum availability
Administration and provisioning Local out-of-band management and remote over-the-air management,
WEB GUI, Embedded SNMPv2/3 CLI, TACACS + RADIUS Zero-Touch
Compliance Radio: FCC CFR Part 101, ETSI EN 302 217-2-2
EMC: USA FCC 47CFR.part 15 & ETSI EN 301 489;
Safety: UL/EN 60950
Feeding 36-57VDC; PoE In PoE++ (IEEE 802.3at+) power consumption without PoE Out
PoE-Out Port 2: up to 13W (IEEE 802.3af)
Latency Typical Latency Latency in milliseconds - 0.28ms
Environmental Operating temperature: -45° to +55°C (-49° to +131°F)
Ingress protection: IP67
Dimensions ODU + Antenna 0.5ft (Dia. x Depth): 23.3 x 20.6 x 14.1cm(7.9” x 9” x 5.9”)
ODU + 1ft antenna (Dia. x Depth): 32 x 22 cm(12.6” x 8.6”)
ODU + 2ft antenna (Dia. x Depth): 73 x 46 cm(28.7” x 18.1”)
Weight ODU + antenna 0.5 ft: 4.2 kg (9.2 lbs)
ODU + antenna 1 foot: 4.5 kg (9.9 lbs)
ODU + antenna 2 feet: 11 Kg (24.3 lbs)

Siklu Teams work 100% free band in Mexico
Consult the Official Journal here to see its accreditation
Click Here

Inventory of free-use frequency bands

Click Here

    Out of stock

    MODELO: EH-5500FD-ODU-L-EXT

    View full details
