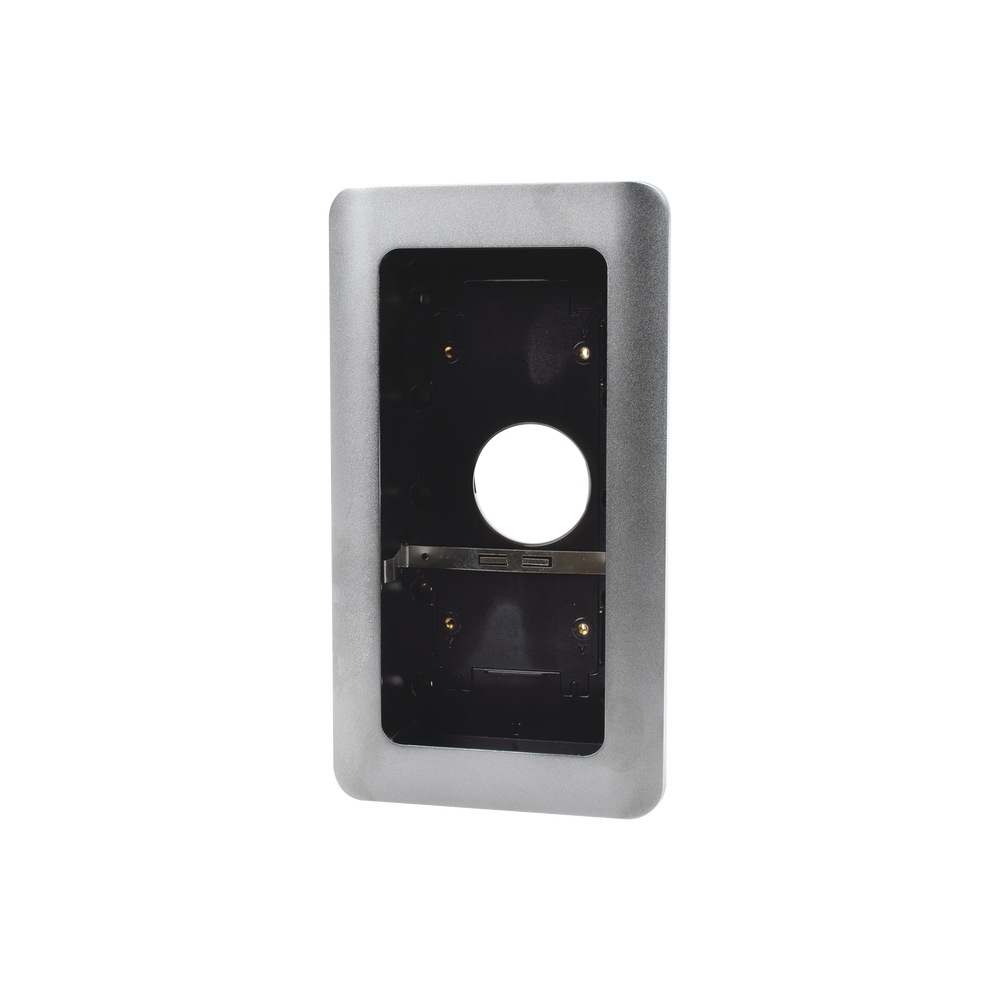

Wall Mount Frame by GDS37X0

Wall Mount Frame by GDS37X0

The Wall Mount Kit is available for use with the GDS3710 IP Video Door Station. This mounting kit allows the GDS3710 to be mounted flush within a wall, rather than on the wall surface. It supports solid drywall (hollow wall) stud mounting. When installing the GDS3710 or the Wall Mount Kit, please follow local building and electrical codes. It is recommended that you install the device using the base.

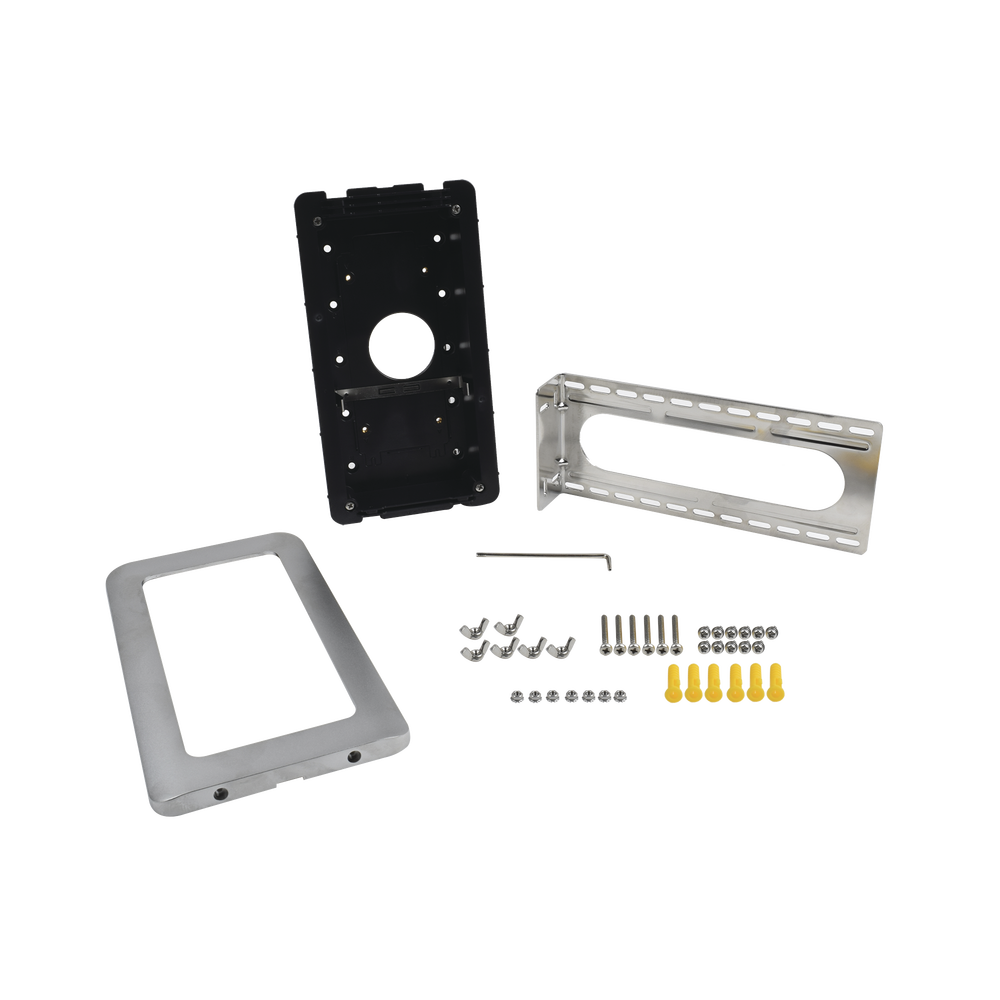

The box contains

1 installation bracket
1 cover plate
1 plastic box
1 drilling template
Quick Reference Guide
1 metal frame
Set of 6 fasteners and screws
12 screws (2 different lengths)
12 nuts (two different styles)
6 security screws
1 security hex key


Required Wall Space

99.8mm (3.93 inches) x 193.88mm (7.63 inches), 35mm deep (1.38 inches)
