MIKROTIK

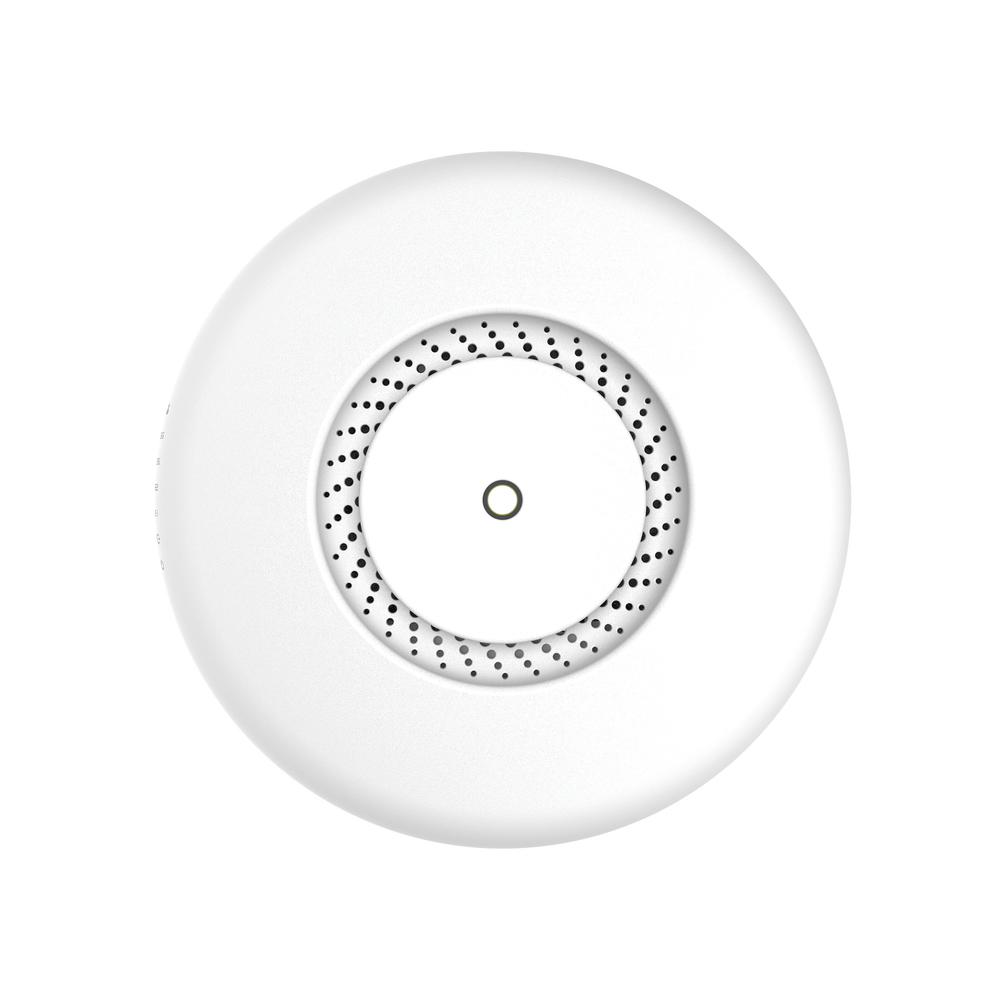

(cAP ac) Indoor Access Point / Client Dual band 802.11b/g/n/ac Wave 2 up to 400 mW

(cAP ac) Indoor Access Point / Client Dual band 802.11b/g/n/ac Wave 2 up to 400 mW

Regular price $505.848 COP
Regular price $553.271 COP Sale price $505.848 COP
Sale Sold out
Shipping calculated at checkout.

(cAP ac) Indoor Access Point / Client Dual band 802.11b/g/n/ac Wave 2 up to 400 mW

The cAP ac is a very powerful and powerful wireless access point that looks beautiful on both walls and ceilings. The simultaneous dual-band wireless radio supports dual-chain 2 GHz and 5 GHz in 802.11ac and legacy standards, and will provide 360-degree coverage around you.

Although the radio supports repeater mode, the two Ethernet ports allow you to expand your wired network, even if PoE power is required, as cAP ac supports 802.3af/at PoE input on the first port and passive PoE output on the second port.

- cAP ac (International) supports 2412-2484MHz and 5150MHz-5875MHz (specific frequency range may be limited by country regulations).

New IPQ4018 Wi-Fi Chipset Line for Wave 2 Technology

Main features of RouterOS

Specifications

Details
Product code RBcAPGi-5acD2nD
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions Round case: ⌀ 136 mm, height: 30 mm; Square case: 145mm x 145mm x 30mm
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40 to 50° C

Powering

Details
Max Power Consumption 13W
PoE in 802.3af/at
PoE out Passive PoE
PoE in input voltage 17-57 V
Number of DC inputs 1 (PoE-IN)

Wireless

Details
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model IPQ-4018
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018

Ethernet

Details
10/100/1000 Ethernet ports 2

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 26 -100
11MBit/s 26 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73

Included parts

    Dual Band 802.11b/g/n/ac Access Point/Client, For indoor ceiling or wall mounting, Power up to 400 mW, 2 and 2.5 dBi antenna, License Level: 4

50 in stock

MODELO: RBCAPGI-5ACD2ND
