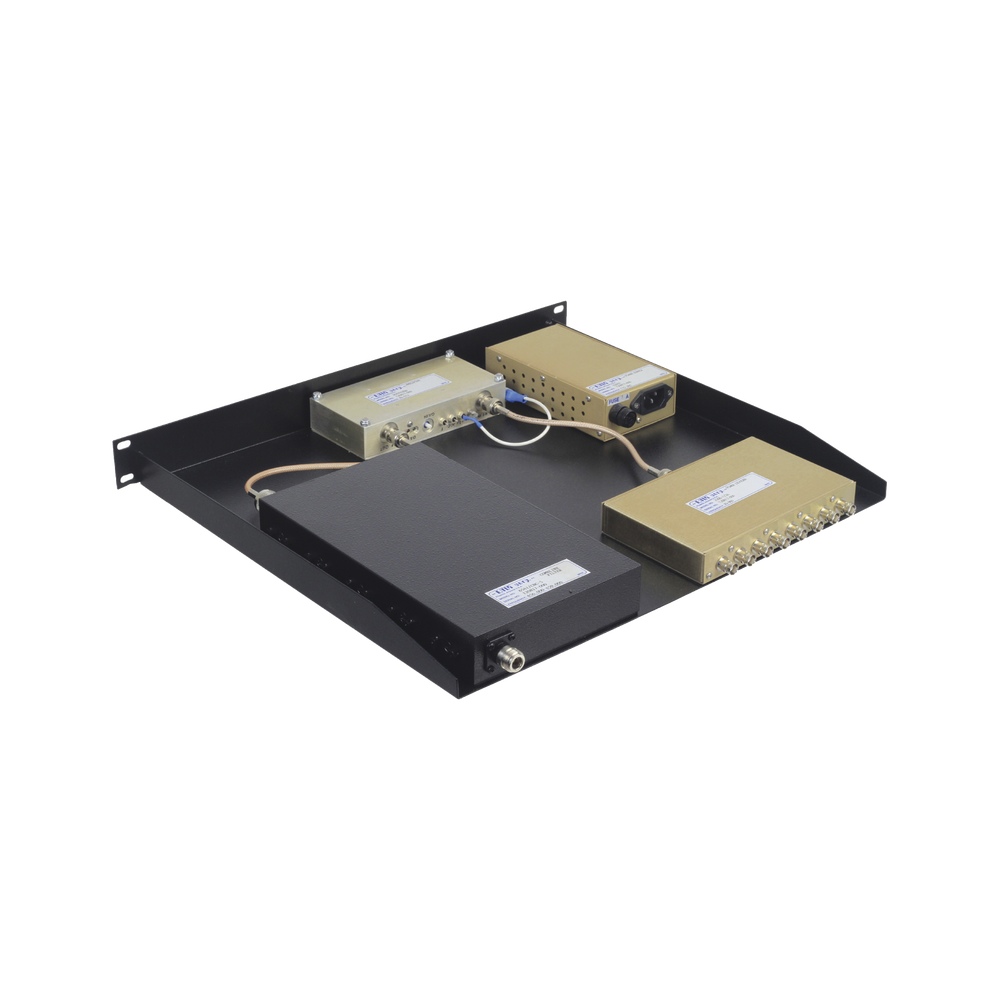

EMR Multicoupler and Preselector, 440-512 MHz, 8 Channels, 3-10 MHz, 1 UR / 19 in Rack, N Females.

EMR Multicoupler and Preselector, 440-512 MHz, 8 Channels, 3-10 MHz, 1 UR / 19 in Rack, N Females.

Multicoupler with Preselector 440-512 MHz, 8 channels, 1 RU for 19 in. Rack.

• Frequency Range: 440-512 MHz.
• Number of Channels: 5-8.
• Bandwidth: 3-10 MHz.
• Number of Resonators: 5.
• Rx-Rx isolation: +23 dB.
• System Voltage: 115 Vac.
• Amplifier Gain: +20 dB.
• Amplifier Type: EpHEMPT.
• Amplifier Noise Figure: 0.5 dB.
• 3rd Order Amplifier IP: +37 dBm.
• Compression at 1 dB of the Amplifier: +22 dBm.
• Amplifier Bias Voltage: 13.6 Vdc.
• Amplifier Consumption Current: 250 mA.
• System NF (Typical): 2.5 dB.
• Nominal Impedance: 50 Ohm.
• Max VSWR @ Resonance: 1.25:1
• Temperature Range: -30 to +60ºC.
• Dimensions (Height x Width x Depth): 45 x 482 x 381 mm.
• Connectors (Input/Output): N Females.
• Finish: Black Panel.

* Ask for Delivery Time.
