Extended Frequency Parabolic Antenna, 4.8 - 6.5 GHz, 28 dBi, Reverse SMA-Male Connectors
Extended Frequency Parabolic Antenna, 4.8 - 6.5 GHz, 28 dBi, Reverse SMA-Male Connectors
Regular price
$849.198 COP
Regular price
$928.810 COP
Sale price
$849.198 COP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Extended Frequency Parabolic Antenna, 4.8 - 6.5 GHz, 28 dBi, Reverse SMA-Male Connectors

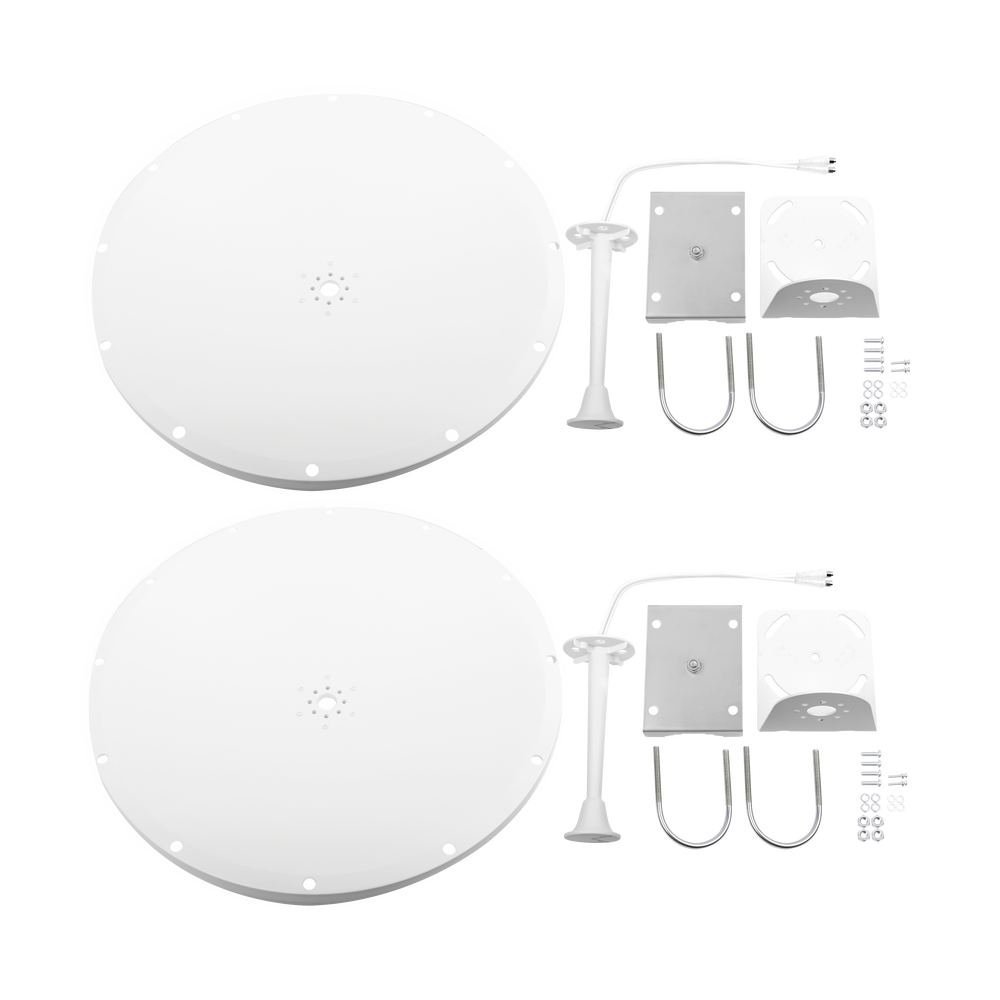

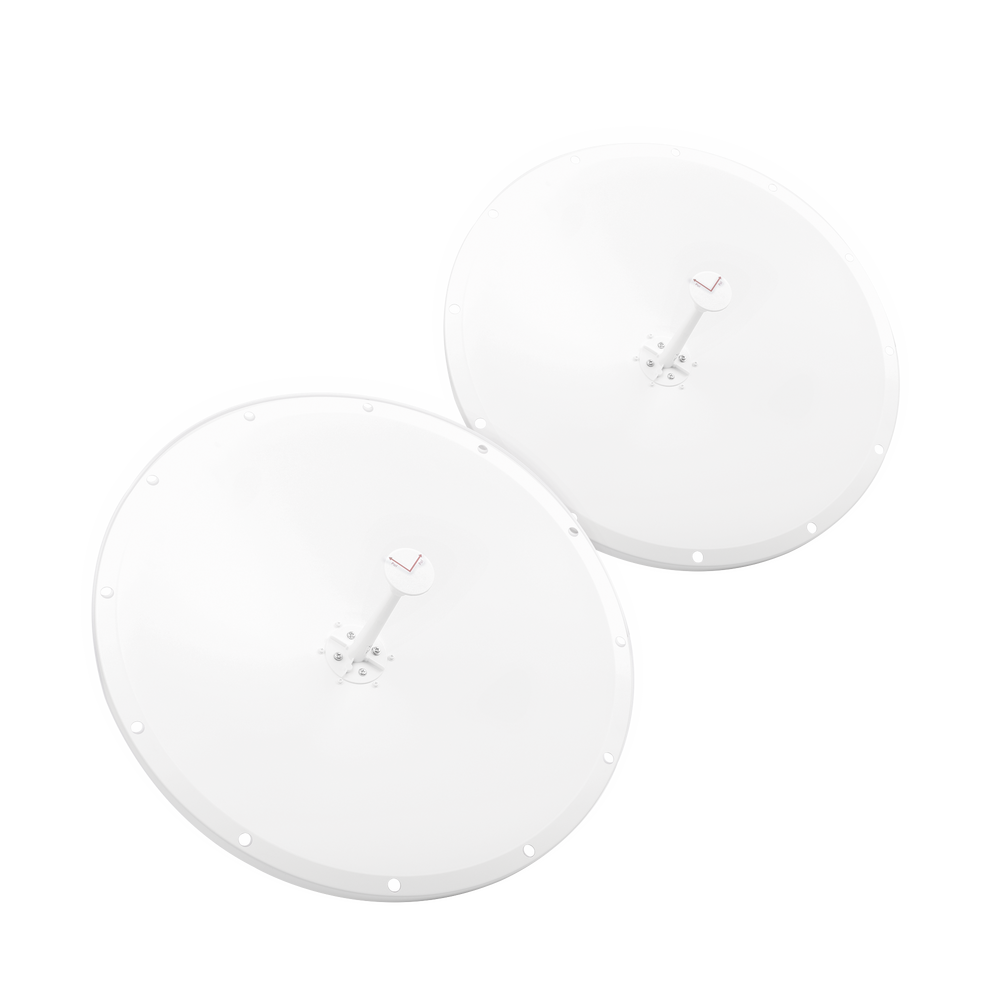

Kit of 2 extended frequency satellite dishes 4.8 to 6.5 GHz model
TXP-D4865-28-SMA.
-Includes 2 TXP-D4865-28-SMA antennas.
-The antennas have SMA Male Reverse connector jumpers.
TxPRO antennas are ideal for low-noise environments such as rural or remote areas where radio frequency spectrum availability is high.
These ultra-lightweight satellite dishes operate in an extended frequency range from 4.8 to 6.5 GHz, providing a wide variety of applications, including Internet transmission in the WISP market and video and data transmission. Their light weight makes installation very simple and fast, reducing tower weight. They feature integrated RF coaxial cables for direct connection to PTP access points, depending on the connector type used.
Connects directly to Mimosa Networks C5c radio !
Average distance up to 15 km.
Frequency range: 4.8 - 5.1 GHz / 5.1 – 6.5 GHz.
Gain: 26 ± 1 dBi / 28 ± 1 dBi.
Polarization: (V/H or ± 45°).
Vertical beam spread: 7°.
Horizontal beam spread: 7°.
Front to rear gain ratio : > 28 dB.
Isolation: > 20 dB.
VSWR: ≤ 1.5:1; max. 2.0.
Maximum power per port: 50 W.
Impedance: 50 Ω.
Dimensions: φ 0.6m.
Weight: 2.5 kg.
Color: White.
Pole mount (Diameters 30 - 70 mm).
Connectors: Includes two RF cables in Reverse SMA Male connectors.
Temperature range: -55 to 70°C.
Humidity: < 95 %.
Wind survival: 200 km/h.
Shipping Dimensions: 70 Height x 72 Width x 20 Depth cm.
*1 year warranty
Share
35 in stock
MODELO: TXP-D4865-28-SMA-KIT2
