Unidad Base Multihaul BU™, Apertura 90°, 500 Mbps actualizable a 1800 Mbps, IP65

Multihaul BU™ Base Unit, 90° Opening, 500 Mbps upgradeable to 1800 Mbps, IP65

Sale price  $15,706,409 Regular price  $20,890,242
Skip to product information
Unidad Base Multihaul BU™, Apertura 90°, 500 Mbps actualizable a 1800 Mbps, IP65

Multihaul BU™ Base Unit, 90° Opening, 500 Mbps upgradeable to 1800 Mbps, IP65

Sale price  $15,706,409 Regular price  $20,890,242
Shipping calculated at checkout.
Marca
Siklu
Referencia / SKU
MH-B100-CCS-POE-MWB
Disponibilidad
Agotado por ahora
Descripción y especificaciones

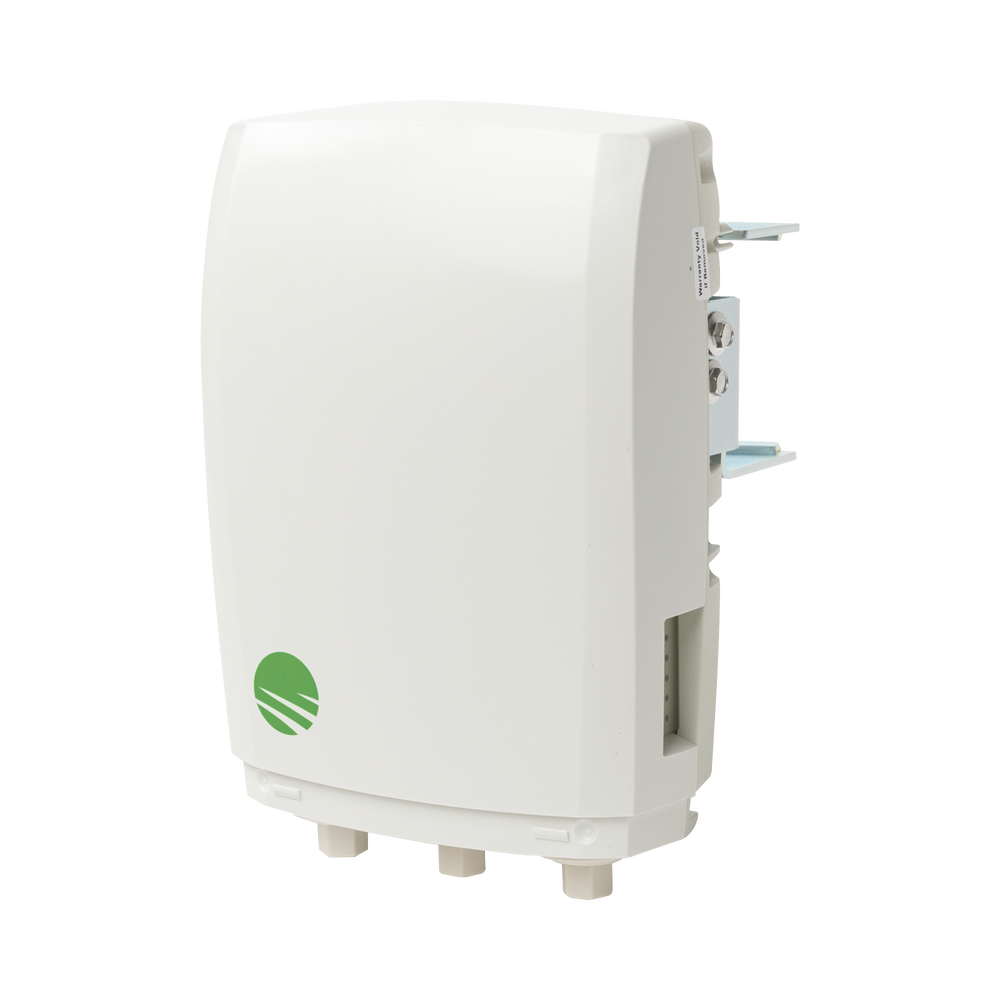

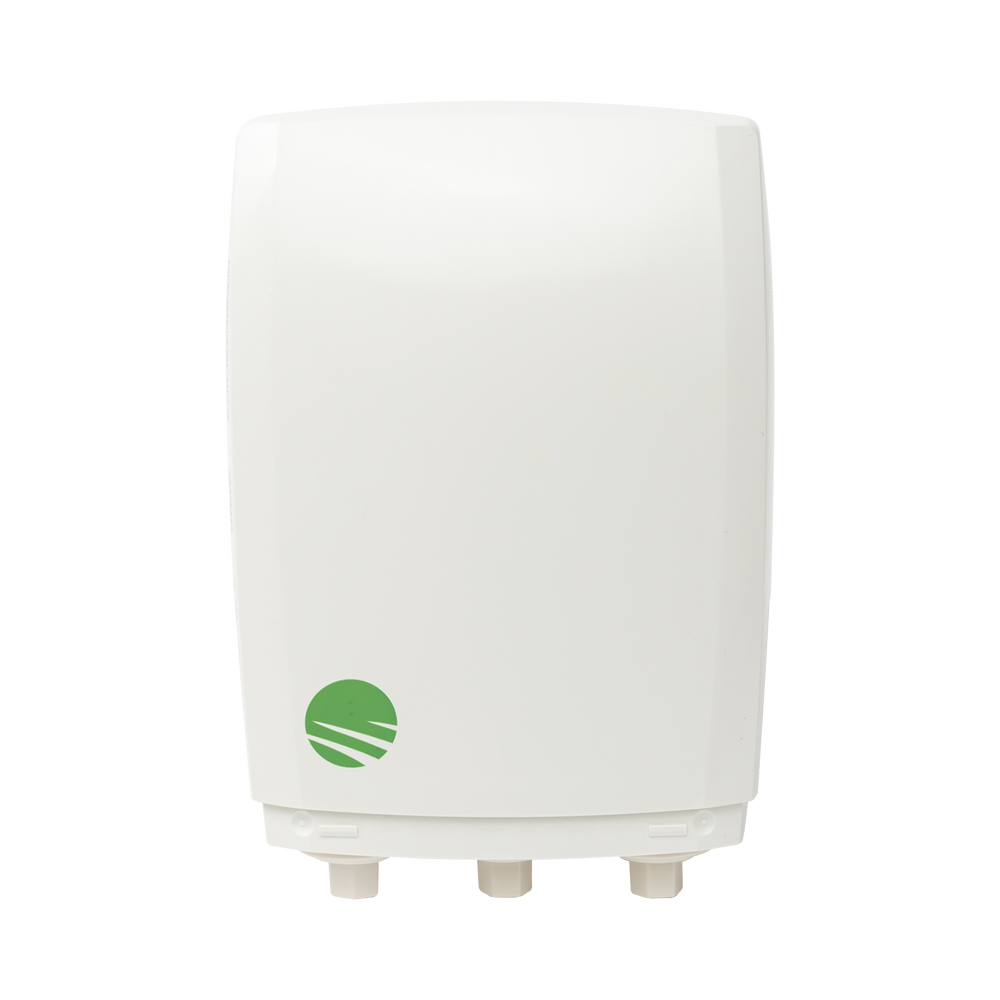

Multihaul BU™ Base Unit, 90° Opening, 500 Mbps upgradeable to 1800 Mbps, IP65



With the introduction of the MultiHaul™ series, Siklu brings the same expertise and technological innovation it has led in the E-band/V-band point-to-point networking market to the mmWave multipoint networking market. These products operate in the widely available V-band, with the exception of the 60GHz V-band, to deliver multi-Gigabit connectivity.

The MultiHaul™ series enables advanced beamforming that requires no alignment between the base unit and the terminal. Plug-and-play installation and zero-touch setup facilitate rapid and cost-effective deployment by a single person.


  • - 2.3 Gbps multipoint network, OTA capacity (1.8 Gbps net throughput) to rooftops or streets.

- Up to a range of 270 m thanks to the innovative antenna technology developed by Siklu

- The system includes a base unit (UB) with 3 ports and up to 8 terminal units (UT) equipped with 1 or 3 ports.

- Beamforming antenna capable of self-alignment that requires only one person to install

- Thin beams ensure virtually reliable, interference-free, physically immune operation

- AES encryption, TU/port isolation, and 802.1x combined for network security

- Upload and download capacity is dynamically regulated to align performance with demand and significantly improve the user experience.

- Simplified TU configuration with assigned name and auto-provisioning: The UB stores TU configurations identified only by a logical name, such as the site ID or circuit ID.

- Integrated managed PoE switch for quick connection and power to numerous devices

- Easy acquisition and installation on the street and roof with a small ½ liter radio


• Topologies: Point to multipoint / point to point
• Built-in antenna: Horizontal scan: 90° / Vertical beamwidth: 20°
• Frequency and duplex: 57-64GHz
• Channels and Width: 2 non-overlapping channels, 2160MHz wide
• Modulation and coding: 9 levels of adaptive coding and modulation
• Line speed (PHY ): Line speed up to 2300Mbps
• Aggregate performance: Maximum capacity 1800Mbps, license dependent
• System Gain (Link Budget): 125dB (including antenna gain)
• Typical range: 800 - 1000ft (250 - 300m)

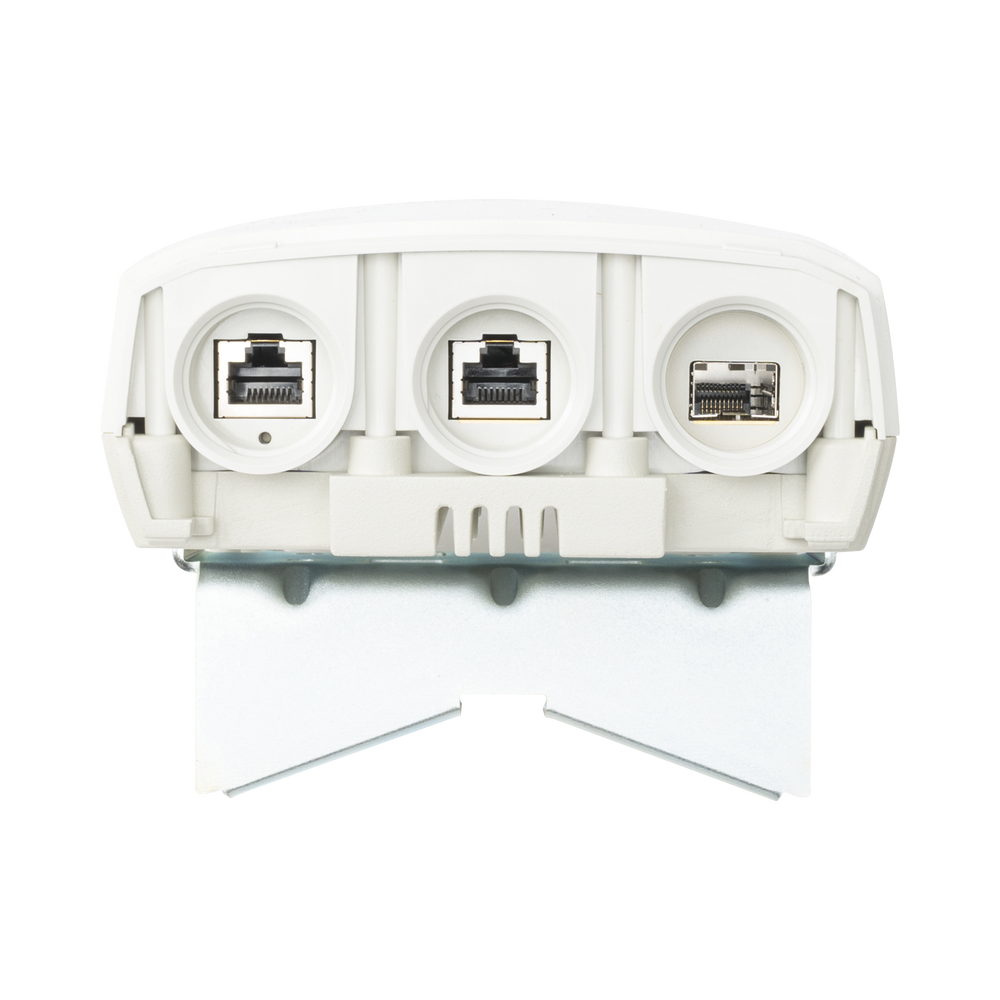

• Interfaces: 2 x RJ45 100 / 1000Base-T + 1 x SFP (supports 1GbE and 2.5GbE)
• Terminal Units (TU): up to 8 Terminal Units
• Ethernet Features:
IEEE 802.1d transparent bridging
VLAN and VLAN stacking
Jumbo frames
• Security: AES 128 bits
• Administration and provisioning:
Contactless upload; In-band, out-of-band management
Web GUI: (one-click configuration of local and remote units) and integrated CLI
SNMPv2/3, TACACS+, RADIUS
• Compliance:
Radio: FCC, part 15.255
EMC: FCC 47CFR.part 15
Safety: UL 60950
• Power supply: PoE, 10W (IEEE 802.3af) without PoE-out, 50W with PoE-Out (IEEE 802.3at +)
• PoE Out:
ETH2: 26W, 802.3af
ETH3: 13W, 802.3af
• Environmental:
Operating Temperature: -22 to 131°F (-30 to 56°C)
Optional: -49 to 131°F (-45 to 56°C)
Ingress protection rating: IP65 (IP67 optional)
• Dimensions: 7.5 x 5.2 x 3.5 '(190.5 x 132.08 x 88.9 mm)
• Weight: 3 lb (including mounting kit)
