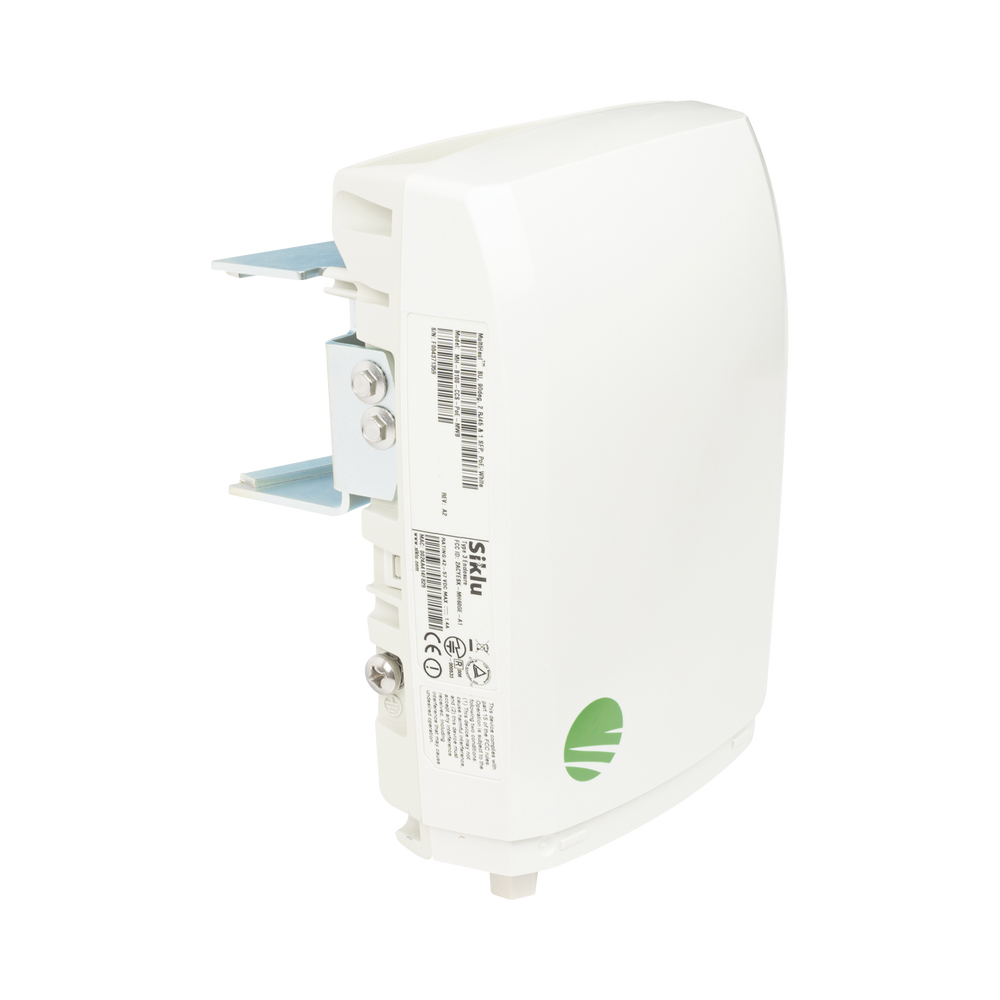

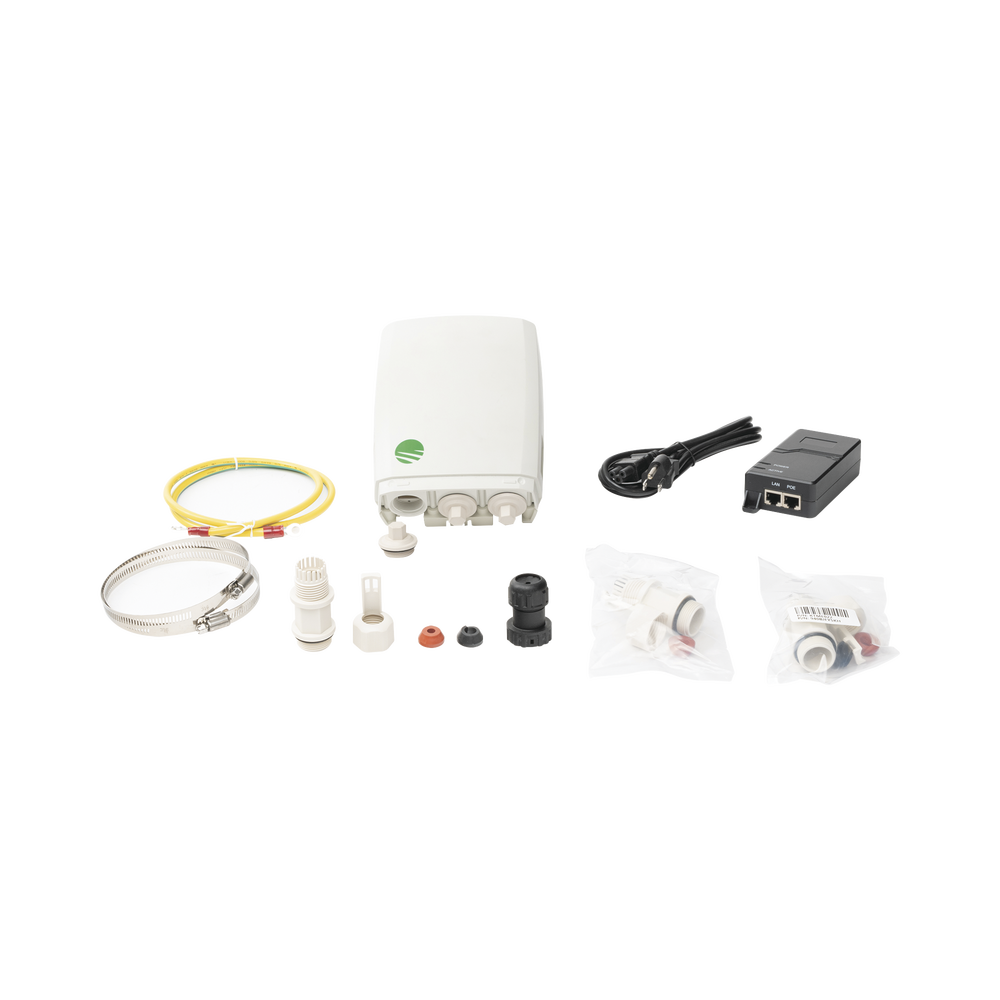

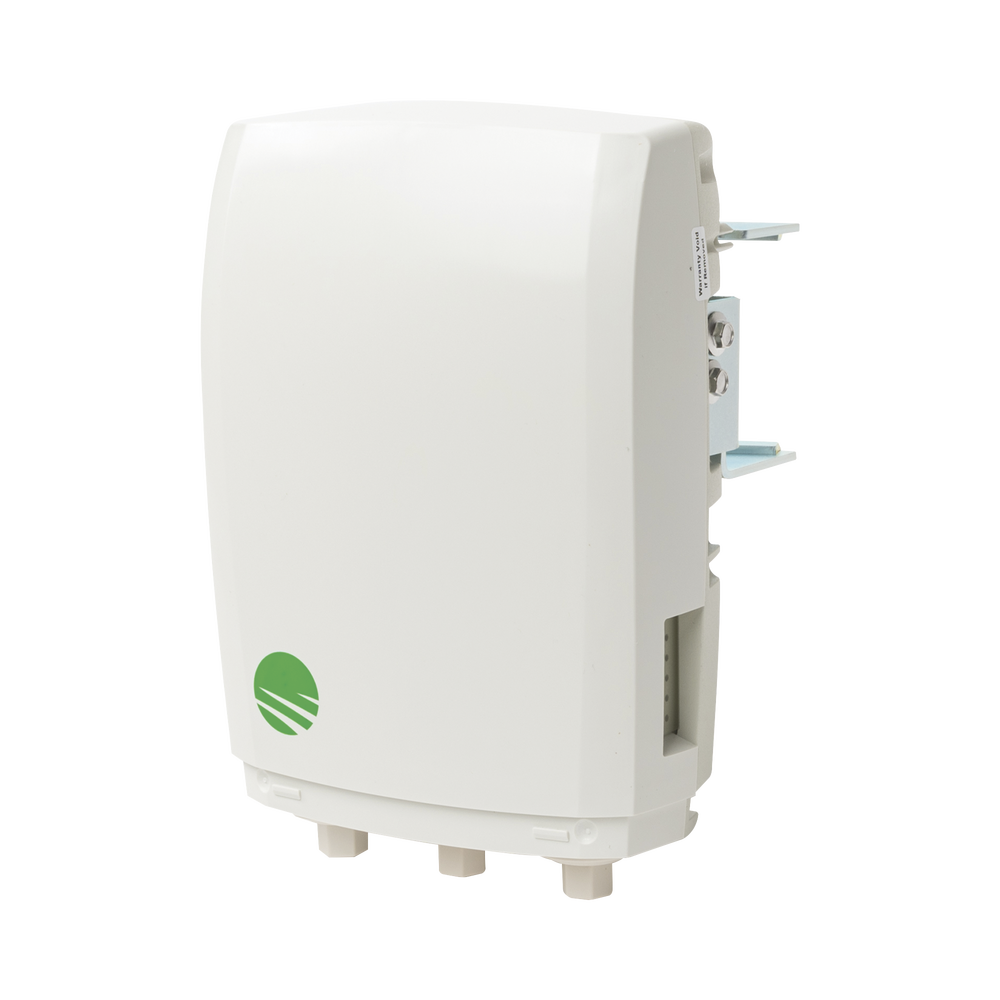

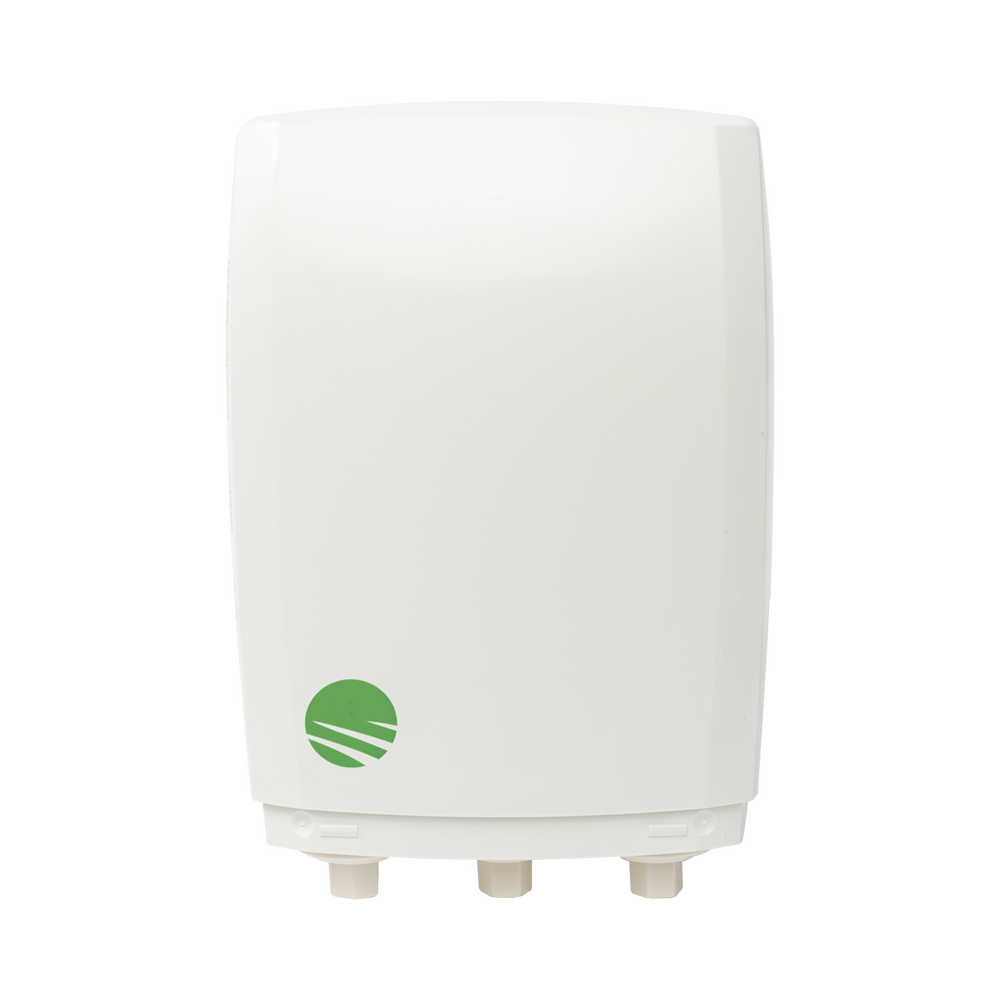

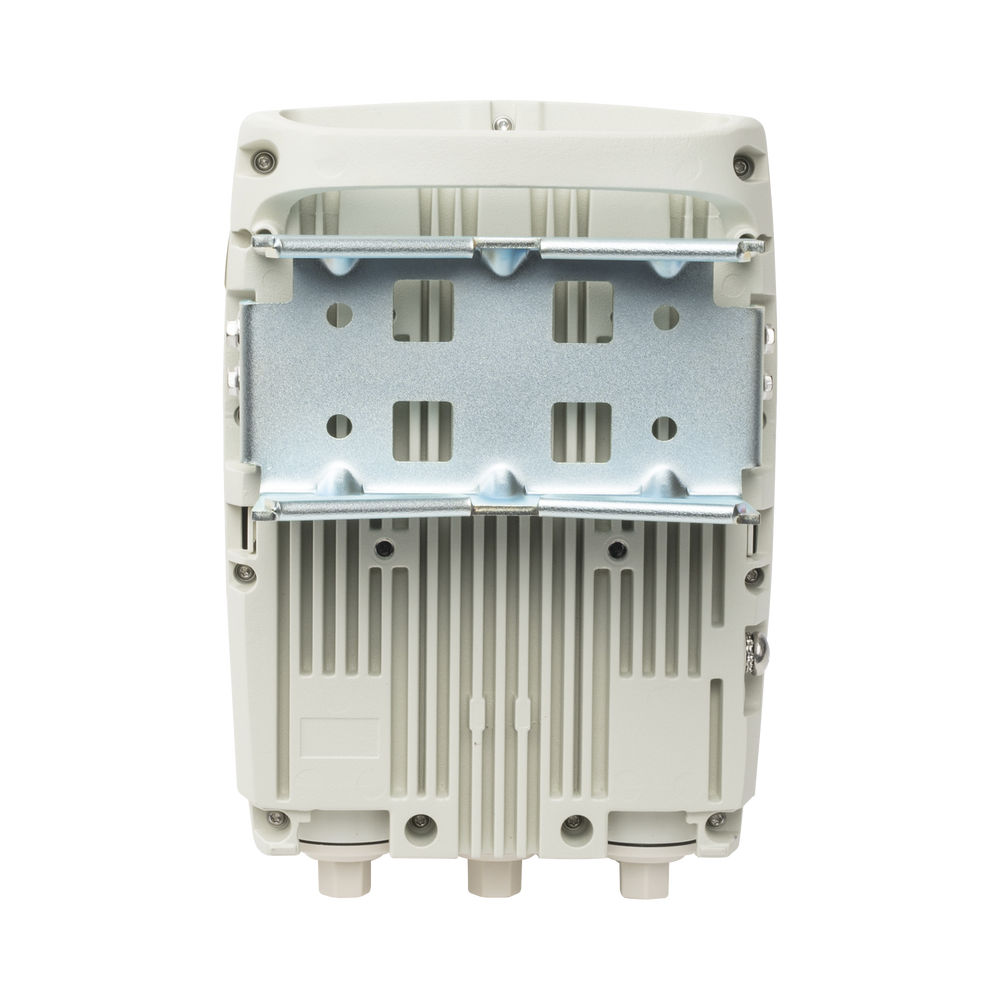

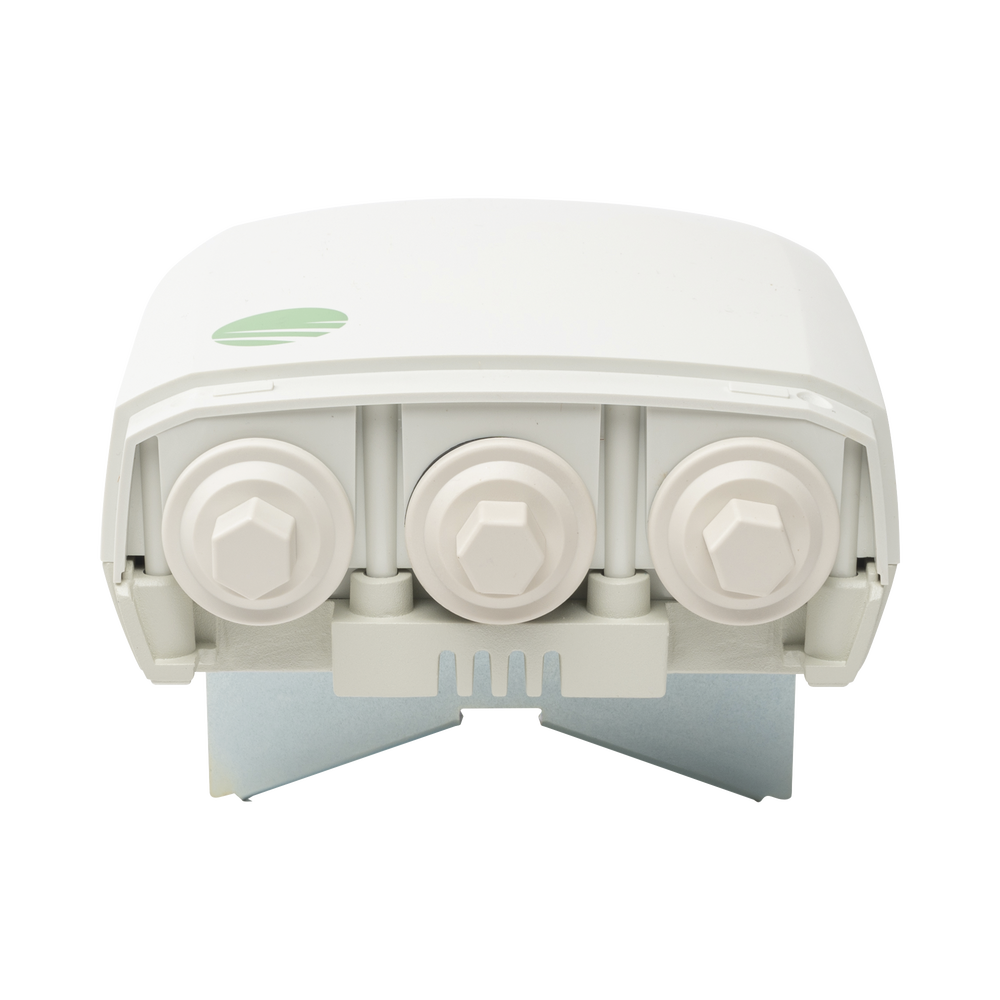

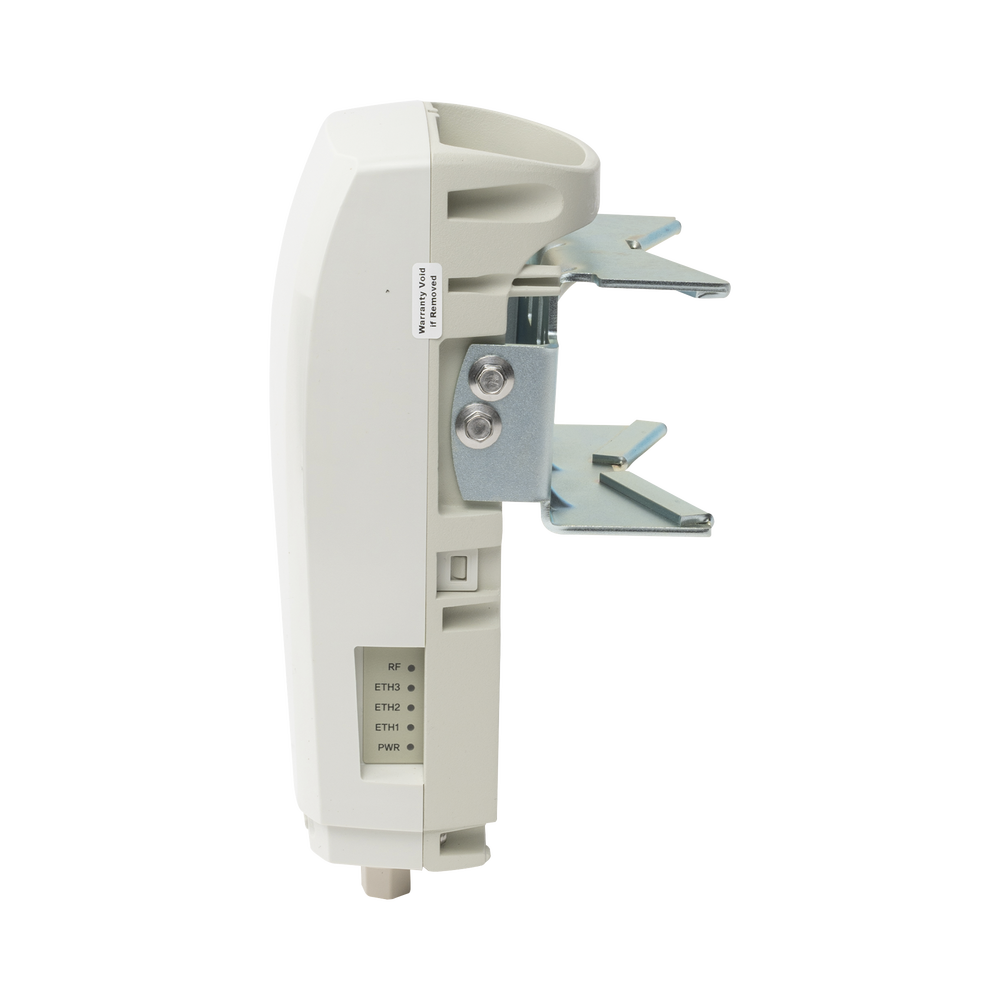

MultiHaul™ TU Terminal Unit, 90°, 100 Mbps upgradeable to 1000 Mbps, 3 RJ-45 ports (PoE output enabled on 2 ports), Mounting and PoE injector included, IP65, White

MultiHaul™ TU Terminal Unit, 90°, 100 Mbps upgradeable to 1000 Mbps, 3 RJ-45 ports (PoE output enabled on 2 ports), Mounting and PoE injector included, IP65, White

Wi-Fi Backhaul Product Specifications


• Topologies: point-to-multipoint / point-to-point
• Built-in antenna: Horizontal scan: 90° / Vertical beamwidth: 20°
• Frequency and duplex: 57-64GHz
• Channels and Width: 2 non-overlapping channels, 2160MHz wide
• Modulation and coding: 9 levels of coding and adaptive modulation
• Line speed (PHY): Line speed up to 2300Mbps
• Aggregate performance: maximum capacity 1000Mbps, license dependent
• System Gain (Link Budget): 125dB (including antenna gain)
• Typical range: 800 - 1000ft (250 - 300m)

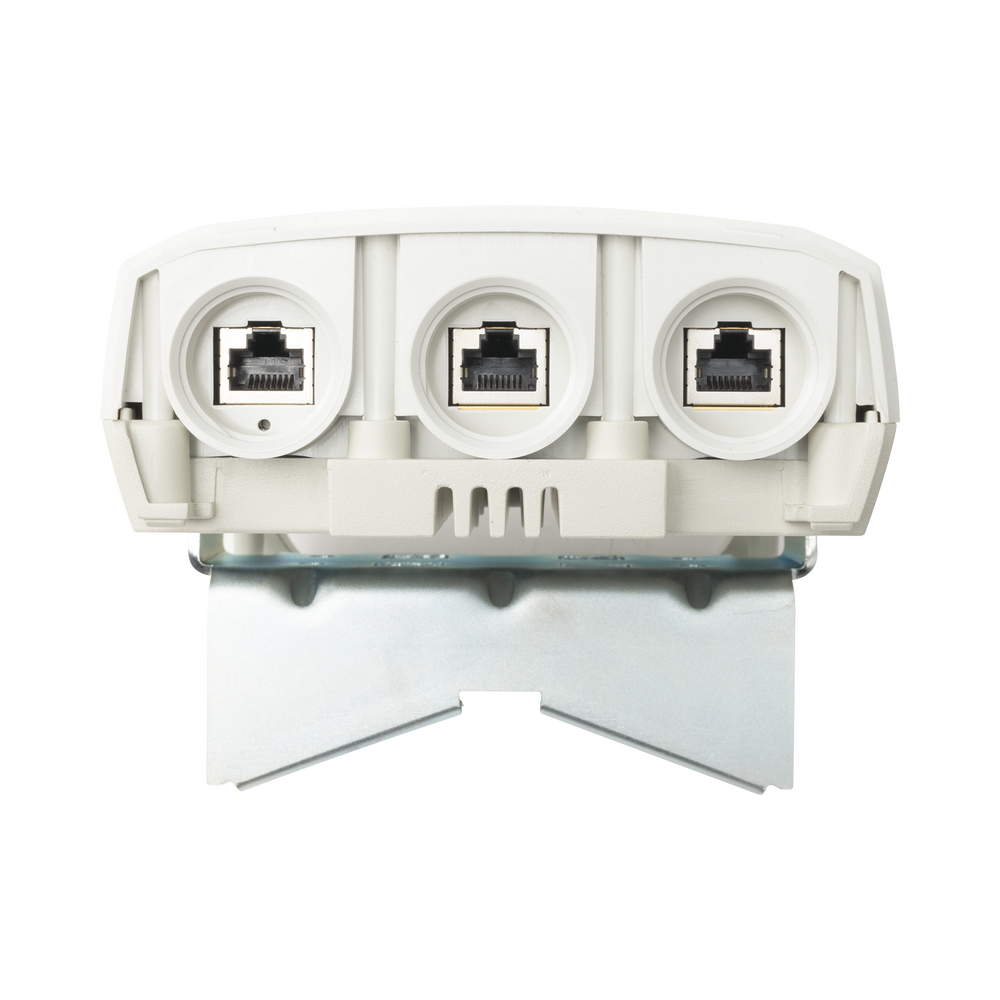

• Interfaces: 3 x RJ-45 100/1000 Base-T
• Ethernet Features:
IEEE 802.1d Transparent Bridge
VLAN and VLAN stacking
Jumbo frames
• Security: 128-bit AES
• Administration and provisioning:
Zero-touch appears; In-band, out-of-band management
Web GUI: (one-click configuration of local and remote units) and integrated CLI
SNMPv2/3, TACACS+, RADIUS
• Compliance:
Radio: FCC, part 15.255
EMC: FCC 47CFR Part 15
Safety: UL 60950
• Power supply: PoE, 10W (IEEE 802.3af) without PoE-out, 50W with PoE-Out (IEEE 802.3at +)
• PoE-Out:
ETH2: 26W, 802.3at
ETH3: 13W, 802.3af
• Environment:
Operating temperature: -30 to 56°C (-22 to 131°F)
Optional: -49 to 131°F (-45 to 56°C)
Ingress protection rating: IP65 (IP67 optional)
• Dimensions : 7.5 x 5.2 x 3.5' (190.5 x 132.08 x 88.9mm)
• Weight : 3 lb (including mounting kit)
