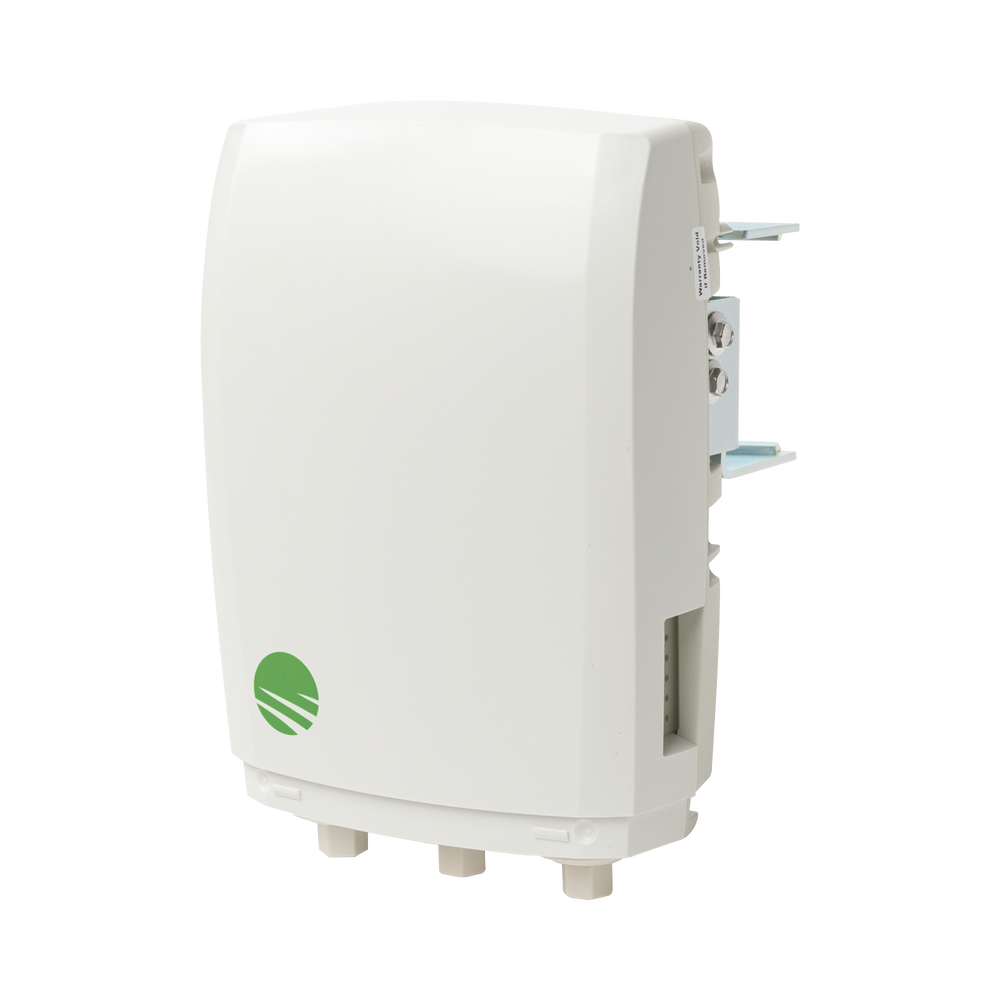

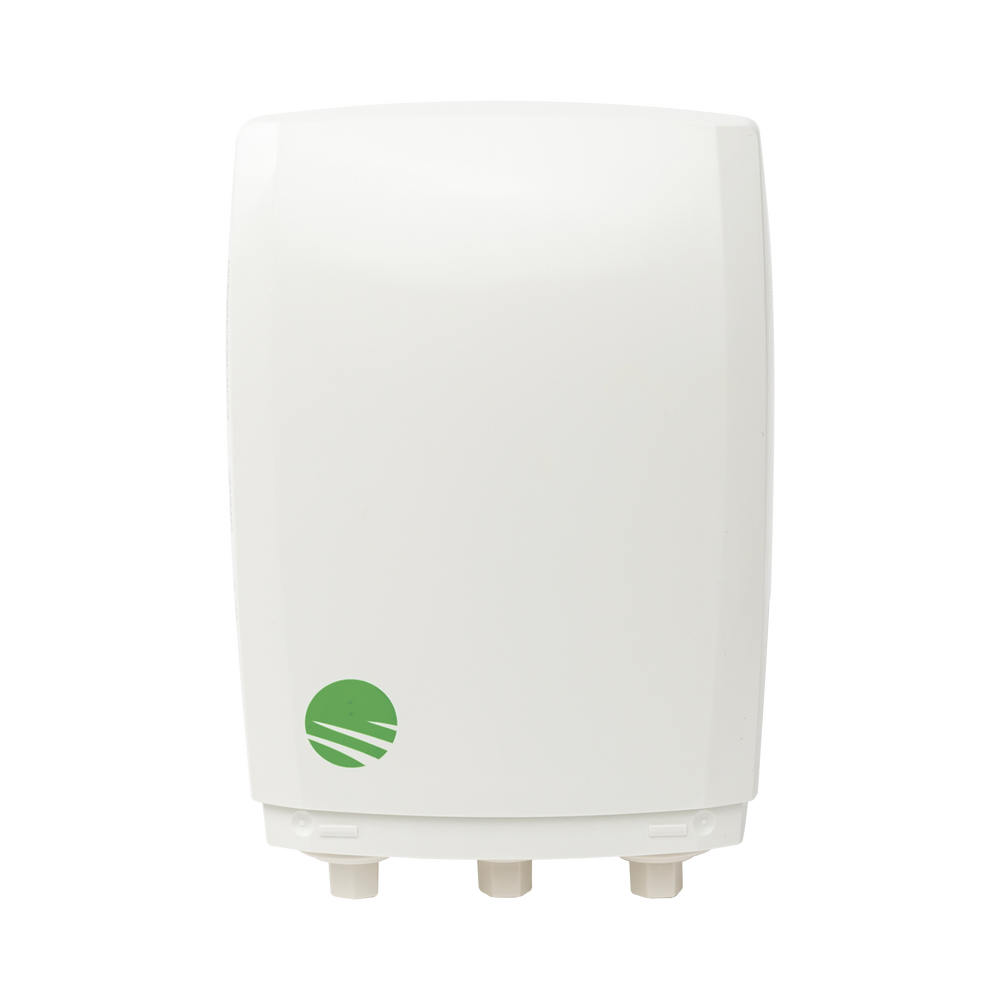

MultiHaul™ TU Terminal Unit, 90°, 100 Mbps upgradeable to 1000 Mbps, 1 RJ-45 port

MultiHaul™ TU Terminal Unit, 90°, 100 Mbps upgradeable to 1000 Mbps, 1 RJ-45 port

Wi-Fi Backhaul Product Specifications


• Topologies: Point to multipoint / point to point
• Built-in antenna: Horizontal scan: 90° / Vertical beamwidth: 20°
• Frequency and duplex: 57-64GHz
• Channels and Width: 2 non-overlapping channels, 2160MHz wide
• Modulation and coding: 9 levels of adaptive coding and modulation
• Line speed (PHY): Line speed up to 2300Mbps
• Aggregate performance: maximum capacity 1000Mbps, license dependent
• System Gain (Link Budget): 125dB (including antenna gain)
• Typical range: 800 - 1000ft (250 - 300m)

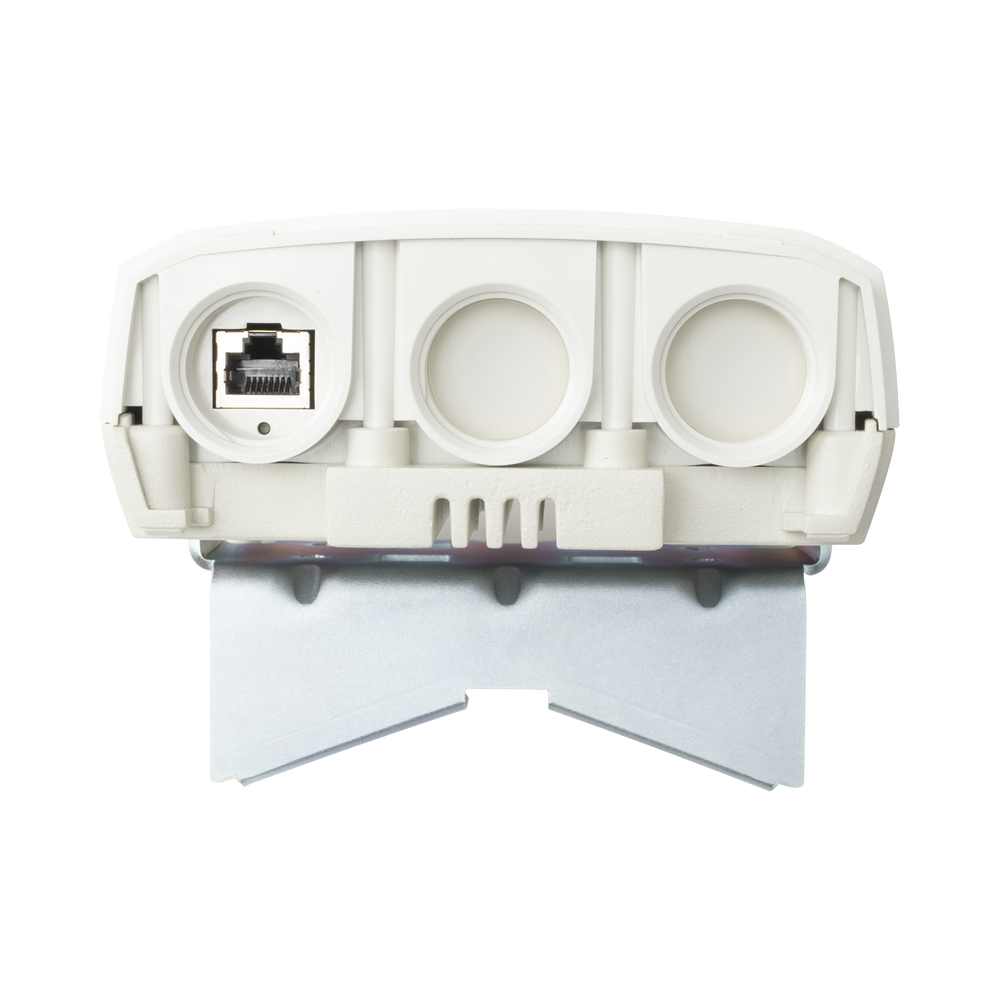

• Interfaces: 1 x RJ-45 100/1000 Base-T
• Ethernet Features:
IEEE 802.1 d Transparent Transition
VLAN and VLAN Stacking Frames
jumbo
• Security : AES 128 bits
• Administration and provisioning:
Contactless upload; In-band, out-of-band management
Web GUI: (one-click configuration of local and remote units) and integrated CLI
SNMPv2/3, TACACS+, RADIUS
• Compliance :
Radio: FCC, part 15.255
EMC: FCC 47CFR.part 15
Safety: UL 60950
• Power supply: PoE, 10W (IEEE 802.3af) without PoE-out, 50W with PoE-Out (IEEE 802.3at +)
• Environmental:
Operating Temperature: -22 to 131°F (-30 to 56°C)
Optional: -49 to 131°F (-45 to 56°C)
Ingress protection rating: IP65 (IP67 optional)
• Dimensions : 7.5 x 5.2 x 3.5 '(190.5 x 132.08 x 88.9 mm)
• Weight : 3 lb (including mounting kit)

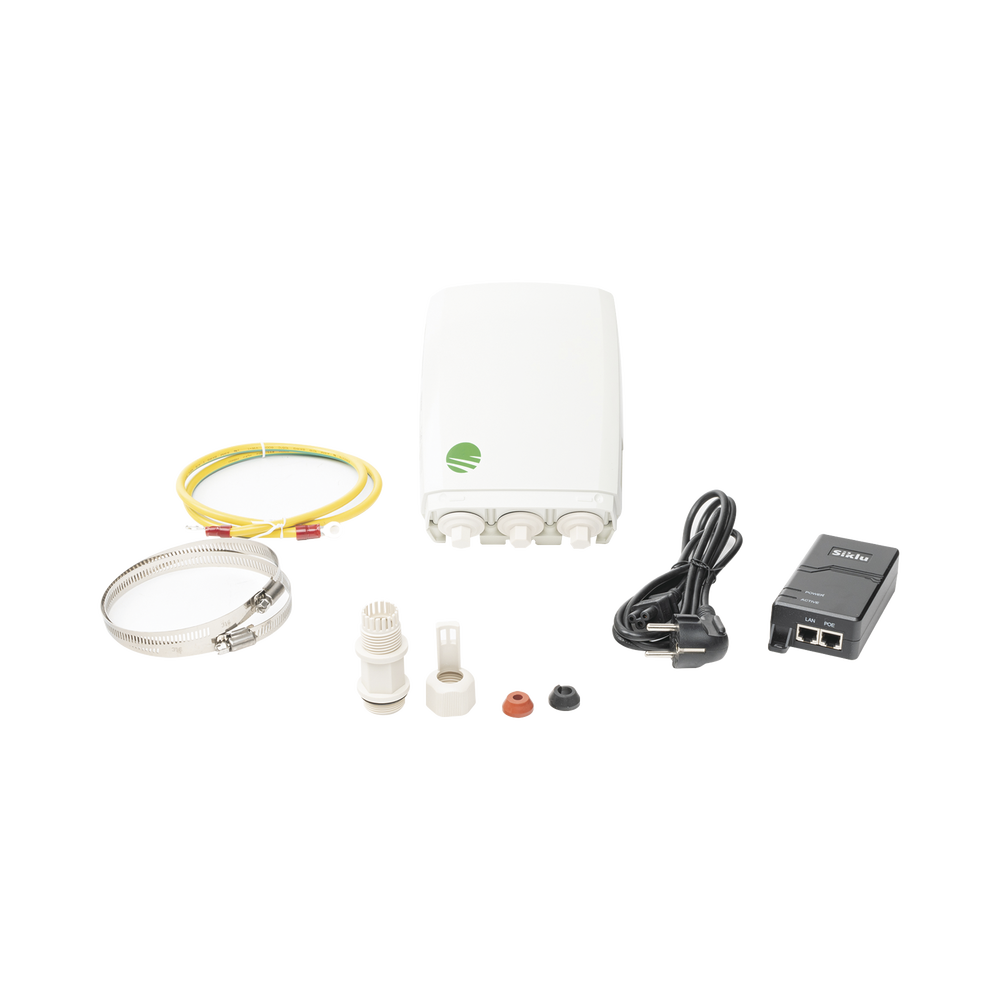

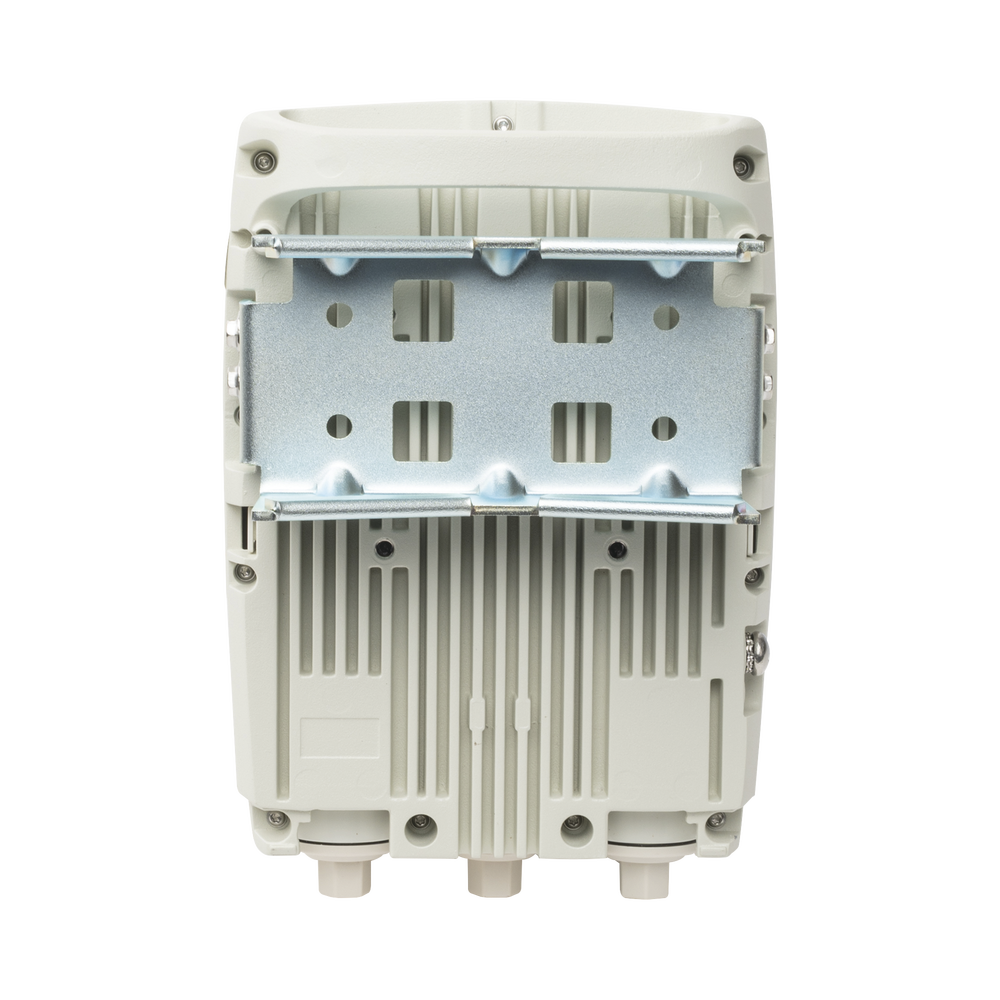

Mounting and PoE injector included, IP65, White
