MIKROTIK
4G (LTE) Modem for SIM, with 2.4 GHz Wi-Fi, For use at home and/or in vehicles, with Fast Ethernet port, Bands (2,4,5,12)
4G (LTE) Modem for SIM, with 2.4 GHz Wi-Fi, For use at home and/or in vehicles, with Fast Ethernet port, Bands (2,4,5,12)
Couldn't load pickup availability
4G (LTE) Modem for SIM, with 2.4 GHz Wi-Fi, For use at home and/or in vehicles, with Fast Ethernet port, Bands (2,4,5,12)
Important Note: This device has been operated under the conditions of use with the mobile operator TELCEL in a city environment. Its operation with other operators and other regions of the country is not guaranteed.

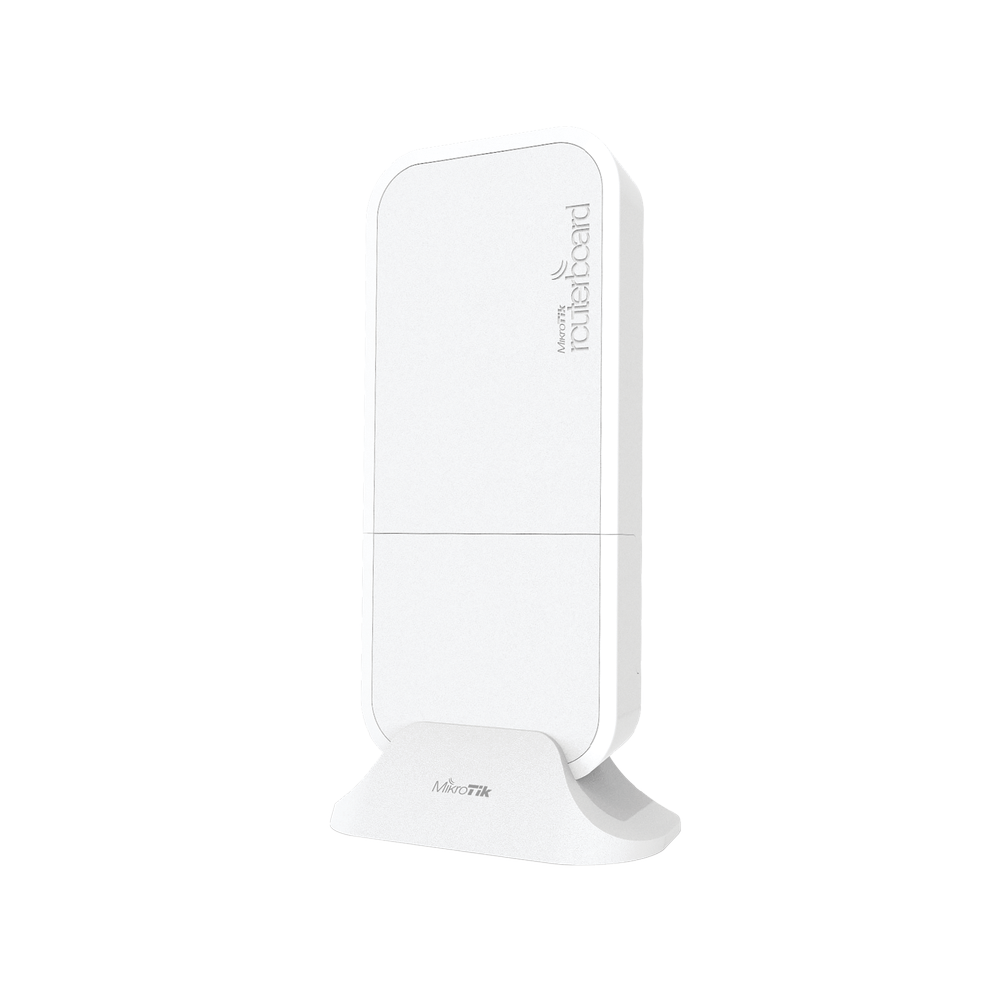

The wAP LTE Kit-US is a small, weatherproof wireless access point with a built-in cellular modem that supports 3G and 4G (LTE) connectivity. Connect to the wAP's built-in 802.11b/g/n wireless network and access the LTE network from your phone or any other wireless device. The wAP LTE also has a 10/100 Ethernet LAN port for your wired devices.

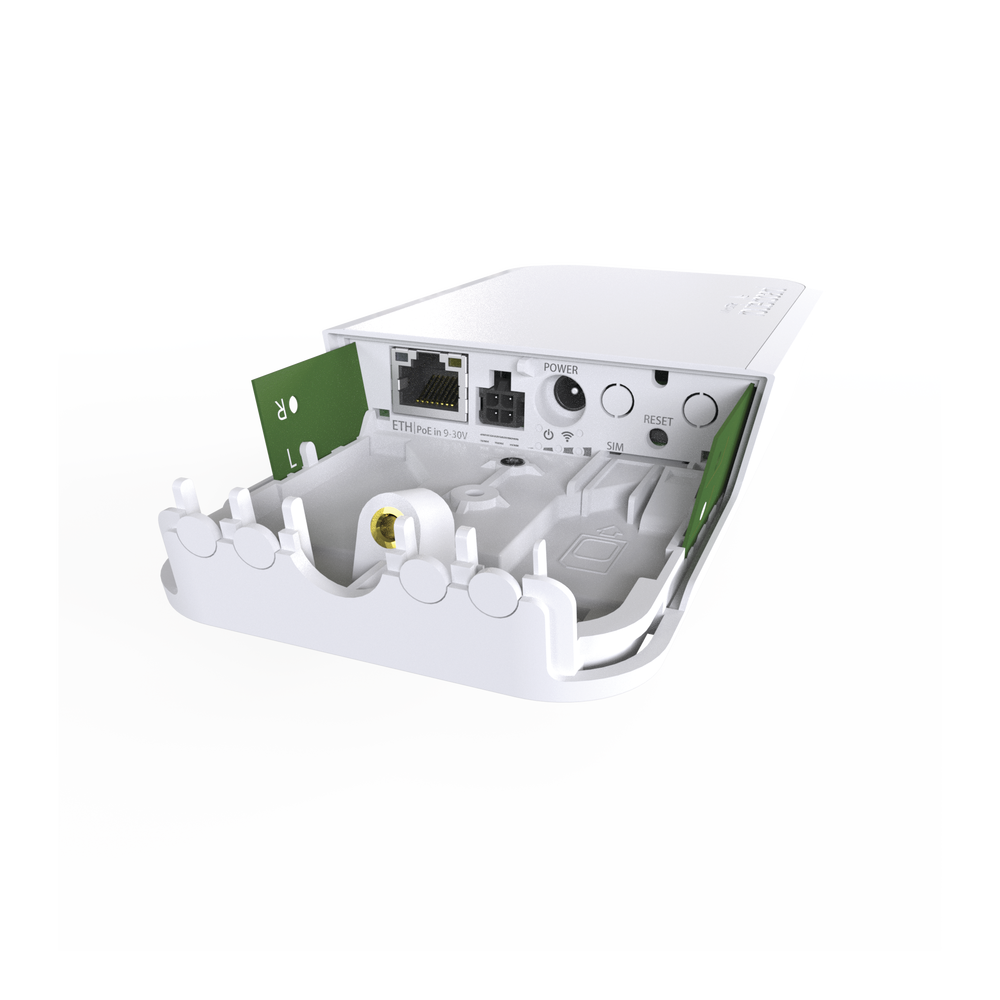

The LTE cards are connected to two internal antennas with u.FL connectors, so if you wish, you can disconnect the connectors and add your own external LTE antenna for broader coverage. The unit has several power options: 9-30v PoE-in per Ethernet port, a DC connector, and an automotive connector, very useful in mobile devices such as cars, buses, or trains.
RBwAPR-2nD and R11e-LTE-US include an LTE modem that supports LTE bands 2, 4, 5, and 12, which are primarily used by mobile operators in the United States, Canada, and Latin America.
Main features of RouterOS
MikroTik - Insert/Remove SIM
Specs
| Details | |
|---|---|
| Product code | RBwAPR-2nD&R11e-LTE-US |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| Nominal CPU frequency | 650 MHz |
| Dimensions | 185 x 85 x 30 mm |
| RouterOS License | 4 |
| Operating system | RouterOS |
| RAM size | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Room temperature tested | -40°C to 60°C |
| MTBF | Approximately 200,000 hours at 25°C |
Feeding
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE on input voltage | 9-30 V |
| Number of DC inputs | 3 (Automotive, DC connector, PoE-IN) |
| DC jack input voltage | 9-30 V |
| Automotive input voltage | 9-30 V |
| Maximum energy consumption | 8 W |
| Fan count | Passive |
Mobile
| Details | |
|---|---|
| Category 3G | R8 (42.2 Mbps downlink, 5.76 Mbps uplink) / R7 (21 Mbps downlink, 5.76 Mbps uplink) |
| 3G bands | 2 (1900 MHz) / 5 (850 MHz) |
| LTE Category | 4 (150 Mbps downlink, 50 Mbps uplink) |
| LTE FDD bands | 2 (1900 MHz) / 4 (1700 MHz) / 5 (850 MHz) / 12 (700 MHz) |
Wireless specifications
| Details | |
|---|---|
| Maximum wireless data rate of 2.4 GHz | 300 Mbit/s |
| Number of 2.4 GHz wireless chains | 2 |
| 2.4 GHz wireless standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| 2.4GHz Wireless Chip Model | QCA9531 |
| 2.4 GHz wireless generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 modem (Mini SIM) |
Out of stock
MODELO: WAP-LTE-KIT-US
