4 Megapixel DVR / 32 TURBOHD Channels + 8 IP Channels / 2 Hard Drive Bays / 1 Audio Channel / Video Analysis

Important note:

Thanks to the new updates (improvements) the DVR now allows accepting 4 Megapixel TURBOHD cameras that were originally dedicated to supporting 3 Megapixel, the DVR will be able to record at 4 Megapixel Lite, meaning that it is a signal coupling that allows accepting 4 Megapixel TURBOHD cameras with Lite recording.

• 4 Megapixel Actual = 2560 X 1440.
• 4 Megapixel Lite = 1280 X 1440.

Main features:

• Pentabride System (AHD / TVI / CVI / Analog / IP).

• Compression: H.265+ / H.265 / H.264+ / H.264.

• 32 TURBOHD video channels + 8 IP channels = 40 channels in total.

• Allows you to disable analog TURBOHD channels and generate IP channels. Up to 40 IP channels can be added in total. For each analog TURBOHD channel disabled, an additional IP channel is generated.

• 1 Audio input / 1 Audio output.

• 1 Gigabit network ports.

• Capacity for 2 SATA hard drives up to 10 TB (20 TB in total).

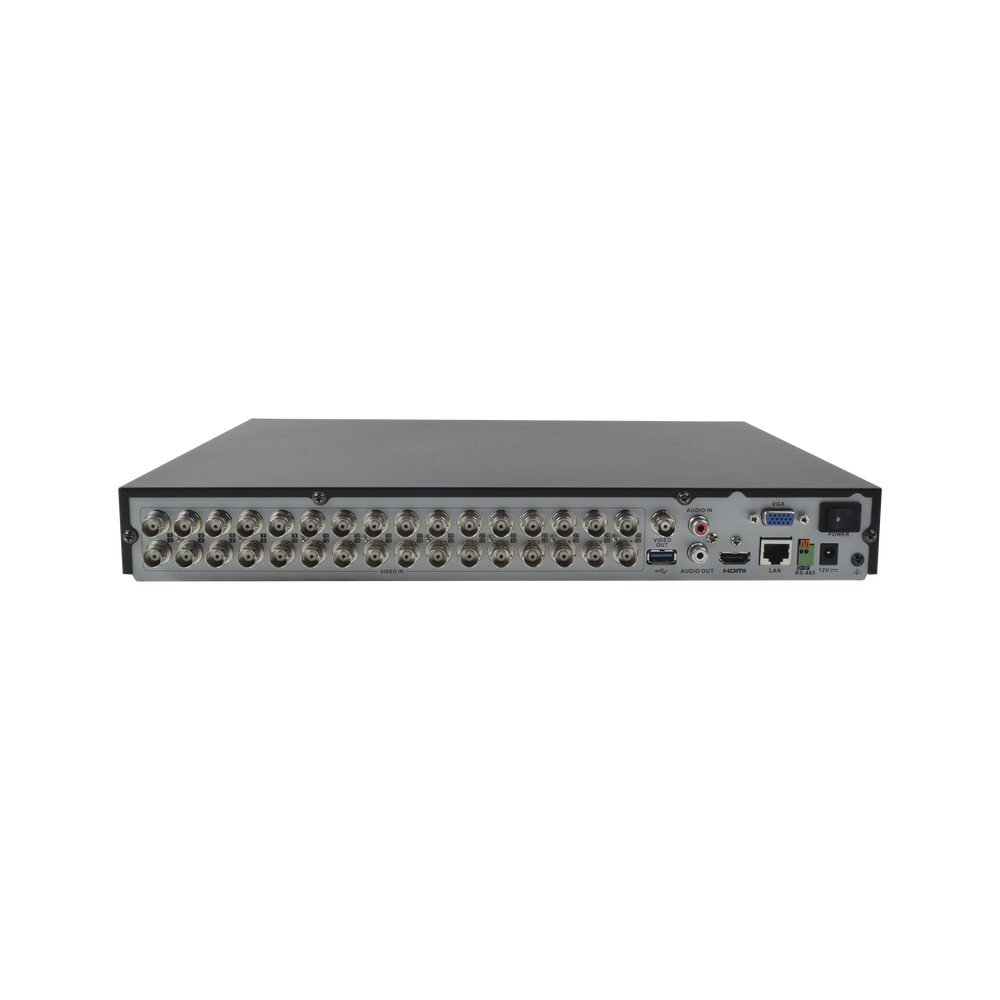

• Video outputs (simultaneous):

  • HDMI: 4K (3840x2160), 2K (2560x1440), 1920x1080, 1280x1024, 1280x720, 1024x768
  • VGA: 1920×1080, 1280×1024, 1280×720, 1024×768.

• Independent BNC video output in 4 CIF resolution.

• Supports Hik-Connect (P2P).

• Supports Hik-connect Domain / NO-IP / DynDNS (does not support DDNS SYSCOM).

• Compatible with iVMS-4200 client software (Windows/Mac) / Hik-Connect (Android, iPhone, iPad)

• Supports COAXITRON for PTZ (no RS-485 data wiring required).

Video channels:

• CVI Technology: 1080p/720p.

• Note: Accepts 4MP, 2MP and 1MP cameras on all its BNC channels (3MP cameras only on channel 1, 2, 3 and 4) .

• AHD Technology: 1080p / 720p.

• TURBOHD (TVI) Technology: 4 Megapixel Lite / 3 Megapixel / 1080p / 720p.

• Analog technology (CVBS): 600 TVL and above.

• IP Technology: 6 Megapixel.


Physical and electrical characteristics:

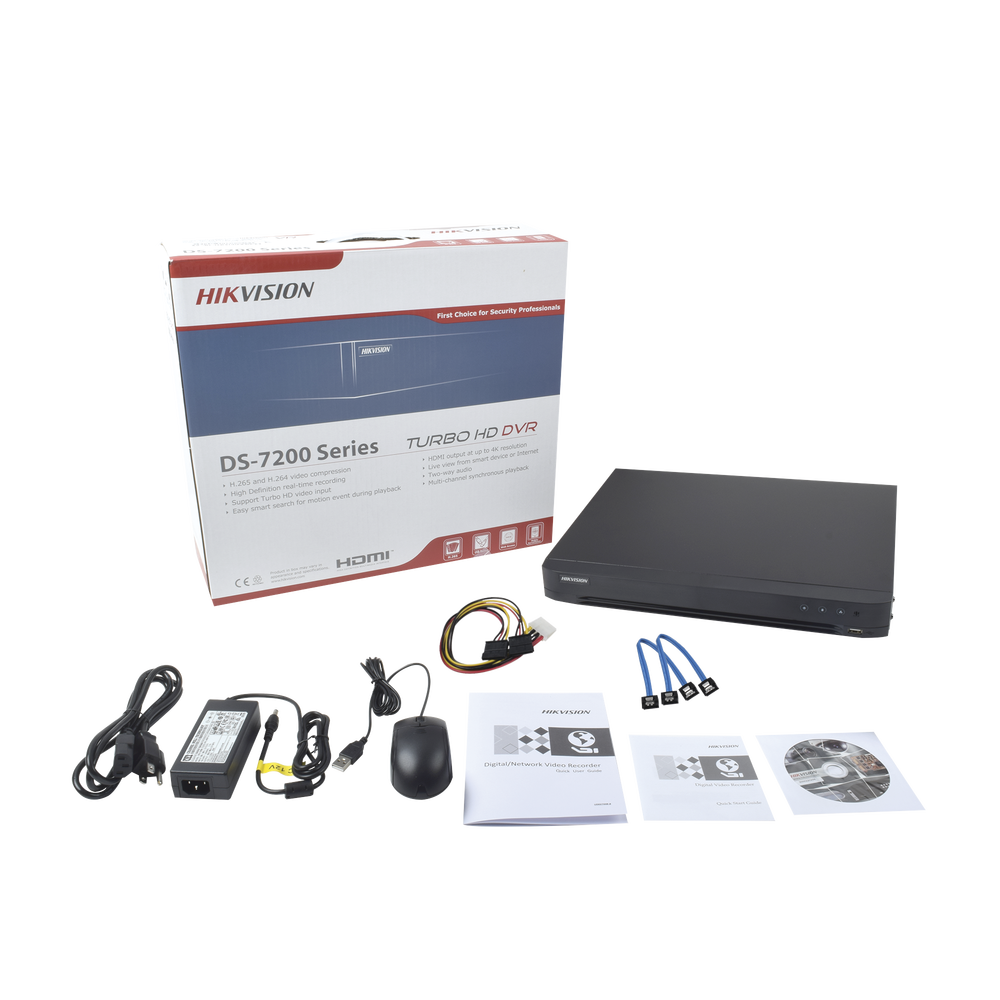

• Power supply/consumption: 12 Vdc - 4.5 A (power supply included)

• Operating temperature: -10° to 55° C.

• Dimensions: 380 x 320 x 48 mm.

• Weight: 2 Kgs.

• Warranty: 2 years.

• Compatible with GAB-VID2-R2 metal cabinet.

To connect the IP channels you need to use a POE switch (not included)
