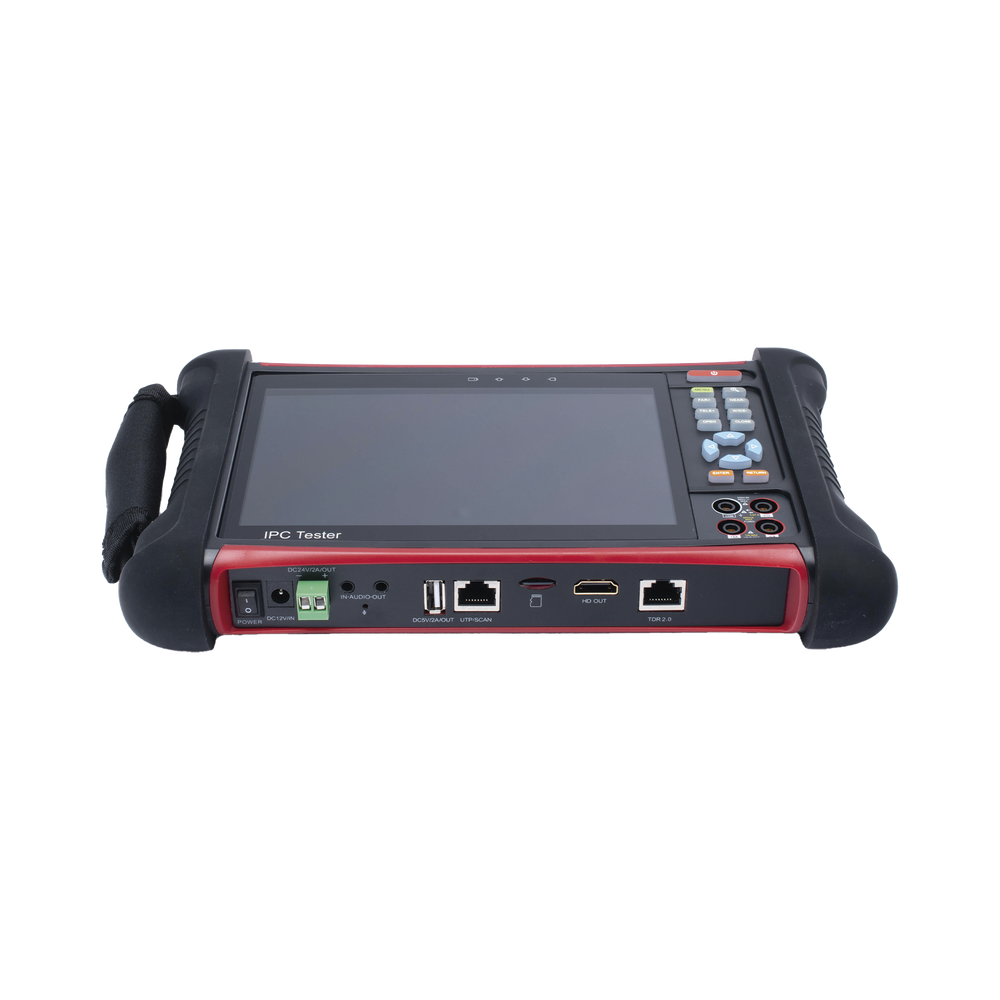

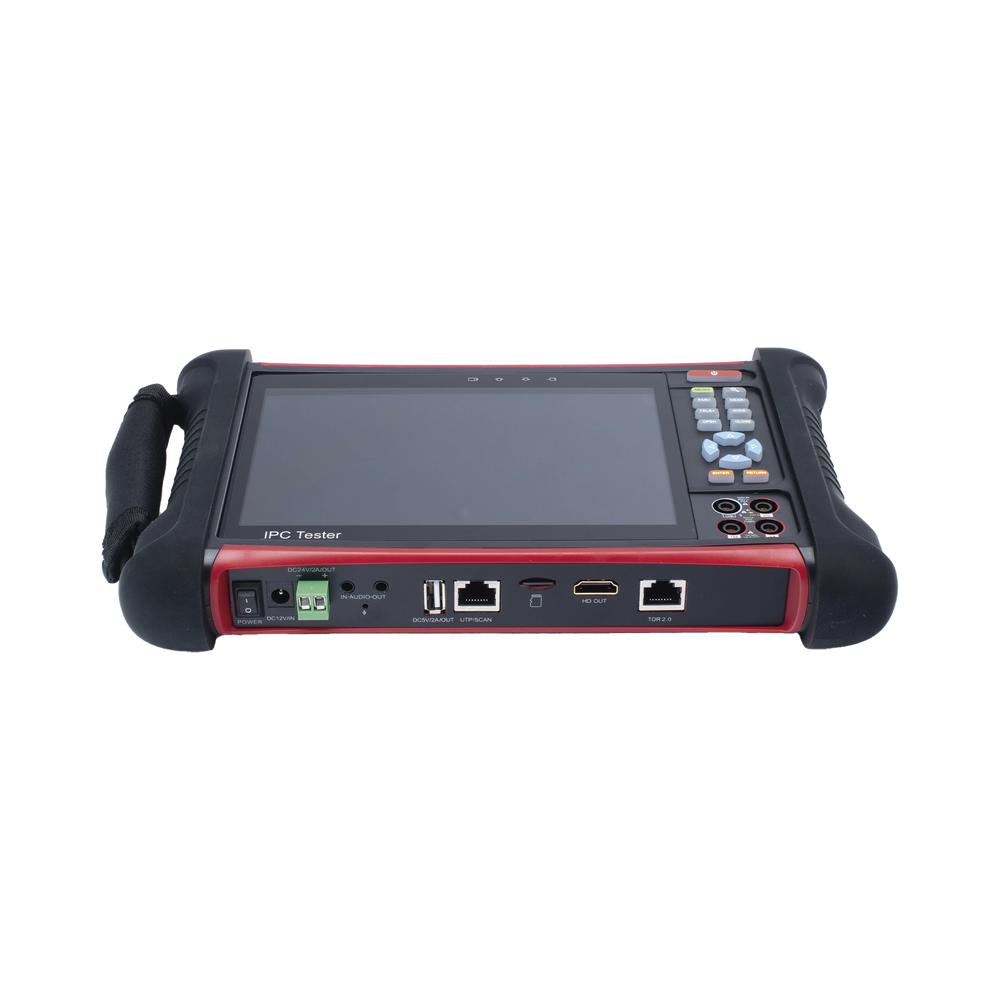

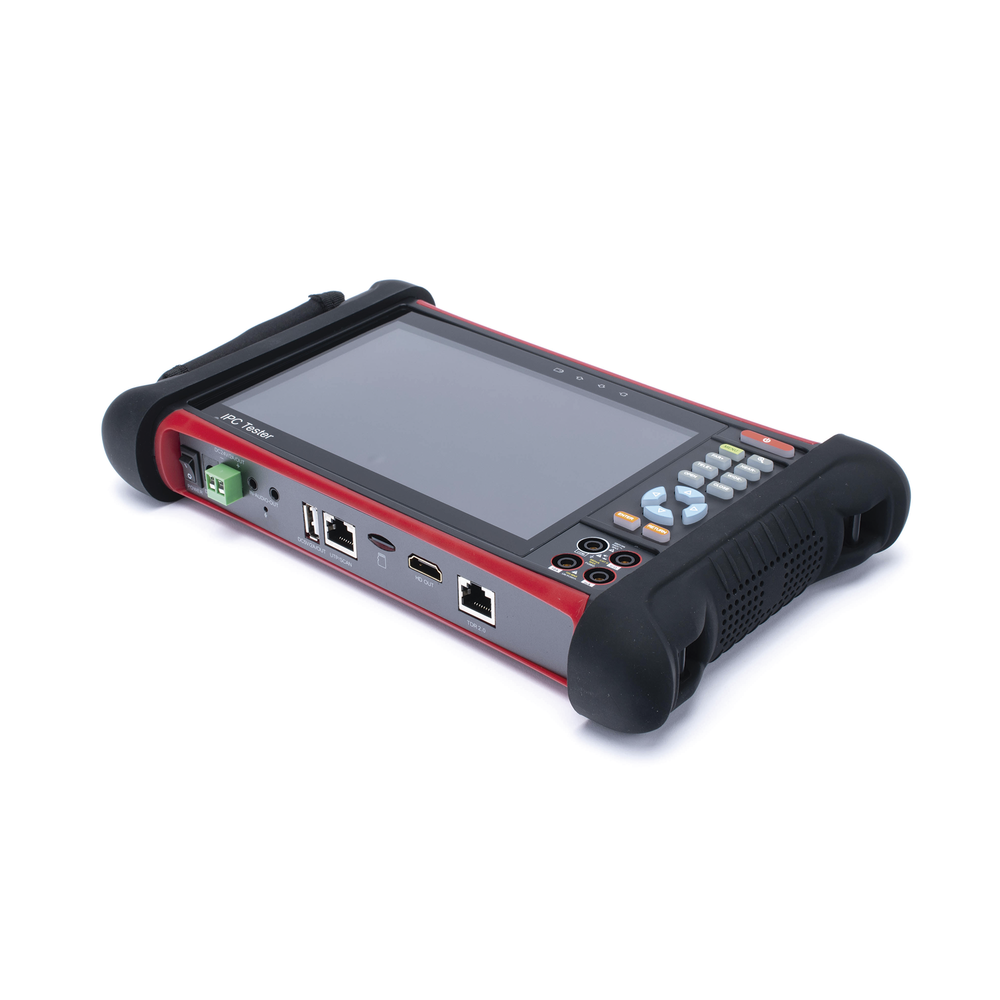

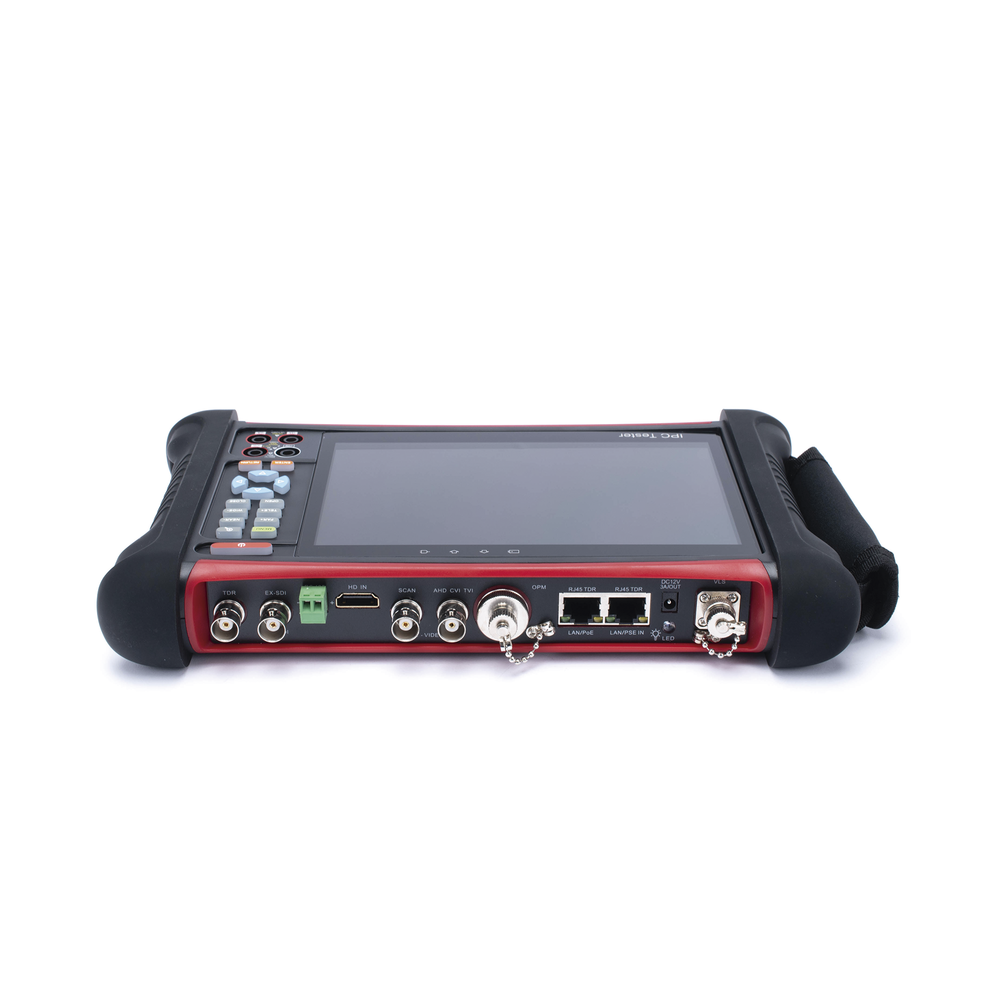

Android Video Tester with 7" LCD Screen for IP ONVIF / HD-TVI 8MP (TurboHD) / Analog, ONVIF, Wi-Fi, IP Scanner, Wi-Fi, HDMI Input/Optical Power Meter

Android Video Tester with 7" LCD Screen for IP ONVIF / HD-TVI 8MP (TurboHD) / Analog, ONVIF, Wi-Fi, IP Scanner, Wi-Fi, HDMI Input/Optical Power Meter

Applications

• Testing of HD-TVI 8MP, HD-CVI 8MP, AHD 5MP cameras.
• HD-SDI / EX-SDI Camera Test
• IP camera testing, support 4K, H264 and H265.
• HDMI input/output.
• Digital multimeter
• Android system, APK application installation
• Video level meter for analog camera.
• Short circuit and open wire measurement TDR.
• Optical power meter
• Visual fault locator.

Characteristics

• 7” touch display, 1920*1200p resolution
• Support 4K, H264 and H265, main stream video.
• Quick access to video, with a single touch detect everything on the network.
• Built-in WiFi to connect to a network, create a WiFi hotspot, supports WEB browser.
• Rapid ONVIF function, auto login, Hikvision camera activation.
• PTZ control via coaxitron and RS485, OSD menu call.
• HDMI input, 720×480p / 720×576p / 1280×720p / 1920×1080p / 1024×768p / 1280×1024p / 1280×900p / 1440×900p.
• Tone generator for wiring detection.
• Analog signal level meter, to detect signal drops in the cable.
• Visual fault locator, checking for optical fiber breaks, cracks, bending faults, etc.
• Optical power meter, can measure the value of optical power.
• Open cable and short circuit measurement, cable length and short circuit measurement (BNC cable, network cable, etc.)
• HDMI 1080p output.
• BNC output for testing video input on recorders.
• LAN port traffic monitor, displays upload and download speeds of a network, whether via LAN or WiFi.
• Screen lock.
• Supports over 80 custom IP camera protocols.
• Supports IP cameras via RTSP.
• Supports 24W PoE camera power.
• DC voltage output 12v 2A max.
• 5V 2A USB output.
• Voltage measurement by PoE.
• Audio test with input and output.
• Bandwidth test.
• Lithium-ion polymer battery, a highly efficient device, can work for 10 hours in normal use and charges in less than 6 hours.
