8-Port 10/100 Mbps Unmanaged Desktop Switch

8-Port 10/100 Mbps Unmanaged Desktop Switch

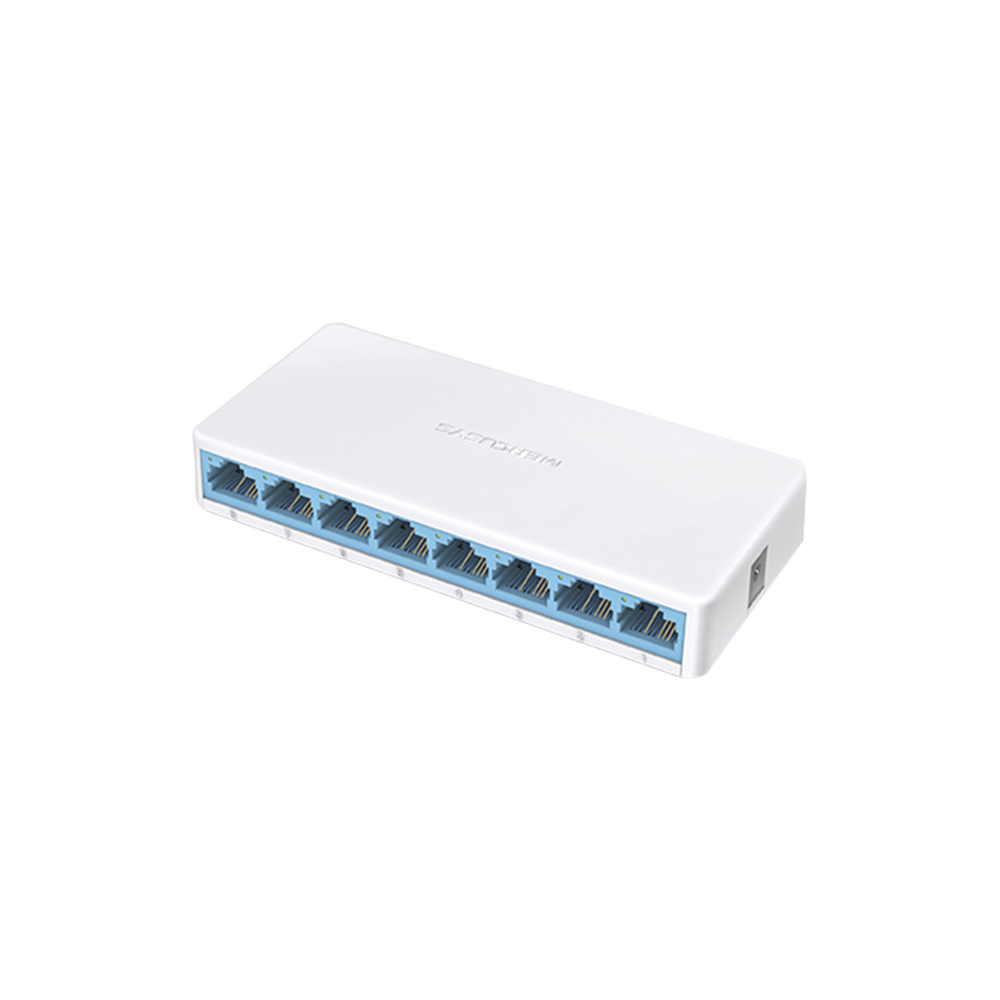

Roughly the size of a smartphone, the MS108 can be placed anywhere in your home without taking up too much space. Its fanless design allows it to remain discreet, regardless of how long it's been in use.

• Eight 10/100Mbps auto-negotiation RJ45 ports with auto MDI/MDIX supported
• Easy expansion of the wired network
• Compact design for flexible accommodation
• Easy to use setup (plug and play), no configuration required

Specs

• 8 10/100Mbps auto-negotiation ports, auto-MDI/MDIX
• IEEE 802.3, IEEE 802.3u, IEEE 802.3xCSMA/CD Standards and Protocols
• Buffer capacity 768 Kb
• Jumbo Frame 2 KB
• Switching Capacity 1.6 Gbps
• CE, RoHS Certifications

Physical and electrical characteristics

• Operating temperature: 0â °C ~ 40â °C (32â °F ~ 104â °F)
• Storage temperature: -40â °C ~ 70â °C (-40â °F ~ 158â °F)
• Dimensions (WxDxH) 127 x 60.3 x 22 mm
• External power supply 5 VDC/0.6 A

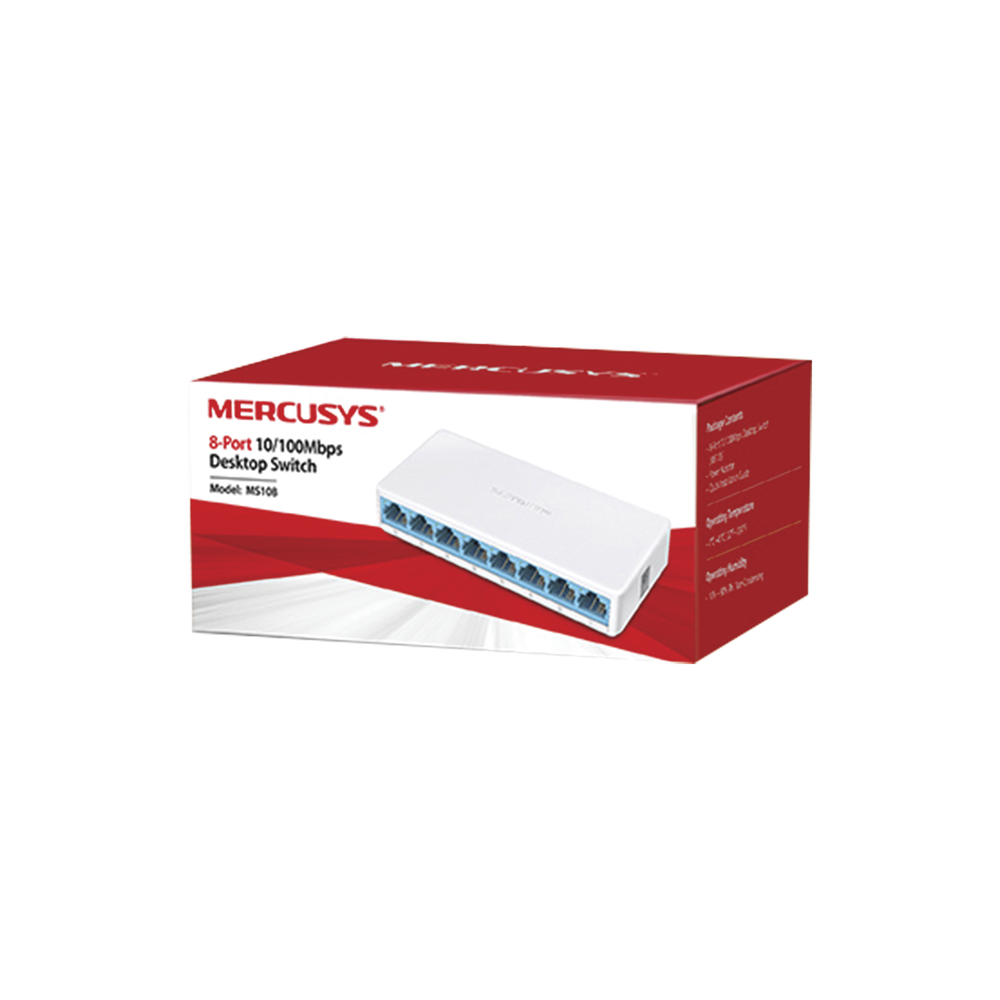

Includes

• MS108 Desktop Switch
• Power adapter
• Quick installation guide
• Ethernet cable
