Kilo-EherHaul™ Series

Multigigabit Full Duplex Backhaul Links in 70/80 GHz

• Siklu's Kilo-EherHaul Series products are the most widely deployed in the world in the millimeter wave 70/80 GHz bands.
• They are typically installed on roofs or self-supporting towers, with antennas from 0.5 to 2 ft depending on the required range.
• Capacities range from 1 Gbps Real Full Duplex on the EH-1200FX series, 2 Gbps Real Full Duplex on the EH-2500FX series, and up to 10 Gbps Real Full Duplex on the EH-8010FX series.
• They support IP67 for all types of climates.
• Real-time connectivity with latency < 10 µ sec for critical applications such as video and voice.
• Synchronized adaptive modulation with 8 levels of QoS prioritization.
• Immune to interference in the 70/80GHz band with FDD.
• Up to 10 GHz of spectrum available in the 70/80 GHz bands, pencil-width beams with a tiny Fresnel zone.

Kilo-EherHaul™ EH-1200FX Series Full Backhaul Link, 1 Gbps True Full Duplex - Free Band in Mexico - No Interference

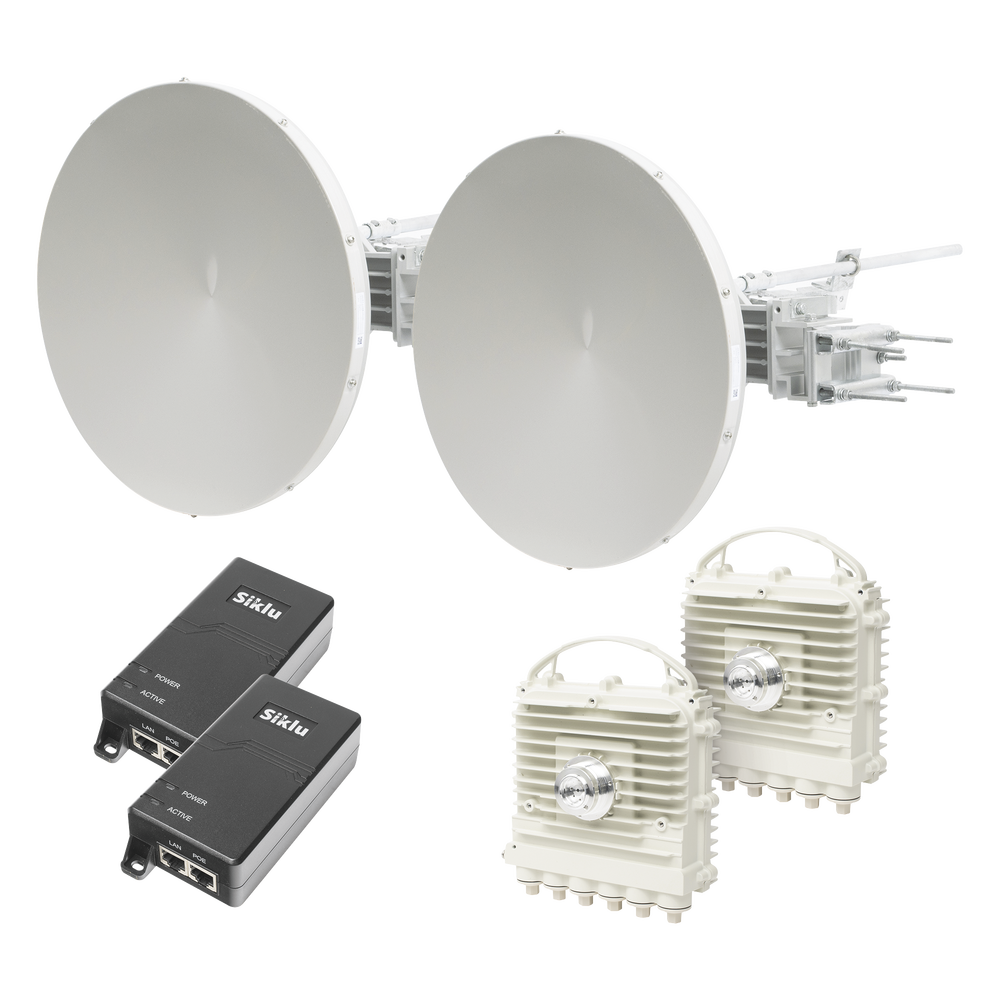

Products included in the kit model EH-1200FX-KIT-2FT

Note: The Sub-6 GHz backup link license, model EH-OPT-EXTENDMM, is already installed on the radios. If not, please request it from your sales agent with your purchase invoice.

Note: For sites with a high probability of rain, it is suggested to use the EH-OPT-EXTENDMM license for a backup link in the sub-6 GHz band. Please consult with network engineering for a suggestion for radios in Sub-6 GHz.

General Characteristics

• Up to 1 Gbps Full Duplex capacity (1 Gbps Download / 1 Gbps Upload)
• Recommended distance up to 5 km for greater availability.
• E-Band Operation at 71-76/81-86 GHz FDD No Interference .
• Channel widths of 250/500 MHz.
• Typical latency in <10µ sec .
• Adaptive modulation to adjust speed according to the weather.
• Supports advanced AES 128-bit and 256-bit security.
• Power supply via PoE: 36 - 57 Vdc.
• Supports PoE-in PoE++ (IEEE 802.3at).
• Power consumption: 60W
• Operating temperature: -45 to 55° C.
• IP67 grade protection for any climate.

Administration and provisioning

• Zero-touch setup
• Web programming interface.
• Supports SNMP v2/3, TACACS, Radius
• Supports VLANs.
• Supports Link Aggregation LAG and LACP (802.3ad)
• Supports 16KB jumbo frames.
• 8 levels of QoS priority.
• Supports AES-128 and 256 bit security, with EH-OPT-AES license.
• LAG and LACP aggregation (IEEE 802.3ad).
• Jumbo frames 16KB.

Physical Characteristics

• 2 Gbps RJ45 copper ports ETH1 and ETH2.

Siklu EtherHaul Antenna Alignment

Installation of E-Band radios with 1 and 2 ft antennas

Calculate your own link with Link Budget Calculator: http://lbc.siklu.com/index.php
