• Enlace a la velocidad de la fibra, Banda Libre en México, Sin Interferencia, 2 Gbps Reales Full Duplex, 5 km
1 1

Siklu

Fiber optic speed link, free bandwidth in Mexico, interference-free, 2 Gbps full duplex, 5 km

Fiber optic speed link, free bandwidth in Mexico, interference-free, 2 Gbps full duplex, 5 km

$40.035.353 COP
$26.707.846 COP $40.035.353 COP
Sale Sold out
Shipping calculated at checkout.

Fiber optic speed link, free bandwidth in Mexico, interference-free, 2 Gbps full duplex, 5 km

Kilo-EherHaul™ Series

Multigigabit Full Duplex Backhaul Links in 70/80 GHz

  • Siklu's Kilo-EherHaul Series products are the most widely deployed in the world in the millimeter wave 70/80 GHz bands.
  • They are typically installed on roofs or self-supporting towers, with antennas from 0.5 to 2 ft depending on the required range.
  • Capacities range from 1 Gbps Real Full Duplex on the EH-1200FX series, 2 Gbps Real Full Duplex on the EH-2500FX series, and up to 10 Gbps Real Full Duplex on the EH-8010FX series.
  • They support IP67 for all types of climates.
  • Real-time connectivity with latency < 10 µ sec for critical applications such as video and voice.
  • Synchronized adaptive modulation with 8 levels of QoS prioritization.
  • Immune to interference in the 70/80GHz band with FDD
  • Up to 10 GHz of spectrum available in the 70/80 GHz bands, pencil-width beams with a tiny Fresnel zone.

Kilo-EherHaul™ EH-2500FX Series Full Backhaul Link, 2 Gbps True Full Duplex - Free Band in Mexico - No Interference

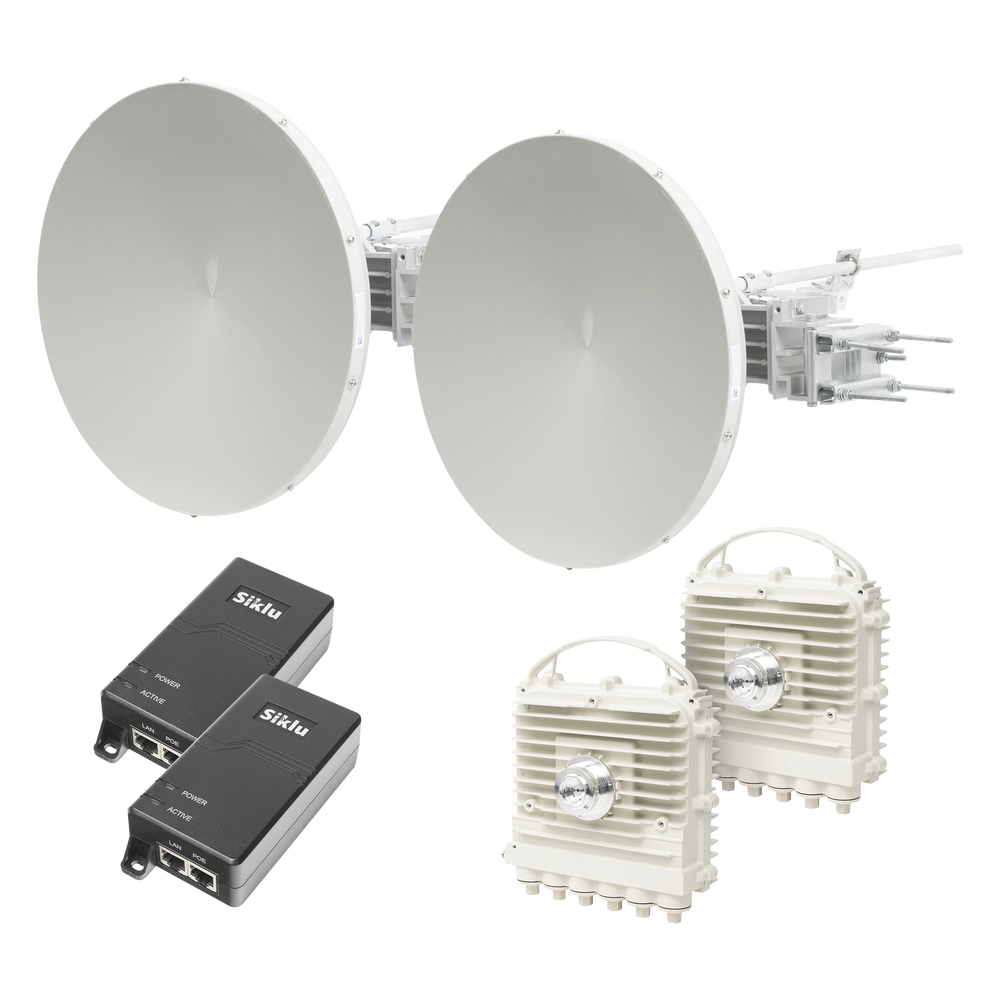

Products included in the EH-2500FX-KIT-2FT model kit

(Licenses included in the kit apply only to purchases made in 2021 and while supplies last)

Model Description Amount
EH-2500FX-ODU-L-EXN EH-2500FX Low Frequency Radio 1
EH-2500FX-ODU-H-EXN EH-2500FX High Frequency Radio 1
EH-ANT-2FT-B 2 ft/65cm, 50 dBi dish 2
AX-IN-60W-AC-POE-US Gigabit POE injector 55 Vdc, 60 W 2

Note: The Sub-6 GHz Backup Link License, model EH-OPT-EXTENDMM, and the 2 Gbps Capacity Upgrade License, model EH-UPG-1000-2000, are sold separately.

Note: For sites with a high probability of rain, it is suggested to use the EH-OPT-EXTENDMM license for a backup link in the sub-6 GHz band. Please consult with network engineering for a suggestion for radios in Sub-6 GHz.

General Characteristics

  • Up to 2 Gbps Full Duplex capacity (2 Gbps Download / 2 Gbps Upload)
  • Recommended distance up to 5 km for greater availability.
  • E-Band Operation at 71-76/81-86 GHz FDD No Interference .
  • Channel widths of 250/500/750/1250 MHz.
  • Typical latency in <10µ sec .
  • Adaptive modulation to adjust speed according to the weather.
  • Supports advanced AES 128-bit and 256-bit security.
  • Power supply via PoE: 36 - 57 Vdc.
  • Supports PoE-in PoE++ (IEEE 802.3at), 45W without PoE-out, 60W with PoE-out
  • Power consumption: 60W
  • Operating temperature: -45 to 55° C.
  • IP67 grade protection for any climate.

Administration and provisioning

  • Zero-touch setup
  • Web programming interface.
  • Supports SNMP v2/3, TACACS, Radius
  • Supports VLANs.
  • Supports Link Aggregation LAG and LACP (802.3ad)
  • Supports 16KB jumbo frames.
  • 8 levels of QoS priority.
  • Supports AES-128 and 256 bit security, with EH-OPT-AES license.
  • LAG and LACP aggregation (IEEE 802.3ad).
  • Jumbo frames 16KB.

Physical Characteristics

  • 2 Gbps RJ45 copper ports ETH1 and ETH2.
  • 2 SFP SMF/MMF ports. ETH3 and ETH4.

Siklu EtherHaul Antenna Alignment

Installation of E-Band radios with 1 and 2 ft antennas

Calculate your own link with Link Budget Calculator: http://lbc.siklu.com/index.php

    70-80 GHz band, Immune to interference, Over one million packets per second, 2 Gbps Downlink + 2 Gbps Uplink, Supports Sub-6 GHz link licensing, Fiber optic speed in the air

Out of stock

MODELO: EH-2500FX-KIT-2FT
