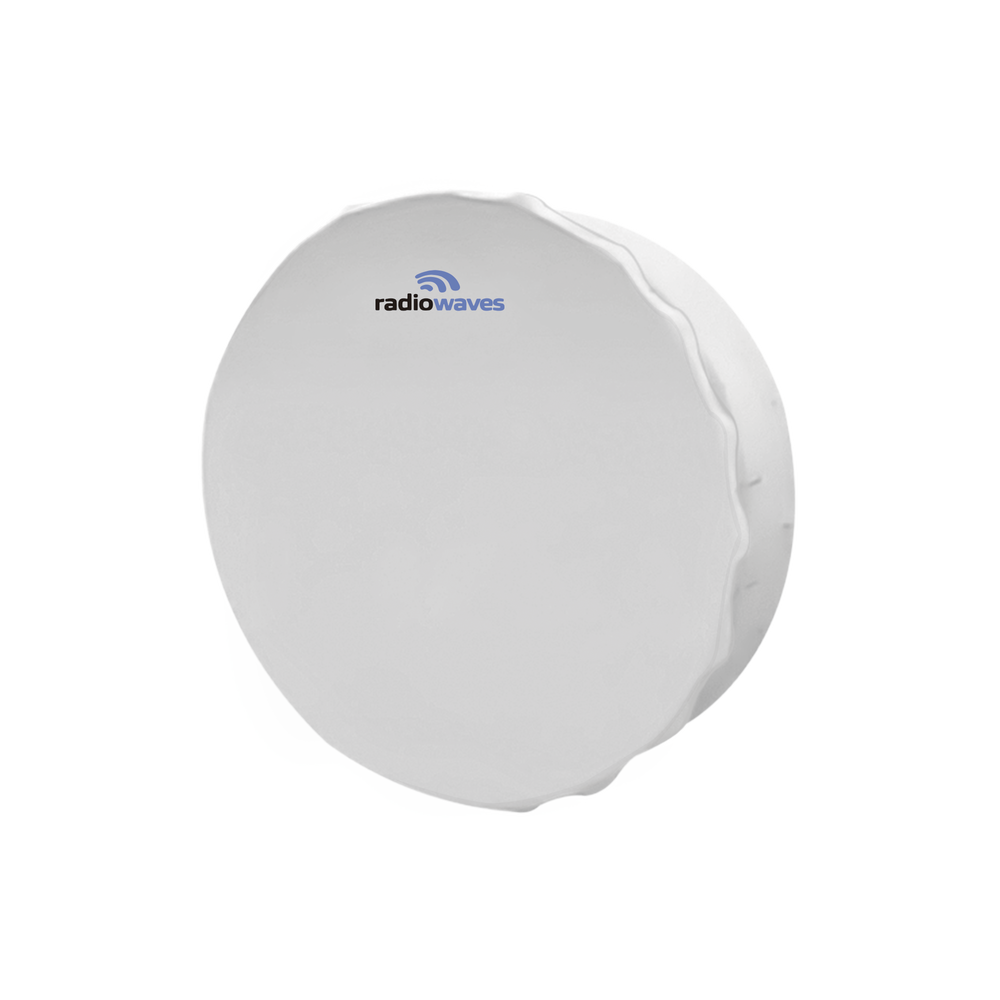

Directional Antenna ideal for links up to 100km, Dimensions (8 ft), (5.25 - 5.85) GHz, 40 dBi, Radome included, 2 N-female connectors

Directional Antenna ideal for links up to 100km, Dimensions (8 ft), (5.25 - 5.85) GHz, 40 dBi, Radome included, 2 N-female connectors

The HPDx-5.2NS series of professional satellite dishes from Radiowaves offers a complete line of high-performance Carrier-Class antennas designed to establish highly reliable and robust links over long distances. Available in both open and licensed bands, they are factory-preassembled to optimize installation times, feature high-quality materials, and feature ultra-rugged mounts for fine azimuth and elevation adjustments. They minimize recurring on-site maintenance by providing a 7-year warranty on peak performance.

Some Features

-High-performance Carrier-Class antennas.
- Radome included to reduce wind problems.
-Super high selectivity for interference mitigation.
-Super high attenuation behind the dish to avoid signal loss (Front-to-Back Ratio).
-Pre-assembled antennas for easy field installation.
-Super robust mount for precise alignment in azimuth and elevation.
-They withstand all types of weather.
-They can be installed anywhere.

Electrical Specifications

Measurement: 2.4 m (8 ft).
Polarization : Double.
Connectors: N-Female (x2).
Frequency: 5.25 – 5.85 GHz.
Horizontal/vertical beamwidth : 1.5°.
Cross-polarization discrimination: 30 dB.
Front to Back Ratio (F/B) : 55 dB.
Low frequency gain: 40.2 dBi.
Mid-frequency gain: 40.7 dBi.
High frequency gain: 41.2 dBi.
Return loss: -14 dB.

Mechanical Specifications

Azimuth fine adjustment: ±5°.
Elevation fine adjustment: ±5°..
Net weight: 194.5 kg (424 lbs).
Operational wind speed: 145 km/h (90 mph).
Wind survival speed: 201 km/h (125 mph).
Operating temperature range: -40 to 60 °C.
Radome included.



Shipping Information

Dimensions: 249 (length) x 203 (width) x 218 (height) cm
/ 105 (length) x 63 (width) x 95 (height) in
Packaging: Wooden box.
Gross Weight: 508.9 kg (1122 lb)

https://youtu.be/oZ7vxkXRlUU

High-performance Carrier-Class antennas., Weatherproof., Mounts anywhere., Rugged mount for precise azimuth and elevation alignment.
