CentreCOM FS980M Managed Switch, 48-Port 10/100 Mbps Layer 3 + 4 SFP Ports

CentreCOM FS980M Managed Switch, 48-Port 10/100 Mbps Layer 3 + 4 SFP Ports

---

Ports:

48 10/100 Mbps ports.

4 Gigabit SFP ports.

Forwarding rate: 13.09 Million packets per second (Mpps).

Switching fabric: 17.6 Gbps.



Operating System:

AlliedWare Plus™.



Administration:

Command Line Interface (CLI).

Graphical user interface (GUI).

Telnet.

SSH.

SNMP v1, v2c & v3 monitoring.

Characteristics:

Access Control Lists (ACLs) based on Layer 2, 3 and 4.

Features of IPv6.

Eco-friendly with the environment.

IEEE 802.1x/MAC/Web authentication support.

Multicast support - IGMP snooping (IGMPv1, v2 and v3).

Storm protection.

Bridge Protocol Data Unit (BPDU) protection.

Tri-authentication.

QoS (Quality of Service):

• Eight priority queues.
• Bandwidth limit per port.
• Low latency traffic classification.

Redundancy features:

Ethernet Protection Switched Ring (EPSRing).

Loop protection.

Link Aggregation.

Spanning Tree Protocol (STP).

Multiple Spanning Tree Protocol (MSTP).

Rapid Spanning Tree Protocol (RSTP).

Supported Layer 3 functions:

Static routing.

RIP.

Physical and Electrical Characteristics:

Power supply: 100-240 VAC, 50-60 Hz.

Dimensions: 43.2 x 440 x 257 mm.

Weight: 3.4 kg.

Operating Temperature: 0 to 50° C.



Warranty:

1 year, for an additional year register the product at the following link:

http://www.alliedtelesis.com/support/maintenance-and-warranty/register

---

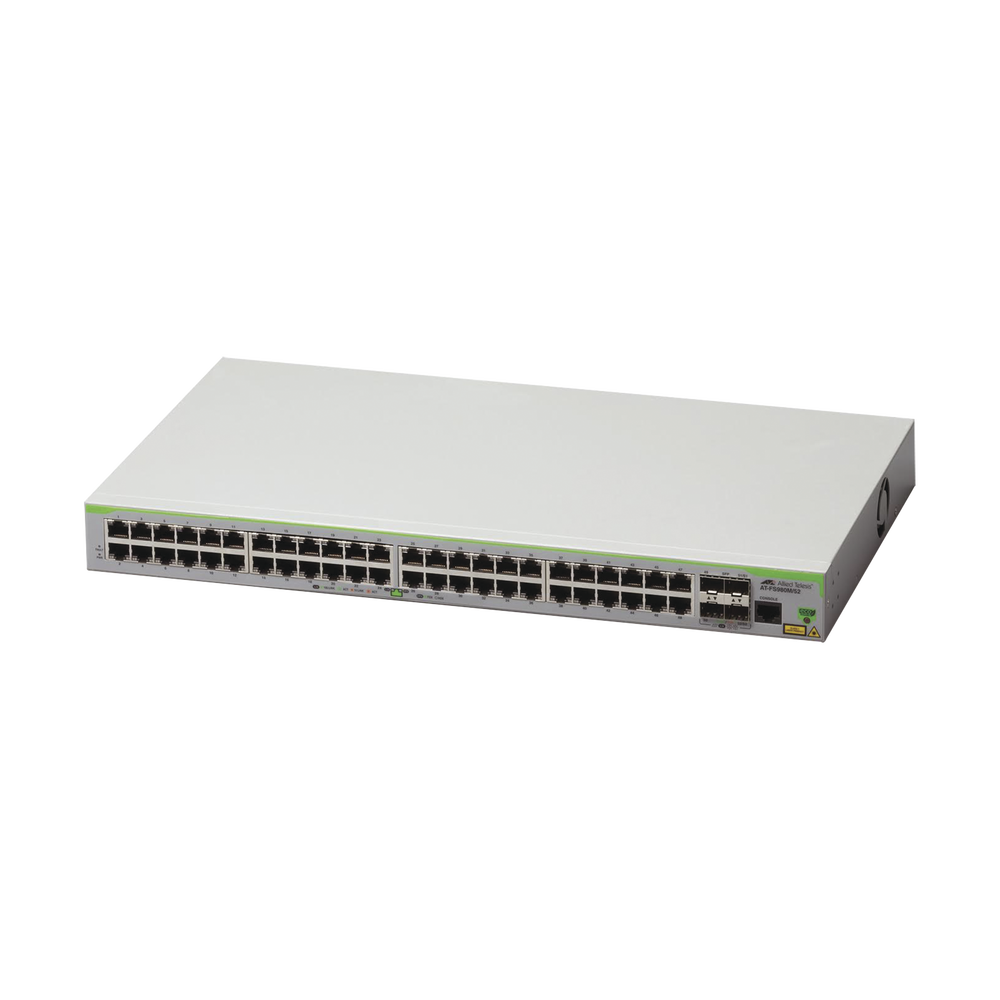

Front panel of the FS980M/52 switch.

---

Graphical user interface (GUI) for easy management., Up to 4094 VLANs., Layer 3 functions supported: Static routing and RIP., Multicast support (IGMP snooping).
