(OmniTIK 5 PoE ac) 5GHz 802.11a/n/ac Omnidirectional Access Point. Now with 4 PoE Ports with af/at Output.
(OmniTIK 5 PoE ac) 5GHz 802.11a/n/ac Omnidirectional Access Point. Now with 4 PoE Ports with af/at Output.
Couldn't load pickup availability
(OmniTIK 5 PoE ac) 5GHz 802.11a/n/ac Omnidirectional Access Point. Now with 4 PoE Ports with af/at Output.
We are excited to introduce a significant update to our popular OmniTIK 5GHz access points!

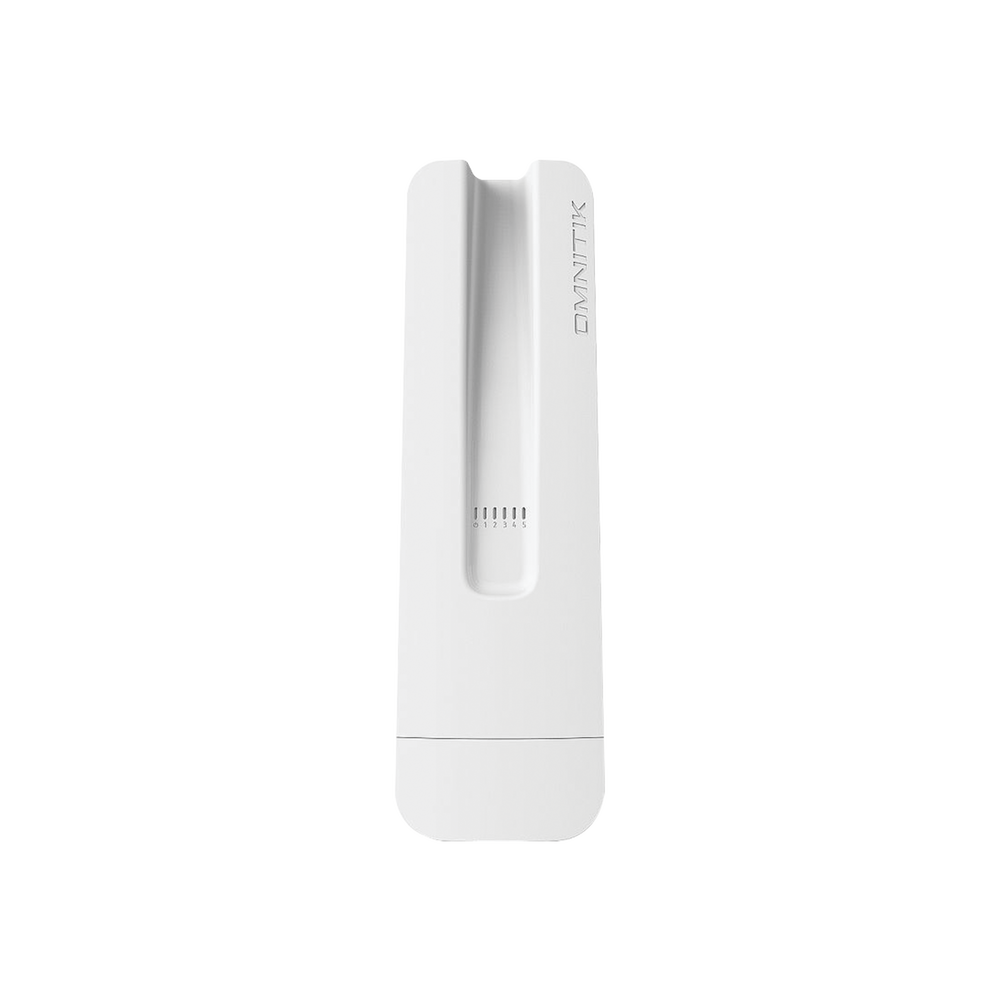

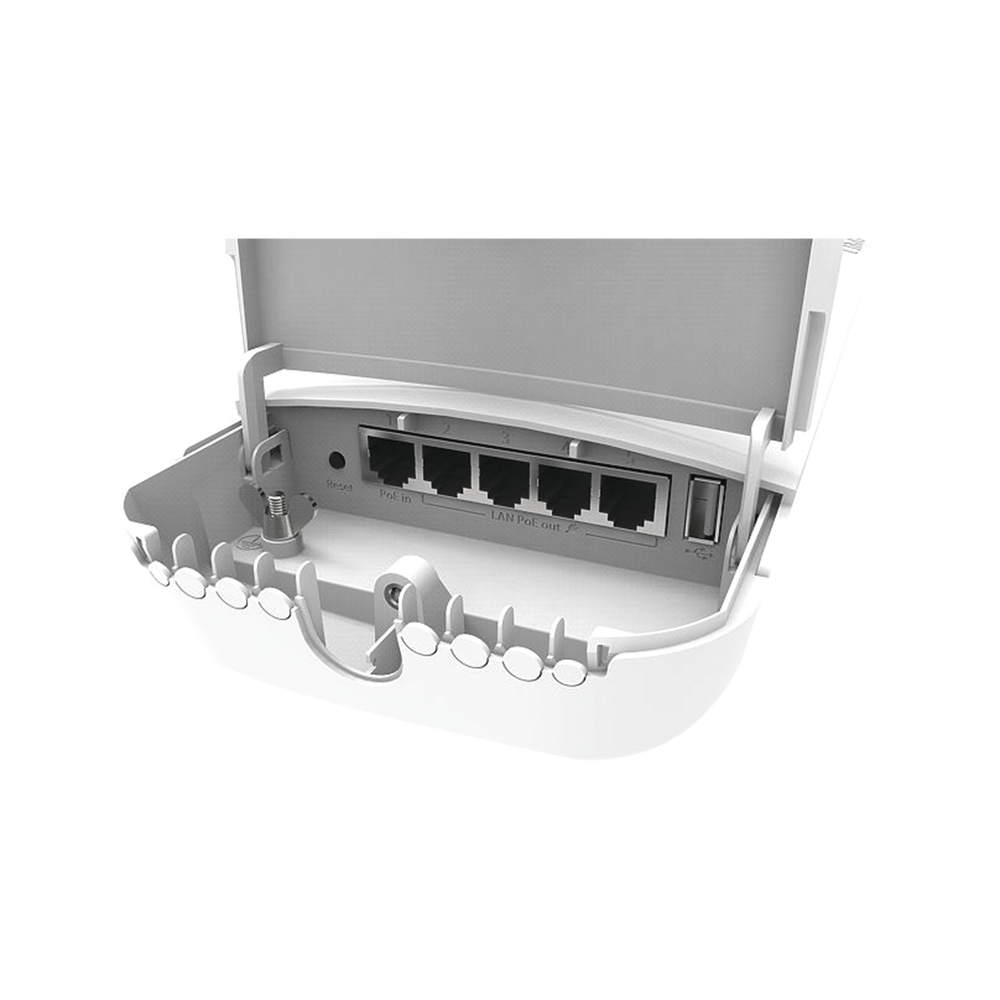

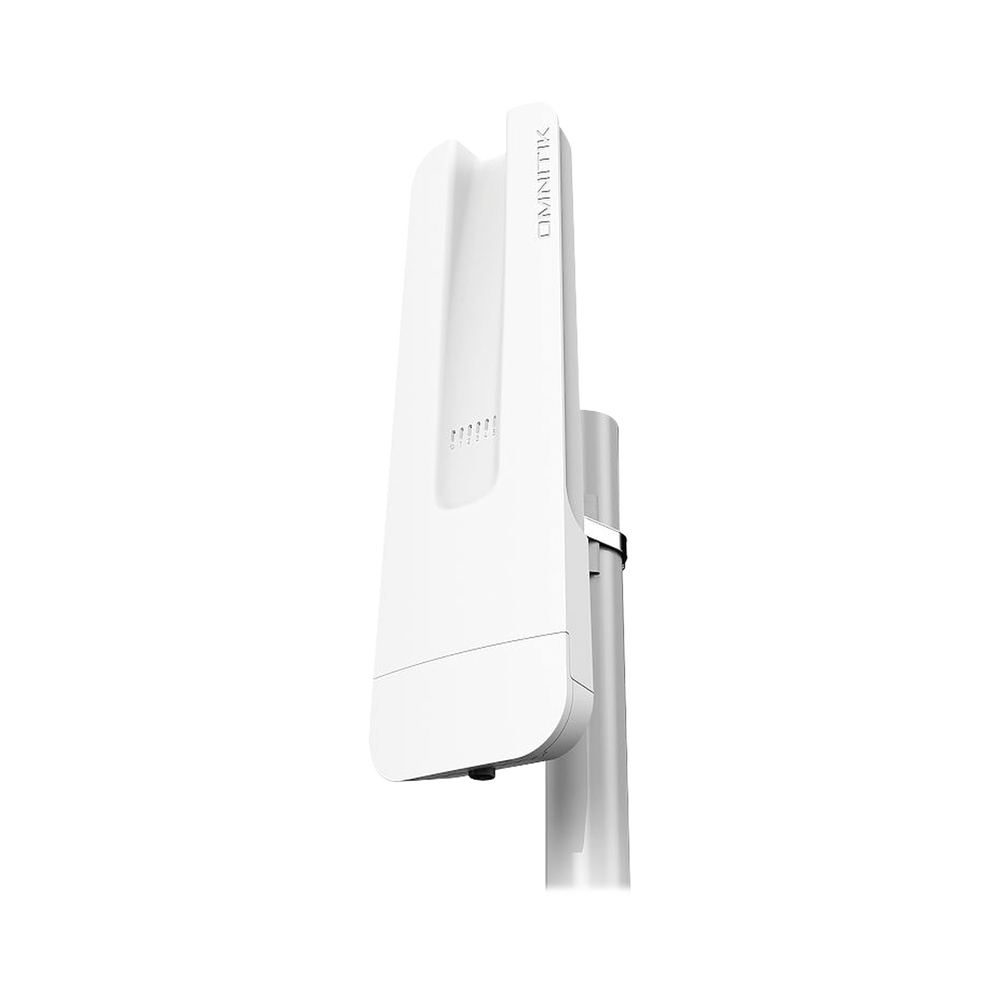

The OmniTIK 5 PoE ac features five Gigabit Ethernet ports and 802.11ac support. It is equipped with a powerful 720MHz CPU, 128MB RAM, high-power 802.11a/n/ac dual-chain wireless (AC-compliant and backward compatible with regular 802.11a/n CPE), and comes with a newly designed weatherproof outer casing, two built-in 7.5dBi 5GHz omni-directional antennas, a power supply, a PoE injector, and a mounting kit.
It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE-capable devices with the same voltage applied to the unit. Fewer power adapters and cables to worry about! It can power af/at mode B (4,5+) (7,8-) compliant devices, if a 48-57 input voltage is used.
Specs
| Details | |
|---|---|
| Product code | RBOmniTikPG-5HacD |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| Nominal CPU frequency | 720 MHz |
| Dimensions | 416 x 129 x 58 mm |
| RouterOS License | 4 |
| Operating system | RouterOS |
| RAM size | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Room temperature tested | -40°C to 70°C |
| MTBF | Approximately 200,000 hours at 25°C |
Feeding
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input voltage | 12-57 V |
| Number of DC inputs | 1 (PoE input) |
| Maximum energy consumption | 66 W |
| Maximum power consumption without accessories | 18 W |
| Fan count | Passive |
PoE-out
| Details | |
|---|---|
| PoE output ports | Ether2-Ether5 |
| PoE out | 802.3af/at |
| Maximum output per output port (input <30 V) | 1 A |
| Maximum output per output port (input>30V) | 450 mA |
| Maximum total output (A) | 2 A |
Wireless specifications
| Details | |
|---|---|
| Maximum wireless data rate of 5 GHz | 867 Mbit/s |
| Number of 5 GHz wireless chains | 2 |
| 5 GHz Wireless Standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 7.5 |
| 5GHz Wireless Chip Model | |
Out of stock
MODELO: RBOMNITIKPG-5HACD
