5 GHz directional panel antenna, 23 dBi, N-type connector for outdoor use

5 GHz directional panel antenna, 23 dBi, N-type connector for outdoor use

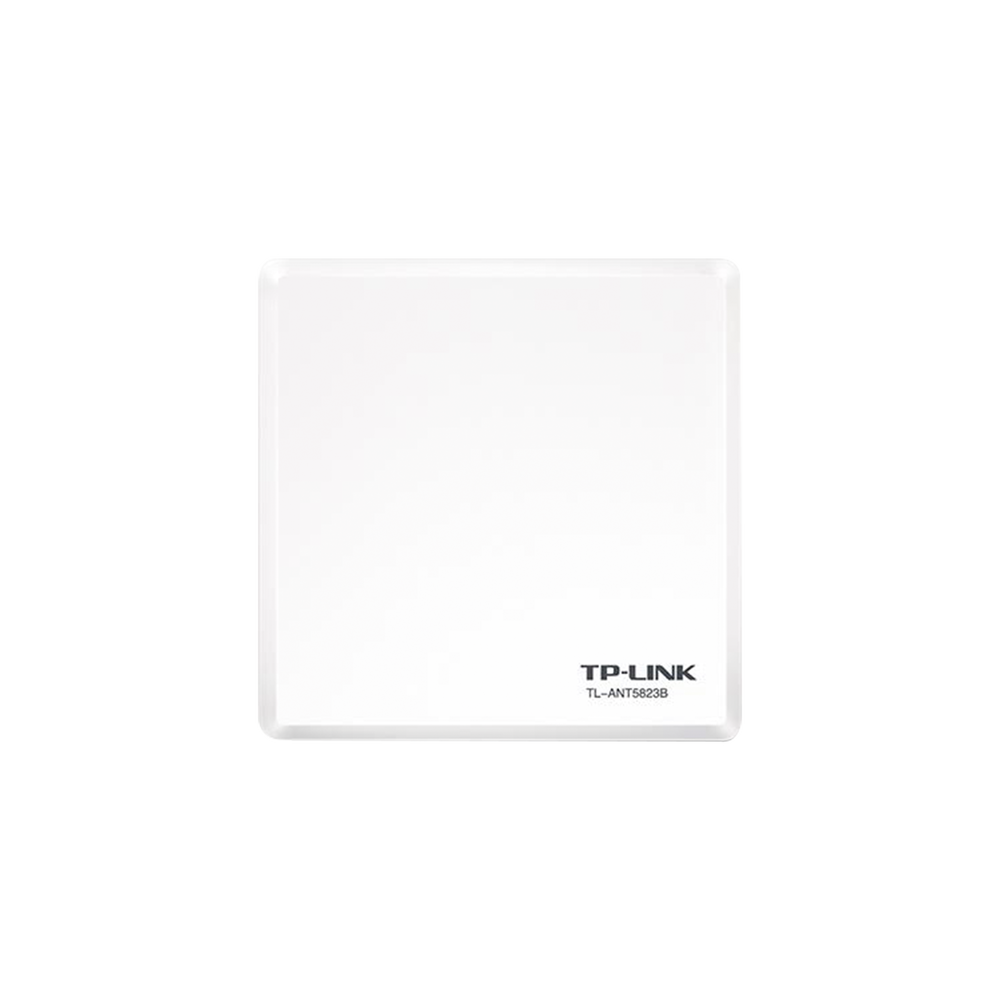

The TL-ANT5823B's 23dBi 5GHz outdoor panel antenna is ideal for outdoor use, connecting your wireless access points/routers that operate on the less-crowded 5GHz band. It can be used for long-distance point-to-point connections, providing you with stable wireless connections. It's very easy to use, with no configuration or software installation required.

Characteristics

• Frequency 5.15 ~ 5.85 GHz
• Impedance 50 ohms
• Get 23dBi VSWR (MAX.) ≤1.5
• HPOL Beamwidth 12 V
• POL Beamwidth 12
• Vertical or Horizontal Polarization
• Connector type N female
• Wall mount / Pole mount
• Operating temperature -40 ℃ ~ 60 ℃ (-40 ℉ ~ 140 ℉)
• Storage temperature. -40 ℃ ~ 60 ℃ (-40 ℉ ~ 140 ℉)
• Package Contents 23dBi
• Outdoor Panel Antenna
• Installation mounting kits
• Quick Installation Guide
• F/B ratio > 28dB
• Maximum input power 100W
• Mounting mast diameter Ø30 ~ Ø50 mm
• Survival wind speed 241 km/h
• ABS Radoma Material
• RoHS, WEEE standards
• Dimension 320 × 320 × 20 (mm)
