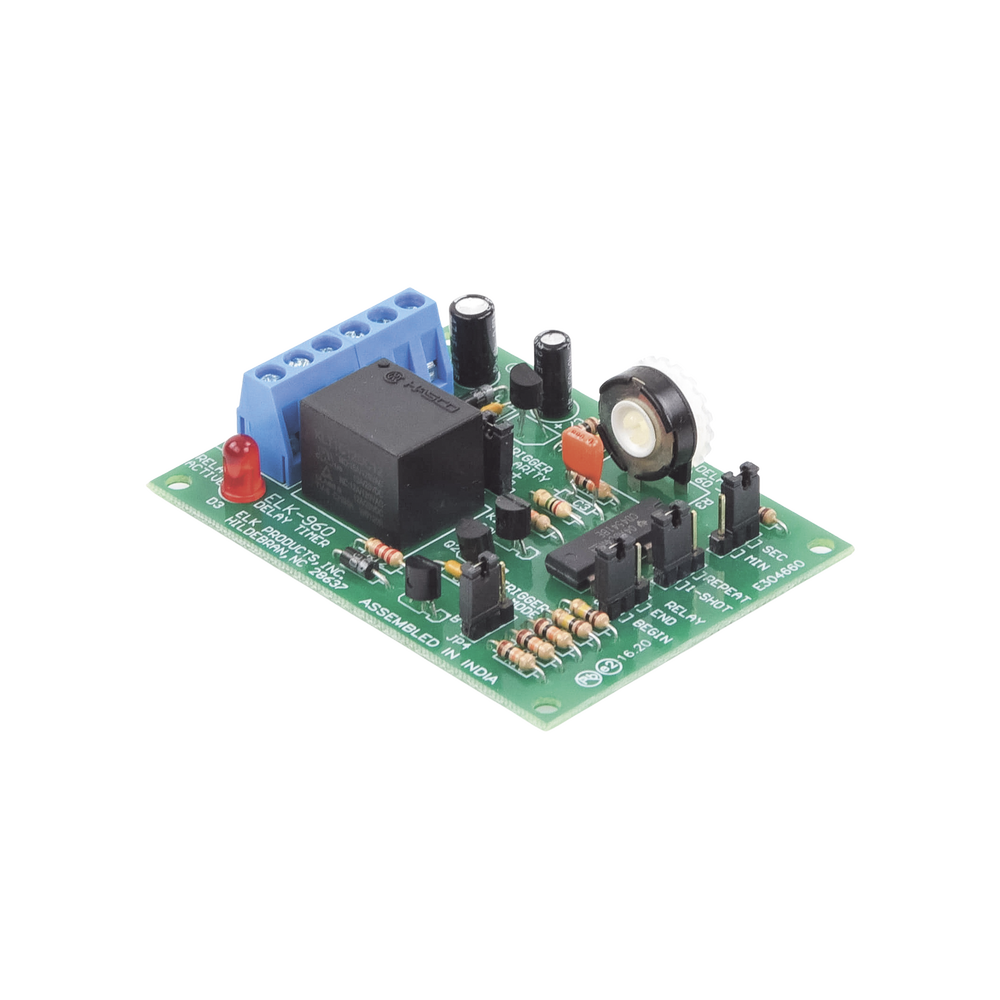

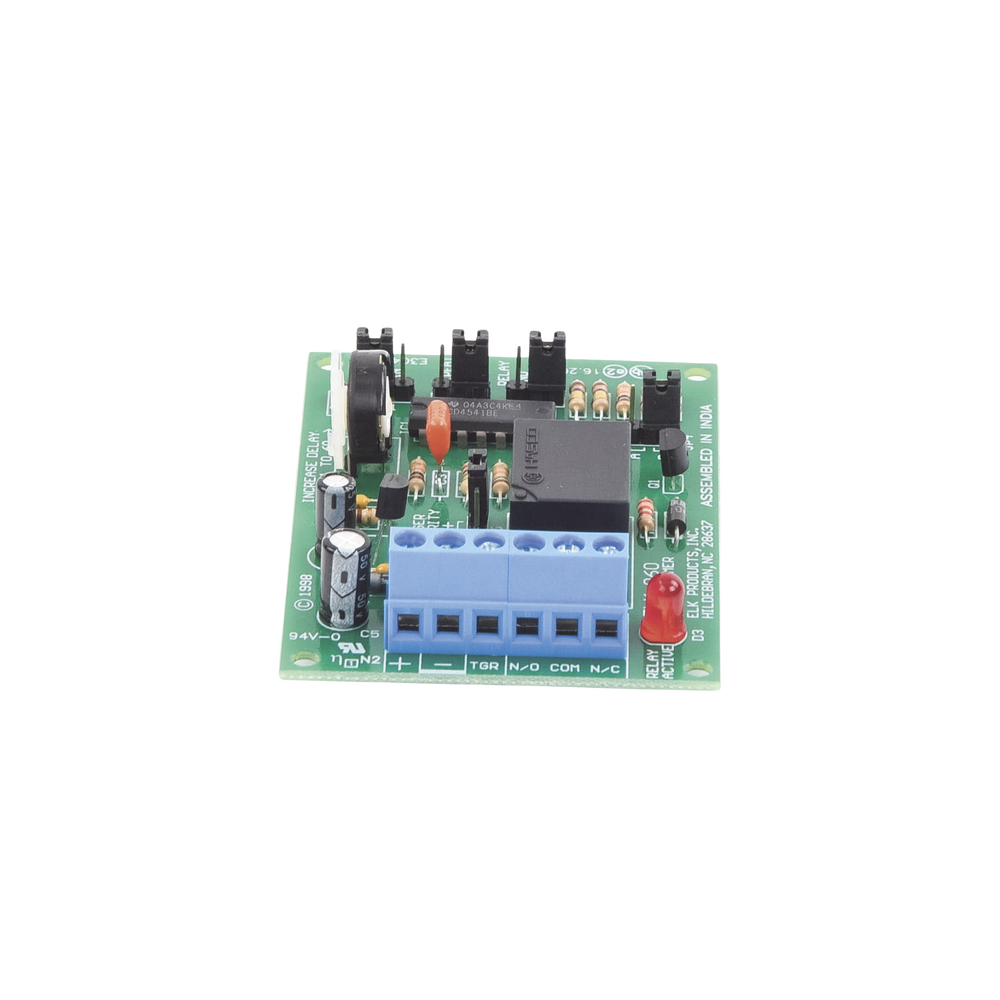

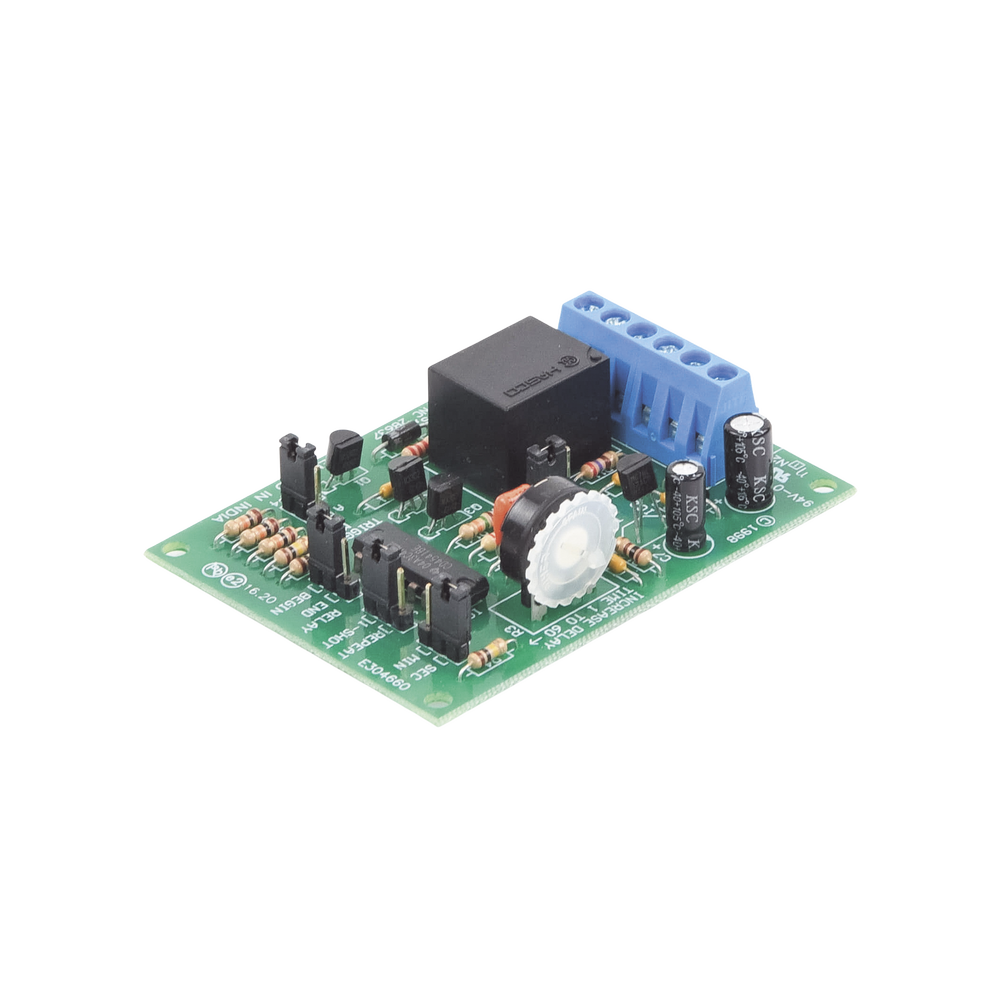

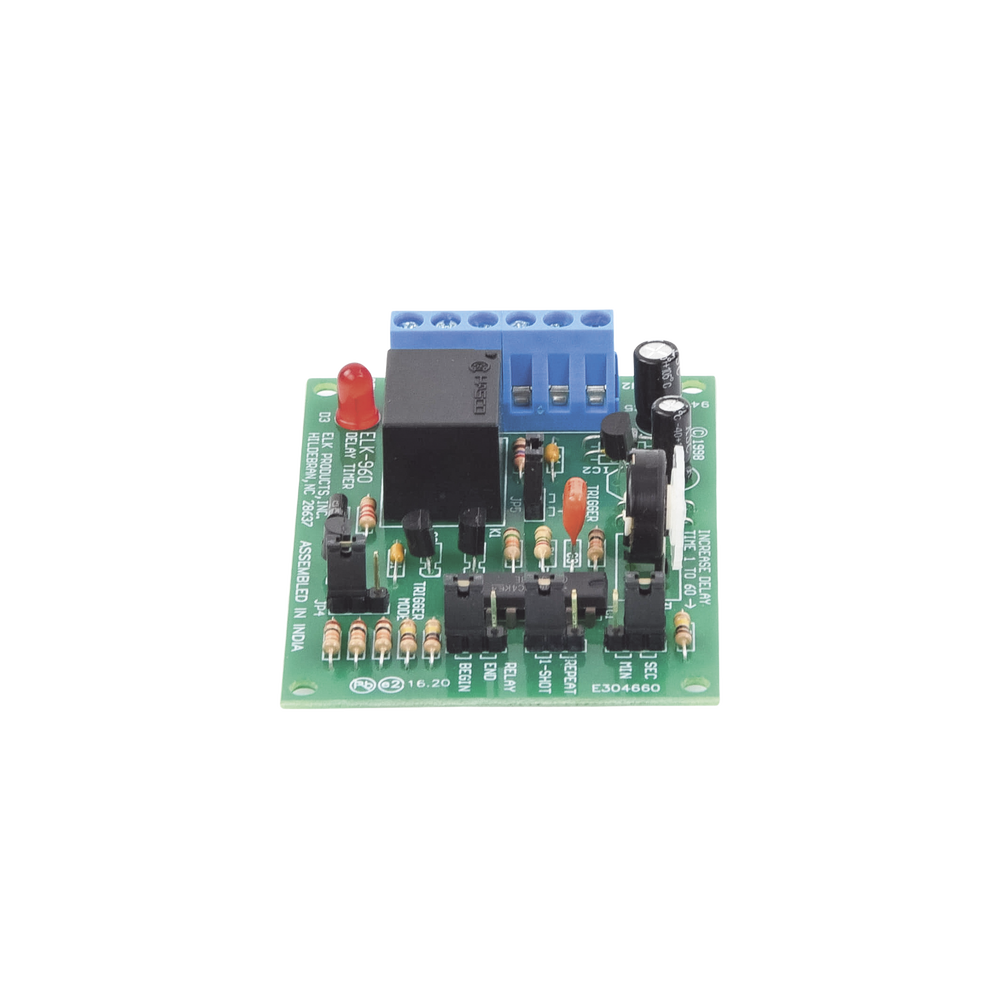

Relay with Timer.

Relay with Timer.

• Power supply from 12 to 24 Vdc at 40 mA.
• Positive or negative trigger activation from 4.5 to 24 Vdc with low current consumption.
• SPDT relay output.
• Initial state of the relay selected by ON/OFF.
• Output modes: permanent or pulse ON/OFF.
• LED indicator for relay status.
• Delay setting 3 to 60sec. or 3 to 60min.
• Industrial relay from 7 to 30Vdc, 10 to 125Vac.
• Alarm trigger and light control application by shots.

*1 Year warranty.
